◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#16868) — 47 parça
çizim 15181
32 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 0906-1204 ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1205- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-100-0 01 1 0906-1204 ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-100-0 01 1 1205- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594 		8-97383-577-1 01 1 0906-1204 ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594 		8-97383-577-1 01 1 1205- ● ●

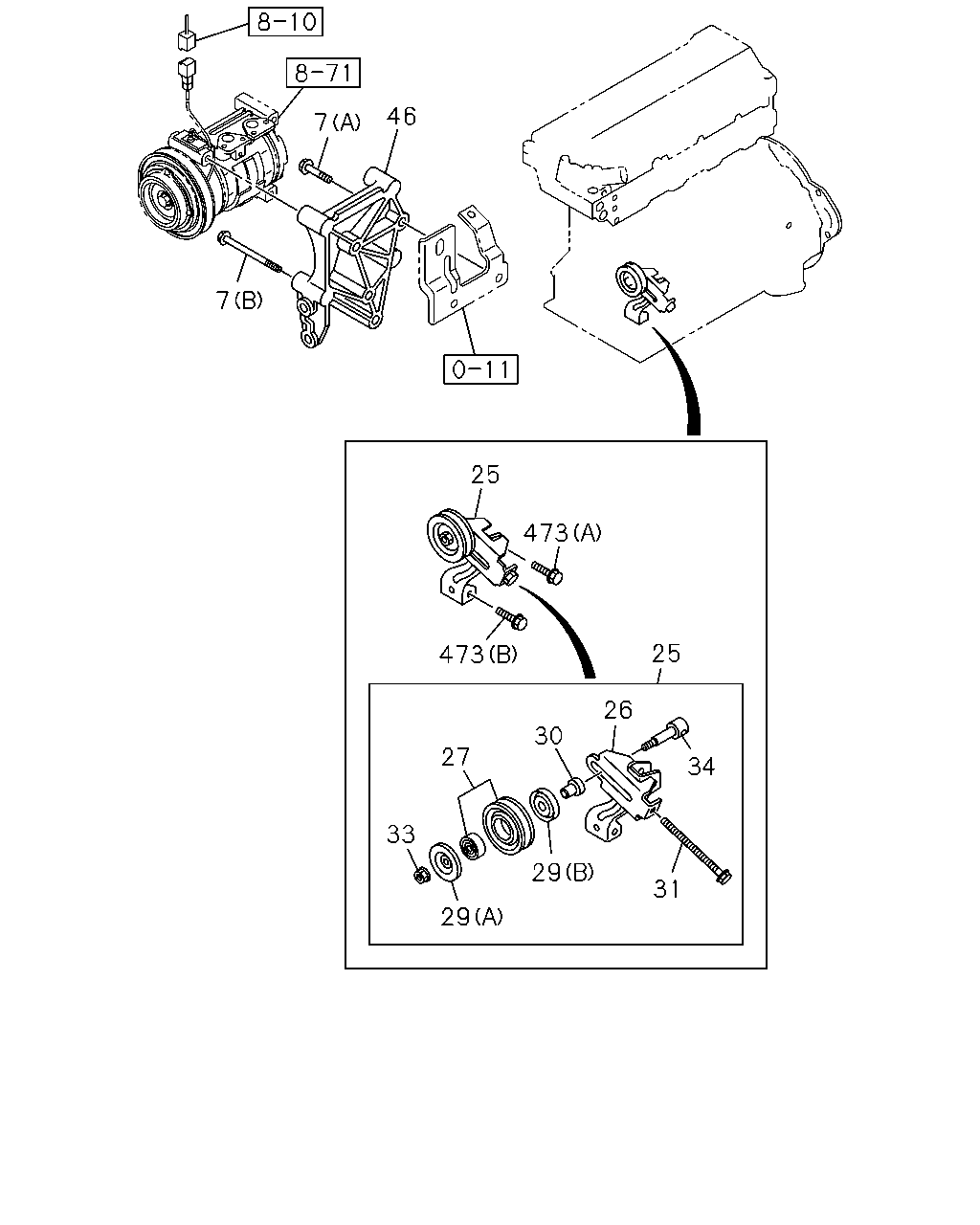

çizim 61699
46 7 7 25 473 25 473 26 30 27 34 33 29 31 29
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; BRKT
(A) M10X45 FLANGE 		0-28151-045-0 02 1 0906-1204 ●
7 BOLT; BRKT
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1205- ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 0906-1204 ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 1205- ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X130 FLANGE 		0-28156-013-0 01 1 0906-1204 ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X130 FLANGE 		0-28156-013-0 01 1 1205- ● ●
7 BOLT; BRKT
EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 02 1 0906-1204 ●
7 BOLT; BRKT
EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 02 1 1205- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 0906-1204 ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1205- ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-031-1 01 1 0906-1204 ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-031-1 01 1 1205- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97386-869-0 01 1 0906-1204 ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97386-869-0 01 1 1205- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97384-114-0 01 1 0906-1204 ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97384-114-0 01 1 1205- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-115-0 01 1 0906-1204 ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-115-0 01 1 1205- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-117-0 01 1 0906-1204 ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-117-0 01 1 1205- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 0906-1204 ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 1205- ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 0906-1204 ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 1205- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-116-0 01 1 0906-1204 ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-116-0 01 1 1205- ● ●
46 BRACKET; CMPR
GENERATOR 24V90A(K44) 		8-98101-365-0 01 1 0906-1204 ●
46 BRACKET; CMPR
GENERATOR 24V90A(K44) 		8-98101-365-0 01 1 1205- ● ●
46 BRACKET; CMPR
EXC. GENERATOR 24V90A(K44) 		8-98101-364-0 01 1 0906-1204 ●
46 BRACKET; CMPR
EXC. GENERATOR 24V90A(K44) 		8-98101-364-0 01 1 1205- ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0906-1204 ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1205- ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0906-1204 ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1205- ● ●
çizim 62830
71 378 378
BalonParca AdiParca NoAdetTipApplied Date A B
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-235-1 01 1 1006-1204 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-235-1 01 1 1205- ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0906-1111 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112-1204 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1205- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98062-954-0 01 1 0906-1204 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98062-954-0 01 1 1205- ● ●
