◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#16863) — 171 parça
çizim 15319
507
BalonParca AdiParca NoAdetTipApplied Date A B
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011-1204 ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1205- ● ●
çizim 15349
747
BalonParca AdiParca NoAdetTipApplied Date A B
747 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0906-1103 ●
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1104-1204 ●
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1205- ● ●

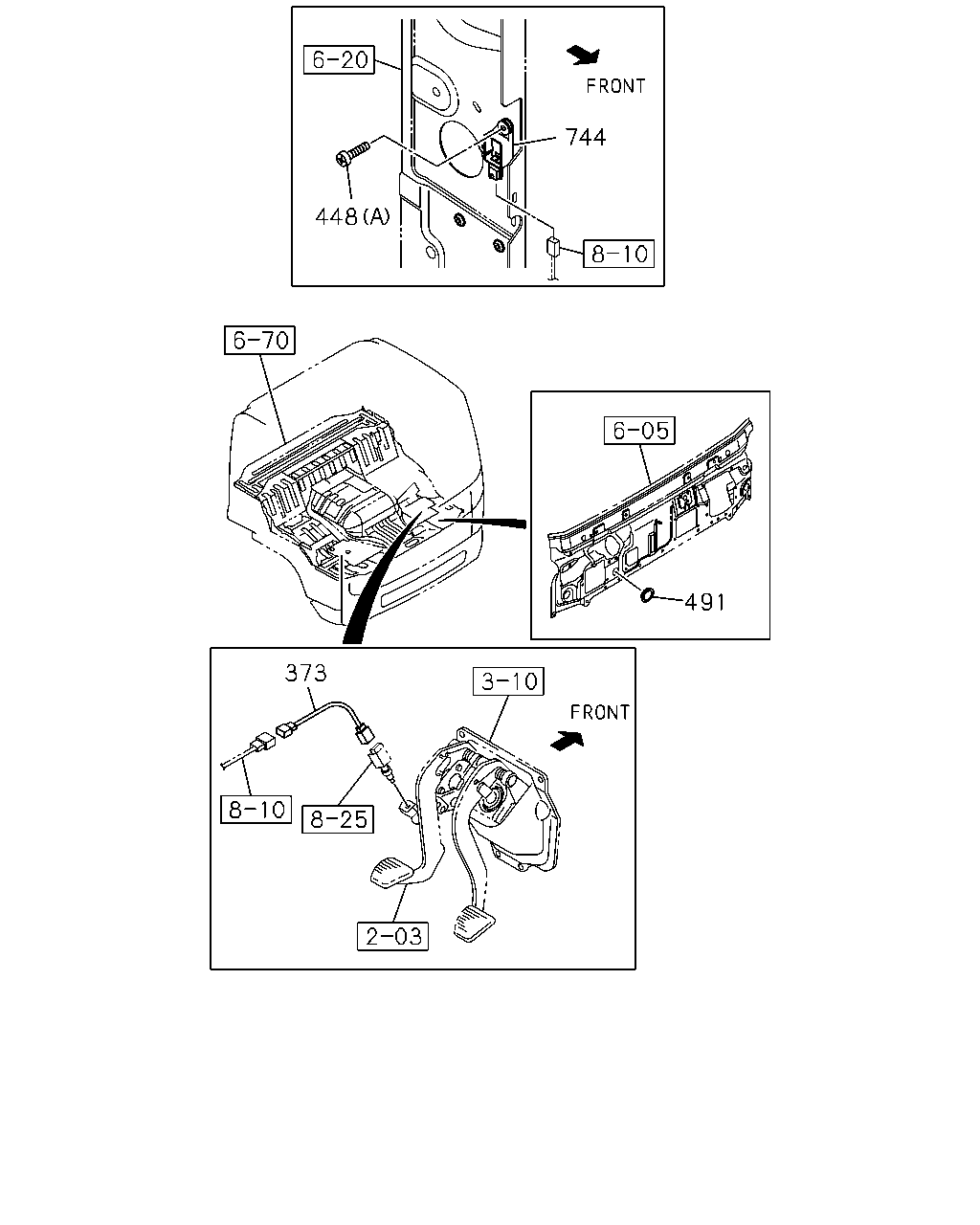

çizim 15400
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98110-719-0 01 1 0906-1204 ●
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98110-719-0 01 1 1205- ● ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0906-1204 ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1205- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0906-1204 ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1205- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0906-1204 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1205- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0906-1204 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1205- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0906-1204 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1205- ● ●

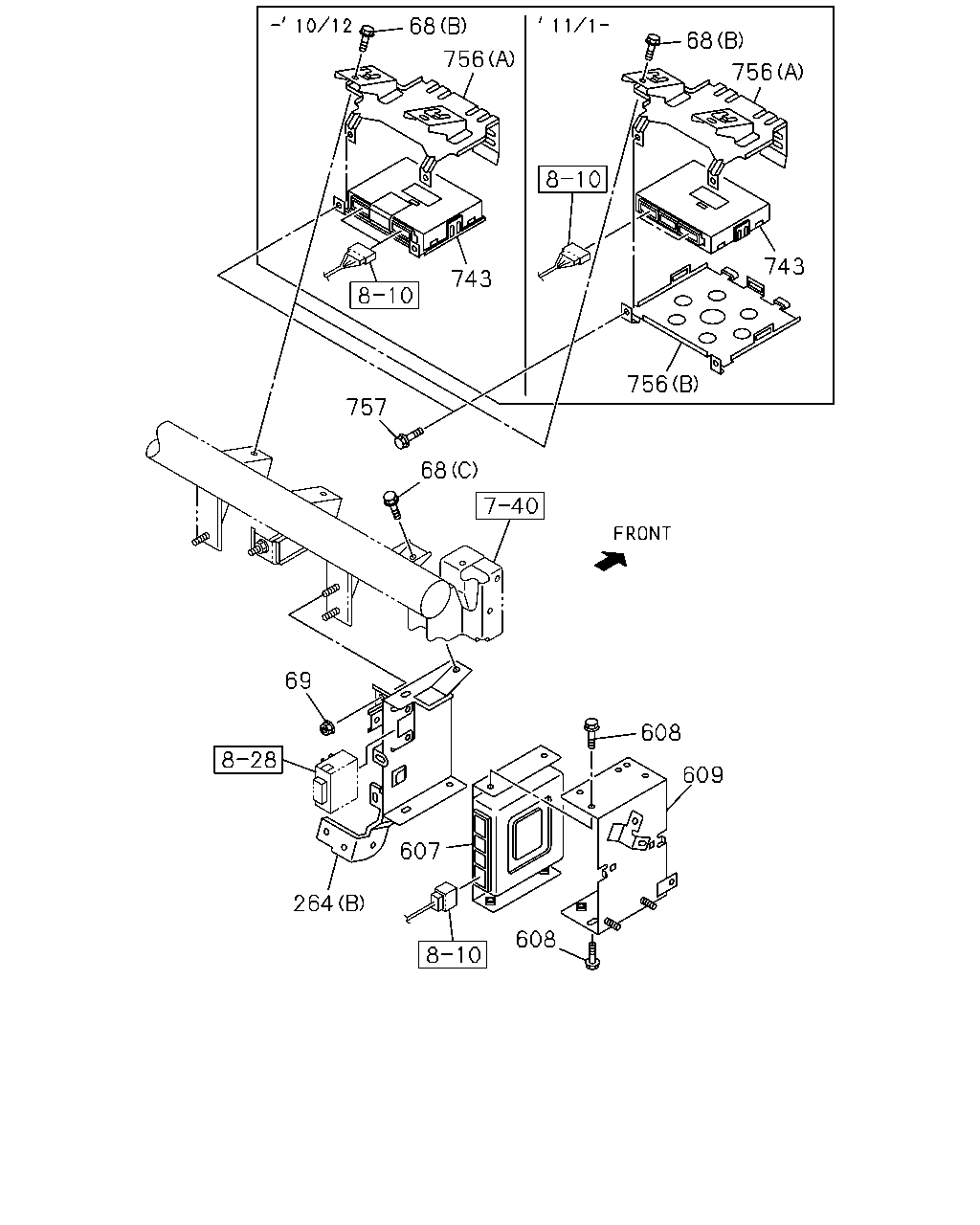

çizim 61852
68 68 756 756 743 743 756 757 68 69 608 609 607 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0906-1204 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0906-1204 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1205- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0906-1204 ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1205- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0906-1204 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1205- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1205- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1205- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1205- ● ●
607 CONTROL UNIT; AIR SUSPENSION 8-98081-298-1 01 1 1205- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 1205- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1205- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-336-0 01 1 1205-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98226-231-1 01 1 1309- ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0906-1005 ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101-1204 ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1205- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101-1204 ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1205- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 0906-1204 ●
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 1205- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0906-1204 ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1205- ● ●

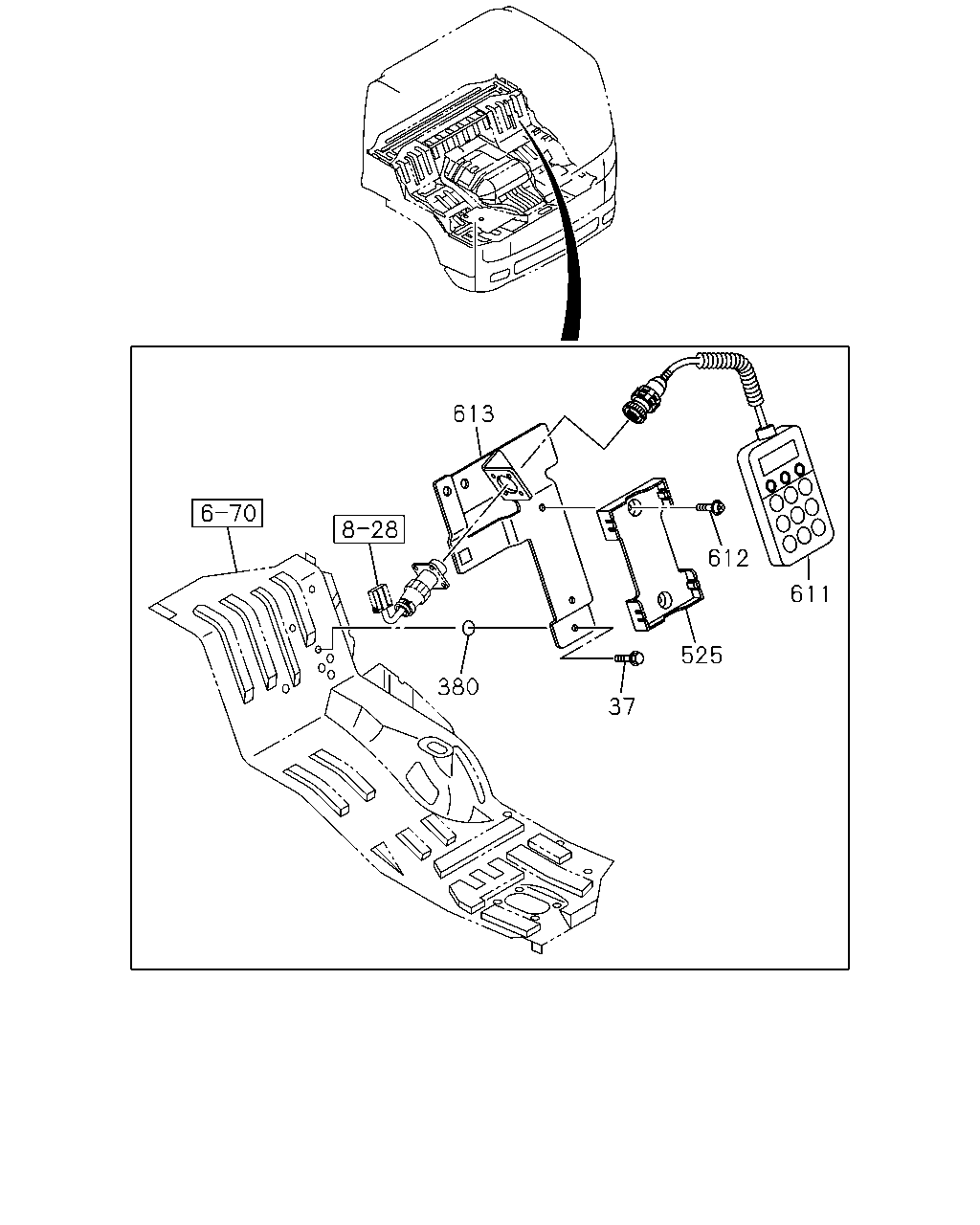

çizim 61853
613 612 611 525 380 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 1205- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0906-1204 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1205- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 1205- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 1205- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 1205- ●
613 BRACKET; HOLDER,SW 8-97619-255-3 01 1 1205- ●

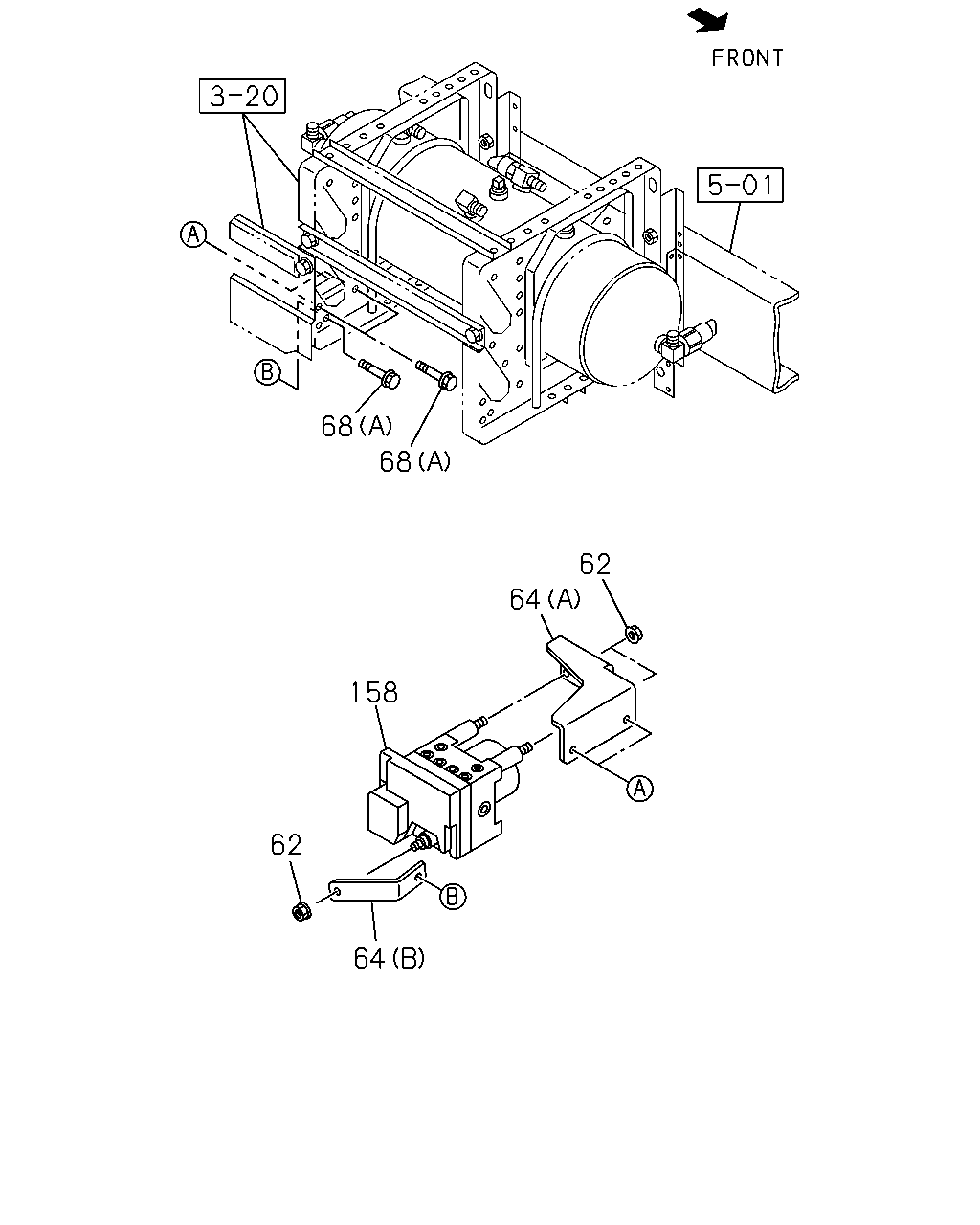

çizim 61854
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-1204 ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1205- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0906-1204 ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1205- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0906-1204 ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1205- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0906-1204 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0906-1204 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1205- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0906-1204 ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1205- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 0906-1006 ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-0 01 1 1007-1110 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M RIB EEC(5N6),TIRE 235/75R17.5-132/130M TRACTION EEC(5Q5) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1111-1204 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M RIB EEC(5N6),TIRE 235/75R17.5-132/130M TRACTION EEC(5Q5) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1205- ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0906-1006 ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-0 01 1 1007-1110 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M RIB EEC(5N6),TIRE 235/75R17.5-132/130M TRACTION EEC(5Q5) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1111-1204 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M RIB EEC(5N6),TIRE 235/75R17.5-132/130M TRACTION EEC(5Q5) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1205- ● ●

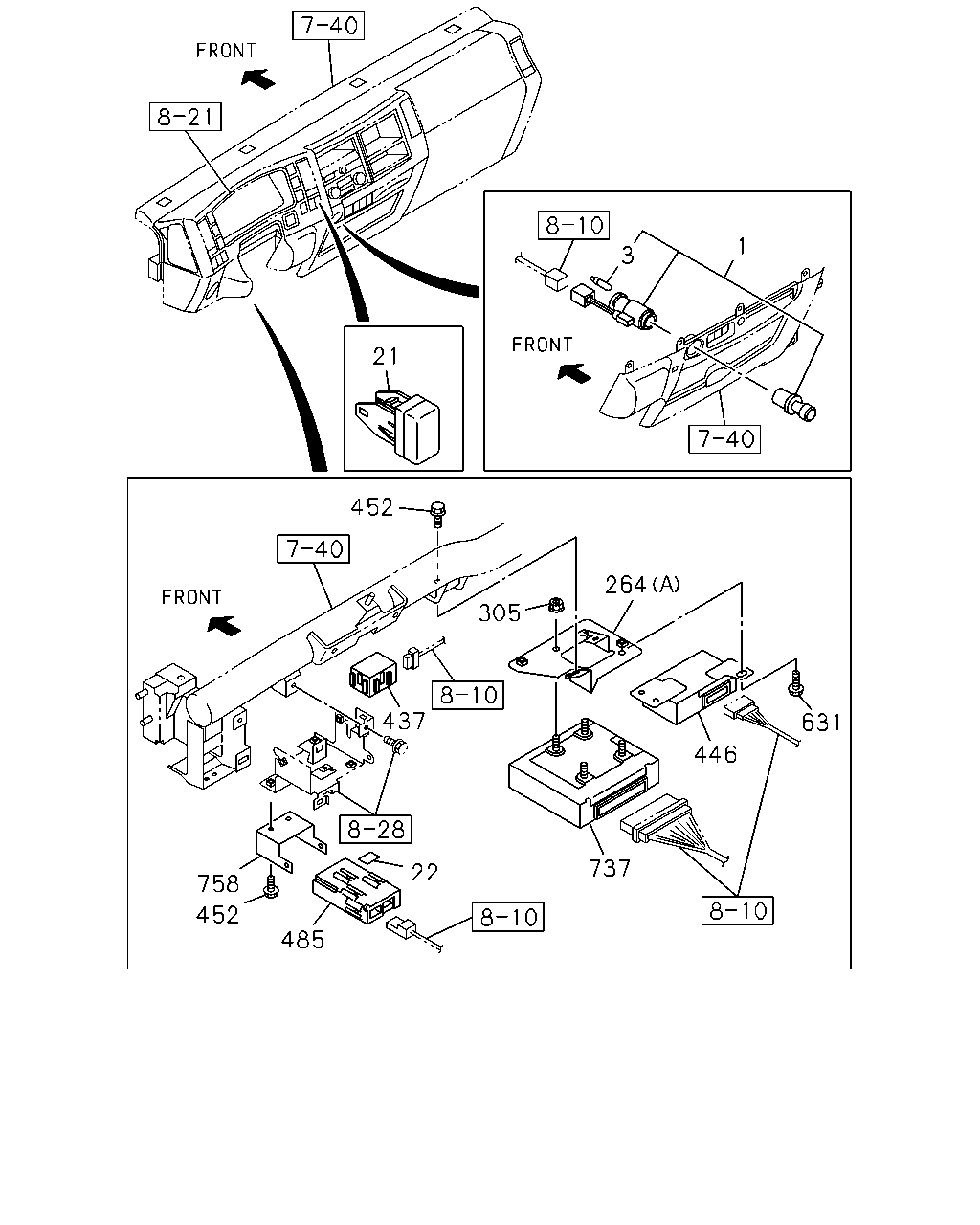

çizim 62096
1 3 21 452 264 305 437 631 446 737 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0906-0908 ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909-1204 ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1205- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0906-0908 ●
21 COVER; HOLE 8-98025-954-1 01 1 0906-1204 ●
21 COVER; HOLE 8-98025-954-1 01 1 1205- ● ●
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		1-80199-006-0 02 1 0906-1204 ●
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		1-80199-006-0 02 1 1205-1212 ●
22 SEAL; TAPE 1-80199-006-0 02 1 1205-1212 ●
22 SEAL; TAPE
EXC. ISRAEL COUNTRY(CV4) 		8-98166-639-0 02 1 1301-1301 ●
22 SEAL; TAPE 8-98166-639-0 02 1 1301-1301 ●
22 SEAL; TAPE 8-98166-639-0 02 1 1302- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1205- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 0906-1204 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1205- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98088-654-0 01 1 1205- ● ●
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 04 1 0906-1204 ●
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 04 1 1205- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0906- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-2 01 1 0906-1204 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-2 01 1 1205- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0906-1204 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0906-1204 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0906-1204 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1205- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1205- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1205- ●
452 BOLT; BRKT
MZW6P M/T(RSZ) M6X16 FLANGE 		0-28650-616-0 02 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1110-1204 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-059-1 01 1 1110-1204 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-059-1 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-059-1 01 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
ISRAEL COUNTRY(CV4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		1-80190-061-0 01 1 0906-1204 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 0906-1204 ●
485 CONTROL UNIT; SPEED SENSOR
ISRAEL COUNTRY(CV4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		1-80190-061-0 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1205-1205 ●
485 CONTROL UNIT; SPEED SENSOR
ISRAEL COUNTRY(CV4) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		1-80190-061-0 01 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1205- ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1205- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0906-0906 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907-1204 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1205- ● ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98095-625-9 01 1 0906-1204 ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98095-625-9 01 1 1205-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98277-101-0 01 1 1412- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0906-1204 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1205- ● ●

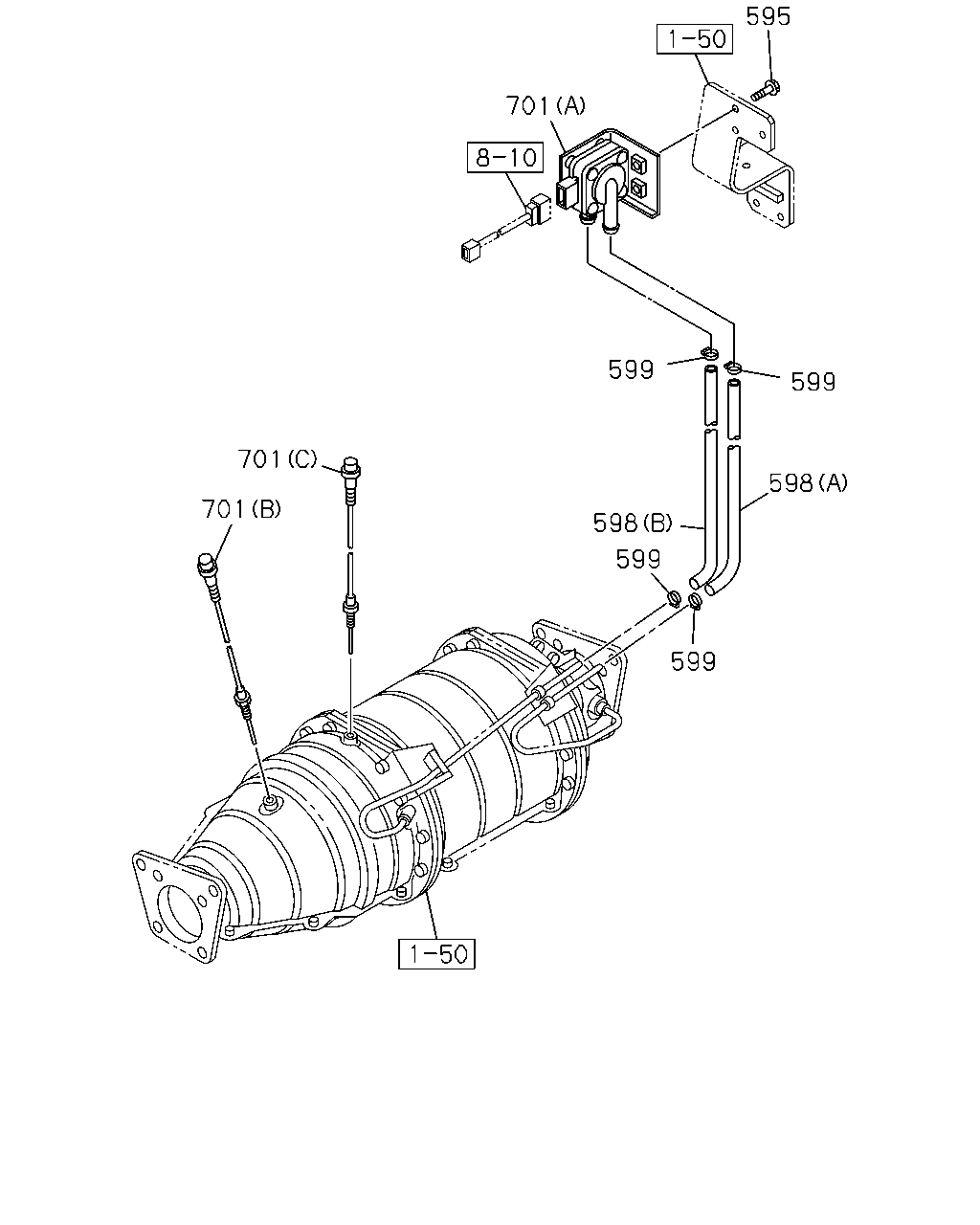

çizim 62593
595 701 599 599 701 598 701 598 599 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0906-1204 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1205- ● ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 3400MM(34W) (A) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0906- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 3400MM(34W) (B) L=230 SERVICED BY L=3000 		0-01558-300-0 01 1 0906- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) 		8-98060-174-1 01 1 0906-1204 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		8-98060-174-1 01 1 1205- ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-174-1 01 1 1205- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) 		8-98077-342-0 01 1 0906-1204 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) 		8-98077-342-0 01 1 1205- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98077-342-0 01 1 1205- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0906-1204 ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1205- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0906-1204 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1205- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0906-1204 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1205- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0906-1204 ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1205- ● ●

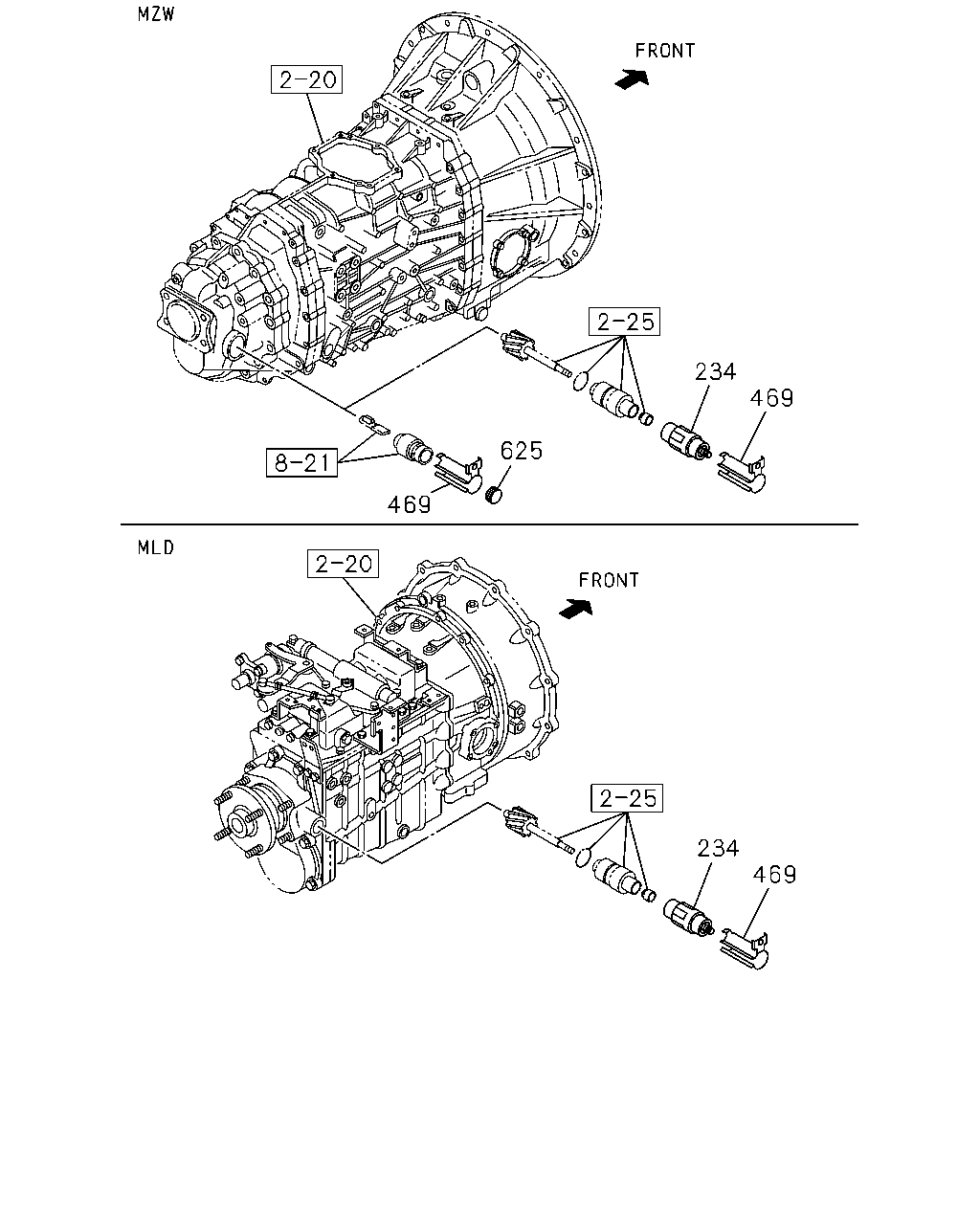

çizim 62594
234 469 625 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0906-1109 ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1110-1204 ●
234 SENSOR; VEHICLE SPD
EXC. TACHOGRAPH DIGITAL<EBB> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1110-1204 ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1205-1205 ● ●
234 SENSOR; VEHICLE SPD
EXC. TACHOGRAPH DIGITAL<EBB> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1205-1205 ● ●
234 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1205- ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1205- ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0906-1109 ●
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1110-1204 ●
469 PROTECTOR; SPEED SENSOR
EXC. TACHOGRAPH DIGITAL<EBB> 		8-98119-901-0 01 1 1110-1204 ●
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1205-1205 ● ●
469 PROTECTOR; SPEED SENSOR
EXC. TACHOGRAPH DIGITAL<EBB> 		8-98119-901-0 01 1 1205-1205 ● ●
469 PROTECTOR; SPEED SENSOR
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1205- ● ●
469 PROTECTOR; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98119-901-0 01 1 1205- ● ●
625 CAP; SPEED SENSOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 0906-1204 ●
625 CAP; SPEED SENSOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 1205- ●
625 CAP; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 1205- ●

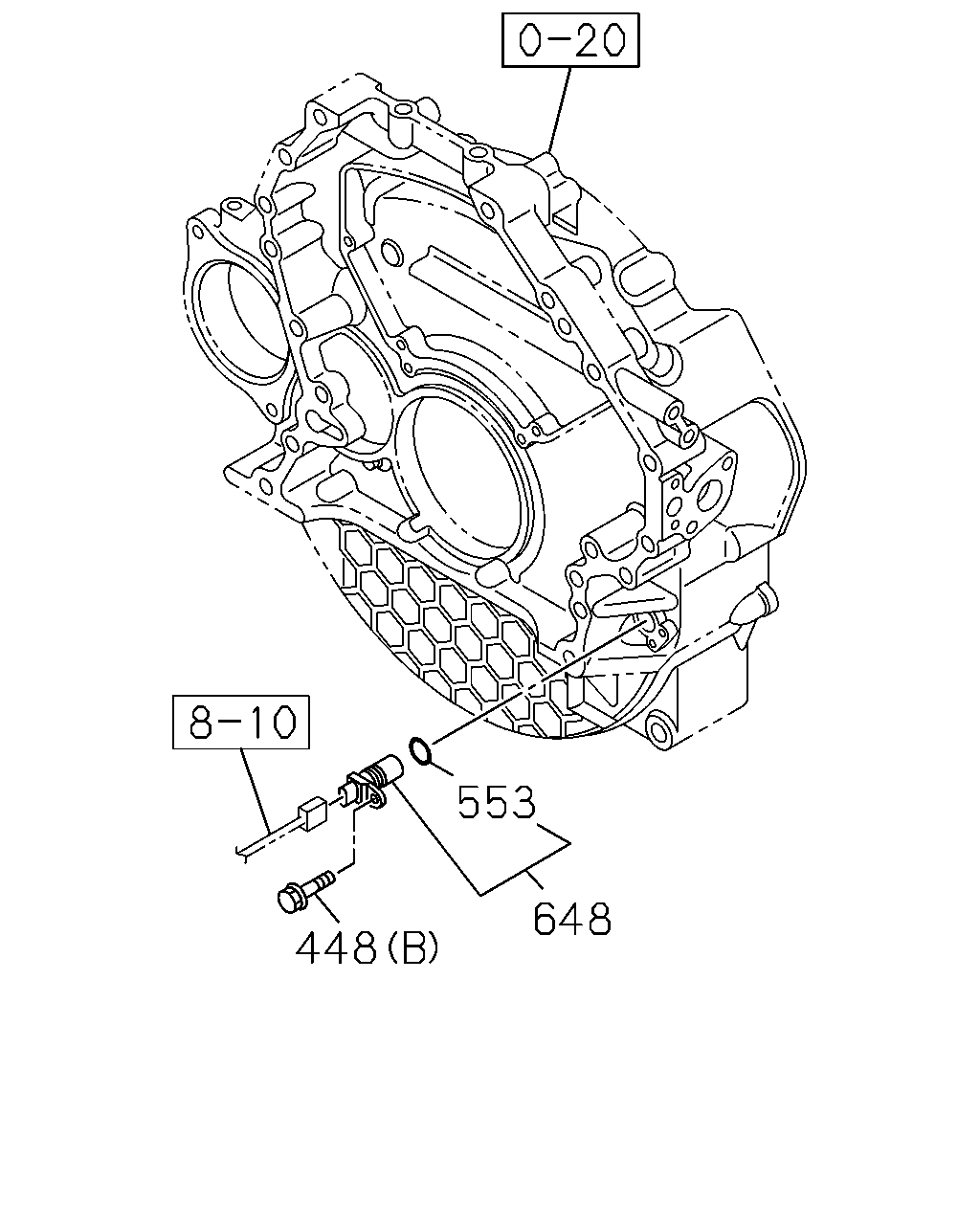

çizim 62612
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0906-1204 ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1205- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0906-1204 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1205- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 0906-1204 ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1205- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 0906-1204 ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
