Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#16859) — 575 parça

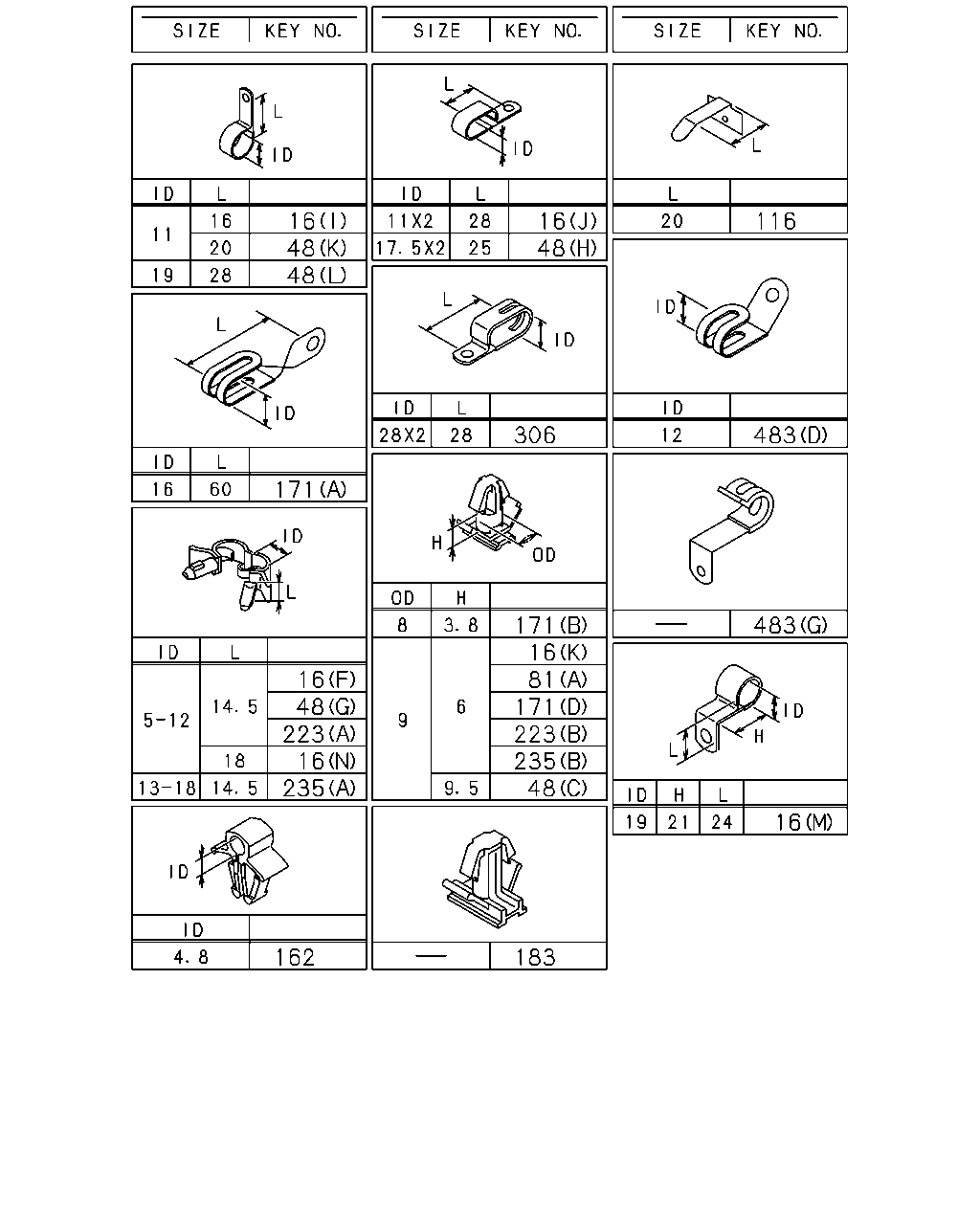

14 22 305 14 16 48 194 206 217 305 612 171 225 185 178 178 612 16 305 16 102 208 235 48 503 530 538 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	0906-1204	●
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1205-	●	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0906-1109	●
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	0906-1204	●
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	1205-	●	●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0906-1204	●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1205-	●	●
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	0906-1107	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	0906-1107	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-1204	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-1204	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1205-	●	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1205-	●	●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	30	1	0906-1204	●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	30	1	1205-1205	●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> (C) L=250	5-09707-030-1	30	1	1205-1205		●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	30	1	1205-	●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) L=250	5-09707-030-1	30	1	1205-		●
16	CLIP; HARNESS (Q) L=250	5-09707-030-1	02	1	1205-		●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0906-1204	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1205-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0906-1204	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	1205-	●	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	0906-1204	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1205-	●	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	0906-1204	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	1205-	●	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	03	1	0906-0907	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0908-1204	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1205-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0906-1204	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1205-	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0906-1204	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	1205-	●	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-1204	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1205-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-1204	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1205-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-1204	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1205-	●	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	0906-1204	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1205-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-1204	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1205-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0906-1204	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1205-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0906-1204	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-	●
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35	1-09700-994-0	01	1	0906-	●
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0906-1204	●
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (B) ID=11 L=41	1-09700-403-0	06	1	1206-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	11	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1205-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=20	0-95235-035-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (L) ID=19 L=28	0-95235-856-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (M) ID=21 L=24	8-94176-807-1	03	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	04	1	1205-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	13	1	1205-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-1204	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	01	1	1205-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	1205-	●
48	CLIP; FRAME HARNESS (F) ID=35 L=50	1-09701-214-0	01	1	1205-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50	1-09701-055-1	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (J) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (J) ID=14 L=44	9-09917-427-0	10	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	15	1	1008-	●
102	CLIP; BAND L=350	1-09707-183-0	01	1	0906-0911	●
102	CLIP; BAND L=350	1-09707-183-0	01	1	0906-0911	●
102	CLIP; BAND L=350	1-09707-183-0	02	1	0912-1204	●
102	CLIP; BAND L=350	1-09707-183-0	02	1	1205-	●	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-1204	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1205-	●	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-1204	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1205-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-1204	●
178	GROMMET; HARNESS WHEEL BASE 3400MM(34W) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-1204	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1205-	●	●
178	GROMMET; HARNESS WHEEL BASE 3400MM(34W) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1205-	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0906-1204	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	1205-	●	●
178	GROMMET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-1204	●
178	GROMMET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1205-	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1205-		●
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0906-1204	●
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1205-	●	●
194	CLIP; BAND WHEEL BASE 4000MM(40W) L=250	5-09707-030-1	01	1	1205-		●
194	CLIP; BAND WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) L=250	5-09707-030-1	02	1	1205-		●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0906-1204	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1205-	●	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0906-1204	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1205-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-1204	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1205-	●	●
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	0906-1204	●
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1205-	●	●
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	0906-1204	●
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0906-1204	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-1204	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS FRONT STABILIZER SHAFT<F59> (C) L=350	1-09707-183-0	01	1	0906-0907	●
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	0906-1204	●
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1205-	●	●
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	0906-1204	●
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1205-	●
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	0906-1204	●
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	1205-	●	●
305	CLIP; ENG HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0906-1204	●
305	CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0906-1204	●
305	CLIP; ENG HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	1205-	●	●
305	CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	1205-	●	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	0906-1204	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1205-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1204	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1205-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1204	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1205-1305	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-1204	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1205-	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-1204	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1205-	●	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-1204	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1205-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-1204	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1205-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-1204	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1205-	●	●

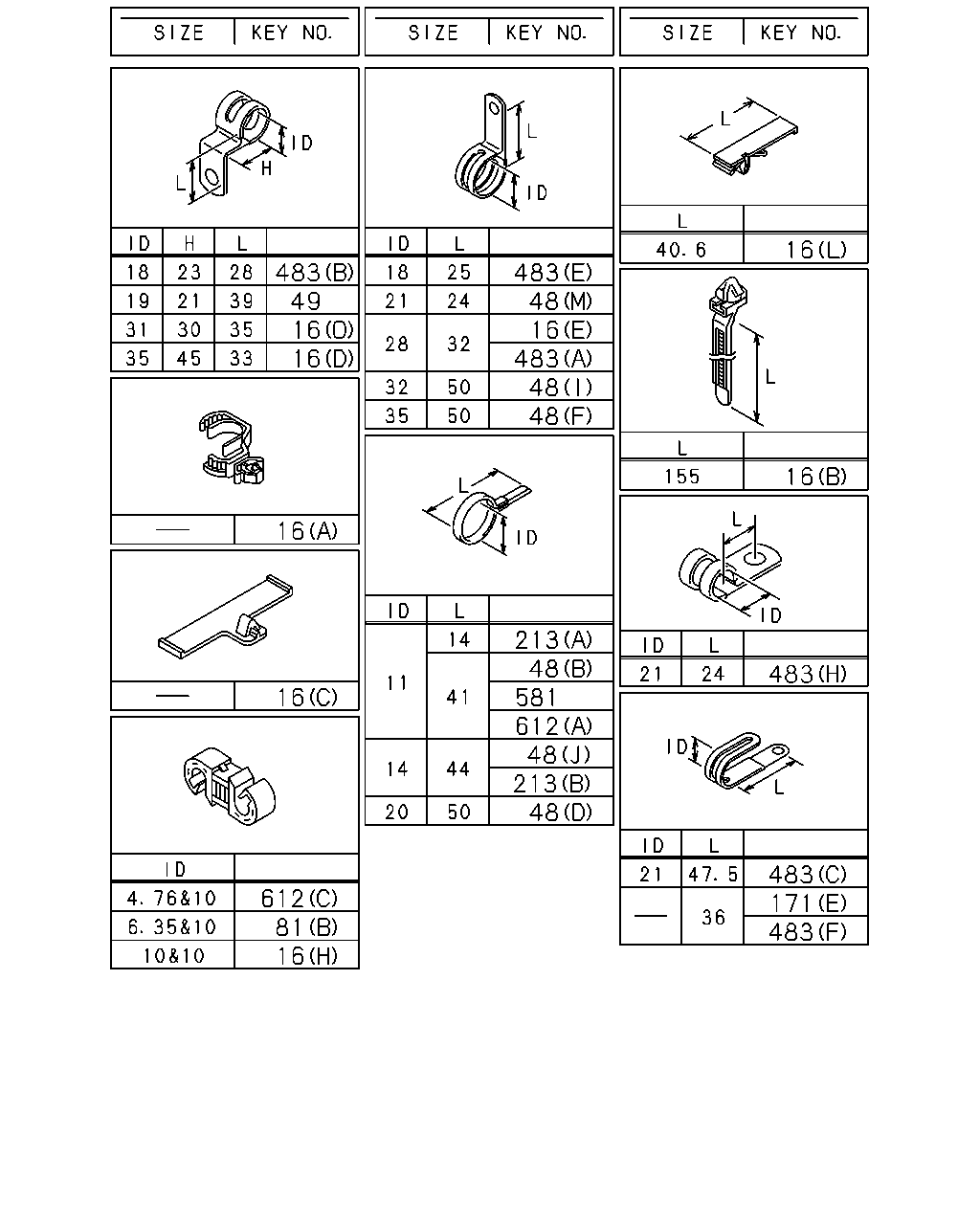

16 483 49 16 16 483 48 16 483 48 48 16 16 213 48 581 612 48 213 48 483 16 483 171 483 612 81 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (Q) L=250	5-09707-030-1	02	1	1205-		●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0906-1204	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1205-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0906-1204	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	1205-	●	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	0906-1204	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1205-	●	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	0906-1204	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	1205-	●	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	03	1	0906-0907	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0908-1204	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1205-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0906-1204	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1205-	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0906-1204	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	1205-	●	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-1204	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1205-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-1204	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1205-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-1204	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1205-	●	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	0906-1204	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1205-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-1204	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1205-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0906-1204	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1205-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0906-1204	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-	●
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35	1-09700-994-0	01	1	0906-	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (B) ID=11 L=41	1-09700-403-0	06	1	1206-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	11	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1205-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=20	0-95235-035-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (L) ID=19 L=28	0-95235-856-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (M) ID=21 L=24	8-94176-807-1	03	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	04	1	1205-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	13	1	1205-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-1204	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	01	1	1205-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	1205-	●
48	CLIP; FRAME HARNESS (F) ID=35 L=50	1-09701-214-0	01	1	1205-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50	1-09701-055-1	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (J) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (J) ID=14 L=44	9-09917-427-0	10	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	15	1	1008-	●
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0906-1204	●
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1205-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-1204	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1205-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-1204	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-	●	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-1204	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1205-	●	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-1204	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1205-	●	●
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0906-1204	●
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	1205-	●	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0906-1204	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	1205-	●	●
483	CLIP; ENG HARNESS (H) ID=21 L=24	1-09701-201-0	01	1	1005-1204	●
483	CLIP; ENG HARNESS (H) ID=21 L=24	1-09701-201-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1205-	●	●
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (E) ID=18 L=25	8-94121-004-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (E) ID=18 L=25	8-94121-004-1	01	1	1205-	●	●
483	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (F) L=36	8-94224-891-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (F) L=36	8-94224-891-1	01	1	1205-	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	02	1	1205-		●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-1204	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1205-	●	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-1204	●
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	1205-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-1204	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	1205-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-1204	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1205-	●	●

137 137 137 137 137 137 324 312 312 335 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	0906-1204	●
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	1205-	●	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0906-1204	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1205-	●	●
137	BRACKET; HARNESS CLAMP (E)	8-98108-911-1	01	1	0906-1007	●
137	BRACKET; HARNESS CLAMP (F)	8-98170-409-0	01	1	1008-1204	●
137	BRACKET; HARNESS CLAMP (F)	8-98170-409-0	01	1	1205-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-98058-354-1	01	1	0906-1204	●
137	BRACKET; HARNESS CLAMP (D)	8-98058-354-1	01	1	1205-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0906-1204	●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	1205-	●	●
312	BRACKET; CLIP HARNESS (B)	8-98094-804-0	01	1	0906-1204	●
312	BRACKET; CLIP HARNESS (B)	8-98094-804-0	01	1	1205-	●	●
312	BRACKET; CLIP HARNESS (A)	8-98143-865-0	01	1	0906-1204	●
312	BRACKET; CLIP HARNESS (A)	8-98143-865-0	01	1	1205-	●	●
324	BRACKET; CLIP	8-98061-654-2	01	1	0906-1204	●
324	BRACKET; CLIP	8-98061-654-2	01	1	1205-	●	●
324	BRACKET; CLIP	8-98061-653-2	01	1	0906-1204	●
324	BRACKET; CLIP	8-98061-653-2	01	1	1205-	●	●
335	BRACKET; CONNECTOR DIFF LOCK<C3N> (C) L=55	1-47475-304-0	01	1	1206-	●
335	BRACKET; CONNECTOR WHEEL BASE 3400MM(34W) (A)	8-97619-478-1	01	1	0906-	●
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-97619-097-1	01	1	0906-1204	●
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-97619-097-1	01	1	1205-	●
335	BRACKET; CONNECTOR (B)	8-97619-097-1	01	1	1205-		●
428	BRACKET	8-98116-461-0	01	1	0906-1204	●
428	BRACKET	8-98116-461-0	01	1	1205-	●	●

16 48 48 171 16 48 223 16 235 162 183 16 48 235 223 171 81 16 171 306 483 116 48 16 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (Q) L=250	5-09707-030-1	02	1	1205-		●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	0906-1204	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1205-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	0906-1204	●
16	CLIP; HARNESS (J) ID=11X2 L=16	1-09700-734-0	01	1	1205-	●	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	0906-1204	●
16	CLIP; HARNESS (E) ID=28 L=32	1-09701-107-1	02	1	1205-	●	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	0906-1204	●
16	CLIP; HARNESS (P) L=250	1-09707-126-0	02	1	1205-	●	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	03	1	0906-0907	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0908-1204	●
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1205-	●	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0906-1204	●
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1205-	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0906-1204	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	1205-	●	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
16	CLIP; HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-1204	●
16	CLIP; HARNESS (M) ID=19 H=21 L=24	5-09700-360-0	01	1	1205-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-1204	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1205-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-1204	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1205-	●	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	0906-1204	●
16	CLIP; HARNESS (L) L=40.6	8-97229-357-0	02	1	1205-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-1204	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1205-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0906-1204	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1205-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0906-1204	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-	●
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09701-047-0	01	1	1205-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=31 H=30 L=35	1-09700-994-0	01	1	0906-	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (B) ID=11 L=41	1-09700-403-0	06	1	1206-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	11	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	02	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	14	1	1205-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=20	0-95235-035-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (L) ID=19 L=28	0-95235-856-0	02	1	1205-		●
48	CLIP; FRAME HARNESS (M) ID=21 L=24	8-94176-807-1	03	1	1205-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	04	1	1205-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (J) ID=14 L=44	9-09917-427-0	13	1	1205-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-1204	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1205-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-1204	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1205-	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-1204	●
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1205-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	01	1	1205-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	0906-1204	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=35 L=50	1-09701-214-0	01	1	1205-	●
48	CLIP; FRAME HARNESS (F) ID=35 L=50	1-09701-214-0	01	1	1205-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=32 L=50	1-09701-055-1	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (J) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (J) ID=14 L=44	9-09917-427-0	10	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (J) ID=14 L=44	9-09917-427-0	14	1	1008-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (J) ID=14 L=44	9-09917-427-0	15	1	1008-	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-1204	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1205-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-1204	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1205-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0906-1204	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1205-	●	●
162	CLIP; SW HARNESS DIFF LOCK<C3N> ID=4.8	1-09701-218-0	01	1	1206-	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-1204	●
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1205-	●	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180	1-09707-162-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6	1-09709-178-0	01	1	0906-	●
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36	8-94224-891-1	01	1	0906-	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-1204	●
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1205-	●	●
183	CLIP; CONNECTOR DIFF LOCK<C3N> OD=8.95 H=6.25	8-97375-754-0	01	1	1206-	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-1204	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1205-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0906-1204	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0906-1204	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-1204	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1205-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS FRONT STABILIZER SHAFT<F59> (C) L=350	1-09707-183-0	01	1	0906-0907	●
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	0906-1204	●
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (H) ID=21 L=24	1-09701-201-0	01	1	1005-1204	●
483	CLIP; ENG HARNESS (H) ID=21 L=24	1-09701-201-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1205-	●	●
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (E) ID=18 L=25	8-94121-004-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (E) ID=18 L=25	8-94121-004-1	01	1	1205-	●	●
483	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-1204	●
483	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1205-	●	●
483	CLIP; ENG HARNESS (F) L=36	8-94224-891-1	01	1	0906-1204	●
483	CLIP; ENG HARNESS (F) L=36	8-94224-891-1	01	1	1205-	●	●

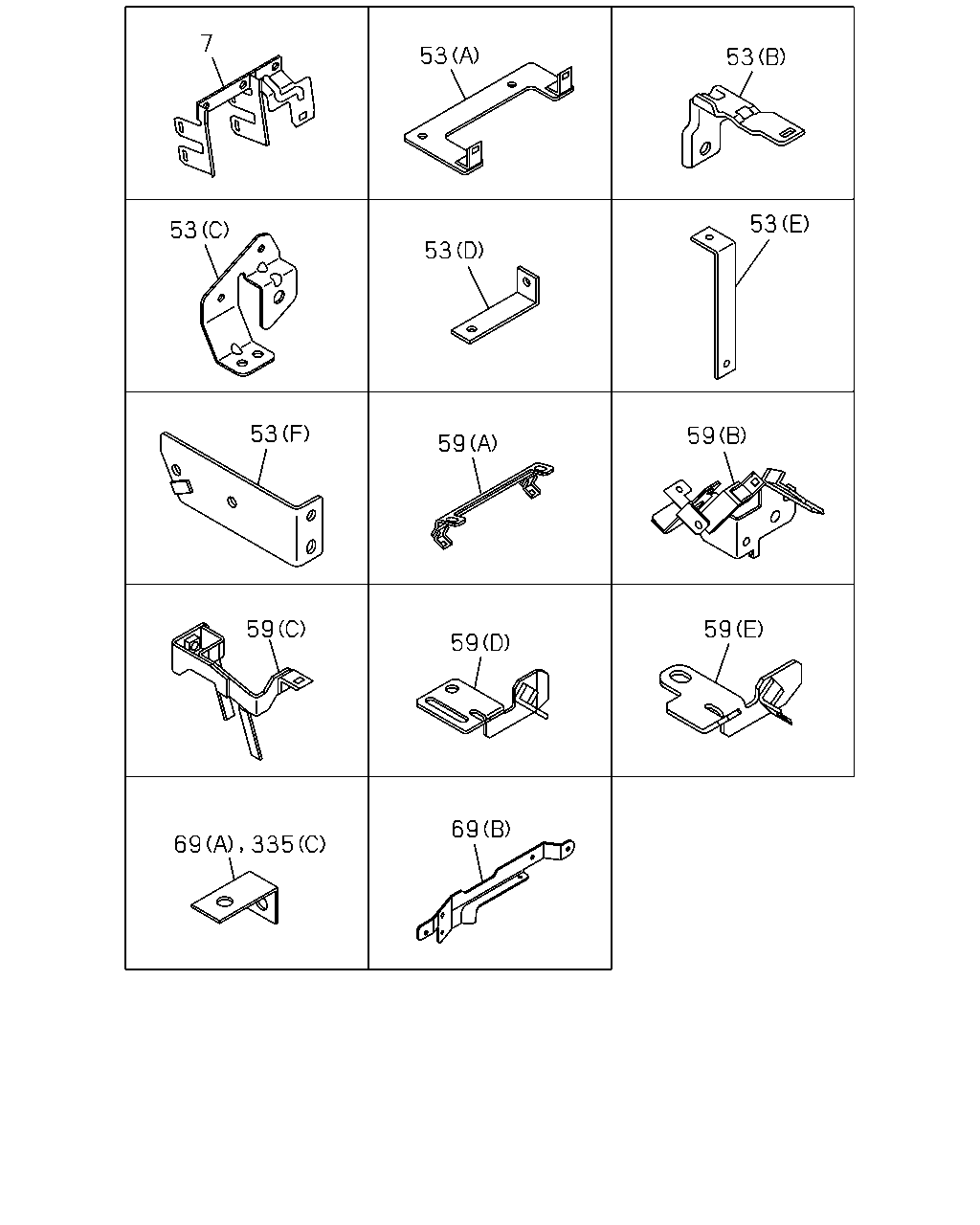

7 53 53 53 53 53 53 59 59 59 59 59 69 335 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0906-1204	●
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1205-	●	●
53	BRACKET; HARNESS DIFF LOCK<C3N> (F)	8-98216-631-0	01	1	1206-	●
53	BRACKET; HARNESS (D) L=95	1-82699-085-0	01	1	1205-		●
53	BRACKET; HARNESS (E) L=145	1-47475-655-0	02	1	1205-		●
53	BRACKET; HARNESS (E) L=145	1-47475-655-0	02	1	1205-		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98084-699-0	01	1	1101-1204	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98084-699-0	01	1	1205-	●	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0906-1204	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1205-	●	●
53	BRACKET; HARNESS (A)	8-98125-300-1	01	1	0906-1204	●
53	BRACKET; HARNESS (A)	8-98125-300-1	01	1	1205-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0906-1204	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1205-1502	●	●
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-	●	●
59	BRACKET; FRAME HARNESS (A)	8-97619-533-0	01	1	0906-1204	●
59	BRACKET; FRAME HARNESS (A)	8-97619-533-0	01	1	1205-	●	●
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	0906-1204	●
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	1205-	●	●
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	0906-1204	●
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	1205-	●	●
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	0906-1204	●
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1205-	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=95	1-82699-085-0	01	1	0906-1204	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=95	1-82699-085-0	01	1	1205-	●	●
335	BRACKET; CONNECTOR DIFF LOCK<C3N> (C) L=55	1-47475-304-0	01	1	1206-	●
335	BRACKET; CONNECTOR WHEEL BASE 3400MM(34W) (A)	8-97619-478-1	01	1	0906-	●
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-97619-097-1	01	1	0906-1204	●
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-97619-097-1	01	1	1205-	●
335	BRACKET; CONNECTOR (B)	8-97619-097-1	01	1	1205-		●

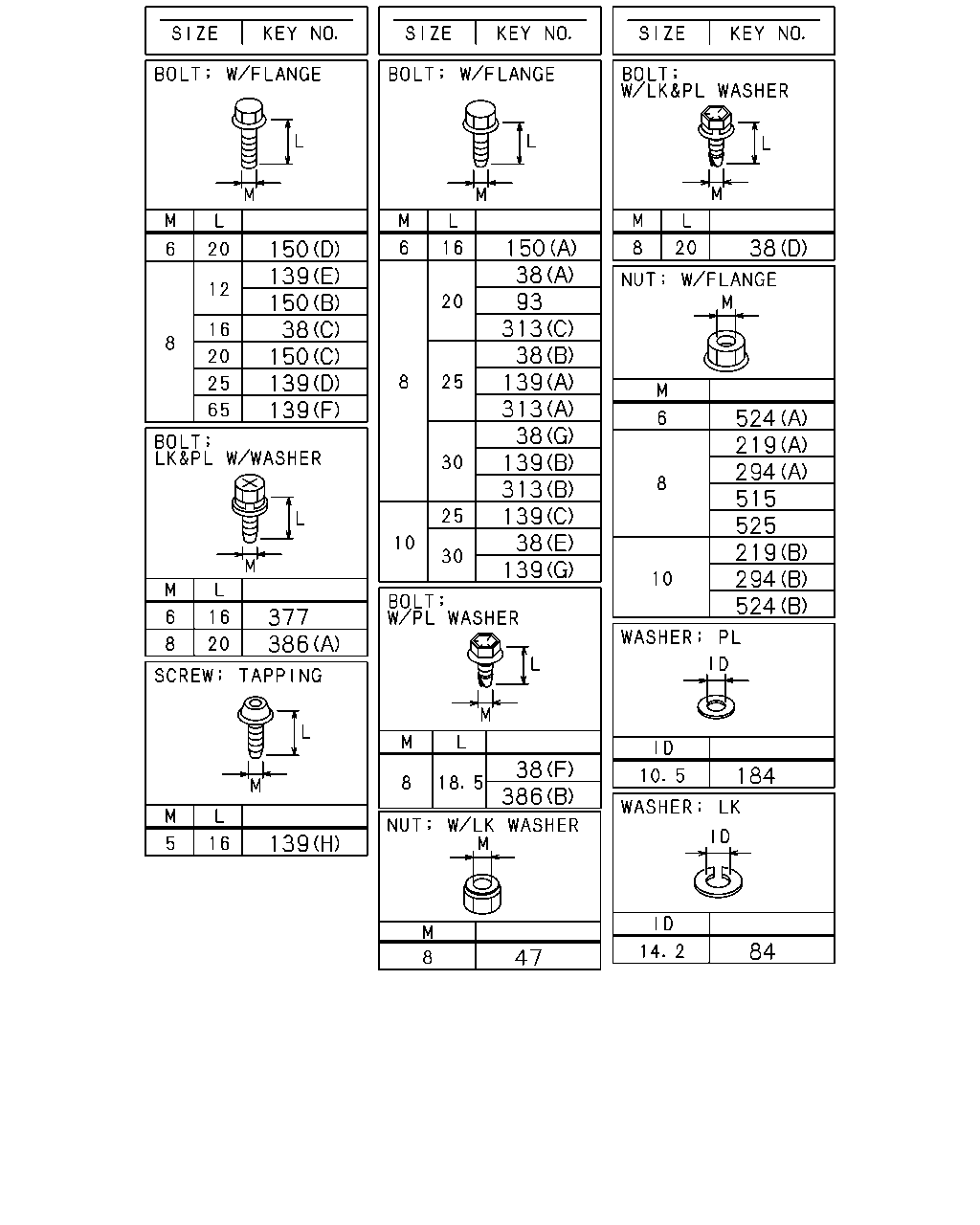

150 139 38 150 150 139 139 377 386 139 38 386 184 84 47 139 139 313 139 38 313 139 38 313 93 38 150 524 219 515 294 219 525 294 524 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS DIFF LOCK<C3N> (G) M8X30 FLANGE	0-28650-830-0	02	1	1206-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1205-		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-1204	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1205-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-1204	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1205-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	05	1	1205-		●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0906-1204	●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	1205-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1201	●
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-1204	●
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1205-	●	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	0906-1204	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1205-	●	●
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1101-1204	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1205-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-1204	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1205-	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	0906-1204	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	1205-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-1204	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1205-1205	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1206-	●	●
139	BOLT; BRKT DIFF LOCK<C3N> (B) M8X30 FLANGE	0-28650-830-0	01	1	1206-	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-1204	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1205-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1205-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0906-1204	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1205-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-1204	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1205-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0906-1204	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0906-1204	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1205-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1205-	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-1204	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1205-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0906-1204	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1205-	●	●
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) M8X65 FLANGE	1-09044-072-1	01	1	0906-1204	●
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) M8X65 FLANGE	1-09044-072-1	01	1	1205-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
150	BOLT; CLIP (D) M6X20 FLANGE	0-28050-620-0	02	1	1005-1204	●
150	BOLT; CLIP (D) M6X20 FLANGE	0-28050-620-0	02	1	1205-	●	●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	0906-1204	●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	1205-	●	●
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-1204	●
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	1205-	●	●
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-1204	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1205-	●	●
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1205-1205	●	●
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1205-1205		●
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
219	NUT DIFF LOCK<C3N> (A) M8 FLANGE	0-91180-108-0	02	1	1206-	●
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1206-		●
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
219	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1205-		●
219	NUT MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE	0-91180-210-0	01	1	0906-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0908-0912	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0908-0912	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1001-1204	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1205-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0908-1204	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1205-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-0907	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0908-1204	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0908-1204	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1205-1205	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1205-1205	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1206-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1206-	●	●
294	NUT DIFF LOCK<C3N> (A) M8 FLANGE	0-91180-108-0	01	1	1206-	●
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0906-1010	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1011-1204	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1205-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-1204	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1205-	●	●
313	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1205-		●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1205-		●
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-1204	●
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1205-	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-1204	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1205-	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-1204	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1205-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1202	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-1204	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1205-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1204	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1205-		●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0906-1204	●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1205-	●	●
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	0906-1204	●
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1205-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1204	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1205-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
