◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#16855) — 188 parça
çizim 15362
1 4 339 338 408 420 20 5 5 382 457 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-483-2 01 1 1205-1208 ●
1 LAMP ASM; HEAD 8-98225-601-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-484-2 01 1 1205-1208 ●
1 LAMP ASM; HEAD 8-98225-602-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-482-2 01 1 0906-1208 ●
1 LAMP ASM; HEAD 8-98225-598-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-481-2 01 1 0906-1208 ●
1 LAMP ASM; HEAD 8-98225-597-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-323-0 01 1 1306- ●
4 HEADLAMP UNIT 8-98051-406-0 01 1 1205-1301 ●
4 HEADLAMP UNIT 8-98226-188-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-407-0 01 1 1205-1301 ●
4 HEADLAMP UNIT 8-98226-189-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-405-0 01 1 0906-1301 ●
4 HEADLAMP UNIT 8-98226-185-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-404-0 01 1 0906-1301 ●
4 HEADLAMP UNIT 8-98226-184-0 01 1 1302- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0906-1204 ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1205- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0906-1204 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1205- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0906-1204 ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1205- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0906-1204 ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1205- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1209- ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1209- ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0906-1204 ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1205-1208 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0906-1204 ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1205- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0906-1204 ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1205-1301 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

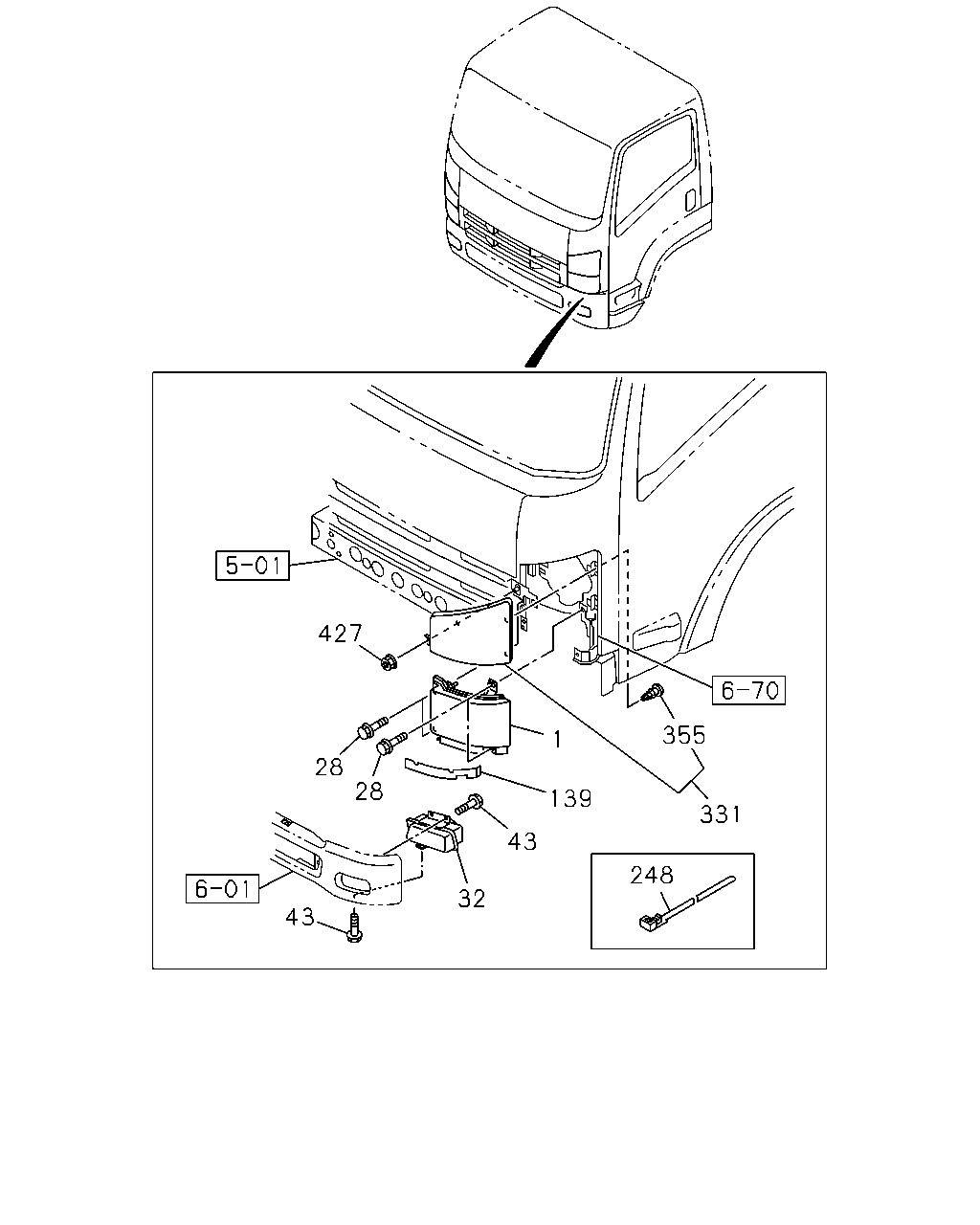

çizim 63114
427 355 1 28 28 139 331 43 248 32 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-483-2 01 1 1205-1208 ●
1 LAMP ASM; HEAD 8-98225-601-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-642-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-327-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-484-2 01 1 1205-1208 ●
1 LAMP ASM; HEAD 8-98225-602-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-643-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-328-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-482-2 01 1 0906-1208 ●
1 LAMP ASM; HEAD 8-98225-598-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-639-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-324-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-481-2 01 1 0906-1208 ●
1 LAMP ASM; HEAD 8-98225-597-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-638-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-323-0 01 1 1306- ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0906-1005 ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-1204 ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1205- ● ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1205-1301 ●
32 LAMP ASM; FOG 8-98186-094-1 01 1 1205-1301 ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302- ●
32 LAMP ASM; FOG 8-98232-070-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1205-1301 ●
32 LAMP ASM; FOG 8-98186-095-1 01 1 1205-1301 ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302- ●
32 LAMP ASM; FOG 8-98232-071-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0906-0906 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0906-0906 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 0906-1204 ●
43 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1205- ●
43 BOLT; FOG LAMP
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1205- ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 0906-1204 ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 1205- ● ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1006-1204 ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> L=140 		5-09707-031-1 02 1 1205- ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0906-0911 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-1204 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1205- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0906-0911 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-1204 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1205- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0906-1204 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1205- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0906-0907 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 04 1 0908-1204 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 04 1 1205-1209 ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210- ● ●
çizim 63135
331 431 357 399 355 432 32 44 47 49 36 15 421 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0906-1204 ●
15 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1205- ●
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1205- ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1205-1301 ●
32 LAMP ASM; FOG 8-98186-094-1 01 1 1205-1301 ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302- ●
32 LAMP ASM; FOG 8-98232-070-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1205-1301 ●
32 LAMP ASM; FOG 8-98186-095-1 01 1 1205-1301 ●
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302- ●
32 LAMP ASM; FOG 8-98232-071-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0906-0906 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0906-0906 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0906-1204 ●
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1205- ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1205- ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0906-1204 ●
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1205- ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1205- ●
44 NUT; FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-259-0 02 1 1205-1205 ●
44 NUT; FOG LAMP 8-98203-259-0 02 1 1205-1205 ●
44 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1205- ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ●
47 WASHER; PL,FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-258-0 02 1 1205-1205 ●
47 WASHER; PL,FOG LAMP 8-98203-258-0 02 1 1205-1205 ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1205- ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0906-1204 ●
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1205- ●
49 BRACKET; LAMP 8-98051-435-0 01 1 1205- ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0906-1204 ●
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1205- ●
49 BRACKET; LAMP 8-98051-436-0 01 1 1205- ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0906-0911 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-1204 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1205- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0906-0911 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-1204 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1205- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0906-1204 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1205- ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0906-1204 ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1205- ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0906-1204 ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1205- ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0906-0906 ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0906-1204 ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1205- ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0906-1204 ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1205- ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907-1204 ●
448 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1205- ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 1205- ●

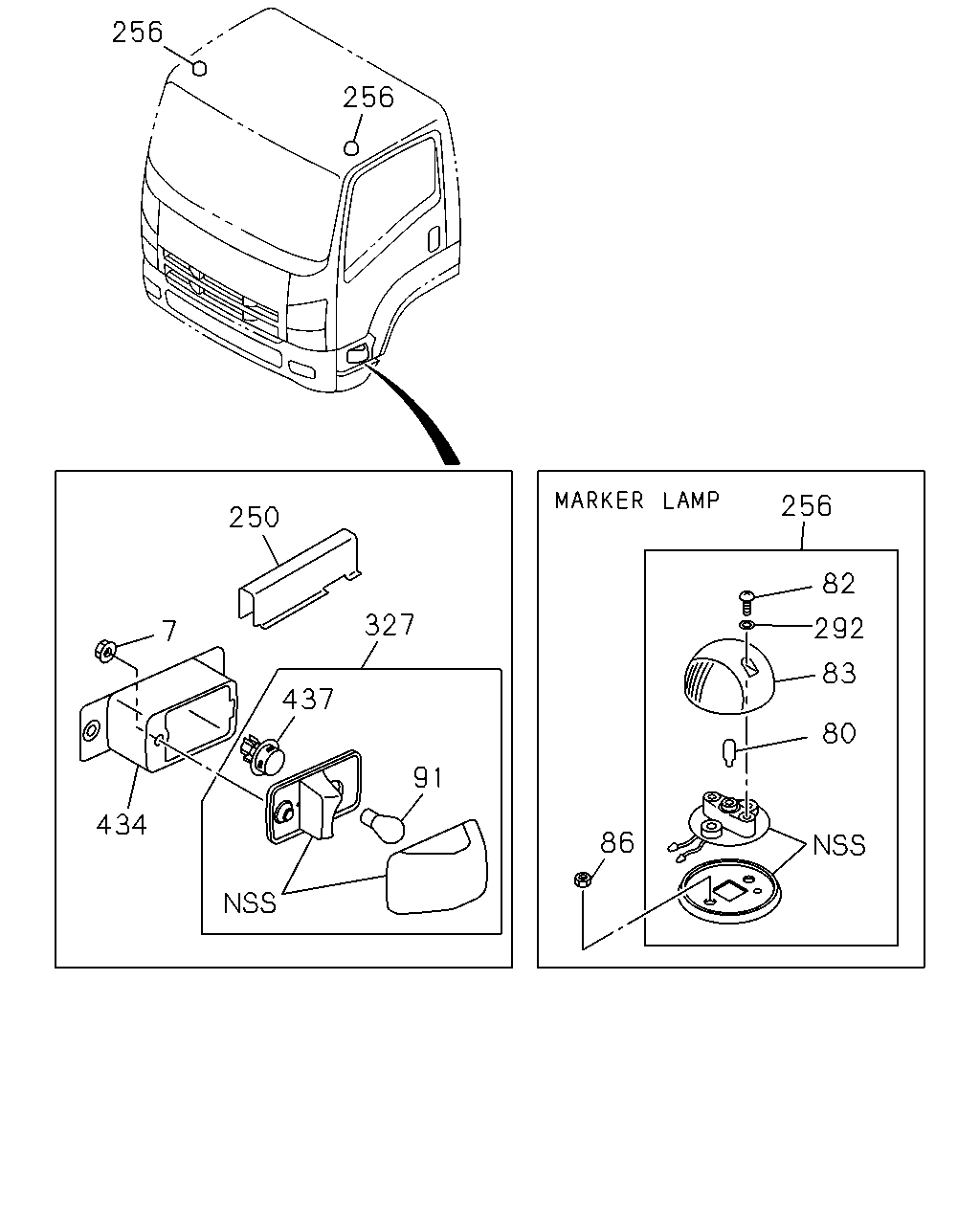

çizim 63136
256 256 256 250 82 327 292 7 83 437 80 91 434 86
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 0906-0907 ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0906-1204 ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1205- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0906-1204 ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1205- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0906-1204 ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 1205- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0906-1204 ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 1205- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0906-1204 ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1205- ● ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-165-0 01 1 0906-1204 ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-165-0 01 1 1205- ● ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-164-0 01 1 0906-1204 ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-164-0 01 1 1205- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0906-1204 ●
256 LAMP; MARKER 8-98097-467-3 01 1 1205- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0906-1204 ●
256 LAMP; MARKER 8-98097-466-3 01 1 1205- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0906-1204 ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1205- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0906-1204 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1205- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0906-1204 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1205- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-355-0 01 1 0906-1204 ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-355-0 01 1 1205- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-354-0 01 1 0906-1204 ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-354-0 01 1 1205- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-727-1 01 1 0906-1204 ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-727-1 01 1 1205- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-726-1 01 1 0906-1204 ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-726-1 01 1 1205- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0906-1204 ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
