Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#16852) — 500 parça

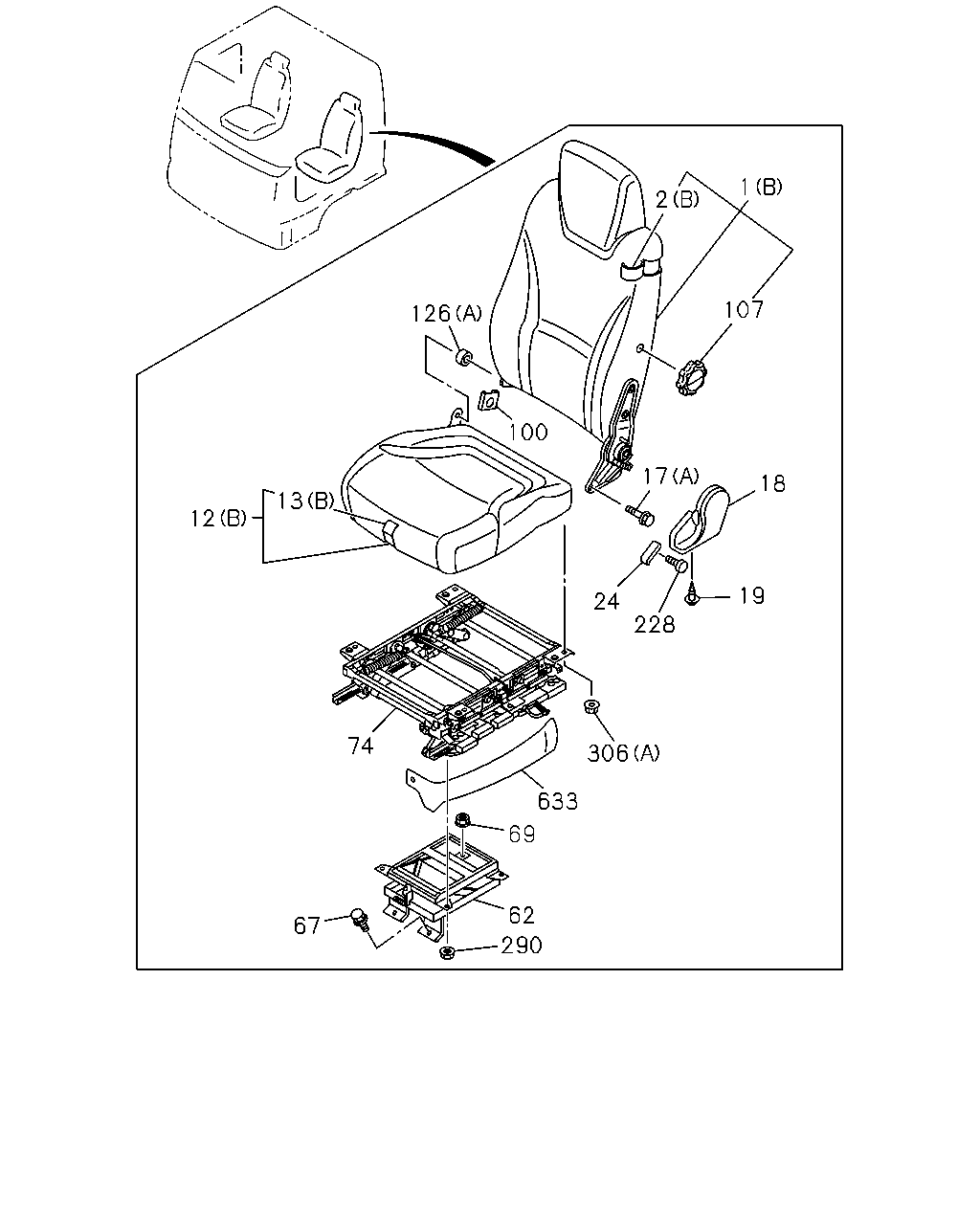

1 2 107 18 17 100 126 19 228 24 13 12 74 306 633 69 67 62 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0906-1009	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1010-1204	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1205-	●
1	BACK ASM; SEAT (B) DARK GRAY	8-97421-408-1	01	1	1205-		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	0906-1508	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0906-1009	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1010-1204	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1205-	●
2	COVER; TRIM,FRT SEAT,BACK (B) DARK GRAY	8-97421-413-0	01	1	1205-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-965-0	01	1	0906-1212	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98232-352-0	01	1	1301-1508	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-214-1	01	1	0906-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1010-1204	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1205-	●
12	CUSHION; SEAT,FRT (B) DARK GRAY	8-97421-400-2	01	1	1205-		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-006-0	01	1	0906-1508	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-217-0	01	1	0906-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1010-1204	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1205-	●
13	COVER; TRIM,FRT SEAT,CUSHION (B) DARK GRAY	8-97421-404-2	01	1	1205-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-007-0	01	1	0906-1508	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-974-0	02	1	0906-1508	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0906-1204	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1205-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-1204	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1205-	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1205-		●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	0906-1204	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-361-0	01	1	1205-	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1205-		●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	0906-1204	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	1205-	●
19	SCREW; COVER M5	8-98062-663-0	01	1	1205-		●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	0906-1204	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-362-0	01	1	1205-	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1205-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0906-1204	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1205-1403	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-8	01	1	1205-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1404-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0906-1204	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1205-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0906-1204	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1205-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0906-1204	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1205-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98093-429-0	01	1	1205-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-641-0	01	1	1503-		●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1110-1204	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1205-	●
100	COVER; HINGE	8-98203-070-0	01	1	1205-		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0906-1204	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1205-	●
107	DIAL; SEAT RECLINING	8-98063-174-0	01	1	1205-		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-1204	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1205-	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1205-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0906-1204	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1205-	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0906-1204	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	1205-	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1205-		●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0906-1204	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1205-	●
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1205-		●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0906-1204	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1205-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0906-1204	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1205-	●
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1205-		●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	0906-1204	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1205-	●
633	COVER; ADJ,TILT GRAY	8-97414-118-0	01	1	1205-		●

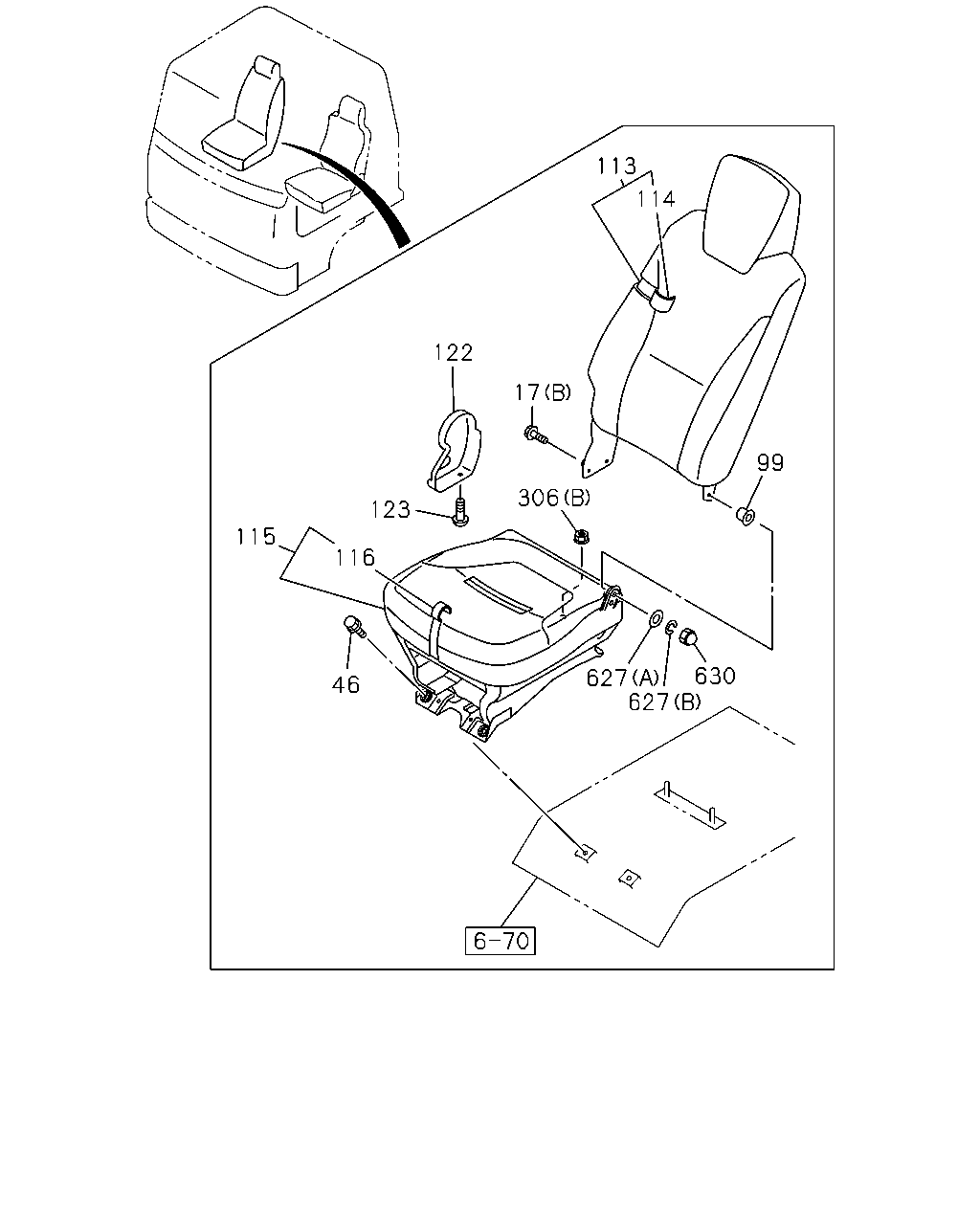

113 114 99 630 627 627 46 306 17 122 123 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-974-0	02	1	0906-1508	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0906-1204	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1205-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-1204	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1205-	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1205-		●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0906-1204	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1205-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0906-1009	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-1204	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1205-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97416-222-0	01	1	0906-1009	●
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1010-1204	●
113	BACK ASM; SEAT DARK GRAY	8-97421-423-0	01	1	1205-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-224-0	01	1	0906-1009	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1010-1204	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-425-0	01	1	1205-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-226-0	01	1	0906-1009	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-1	01	1	1010-1204	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-419-1	01	1	1205-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-228-0	01	1	0906-1009	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-0	01	1	1010-1204	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-421-0	01	1	1205-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	0906-1204	●
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1205-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0906-1204	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1205-	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0906-1204	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1205-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0906-1204	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1205-	●
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1205-		●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0906-1204	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1205-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0906-1204	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1205-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	0906-1204	●
630	NUT; CAP M8	8-98063-225-0	01	1	1205-	●	●

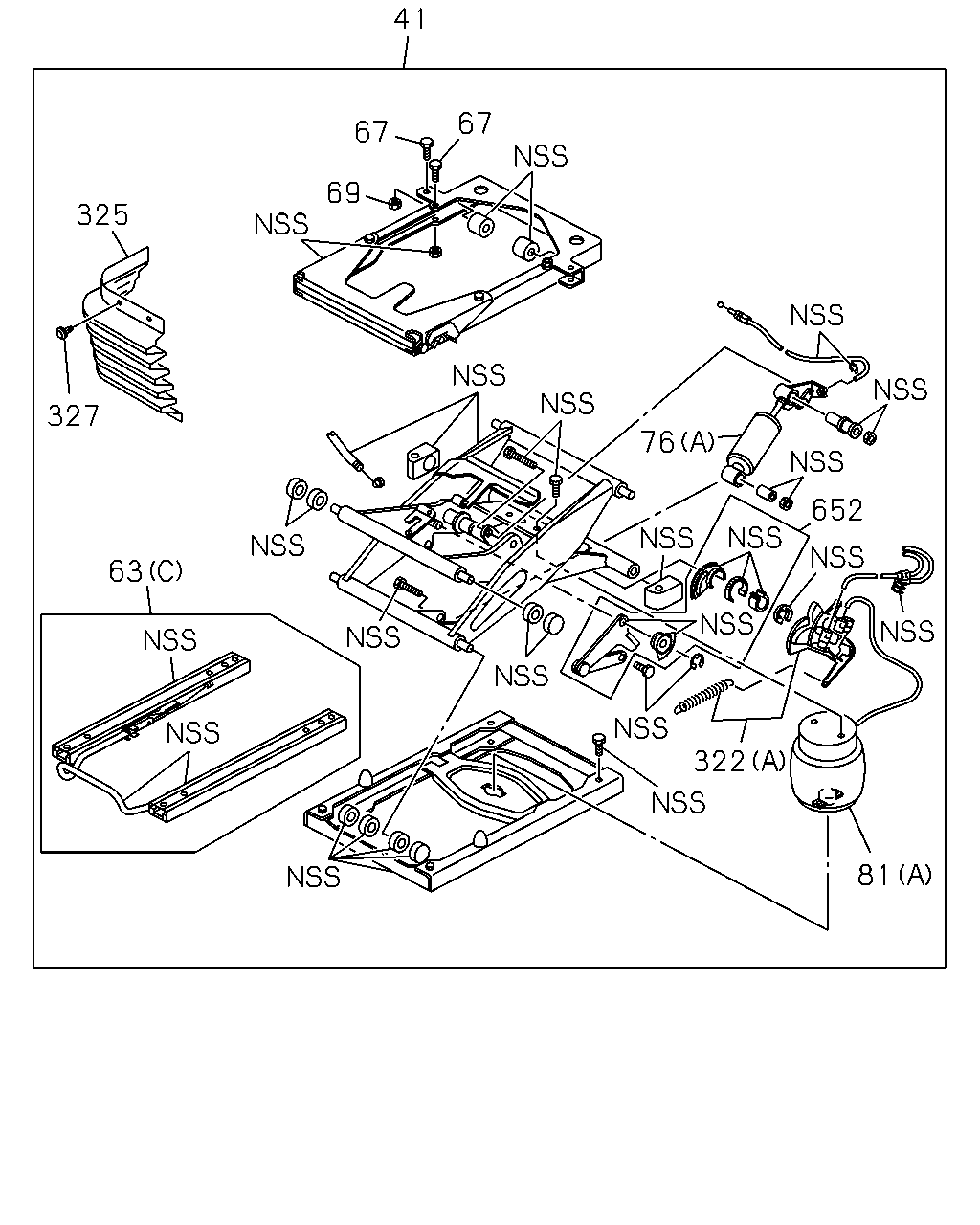

41 67 67 69 325 327 63 81 322 76 652

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0906-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-0	01	1	1301-1508	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0906-1204	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1205-	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	1205-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0906-1204	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1205-	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	1205-		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98098-005-0	01	1	0906-1508	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0906-1204	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1205-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0906-1204	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1205-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0906-1204	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1205-	●
76	DAMPER; AIR SUSP (B)	1-75538-139-0	01	1	1205-		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-999-0	01	1	0906-1508	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0906-1204	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1205-1312	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1205-1312		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-000-0	01	1	0906-1508	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	0906-1204	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1205-	●
322	VALVE; AIR SPRING (B)	1-75538-187-3	01	1	1205-		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-001-0	01	1	0906-1508	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-003-0	01	1	0906-1508	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-004-0	01	1	0906-1508	●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-002-0	01	1	0906-1508	●

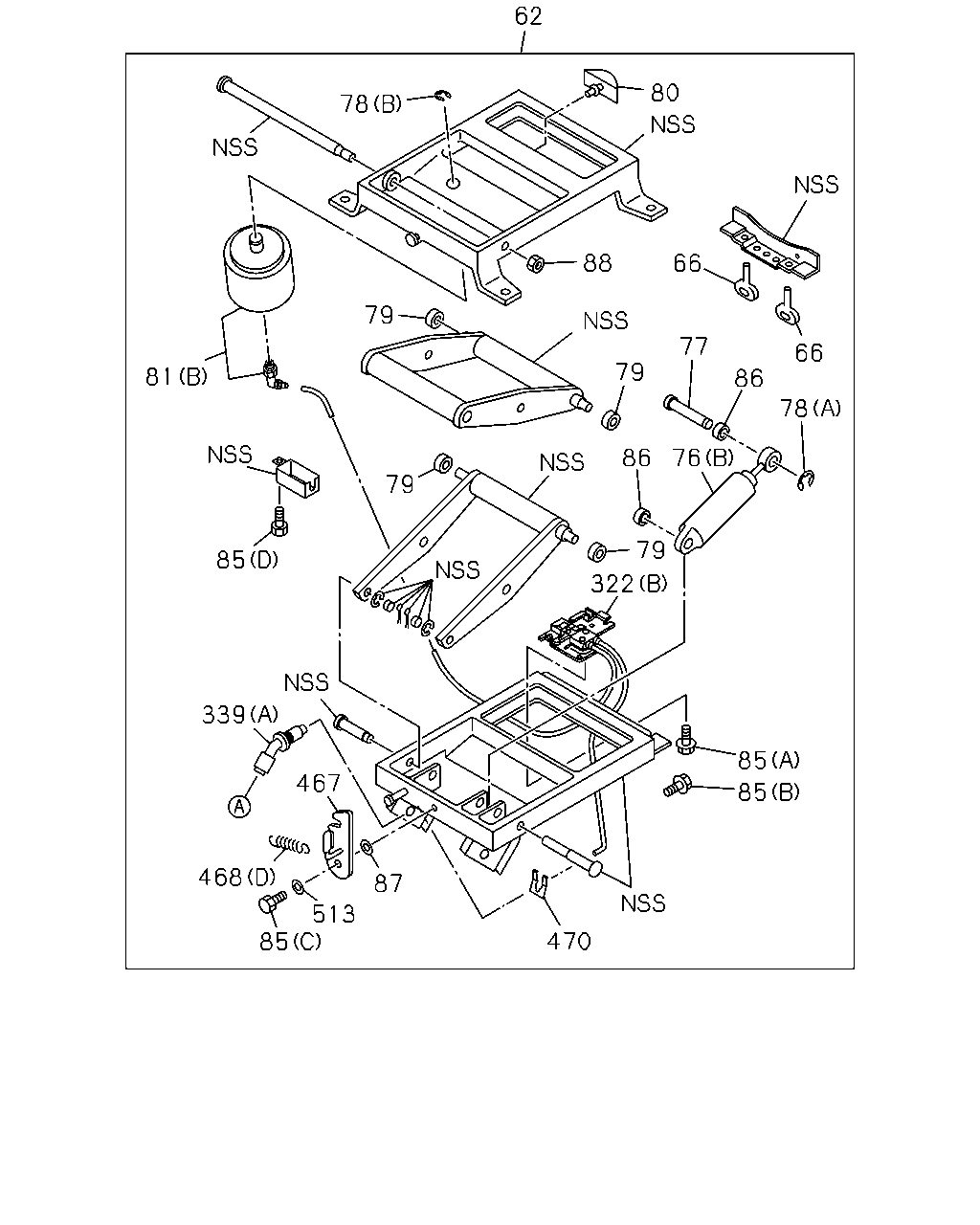

470 85 85 87 513 85 468 467 339 85 81 79 79 86 79 322 76 86 66 66 88 79 77 80 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	0906-1204	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1205-1403	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-8	01	1	1205-1403		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●
62	DAMPER ASM; SEAT SUSP	8-98261-451-0	01	1	1404-		●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0906-1204	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1205-	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1205-		●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0906-1204	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1205-	●
76	DAMPER; AIR SUSP (B)	1-75538-139-0	01	1	1205-		●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-999-0	01	1	0906-1508	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0906-1204	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1205-	●
77	PIN; DAMPER	1-75538-138-2	01	1	1205-		●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98101-900-0	02	1	0906-1508	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0906-1204	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1205-	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1205-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0906-1204	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1205-	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1205-		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0906-1204	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1205-1403	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1205-1403		●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-	●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-		●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0906-1204	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1205-	●
80	RUBBER; STOPPER	1-09987-123-0	01	1	1205-		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0906-1204	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1205-1312	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1205-1312		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-		●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-000-0	01	1	0906-1508	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0906-1204	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1205-	●
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1205-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0906-1204	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1205-	●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1205-		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0906-1204	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1205-1312	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1205-1312		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-		●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0906-1204	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1205-	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1205-		●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0906-1204	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1205-	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1205-		●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0906-1204	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1205-	●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1205-		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	0906-1204	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1205-	●
322	VALVE; AIR SPRING (B)	1-75538-187-3	01	1	1205-		●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-001-0	01	1	0906-1508	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0906-1204	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	1205-	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1205-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0906-1204	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1205-	●
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1205-		●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0906-1204	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1205-	●
467	LEVER; LOCK	1-75538-134-0	01	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1205-	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1205-	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1205-	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1205-	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1205-		●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0906-1204	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1205-	●
470	CLIP; HOSE	1-75538-137-0	01	1	1205-		●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0906-1204	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1205-	●
513	SPACER; LEVER	1-75538-133-0	01	1	1205-		●

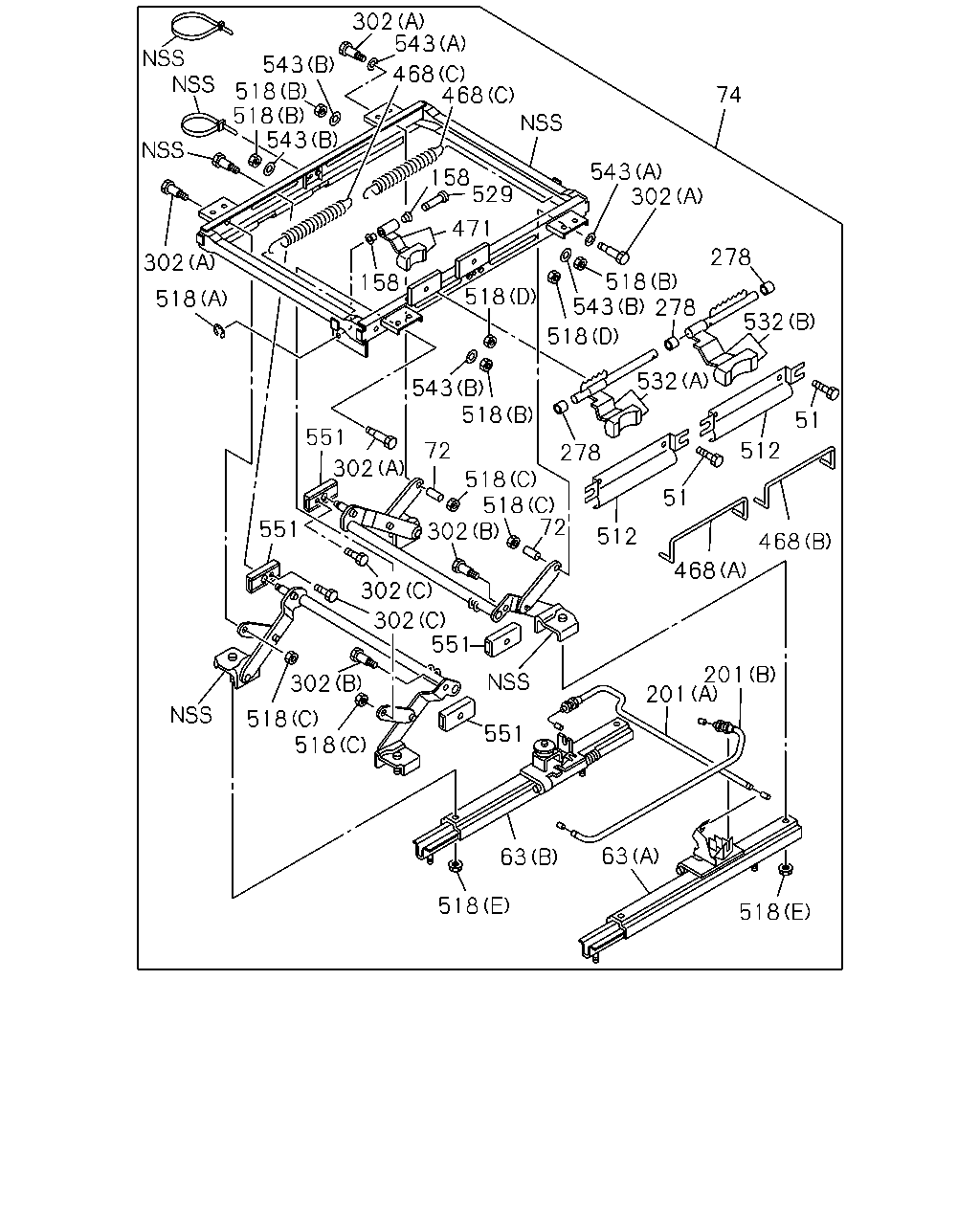

74 302 543 518 518 543 302 518 158 158 471 529 543 468 468 543 302 278 518 543 518 518 543 518 278 532 532 51 512 51 468 468 512 72 518 518 72 551 302 551 302 302 302 551 551 518 302 518 63 518 63 518 201 201 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0906-1204	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1205-	●
51	SCREW; COVER	1-75518-325-1	04	1	1205-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0906-1204	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1205-	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-324-0	01	1	1205-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0906-1204	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1205-	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	1205-		●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98098-005-0	01	1	0906-1508	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0906-1204	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1205-1502	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1205-1502		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-	●
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0906-1204	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1205-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98093-429-0	01	1	1205-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-641-0	01	1	1503-		●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0906-1204	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	1205-	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1205-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0906-1204	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	1205-	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1205-		●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0906-1204	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	1205-	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1205-		●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0906-1204	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1205-	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1205-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0906-1204	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1205-	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1205-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0906-1204	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1205-1502	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1205-1502		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-	●
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0906-1204	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1205-	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1205-	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1205-	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1205-	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1205-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0906-1204	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1205-	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1205-		●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	0906-1204	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	1205-	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1205-		●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	0906-1204	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1205-	●
512	COVER; LEVER	1-75518-245-1	02	1	1205-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0906-1204	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	1205-	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1205-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0906-1204	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1205-	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1205-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0906-1204	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1205-	●
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1205-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0906-1204	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1205-	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1205-		●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0906-1204	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1205-	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1205-		●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0906-1204	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	1205-	●
529	PIN; LINK	1-75518-262-0	01	1	1205-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0906-1204	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1205-	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1205-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0906-1204	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1205-	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1205-		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-981-0	01	1	0906-1508	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0906-1204	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1205-1502	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1205-1502		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-	●
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0906-1204	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1205-	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1205-		●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0906-1204	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1205-	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1205-		●

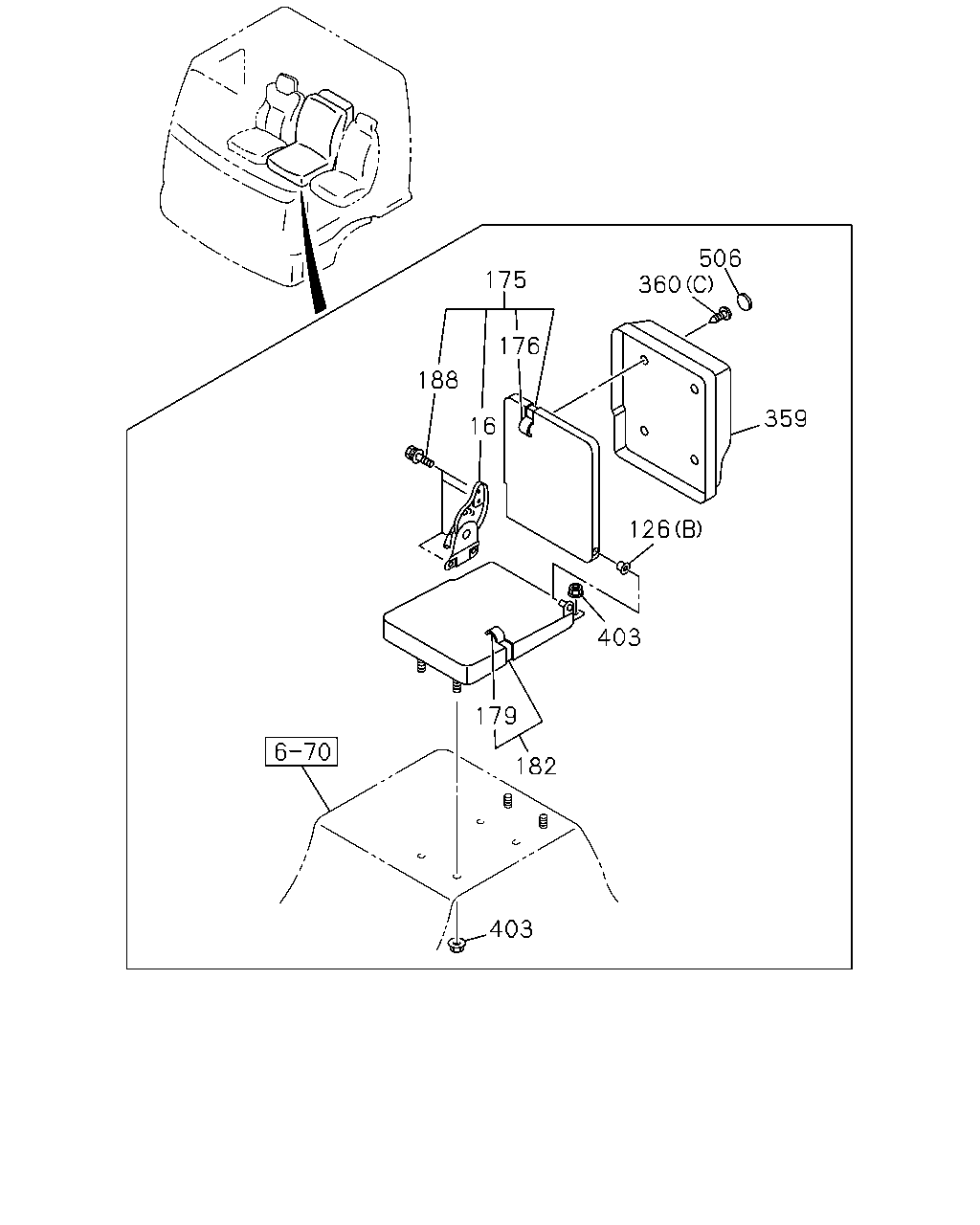

403 182 179 403 126 359 506 360 175 176 188 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0906-1204	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1205-	●	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-1204	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	1205-	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1205-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0906-1204	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1205-	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	0906-1009	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-1204	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1205-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	0906-1009	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-1204	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1205-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-238-0	01	1	0906-1009	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1010-1204	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-433-1	01	1	1205-	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-236-0	01	1	0906-1009	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1010-1204	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-431-3	01	1	1205-	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0906-1204	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1205-	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0906-1006	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-1204	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0906-1009	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0906-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0906-1110	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0906-1009	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0906-1006	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-1204	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1205-	●	●

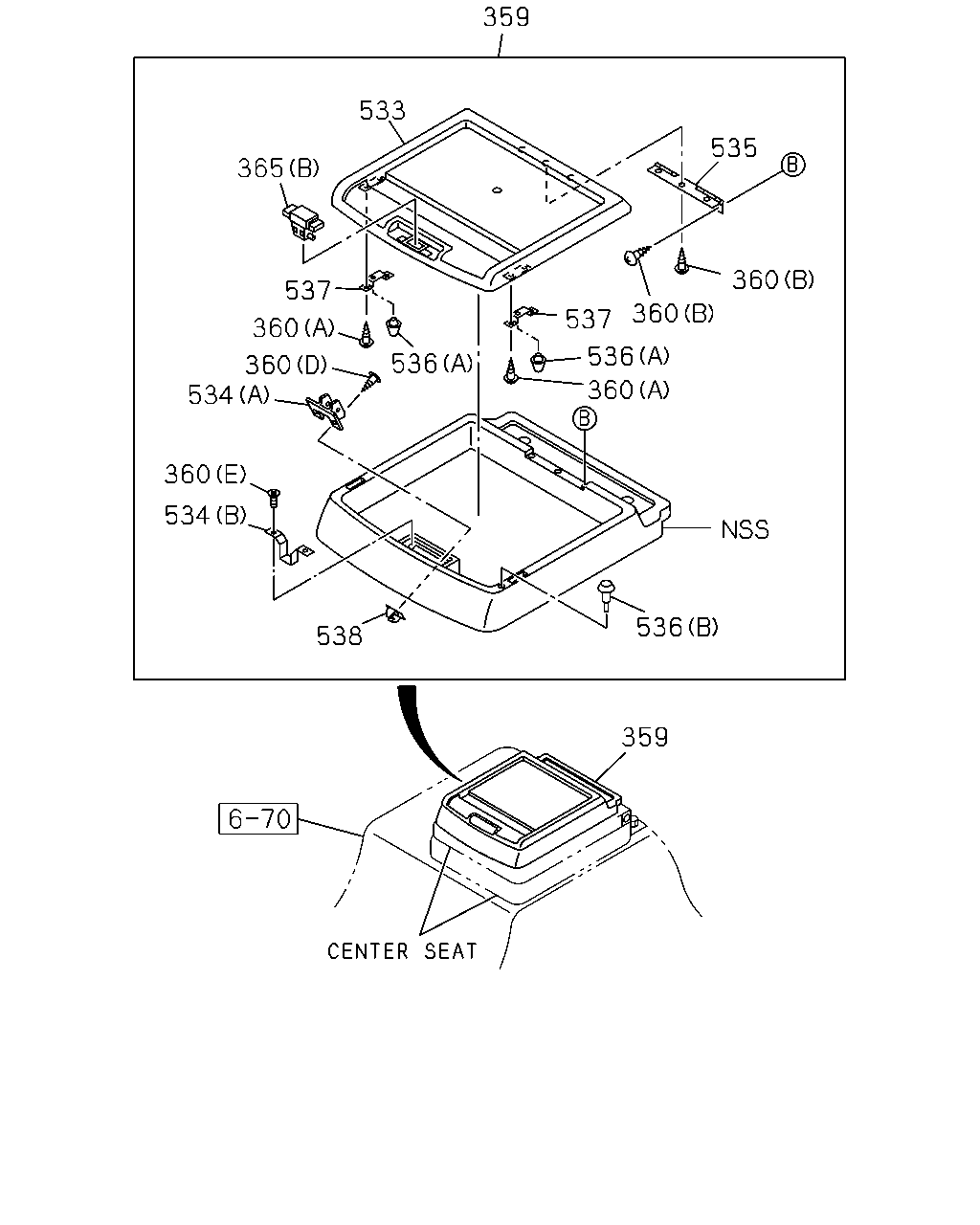

359 533 365 535 360 360 537 536 360 537 360 536 360 534 360 534 538 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0906-1006	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-1204	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0906-1009	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0906-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0906-1110	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-1204	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1205-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0906-1009	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-972-0	01	1	0906-1508	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0906-1204	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1205-	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0906-1006	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-1204	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1205-	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0906-1009	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-1204	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1205-	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0906-1204	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1205-	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0906-1009	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-1204	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1205-	●	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0906-1009	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0906-1009	●

650 411 2 1 41 12 13 365 336 651 651 651 17 661 17 642 648 642 532 587 310 509 336 638 642 634 635 336 637 602 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0906-1009	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1010-1204	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-408-1	01	1	1205-	●
1	BACK ASM; SEAT (B) DARK GRAY	8-97421-408-1	01	1	1205-		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	0906-1508	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0906-1009	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1010-1204	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-413-0	01	1	1205-	●
2	COVER; TRIM,FRT SEAT,BACK (B) DARK GRAY	8-97421-413-0	01	1	1205-		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-965-0	01	1	0906-1212	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98232-352-0	01	1	1301-1508	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-214-1	01	1	0906-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1010-1204	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-400-2	01	1	1205-	●
12	CUSHION; SEAT,FRT (B) DARK GRAY	8-97421-400-2	01	1	1205-		●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-006-0	01	1	0906-1508	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-217-0	01	1	0906-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1010-1204	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-404-2	01	1	1205-	●
13	COVER; TRIM,FRT SEAT,CUSHION (B) DARK GRAY	8-97421-404-2	01	1	1205-		●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-007-0	01	1	0906-1508	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-974-0	02	1	0906-1508	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0906-1204	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1205-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-1204	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	1205-	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1205-		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0906-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-0	01	1	1301-1508	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-991-0	01	1	0906-1508	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D)	8-98097-977-0	01	1	0906-1508	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-983-0	01	1	0906-1508	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-995-0	01	1	0906-1508	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98097-996-0	01	1	0906-1508	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-972-0	01	1	0906-1508	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0906-1204	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1205-	●	●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-967-0	01	1	0906-1508	●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-987-0	01	1	0906-1508	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0906-1204	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1205-	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1205-		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0906-1204	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1205-	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1205-		●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-981-0	01	1	0906-1508	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-985-0	01	1	0906-1508	●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-008-0	01	1	0906-1508	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	0906-	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	0906-	●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-989-0	01	1	0906-1508	●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-993-0	01	1	0906-1508	●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98192-932-0	04	1	0906-1508	●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-976-0	01	1	0906-1508	●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-973-0	01	1	0906-1212	●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98232-354-0	01	1	1301-1508	●
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98194-075-0	04	1	0906-1508	●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-979-0	01	1	0906-1508	●

639 595 485 653 78 552 78 138 639 654 655 42 368 368 658 660 656 656 658 659 657 165 657 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	0906-1212	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-065-0	01	1	1301-1508	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-346-0	01	1	0906-1508	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98101-900-0	02	1	0906-1508	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0906-1204	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1205-	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1205-		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0906-1204	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1205-	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1205-		●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-351-0	01	1	0906-1508	●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	1-75590-086-0	04	1	0906-1508	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-353-0	03	1	0906-1508	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-358-0	01	1	0906-1508	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0906-1508	●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98101-902-0	01	1	0906-1508	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-348-0	01	1	0906-1508	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0906-1204	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	1205-	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1205-		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-349-0	01	1	0906-1508	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-350-0	01	1	0906-1508	●
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98101-901-0	01	1	0906-1508	●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-352-0	01	1	0906-1508	●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-353-0	02	1	0906-1508	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	1-75590-085-0	04	1	0906-1508	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-354-0	02	1	0906-1508	●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	1-75590-085-0	06	1	0906-1508	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-355-0	02	1	0906-1508	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-359-0	01	1	0906-1508	●
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-356-0	02	1	0906-1508	●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-357-0	01	1	0906-1508	●

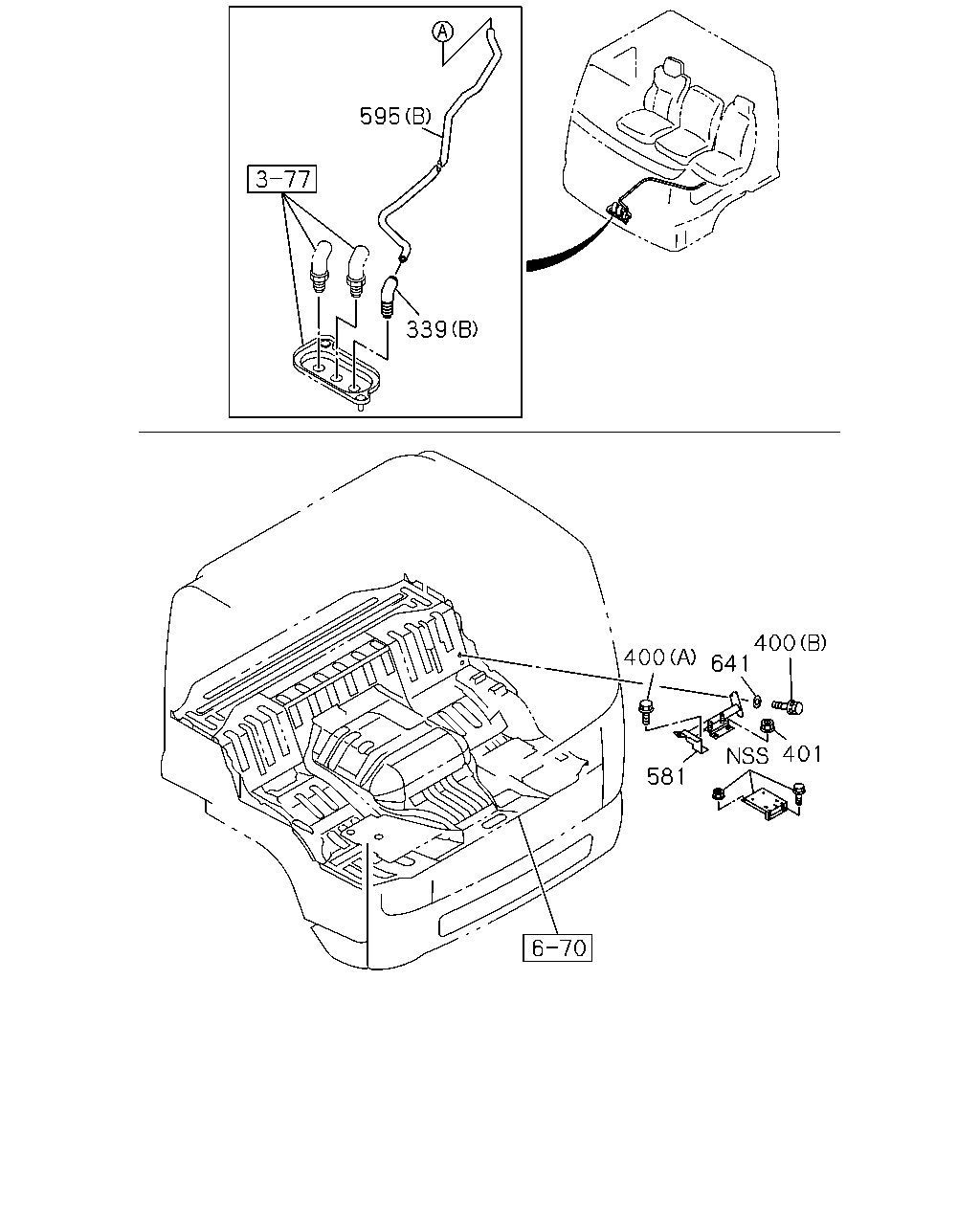

595 339 400 641 400 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0906-1204	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	1205-	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1205-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0906-1204	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1205-	●
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1205-		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	0906-	●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	0906-	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98049-531-3	01	1	0906-	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-348-0	01	1	0906-1508	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	0906-1204	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	1205-	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1205-		●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
