8-03 — LAMP; REAR AND REAR SIDE (#1685) — 54 parça

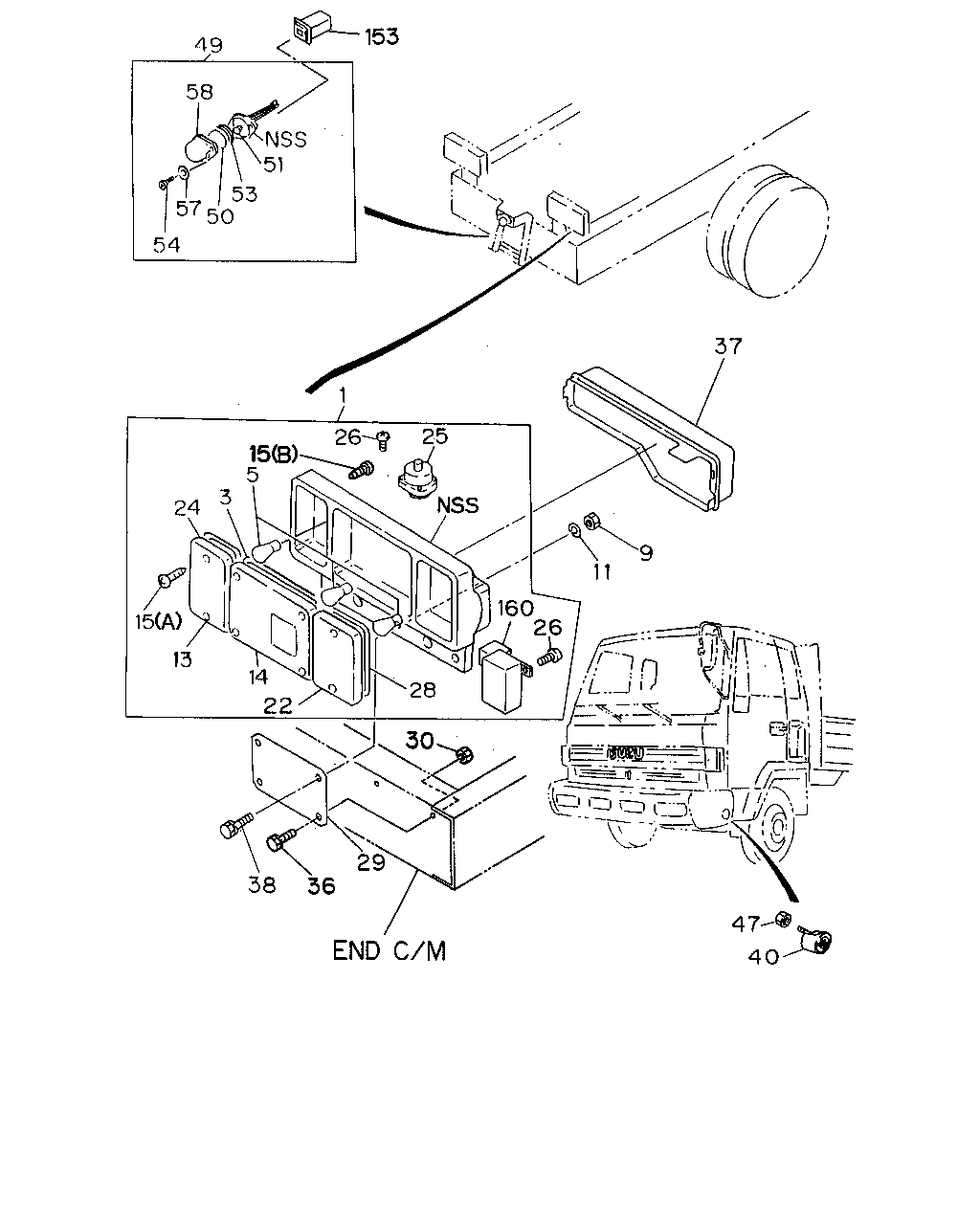

çizim 94963
153 58 51 53 50 57 54 37 9 11 47 40 26 160 25 15 5 3 24 15 13 14 22 28 30 29 36 38 49 1 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; RR COMB
INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-133-2 01 1 9207- ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-133-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
INDICATOR TAIL & STOP LAMP<YD6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82230-133-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9207- ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		1-82230-132-2 01 1 9207- ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3),LIGHTING SYSTEM ECE<SLC> 		1-82230-132-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-134-2 01 1 9207- ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-134-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3),REVERSING WARNINGBUZZER<YM9> 		1-82230-134-2 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) INDICATOR TAIL & STOP LAMP<YD6> EXC. LIGHTING SYSTEM ECE<SLC> 		1-82230-145-1 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-146-1 01 1 9207- ● ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,REVERSING WARNINGBUZZER<YM9> 		1-82230-144-1 01 1 9207- ● ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 9207- ● ● ● ● ●
5 BULB; RR COMB LAMP
24V 21W 		8-94125-956-0 02 1 9207- ● ● ● ● ●
5 BULB; RR COMB LAMP
24V 21/5W 		8-94125-957-0 01 1 9207- ● ● ● ● ●
9 NUT; LAMP,RR COMB
M6 		9-09110-406-0 04 1 9207- ● ● ● ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 04 1 9207- ● ● ● ● ●
13 LENS; TURN SIGNAL 1-82235-015-0 01 1 9207- ● ● ● ● ●
13 LENS; TURN SIGNAL 1-82235-014-0 01 1 9207- ● ● ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-511-0 01 1 9207- ● ● ● ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-510-0 01 1 9207- ● ● ● ● ●
15 SCREW; RR COMB LAMP
(A) 		0-71190-420-0 08 1 9207- ● ● ● ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) INDICATOR TAIL & STOP LAMP<YD6> EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82239-031-0 02 1 9207- ● ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,INDICATOR TAIL & STOP LAMP<YD6> (B) 		1-82239-031-0 01 1 9207- ● ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,REVERSING WARNINGBUZZER<YM9> (B) 		9-07076-410-0 01 1 9207- ● ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-0 02 1 9207- ● ● ● ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 9207- ● ● ● ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 9207- ● ● ● ● ●
26 SCREW; BACK HORN
INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 02 1 9207- ● ● ● ● ●
26 SCREW; BACK HORN
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 01 1 9207- ● ● ● ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> 		9-07076-410-0 02 1 9207- ● ● ● ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> 		9-07076-410-0 01 1 9207- ● ● ● ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 9207- ● ● ● ● ●
29 BRACKET; LAMP,RR COMB 1-82237-050-1 02 1 9207- ● ● ● ● ●
30 NUT; BRKT,RR COMB
M10 		9-09110-510-0 04 1 9207- ● ● ● ● ●
36 BOLT; BRKT,RR COMB
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9207- ● ● ● ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 9207- ● ● ● ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 9207- ● ● ● ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK WASHER 		0-50040-630-0 04 1 9207- ● ● ● ● ●
40 REFLECTOR; REFLEX
LIGHTING SYSTEM ECE<SLC> 		1-82290-036-0 01 1 9207- ●
40 REFLECTOR; REFLEX
LIGHTING SYSTEM ECE<SLC> 		1-82290-037-0 01 1 9207- ●
47 NUT; REFLECTOR
LIGHTING SYSTEM ECE<SLC> M5 		9-99110-405-0 04 1 9207-9502 ●
47 NUT; REFLECTOR
LIGHTING SYSTEM ECE<SLC> M4 		9-99110-404-0 02 1 9503- ●
49 LAMP; LICENSE PLATE 1-82120-021-0 01 1 9207- ● ● ● ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9207- ● ● ● ● ●
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-030-0 01 1 9207- ● ● ● ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9207- ● ● ● ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9207- ● ● ● ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9207- ● ● ● ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9207- ● ● ● ● ●
153 BOLT; LICENSE PLATE LAMP
?????? D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9207- ● ● ● ● ●
160 INDICATOR; RR COMB LAMP
INDICATOR TAIL & STOP LAMP<YD6> 		1-82550-195-0 01 1 9207- ● ● ● ● ●
