◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#16845) — 34 parça

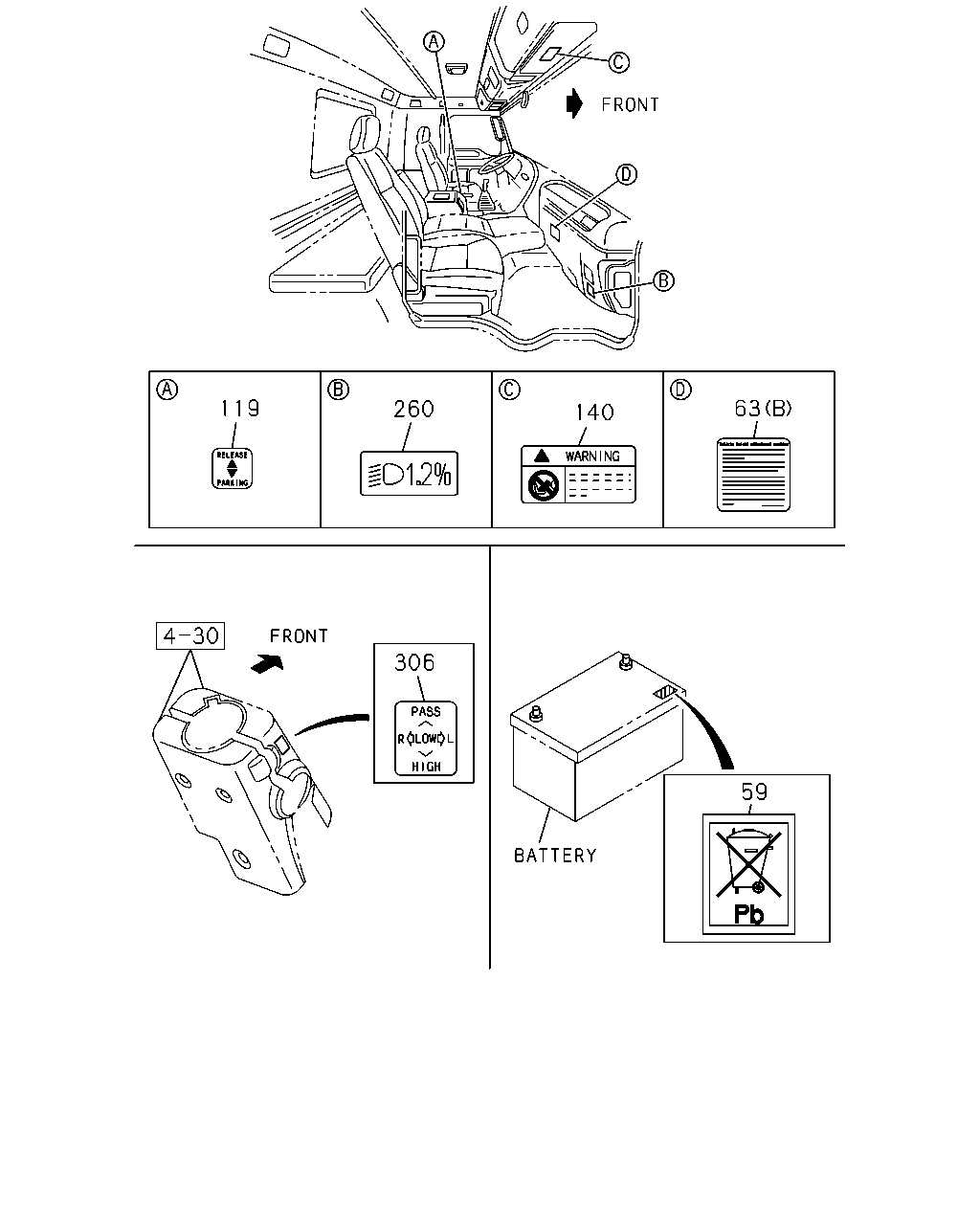

çizim 62992
119 63 260 140 306 59
BalonParca AdiParca NoAdetTipApplied Date A B
59 PLATE; CAUTION,BATTERY
EXC. KD PREPARATORY PACK<6HF> 10 PER 1 SHEET 		8-97116-760-0 02 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 1205- ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 1205- ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0906-1204 ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 1205- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1205- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906-1204 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1205- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906-1204 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1205- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906-1204 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1205- ● ●
çizim 63047
35 49 63 9 228 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0906-1204 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1205- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
ISRAEL COUNTRY(CV4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98238-354-0 01 1 1302- ●
9 PLATE; NAME,SPD RANGE
ISRAEL COUNTRY(CV4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-353-0 01 1 1302- ●
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-981-0 01 1 0906-1201 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-981-0 01 1 1202-1204 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-981-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) 6 PER 1 SHEET 		8-98142-981-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-979-0 01 1 0906-1201 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-979-0 01 1 1202-1204 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 6 PER 1 SHEET 		8-98142-979-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 6 PER 1 SHEET 		8-98142-979-0 01 1 1205- ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-980-0 01 1 0906-1201 ●
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4),AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-976-0 01 1 0906-1201 ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0906-1204 ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1205- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 0906-1204 ●
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 1205- ● ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 1205- ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 1205- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0906-1001 ●
