◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#16840) — 12 parça

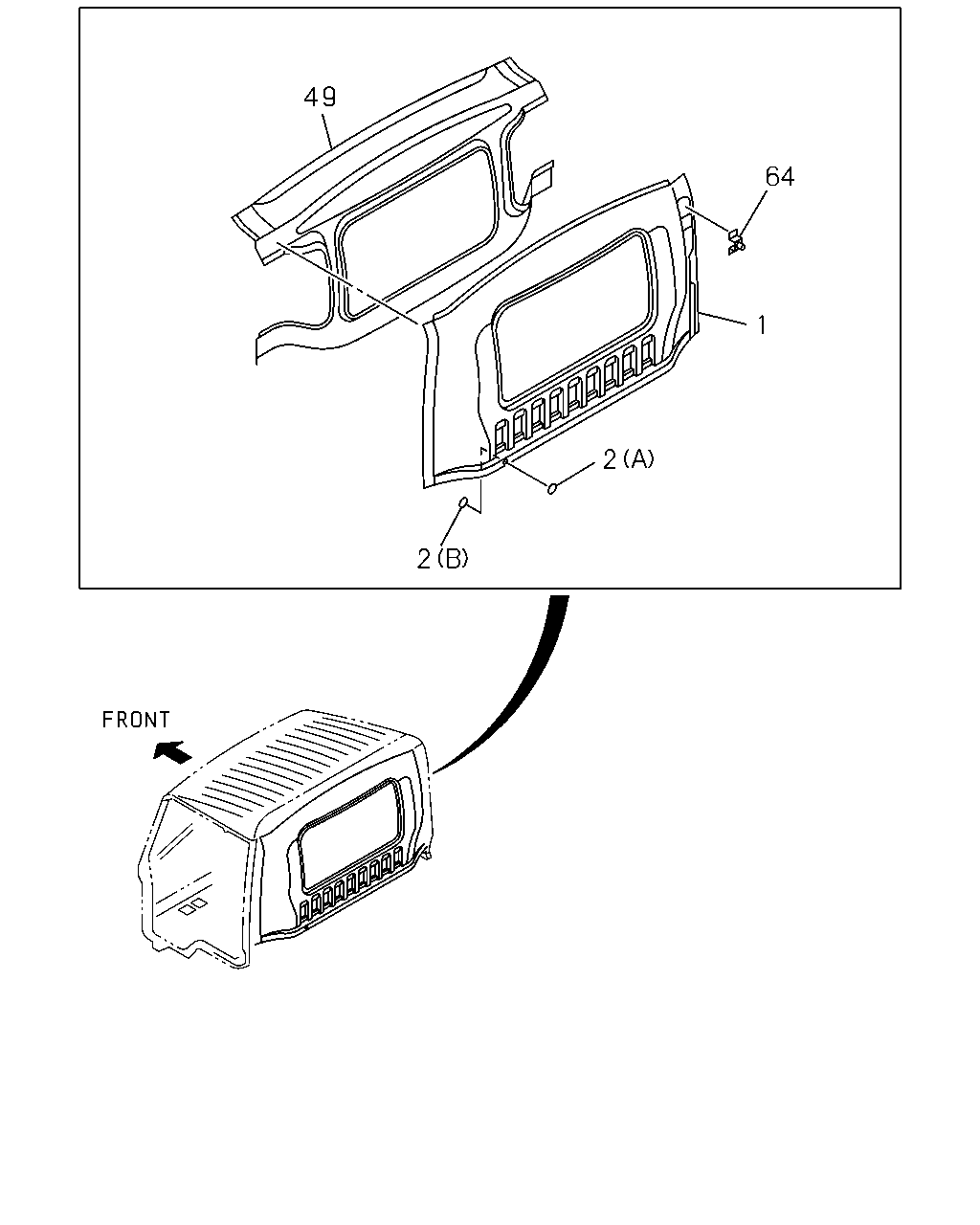

çizim 15090
49 64 1 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-312-3 01 1 0906-1204 ●
1 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-312-3 01 1 1205- ● ●
1 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-601-3 01 1 0906-1204 ●
1 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-601-3 01 1 1205- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0906-1204 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 1205- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-1204 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1205- ● ●
49 PANEL; BACK INNER 8-97584-609-3 01 1 0906-1204 ●
49 PANEL; BACK INNER 8-97584-609-3 01 1 1205- ● ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 0906-1204 ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1205- ● ●
