◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#1684) — 185 parça

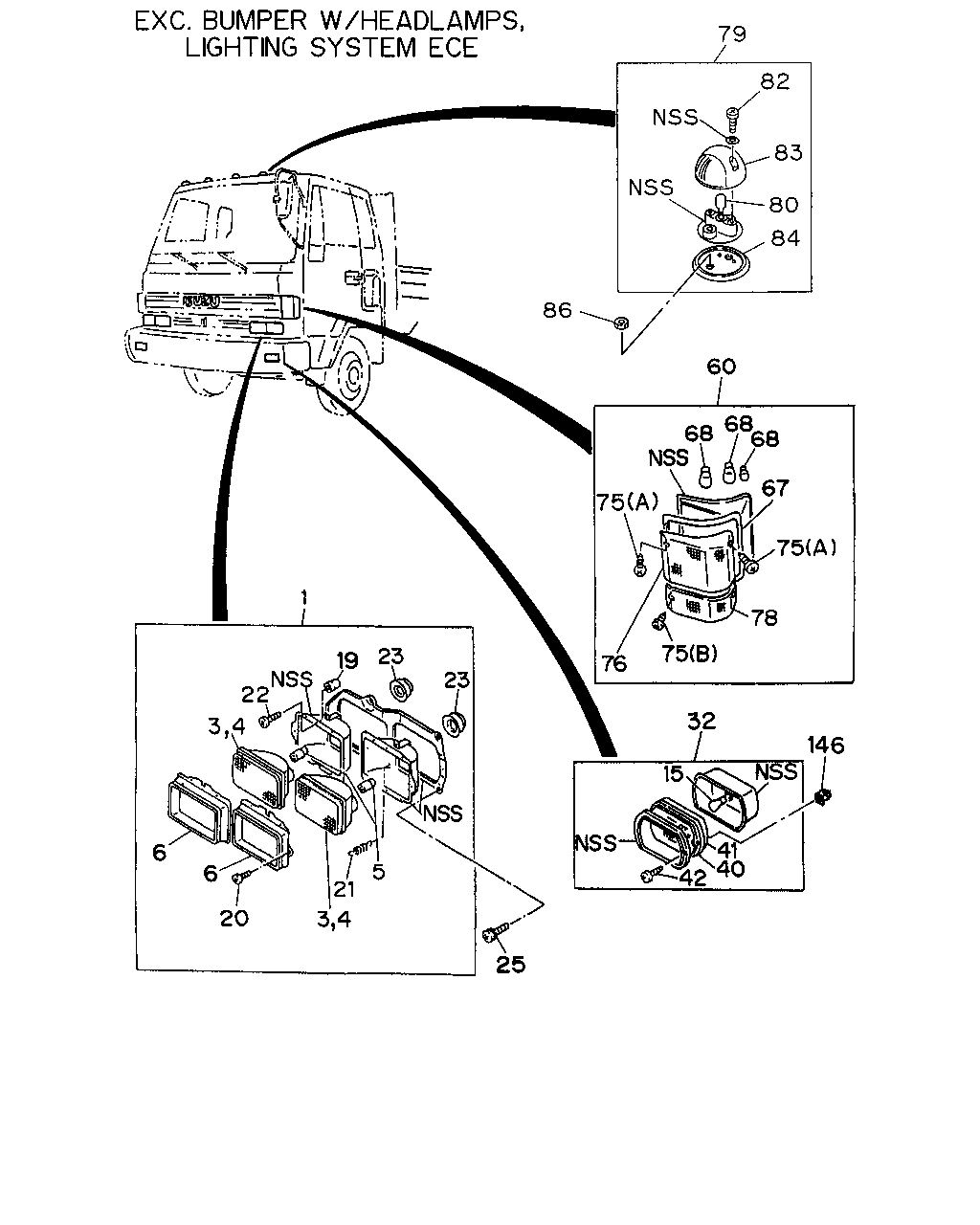

çizim 29698
79 82 83 80 84 86 60 68 68 68 67 75 78 75 76 75 32 146 15 42 40 41 23 23 19 1 22 3 4 6 6 20 3 4 21 5 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V55W 		1-82110-218-4 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V55W 		1-82110-217-4 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V70W BULB TYPE 		1-82110-239-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V70W BULB TYPE 		1-82110-238-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HEAD LAMPS WHITE GLOW(T70) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V55W BULB TYPE 		1-82110-241-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HEAD LAMPS WHITE GLOW(T70) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V55W BULB TYPE 		1-82110-240-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 9207- ● ● ●
3 SEALED BEAM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V 55W 		1-82191-021-0 02 1 9207- ● ● ● ● ●
3 SEALED BEAM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V 50/65W 		1-82191-022-1 02 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP(TT5) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP(TT5) TYPE 1 24V 70W 		1-82191-032-0 02 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HEAD LAMPS WHITE GLOW(T70) 24V 55/50W 		8-94101-732-0 01 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HEAD LAMPS WHITE GLOW(T70) 24V 55W 		8-94101-740-0 01 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP(TT5) 24V 75/70W 		1-82193-006-0 02 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP(TT5) 24V 70W 		1-82193-007-0 02 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HEAD LAMPS WHITE GLOW(T70) 24V 55/50W CLEAR 		5-82193-003-0 02 1 9207- ● ● ● ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82114-027-0 04 1 9207- ● ● ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) INNER 		1-82114-018-0 02 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) OUTER 		1-82114-019-0 02 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-079-0 01 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-078-0 01 1 9207- ● ● ●
15 BULB; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 35W 		1-82193-005-0 02 1 9207- ● ● ● ● ●
19 NUT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> D=7X7 L=7.5 		8-94291-927-0 08 1 9207- ● ● ● ● ●
19 NUT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82119-056-0 08 1 9207- ● ● ●
19 NUT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		9-09110-510-0 02 1 9207- ● ● ●
20 SCREW; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-023-0 16 1 9207- ● ● ● ● ●
20 SCREW; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-104-0 16 1 9207- ● ● ●
21 SPRING; ADJ HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-021-0 04 1 9207- ● ● ● ● ●
21 SPRING; ADJ HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-021-0 08 1 9207- ● ● ●
22 SCREW; ADJ,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-095-0 08 1 9207- ● ● ● ● ●
22 SCREW; ADJ,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-095-0 16 1 9207- ● ● ●
23 COVER; BULB,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		8-94160-623-0 04 1 9207- ● ● ● ● ●
25 SCREW; LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-09981-430-0 08 1 9207- ● ● ● ● ●
25 SCREW; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-09981-315-0 08 1 9207- ● ● ●
32 LAMP ASM; FOG
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82110-210-3 01 1 9207- ● ● ● ● ●
32 LAMP ASM; FOG
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82110-209-3 01 1 9207- ● ● ● ● ●
40 LENS; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82115-008-0 01 1 9207- ● ● ● ● ●
40 LENS; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82115-007-0 01 1 9207- ● ● ● ● ●
41 GASKET; LENS,FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82116-007-0 02 1 9207- ● ● ● ● ●
42 SCREW; LENS,FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-025-0 04 1 9207- ● ● ● ● ●
60 LAMP ASM; FRT COMB 1-82210-141-1 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82210-141-1 01 1 9207- ● ● ●
60 LAMP ASM; FRT COMB 1-82210-140-1 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82210-140-1 01 1 9207- ● ● ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82210-159-0 01 1 9207- ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82210-158-0 01 1 9207- ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94257-412-3 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94257-411-3 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP 1-82216-015-0 01 1 9207- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-015-0 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP 1-82216-014-0 01 1 9207- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-014-0 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-504-0 02 1 9207- ● ●
68 BULB; FRT COMB LAMP
24V 21W 		1-82194-036-0 04 1 9207- ● ● ●
68 BULB; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 21W 		1-82194-036-0 04 1 9207- ● ●
68 BULB; FRT COMB LAMP
24V 5W 		1-82194-039-0 02 1 9207- ● ● ● ● ●
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 24V 21W 		1-82194-036-0 02 1 9207- ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-001-0 08 1 9207- ● ● ●
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82219-001-0 08 1 9207- ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-002-0 04 1 9207- ● ● ●
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (A) 		1-82219-002-0 04 1 9207- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-09981-523-0 12 1 9207- ● ●
75 SCREW; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (A) 		0-71190-420-0 08 1 9207- ● ●
76 LENS; FRT COMB LAMP 1-82215-037-0 01 1 9207- ● ● ●
76 LENS; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-037-0 01 1 9207- ● ●
76 LENS; FRT COMB LAMP 1-82215-038-0 01 1 9207- ● ● ●
76 LENS; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-038-0 01 1 9207- ● ●
76 LENS; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-503-1 01 1 9207- ● ●
76 LENS; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-502-1 01 1 9207- ● ●
78 LENS ASM; FRT COMB 1-82215-034-0 01 1 9207- ● ●
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-034-0 01 1 9207- ● ● ●
78 LENS ASM; FRT COMB 1-82215-035-0 01 1 9207- ● ●
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-035-0 01 1 9207- ● ● ●
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82215-051-0 01 1 9207- ●
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82215-050-0 01 1 9207- ●
79 LAMP; MARKER,ROOF
LAMPS FOUR ROOF MARKER<PJ5> EXC. LIGHTING SYSTEM ECE<SLC> AMBER 		1-82210-143-1 04 1 9207- ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. LIGHTING SYSTEM ECE<SLC> 24V 5W 		8-94135-397-0 04 1 9207- ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. LIGHTING SYSTEM ECE<SLC> 		1-82219-011-0 08 1 9207- ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-040-0 04 1 9207- ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. LIGHTING SYSTEM ECE<SLC> PURPLE 		1-82216-018-0 04 1 9207- ●
86 NUT; MARKER LAMP
NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE 		0-91150-106-0 08 1 9207- ●
146 GROMMET; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9207- ● ● ● ● ●

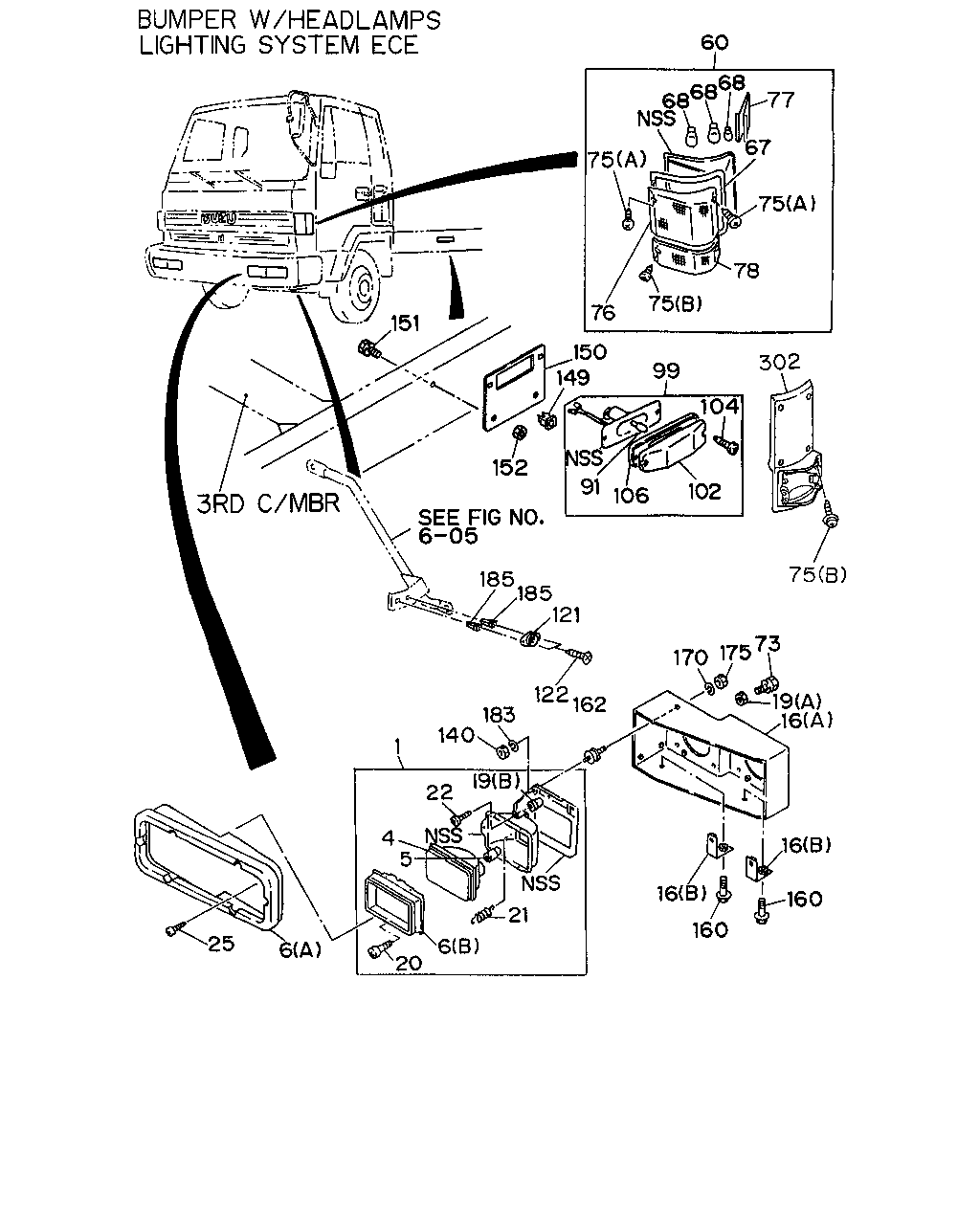

çizim 29858
60 77 68 68 68 75 67 75 78 75 76 99 302 75 104 102 106 91 150 149 152 151 185 185 121 170 175 73 19 16 16 160 160 16 162 122 183 140 1 19 22 21 6 20 5 4 6 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V55W 		1-82110-218-4 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 24V55W 		1-82110-217-4 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V70W BULB TYPE 		1-82110-239-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V70W BULB TYPE 		1-82110-238-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HEAD LAMPS WHITE GLOW(T70) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V55W BULB TYPE 		1-82110-241-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
HEAD LAMPS WHITE GLOW(T70) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V55W BULB TYPE 		1-82110-240-3 01 1 9207- ● ● ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W 		1-82110-260-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 9207- ● ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W 		1-82110-258-2 01 1 9207- ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP(TT5) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEAD LAMP(TT5) TYPE 1 24V 70W 		1-82191-032-0 02 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HEAD LAMPS WHITE GLOW(T70) 24V 55/50W 		8-94101-732-0 01 1 9207- ● ● ● ● ●
4 HEADLAMP UNIT
HEAD LAMPS WHITE GLOW(T70) 24V 55W 		8-94101-740-0 01 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP(TT5) 24V 75/70W 		1-82193-006-0 02 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEAD LAMP(TT5) 24V 70W 		1-82193-007-0 02 1 9207- ● ● ● ● ●
5 BULB; HEADLAMP
HEAD LAMPS WHITE GLOW(T70) 24V 55/50W CLEAR 		5-82193-003-0 02 1 9207- ● ● ● ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82114-027-0 04 1 9207- ● ● ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) INNER 		1-82114-018-0 02 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) OUTER 		1-82114-019-0 02 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-079-0 01 1 9207- ● ● ●
6 RIM; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-078-0 01 1 9207- ● ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-077-2 04 1 9207- ● ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-073-2 01 1 9207- ● ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-074-2 01 1 9207- ● ● ●
19 NUT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> D=7X7 L=7.5 		8-94291-927-0 08 1 9207- ● ● ● ● ●
19 NUT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82119-056-0 08 1 9207- ● ● ●
19 NUT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		9-09110-510-0 02 1 9207- ● ● ●
20 SCREW; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-023-0 16 1 9207- ● ● ● ● ●
20 SCREW; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-104-0 16 1 9207- ● ● ●
21 SPRING; ADJ HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-021-0 04 1 9207- ● ● ● ● ●
21 SPRING; ADJ HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-021-0 08 1 9207- ● ● ●
22 SCREW; ADJ,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82119-095-0 08 1 9207- ● ● ● ● ●
22 SCREW; ADJ,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82119-095-0 16 1 9207- ● ● ●
25 SCREW; LAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-09981-430-0 08 1 9207- ● ● ● ● ●
25 SCREW; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-09981-315-0 08 1 9207- ● ● ●
60 LAMP ASM; FRT COMB 1-82210-141-1 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82210-141-1 01 1 9207- ● ● ●
60 LAMP ASM; FRT COMB 1-82210-140-1 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82210-140-1 01 1 9207- ● ● ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82210-159-0 01 1 9207- ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82210-158-0 01 1 9207- ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94257-412-3 01 1 9207- ● ●
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		8-94257-411-3 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP 1-82216-015-0 01 1 9207- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-015-0 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP 1-82216-014-0 01 1 9207- ● ● ●
67 GASKET; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82216-014-0 01 1 9207- ● ●
67 GASKET; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-504-0 02 1 9207- ● ●
68 BULB; FRT COMB LAMP
24V 21W 		1-82194-036-0 04 1 9207- ● ● ●
68 BULB; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 21W 		1-82194-036-0 04 1 9207- ● ●
68 BULB; FRT COMB LAMP
24V 5W 		1-82194-039-0 02 1 9207- ● ● ● ● ●
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 24V 21W 		1-82194-036-0 02 1 9207- ● ●
73 BOLT; BRKT,HEADLAMP
BUMPER W/HEADLAMPS<SLB> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9207- ● ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-001-0 08 1 9207- ● ● ●
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (B) 		1-82219-001-0 08 1 9207- ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-002-0 04 1 9207- ● ● ●
75 SCREW; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> (A) 		1-82219-002-0 04 1 9207- ● ●
75 SCREW; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-09981-523-0 12 1 9207- ● ●
75 SCREW; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (A) 		0-71190-420-0 08 1 9207- ● ●
76 LENS; FRT COMB LAMP 1-82215-037-0 01 1 9207- ● ● ●
76 LENS; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-037-0 01 1 9207- ● ●
76 LENS; FRT COMB LAMP 1-82215-038-0 01 1 9207- ● ● ●
76 LENS; FRT COMB LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-038-0 01 1 9207- ● ●
76 LENS; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-503-1 01 1 9207- ● ●
76 LENS; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> 		8-94257-502-1 01 1 9207- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
LIGHTING SYSTEM ECE<SLC> 		8-97020-218-0 02 1 9207- ● ●
78 LENS ASM; FRT COMB 1-82215-034-0 01 1 9207- ● ●
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-034-0 01 1 9207- ● ● ●
78 LENS ASM; FRT COMB 1-82215-035-0 01 1 9207- ● ●
78 LENS ASM; FRT COMB
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82215-035-0 01 1 9207- ● ● ●
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82215-051-0 01 1 9207- ●
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> 		1-82215-050-0 01 1 9207- ●
91 BULB; SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 24V 5W 		1-82194-042-0 02 1 9207- ● ● ●
99 LAMP; SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> 		1-82220-013-2 01 1 9207- ● ● ●
99 LAMP; SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> 		1-82220-012-2 01 1 9207- ● ● ●
102 LENS; SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		8-94230-837-0 02 1 9207- ● ● ●
104 SCREW; SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		1-82229-003-0 04 1 9207- ● ● ●
106 GASKET; SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		5-82226-009-0 01 1 9207- ● ● ●
106 GASKET; SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		5-82226-008-0 01 1 9207- ● ● ●
121 REFLECTOR; REFLEX
LIGHTING SYSTEM ECE<SLC> 		1-82290-020-0 02 1 9207- ● ●
122 SCREW; SIDE REFLEX REFLECTOR
BUMPER W/HEADLAMPS<SLB> M6X16 TAPPING 		1-09981-524-0 04 1 9207- ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> M5 		9-99110-405-0 12 1 9207- ● ● ●
149 GROMMET; SCREW,SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> M4 		5-09470-002-0 04 1 9207- ● ● ●
150 BRACKET; SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> 		1-82227-003-0 02 1 9207- ● ● ●
151 BOLT; BRKT,SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ●
152 NUT; BRKT,SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> M8 		9-09110-408-0 02 1 9207- ● ● ●
160 BOLT; BRKT TO FRAME
BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE 		0-28080-816-0 04 1 9207- ● ● ●
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-304-0 16 1 9207- ● ● ●
170 WASHER; LK
BUMPER W/HEADLAMPS<SLB> ID=8.2 		9-09150-508-0 16 1 9207- ● ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 		9-09110-408-0 16 1 9207- ● ● ●
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> ID=5.1 		9-09150-505-0 12 1 9207- ● ● ●
185 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> M5 		1-09983-116-0 04 1 9207- ● ●
302 COVER; FRT COMB LAMP
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> EXC. AUSTRALIA PACKAGE<D2Y> 		1-71996-054-0 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
AUSTRALIA PACKAGE<D2Y> BUMPER W/HEADLAMPS<SLB> 		1-71996-054-0 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> EXC. AUSTRALIA PACKAGE<D2Y> 		1-71996-053-0 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
AUSTRALIA PACKAGE<D2Y> BUMPER W/HEADLAMPS<SLB> 		1-71996-053-0 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. AUSTRALIA PACKAGE<D2Y>,BODY COLOR ARC WHITE(729) 		1-71998-706-1 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
BUMPER W/HEADLAMPS<SLB> EXC. AUSTRALIA PACKAGE<D2Y>,BODY COLOR ARC WHITE(729) 		1-71998-705-1 01 1 9407- ● ● ●
302 COVER; FRT COMB LAMP
BODY COLOR AUSTRALIA RED(953) BUMPER W/HEADLAMPS<SLB> EXC. AUSTRALIA PACKAGE<D2Y> 		1-71998-705-1 01 1 9207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
