6-76 — FLOOR EQUIPMENT AND SEALING (#16838) — 29 parça

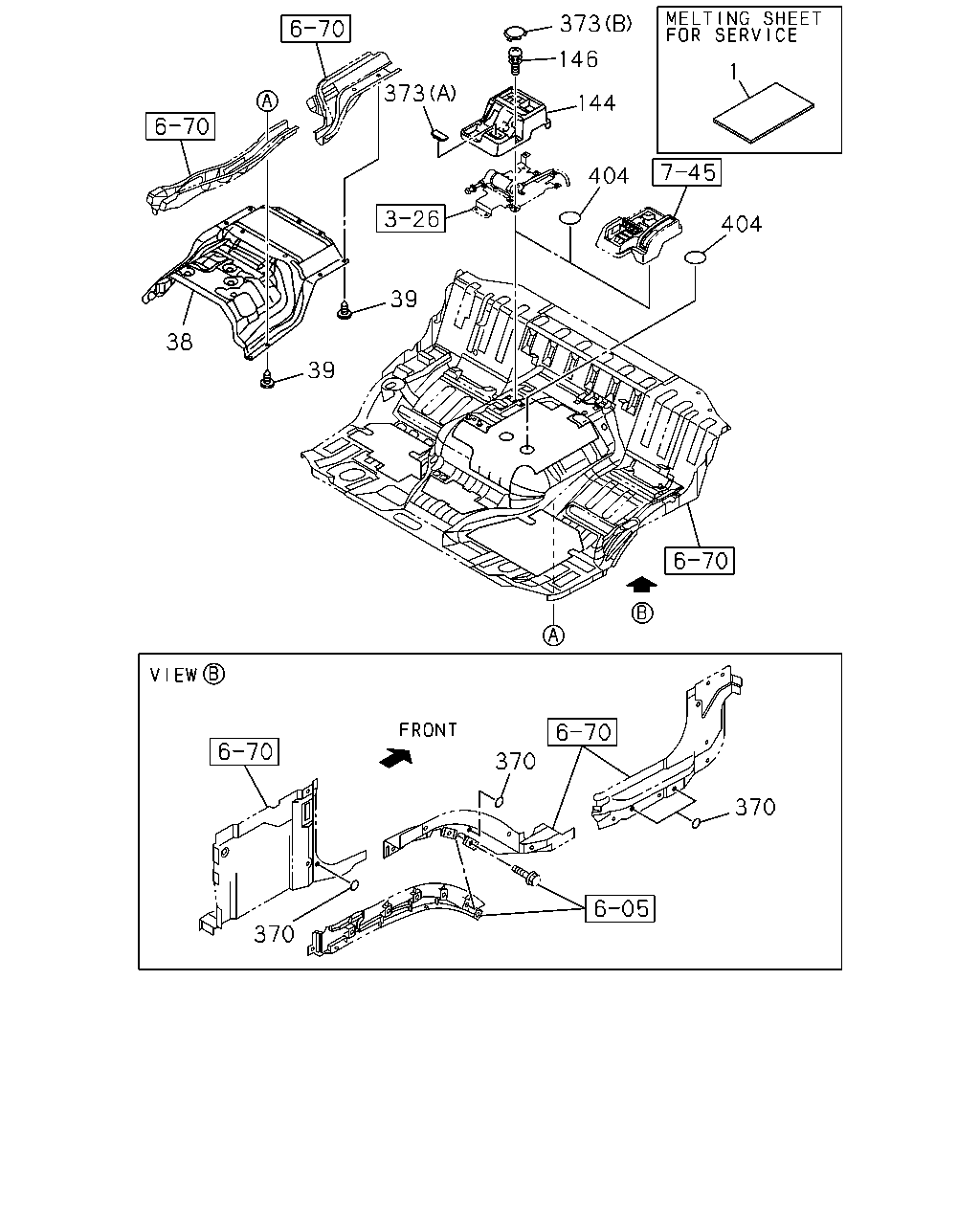

çizim 62635
373 146 1 373 144 404 404 39 38 39 370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
EXC. KD PREPARATORY PACK VAR.4<7TV> NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 01 1 1406- ● ●
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0906-1204 ●
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1205- ● ●
38 INSULATOR; ENG COVER 8-97586-181-6 01 1 0906-1204 ●
38 INSULATOR; ENG COVER 8-97586-181-6 01 1 1205-1310 ● ●
38 INSULATOR; ENG COVER 8-98240-136-1 01 1 1311- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 19 1 0906-1204 ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 19 1 1205- ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-974-0 01 1 0906-1204 ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-974-0 01 1 1205- ●
144 COVER; HAND BRK VLV
GRAY 		8-97407-974-0 01 1 1205- ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 		0-38050-616-0 04 1 0906-1204 ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 		0-38050-616-0 04 1 1205- ●
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 04 1 1205- ●
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 0906-1204 ●
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1205-1211 ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY 		8-97407-951-0 04 1 0906-1204 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY 		8-97407-951-0 04 1 1205- ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1205- ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97409-339-0 01 1 0906-1204 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97409-339-0 01 1 1205- ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1205- ●
404 SEAL; FLOOR,HOLE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=25 BLACK 		1-76798-019-0 01 1 1005-1204 ●
404 SEAL; FLOOR,HOLE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> OD=25 BLACK 		1-76798-019-0 01 1 1205- ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1205- ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0906-1204 ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 1205- ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0906-1005 ●
