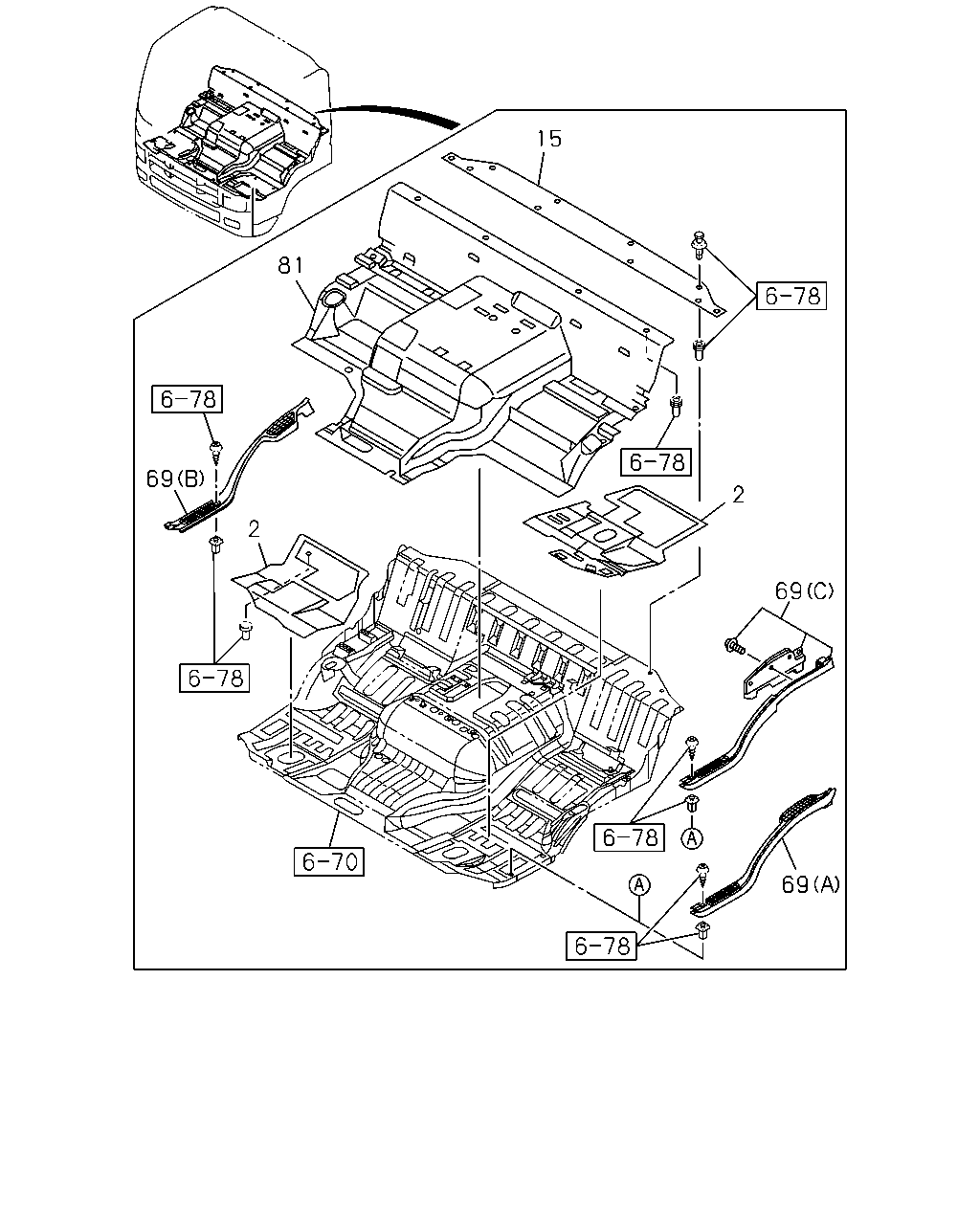

6-75 — MAT AND CARPET (#16837) — 17 parça

15 81 69 2 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97412-941-2	01	1	0906-1204	●
2	MAT; FLOOR GRAY	8-97412-941-2	01	1	1205-	●	●
2	MAT; FLOOR GRAY	8-97415-003-1	01	1	0906-1204	●
2	MAT; FLOOR GRAY	8-97415-003-1	01	1	1205-	●	●
15	MAT; FLOOR REAR GRAY	8-97407-517-1	01	1	0906-1204	●
15	MAT; FLOOR REAR GRAY	8-97407-517-1	01	1	1205-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (B) GRAY	8-97412-925-0	01	1	0906-1204	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (B) GRAY	8-97412-925-0	01	1	1205-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97412-929-0	01	1	0906-1204	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97412-929-0	01	1	1205-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97412-927-0	01	1	0906-1204	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97412-927-0	01	1	1205-	●	●
81	MAT; FLOOR,CENTER GRAY	8-97411-786-4	01	1	1205-		●
81	MAT; FLOOR,CENTER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY	8-97411-792-4	01	1	0906-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97411-793-4	01	1	0906-	●
81	MAT; FLOOR,CENTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97409-774-3	01	1	0906-	●
81	MAT; FLOOR,CENTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97409-773-3	01	1	0906-	●
