6-47 — MUD GUARD AND INSULATOR (#16833) — 185 parça

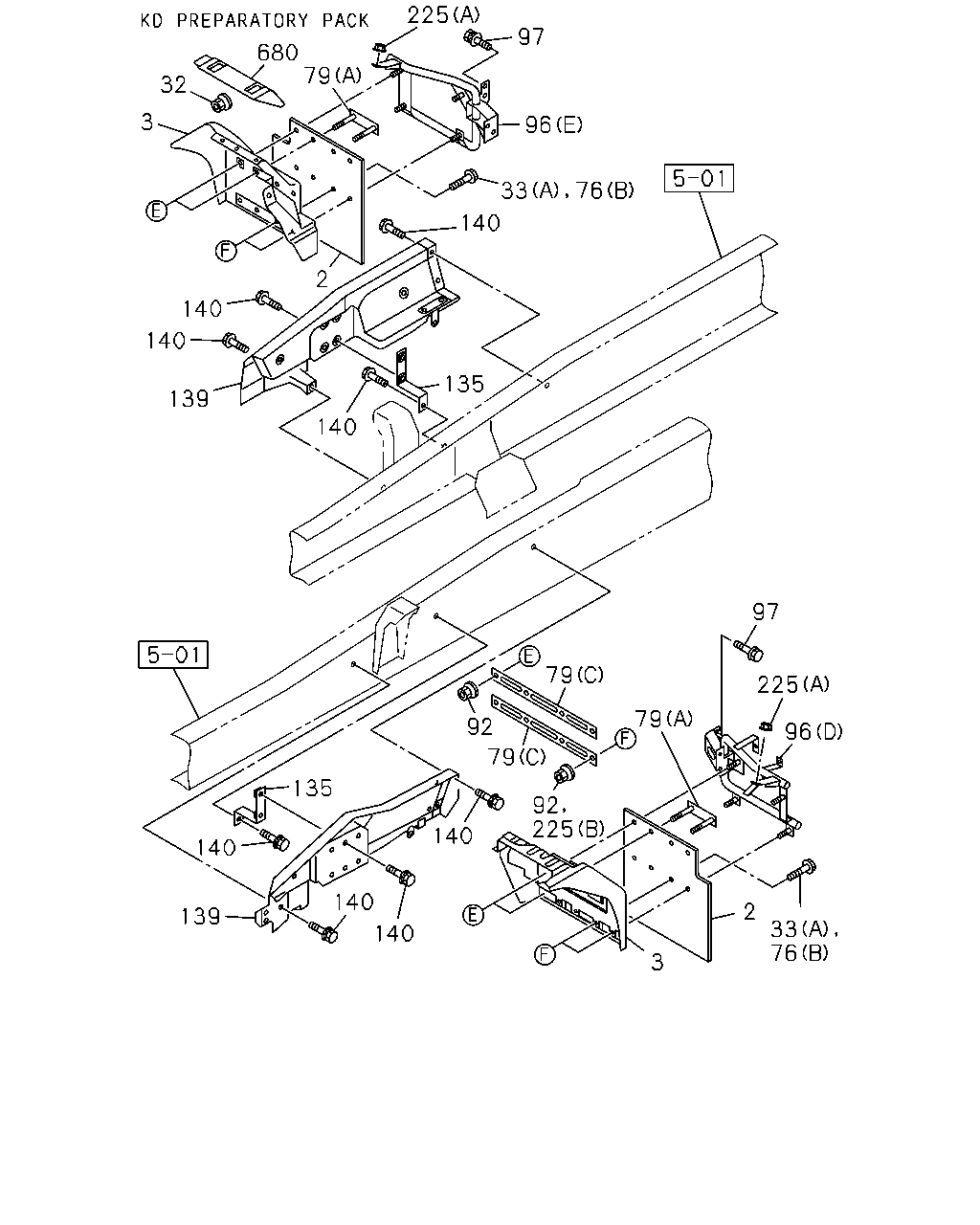

110 225 97 680 79 32 3 96 96 33 76 140 92 2 140 140 135 139 140 110 225 79 79 96 33 79 135 33 140 140 2 140 140 92 33 76 139 3 92 225 92 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	0906-1110	●
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	1111-1204	●
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	1205-1312	●	●
2	COVER; MUD,TIRE RR	8-98261-618-0	01	1	1401-	●	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	0906-1110	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	1111-1204	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	1205-1312	●	●
2	COVER; MUD,TIRE RR	8-98261-617-0	01	1	1401-	●	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	0906-1110	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	1111-1204	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	1205-	●	●
3	GUARD; MUD,RR	8-98056-965-2	01	1	0906-1204	●
3	GUARD; MUD,RR	8-98056-965-2	01	1	1205-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0906-1005	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1006-1204	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1205-	●	●
33	BOLT; MUD COVER (A) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0906-1007	●
33	BOLT; MUD COVER EXC. KD PREPARATORY PACK<6HF> (B) M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	0906-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1008-1204	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1205-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0906-0908	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-1204	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1205-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0906-1204	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1205-	●	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	0906-1204	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	1205-	●	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	0906-1204	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1205-	●
79	RETAINER; MUD COVER (C)	8-98117-496-0	04	1	1205-		●
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	0906-	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	18	1	0906-1007	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1008-1204	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1205-	●
92	NUT; MUD COVER M8 W/DISHED WASHER	8-97329-625-0	16	1	1205-		●
92	NUT; MUD COVER EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	10	1	0906-1007	●
92	NUT; MUD COVER EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	08	1	1008-	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	0906-1204	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	1205-	●
96	STAY; MUD GUARD (D)	8-98056-956-1	01	1	1205-		●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	0906-1204	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	1205-	●
96	STAY; MUD GUARD (E)	8-98140-674-0	01	1	1205-		●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (C)	8-98126-041-0	01	1	0906-	●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (A)	8-98124-930-0	01	1	0906-	●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (B)	8-98124-933-0	01	1	0906-	●
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	0906-1204	●
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	1205-	●
97	BOLT; STAY TO FRAME M10X35 FLANGE	0-28651-035-0	08	1	1205-		●
97	BOLT; STAY TO FRAME EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	06	1	0906-	●
110	BOLT; BRKT EXC. KD PREPARATORY PACK<6HF> M10X30 FLANGE	0-28651-030-0	04	1	0906-	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0906-1204	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1205-	●	●
139	PANEL; SIDE	8-98090-078-0	01	1	0906-1204	●
139	PANEL; SIDE	8-98090-078-0	01	1	1205-	●	●
139	PANEL; SIDE	8-98090-077-0	01	1	0906-1204	●
139	PANEL; SIDE	8-98090-077-0	01	1	1205-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0906-1204	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1205-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1008-1204	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1205-	●	●
680	GUARD; MUD,UPPER	1-79931-477-1	01	1	0906-1204	●
680	GUARD; MUD,UPPER	1-79931-477-1	01	1	1205-	●	●

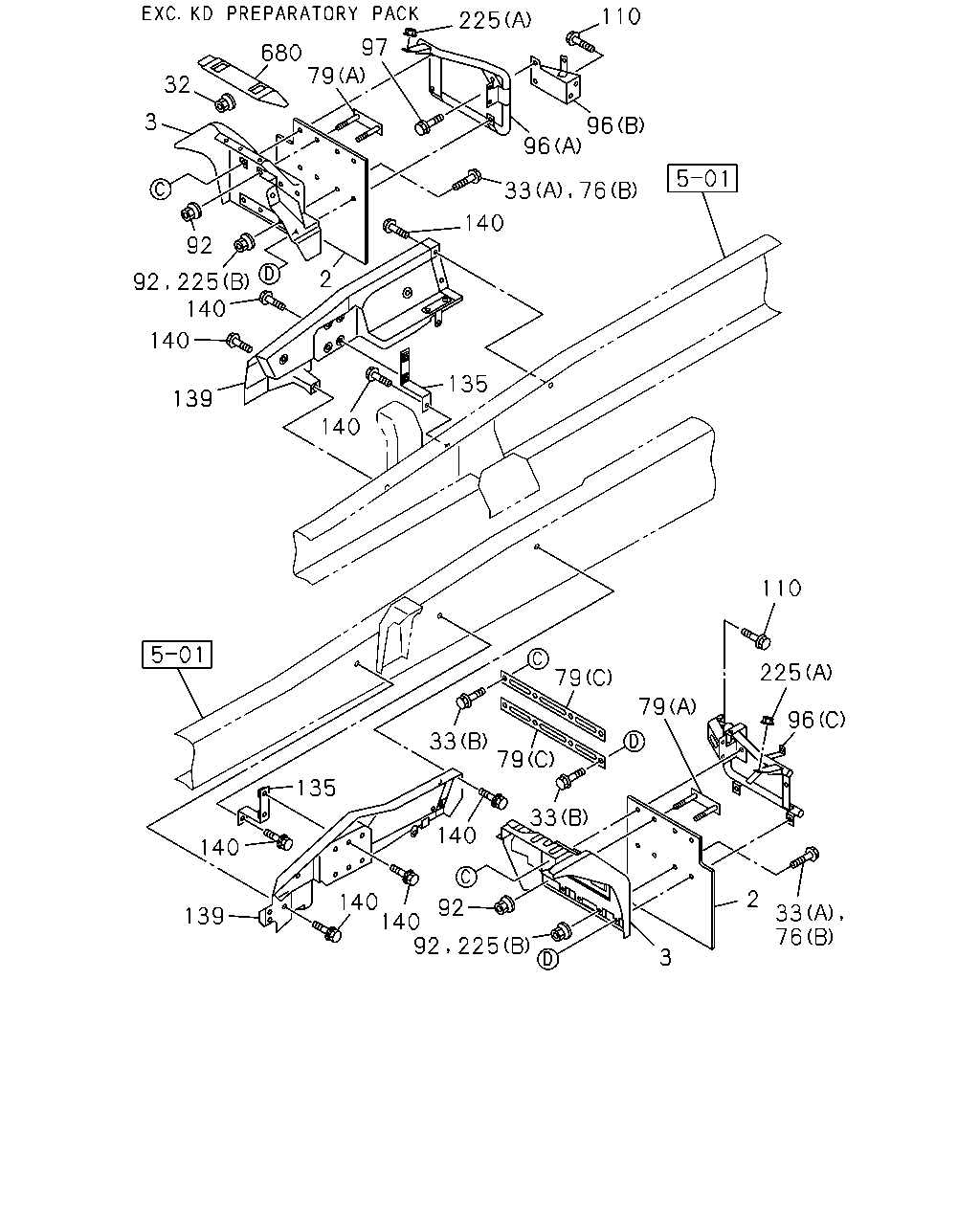

225 97 680 79 32 3 96 76 33 140 2 140 140 135 139 140 97 79 225 79 92 96 79 135 92 225 140 140 140 2 139 33 76 140 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	0906-1110	●
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	1111-1204	●
2	COVER; MUD,TIRE RR	8-98056-959-1	01	1	1205-1312	●	●
2	COVER; MUD,TIRE RR	8-98261-618-0	01	1	1401-	●	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	0906-1110	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	1111-1204	●
2	COVER; MUD,TIRE RR	8-98056-960-1	01	1	1205-1312	●	●
2	COVER; MUD,TIRE RR	8-98261-617-0	01	1	1401-	●	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	0906-1110	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	1111-1204	●
3	GUARD; MUD,RR	8-98056-954-1	01	1	1205-	●	●
3	GUARD; MUD,RR	8-98056-965-2	01	1	0906-1204	●
3	GUARD; MUD,RR	8-98056-965-2	01	1	1205-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0906-1005	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1006-1204	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1205-	●	●
33	BOLT; MUD COVER (A) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0906-1007	●
33	BOLT; MUD COVER EXC. KD PREPARATORY PACK<6HF> (B) M8X55 W/LK+PL WASHER	8-98125-919-0	08	1	0906-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1008-1204	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1205-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0906-0908	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-1204	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1205-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0906-1204	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1205-	●	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	0906-1204	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	1205-	●	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	0906-1204	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1205-	●
79	RETAINER; MUD COVER (C)	8-98117-496-0	04	1	1205-		●
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	0906-	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	18	1	0906-1007	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1008-1204	●
92	NUT; MUD COVER KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	16	1	1205-	●
92	NUT; MUD COVER M8 W/DISHED WASHER	8-97329-625-0	16	1	1205-		●
92	NUT; MUD COVER EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	10	1	0906-1007	●
92	NUT; MUD COVER EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER	8-97329-625-0	08	1	1008-	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	0906-1204	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (D)	8-98056-956-1	01	1	1205-	●
96	STAY; MUD GUARD (D)	8-98056-956-1	01	1	1205-		●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	0906-1204	●
96	STAY; MUD GUARD KD PREPARATORY PACK<6HF> (E)	8-98140-674-0	01	1	1205-	●
96	STAY; MUD GUARD (E)	8-98140-674-0	01	1	1205-		●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (C)	8-98126-041-0	01	1	0906-	●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (A)	8-98124-930-0	01	1	0906-	●
96	STAY; MUD GUARD EXC. KD PREPARATORY PACK<6HF> (B)	8-98124-933-0	01	1	0906-	●
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	0906-1204	●
97	BOLT; STAY TO FRAME KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	08	1	1205-	●
97	BOLT; STAY TO FRAME M10X35 FLANGE	0-28651-035-0	08	1	1205-		●
97	BOLT; STAY TO FRAME EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE	0-28651-035-0	06	1	0906-	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0906-1204	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1205-	●	●
139	PANEL; SIDE	8-98090-078-0	01	1	0906-1204	●
139	PANEL; SIDE	8-98090-078-0	01	1	1205-	●	●
139	PANEL; SIDE	8-98090-077-0	01	1	0906-1204	●
139	PANEL; SIDE	8-98090-077-0	01	1	1205-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0906-1204	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1205-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1008-1204	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1205-	●	●
680	GUARD; MUD,UPPER	1-79931-477-1	01	1	0906-1204	●
680	GUARD; MUD,UPPER	1-79931-477-1	01	1	1205-	●	●

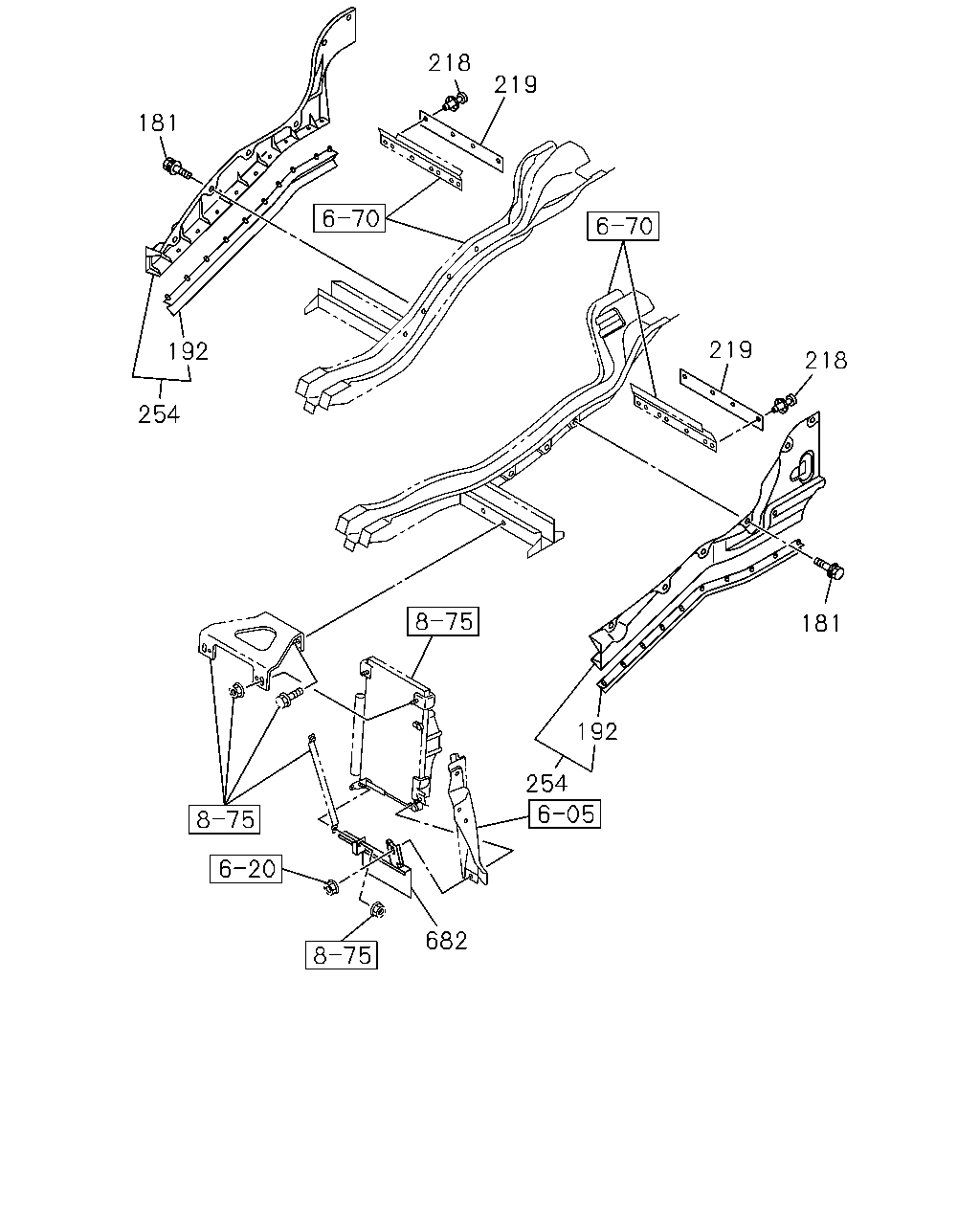

218 219 181 219 192 218 254 181 192 254 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	0906-1204	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	1205-	●	●
192	SEAL; MUD COVER	8-98041-157-2	01	1	0906-1204	●
192	SEAL; MUD COVER	8-98041-157-2	01	1	1205-	●	●
192	SEAL; MUD COVER	8-98041-156-2	01	1	0906-1204	●
192	SEAL; MUD COVER	8-98041-156-2	01	1	1205-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0906-1204	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1205-	●	●
219	FLAP; MUD GUARD	8-98041-148-1	02	1	0906-1204	●
219	FLAP; MUD GUARD	8-98041-148-1	02	1	1205-	●	●
254	COVER; MUD,VALANCE	8-98039-918-1	01	1	0906-1204	●
254	COVER; MUD,VALANCE	8-98039-918-1	01	1	1205-	●	●
254	COVER; MUD,VALANCE	8-98039-917-2	01	1	0906-1204	●
254	COVER; MUD,VALANCE	8-98039-917-2	01	1	1205-	●	●
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-98090-119-1	01	1	0906-1204	●
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-98090-119-1	01	1	1205-	●	●

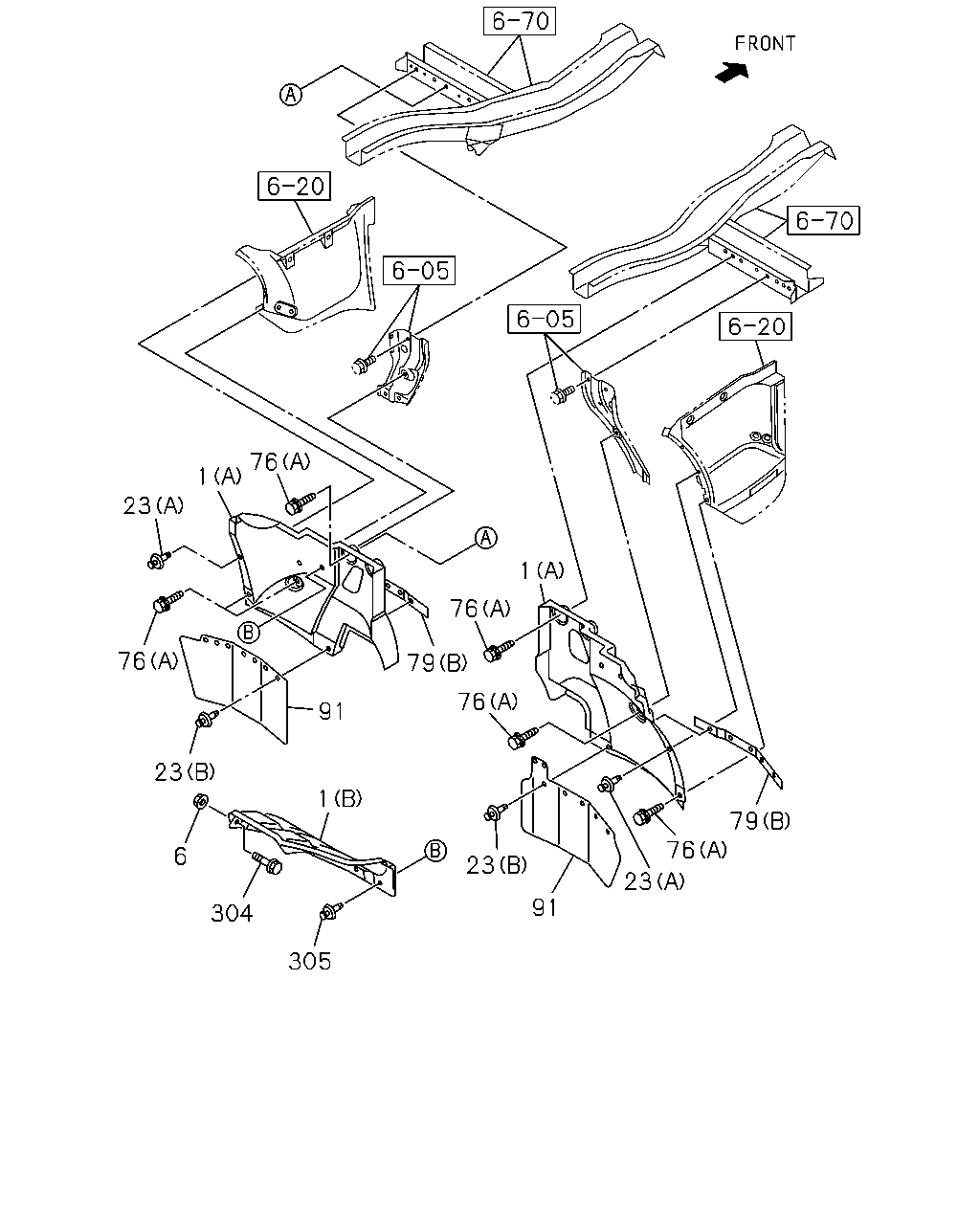

76 1 23 1 76 76 79 76 91 23 1 79 76 6 23 23 91 304 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	0906-1204	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	1205-	●	●
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0906-0908	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	0909-1204	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	1205-	●	●
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0906-0908	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	0909-1204	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	1205-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0906-1204	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1205-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0906-1204	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	1205-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0906-1204	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1205-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1008-1204	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1205-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0906-0908	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-1204	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1205-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0906-1204	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1205-	●	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	0906-1204	●
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	1205-	●	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	0906-1204	●
79	RETAINER; MUD COVER KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	04	1	1205-	●
79	RETAINER; MUD COVER (C)	8-98117-496-0	04	1	1205-		●
79	RETAINER; MUD COVER EXC. KD PREPARATORY PACK<6HF> (C)	8-98117-496-0	06	1	0906-	●
91	COVER; MUD,FRT	8-98041-214-3	01	1	0906-1110	●
91	COVER; MUD,FRT	8-98041-214-3	01	1	1111-1204	●
91	COVER; MUD,FRT	8-98041-214-3	01	1	1205-	●	●
91	COVER; MUD,FRT	8-98057-428-2	01	1	0906-1110	●
91	COVER; MUD,FRT	8-98057-428-2	01	1	1111-1204	●
91	COVER; MUD,FRT	8-98057-428-2	01	1	1205-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0906-1204	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1205-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0906-1204	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
