6-20 — SIDE PANEL AND STEP (#16827) — 154 parça

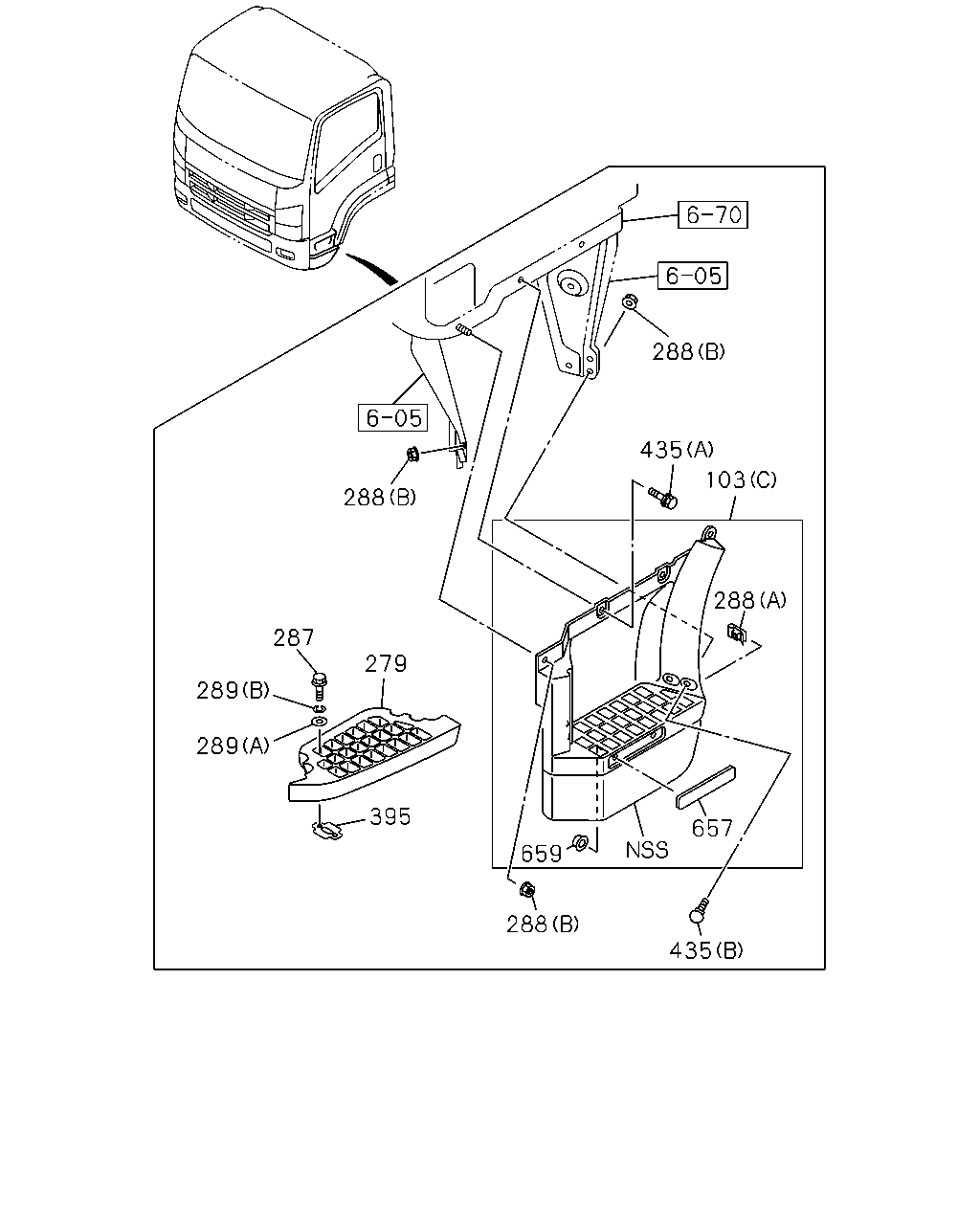

çizim 61913
288 435 103 288 288 287 279 289 289 395 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-326-3 01 1 0906-1204 ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-326-3 01 1 1205- ●
103 PLATE; STEP
(C) 		8-98037-326-3 01 1 1205- ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-325-3 01 1 0906-1204 ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-325-3 01 1 1205- ●
103 PLATE; STEP
(C) 		8-98037-325-3 01 1 1205- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98080-621-1 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98080-628-0 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98080-620-1 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98080-627-0 01 1 0906- ●
279 BOARD; STEP 1ST
KD PREPARATORY PACK<6HF> 		8-98080-628-0 01 1 0906-1204 ●
279 BOARD; STEP 1ST
KD PREPARATORY PACK<6HF> 		8-98080-628-0 01 1 1205- ●
279 BOARD; STEP 1ST 8-98080-628-0 01 1 1205- ●
279 BOARD; STEP 1ST
KD PREPARATORY PACK<6HF> 		8-98080-627-0 01 1 0906-1204 ●
279 BOARD; STEP 1ST
KD PREPARATORY PACK<6HF> 		8-98080-627-0 01 1 1205- ●
279 BOARD; STEP 1ST 8-98080-627-0 01 1 1205- ●
287 BOLT; BOARD STEP
KD PREPARATORY PACK<6HF> 		8-98112-671-0 08 1 0906-1006 ●
287 BOLT; BOARD STEP
KD PREPARATORY PACK<6HF> 		8-98165-009-0 08 1 1007-1204 ●
287 BOLT; BOARD STEP
KD PREPARATORY PACK<6HF> 		8-98165-009-0 08 1 1205- ●
287 BOLT; BOARD STEP 8-98165-009-0 08 1 1205- ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0906-1204 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1205- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906-1204 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1205- ● ●
289 WASHER; PL,STEP
KD PREPARATORY PACK<6HF> (A) 		8-98112-672-1 08 1 0906-1204 ●
289 WASHER; PL,STEP
KD PREPARATORY PACK<6HF> (A) 		8-98112-672-1 08 1 1205- ●
289 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 1205- ●
289 WASHER; PL,STEP
KD PREPARATORY PACK<6HF> (B) 		8-98112-673-1 08 1 0906-1204 ●
289 WASHER; PL,STEP
KD PREPARATORY PACK<6HF> (B) 		8-98112-673-1 08 1 1205- ●
289 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 1205- ●
395 BRACKET; SIDE STEP
KD PREPARATORY PACK<6HF> 		8-98080-646-1 04 1 0906-1204 ●
395 BRACKET; SIDE STEP
KD PREPARATORY PACK<6HF> 		8-98080-646-1 04 1 1205- ●
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 1205- ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-1204 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1205- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906-1204 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1205- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0906-1204 ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1205- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906-1204 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1205- ● ●

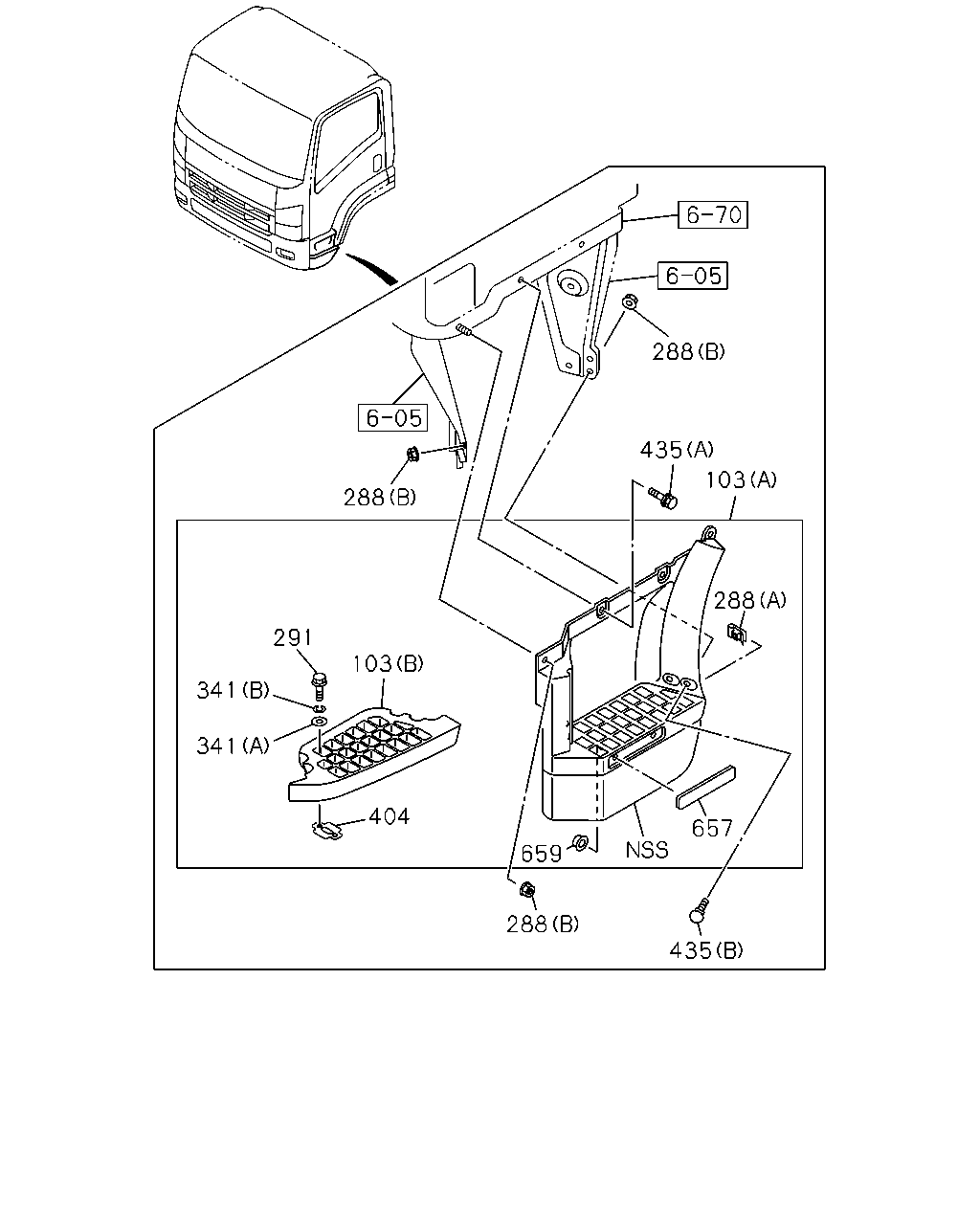

çizim 62108
288 435 103 288 288 291 103 341 341 404 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-326-3 01 1 0906-1204 ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-326-3 01 1 1205- ●
103 PLATE; STEP
(C) 		8-98037-326-3 01 1 1205- ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-325-3 01 1 0906-1204 ●
103 PLATE; STEP
KD PREPARATORY PACK<6HF> (C) 		8-98037-325-3 01 1 1205- ●
103 PLATE; STEP
(C) 		8-98037-325-3 01 1 1205- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98080-621-1 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98080-628-0 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98080-620-1 01 1 0906- ●
103 PLATE; STEP
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98080-627-0 01 1 0906- ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0906-1204 ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1205- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906-1204 ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1205- ● ●
291 BOLT; STEP PLATE
EXC. KD PREPARATORY PACK<6HF> 		8-98112-671-0 08 1 0906-1006 ●
291 BOLT; STEP PLATE
EXC. KD PREPARATORY PACK<6HF> 		8-98165-009-0 08 1 1007- ●
341 WASHER; PL,STEP
EXC. KD PREPARATORY PACK<6HF> (A) 		8-98112-672-1 08 1 0906- ●
341 WASHER; PL,STEP
EXC. KD PREPARATORY PACK<6HF> (B) 		8-98112-673-1 08 1 0906- ●
404 BRACKET
EXC. KD PREPARATORY PACK<6HF> 		8-98080-646-1 04 1 0906- ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-1204 ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1205- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906-1204 ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1205- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0906-1204 ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1205- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906-1204 ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1205- ● ●

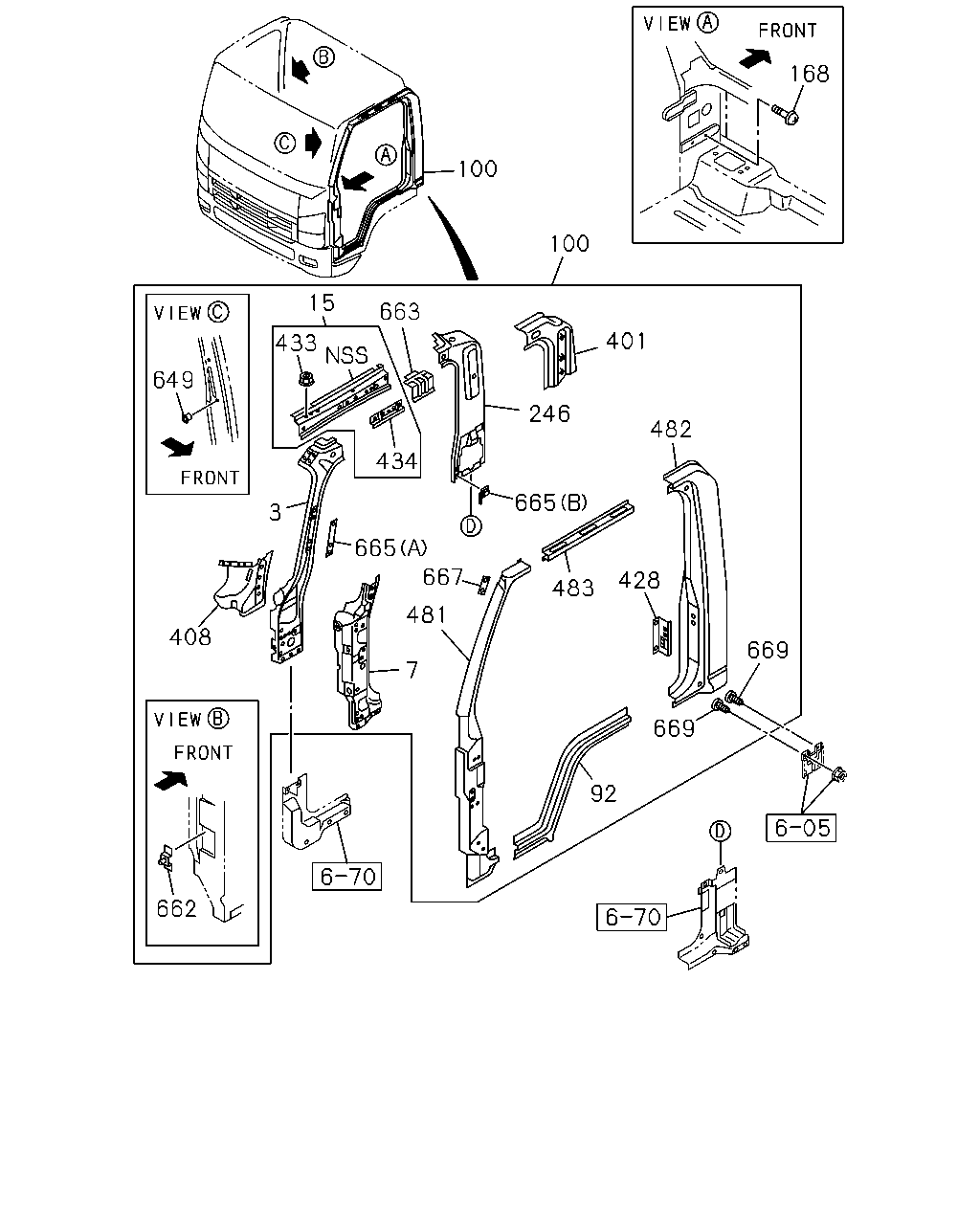

çizim 63411
168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0906-1204 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1205- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0906-1204 ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1205- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0906-1204 ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1205- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0906-1204 ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1205- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0906-1204 ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1205- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0906-1204 ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1205- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0906-1204 ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1205- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0906-1204 ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1205- ● ●
100 PANEL ASM; BODY SIDE 8-97586-056-4 01 1 0906-1204 ●
100 PANEL ASM; BODY SIDE 8-97586-056-4 01 1 1205- ● ●
100 PANEL ASM; BODY SIDE 8-98088-577-4 01 1 0906-1204 ●
100 PANEL ASM; BODY SIDE 8-98088-577-4 01 1 1205- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0906-1204 ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1205- ● ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0906-1204 ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1205- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0906-1204 ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1205- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 0906-1204 ●
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 1205- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 0906-1204 ●
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1205- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0906-1204 ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1205- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0906-1204 ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1205- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0906-1204 ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1205- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0906-1204 ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0906-0907 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0908-1204 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0908-1204 ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1205- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0906-1204 ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1205- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0906-1204 ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1205- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 0906-1204 ●
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1205- ● ●
481 PANEL; SIDE FRT PILLAR 8-98092-911-0 01 1 0906-1204 ●
481 PANEL; SIDE FRT PILLAR 8-98092-911-0 01 1 1205- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 0906-1204 ●
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1205- ● ●
482 PANEL; SIDE RR PILLAR 8-98092-922-0 01 1 0906-1204 ●
482 PANEL; SIDE RR PILLAR 8-98092-922-0 01 1 1205- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0906-1204 ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1205- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0906-1204 ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1205- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0906-1204 ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1205- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0906-1204 ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1205- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0906-1204 ●
663 BRACKET; AIR 8-97585-208-2 01 1 1205- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0906-1204 ●
663 BRACKET; AIR 8-97585-207-2 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0906-0907 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0908-1204 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0908-1204 ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0906-0907 ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0908-1204 ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0908-1204 ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1205- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1205- ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0906-1204 ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 1205- ● ●
669 STUD; FENDER
M8X18 		8-98013-113-1 04 1 0906-0907 ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 0908-1204 ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 0908-1204 ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 1205- ● ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 1205- ● ●
