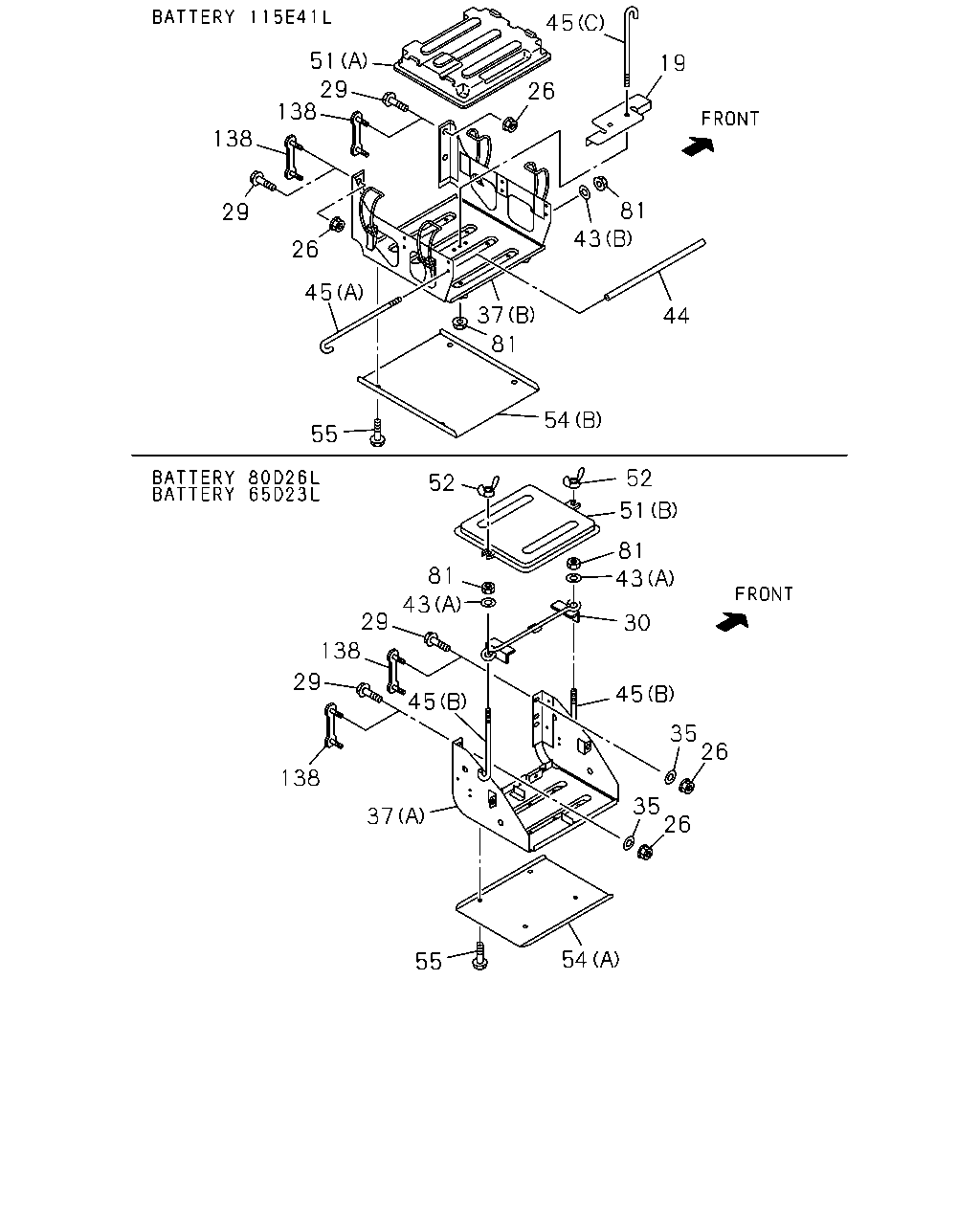

5-20 — BATTERY CARRIER (#16820) — 79 parça

45 51 29 138 19 26 138 81 43 29 26 45 37 44 81 54 55 52 52 51 81 43 81 43 29 30 138 29 45 45 35 26 138 35 26 37 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-443-0	01	1	0906-1204	●
19	STAY; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-443-0	01	1	1205-	●
19	STAY; BATTERY BATTERY 115E41L<8MA>	8-98120-443-0	01	1	1205-		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0906-1204	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1205-	●	●
29	BOLT; BRKT TO FRAME MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) M10X35 FLANGE	0-28651-035-0	02	1	0906-	●
29	BOLT; BRKT TO FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) M10X35 FLANGE	0-28651-035-0	04	1	0906-1204	●
29	BOLT; BRKT TO FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X35 FLANGE	0-28651-035-0	04	1	1205-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1205-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0906-1204	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1205-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0906-1204	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1205-	●	●
37	BRACKET; BATTERY WHEEL BASE 3400MM(34W) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98091-499-0	01	1	0906-1405	●
37	BRACKET; BATTERY WHEEL BASE 3400MM(34W) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY WHEEL BASE 3400MM(34W) BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	0906-	●
37	BRACKET; BATTERY WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	0906-	●
37	BRACKET; BATTERY WHEEL BASE 3400MM(34W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B)	8-98122-831-0	01	1	0906-	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98091-497-0	01	1	0906-1204	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98091-497-0	01	1	1205-1405	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98261-636-0	01	1	1406-	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0906-1204	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1205-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1205-		●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0906-1204	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1205-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1205-		●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	0906-1204	●
37	BRACKET; BATTERY WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	1205-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	1205-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0906-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0906-1204	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1205-	●	●
43	WASHER; PL,CLAMP KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	01	1	0906-1204	●
43	WASHER; PL,CLAMP KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	01	1	1205-	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	01	1	1205-		●
44	SPACER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>	8-98261-682-0	02	1	1406-	●
44	SPACER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-442-0	01	1	0906-1204	●
44	SPACER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-442-0	01	1	1205-	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98120-442-0	01	1	1205-		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	8-97134-740-0	02	1	0906-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0906-1204	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	1205-	●	●
45	ROD; TENSION,BATTERY ITALY COUNTRY(CT6) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	0906-1004	●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1005-1204	●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1205-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1205-		●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-97134-740-0	01	1	0906-1204	●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-97134-740-0	01	1	1205-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	01	1	1205-		●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-081-0	02	1	0906-1003	●
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-108-0	02	1	1004-1004	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0906-1204	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1205-	●	●
51	COVER; BATTERY ITALY COUNTRY(CT6) KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	0906-1004	●
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1005-1204	●
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1205-	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1205-		●
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (A)	1-53612-037-2	01	1	0906-1004	●
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	1-53612-037-2	01	1	0906-1004	●
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	1-53612-037-2	01	1	1005-	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0906-1204	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1205-	●	●
54	PROTECTOR; HEAT,BATTERY WHEEL BASE 3400MM(34W) BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	0906-	●
54	PROTECTOR; HEAT,BATTERY WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	0906-	●
55	BOLT; HEAT PROTECTOR WHEEL BASE 3400MM(34W) M8X10 FLANGE	0-28050-810-0	04	1	0906-	●
81	NUT; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	1205-	●	●
81	NUT; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> M8 FLANGE	0-91180-108-0	02	1	1205-	●
81	NUT; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	0906-1204	●
81	NUT; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	1205-	●
81	NUT; BATTERY BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	1205-		●
138	STUD MLD6S M/T(X7W) WHEEL BASE 3400MM(34W)	8-98066-802-0	02	1	0906-1010	●
138	STUD MLD6S M/T(X7W) WHEEL BASE 3400MM(34W)	8-98178-497-0	02	1	1011-1311	●
138	STUD MLD6S M/T(X7W) WHEEL BASE 3400MM(34W)	8-98255-710-0	02	1	1312-	●
138	STUD MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W)	8-98066-802-0	01	1	0906-1010	●
138	STUD MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W)	8-98178-497-0	01	1	1011-1311	●
138	STUD MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W)	8-98255-710-0	01	1	1312-	●
