◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#1682) — 34 parça

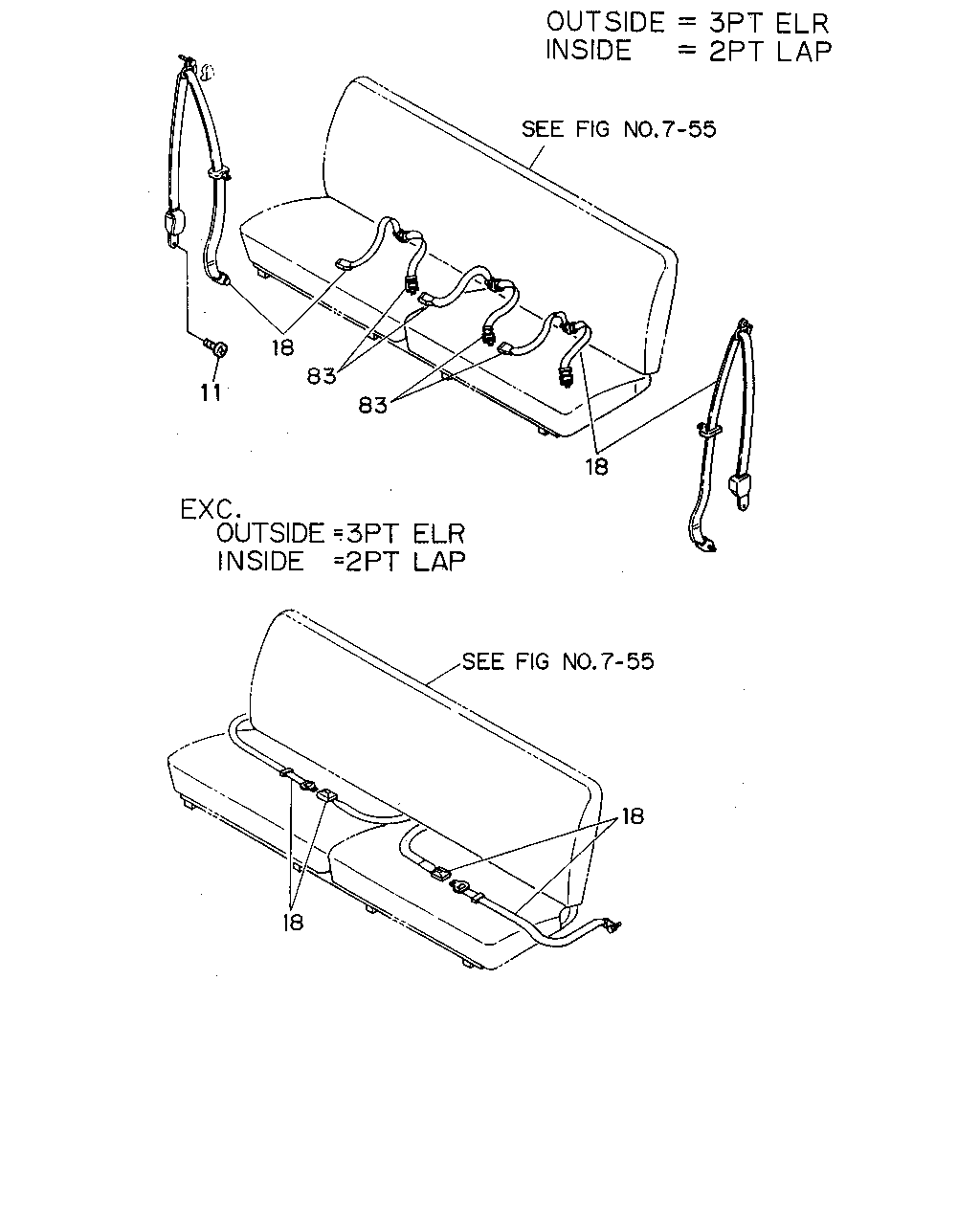

çizim 94013
11 18 83 83 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 SCREW; SEAT BELT
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 9207- ●
11 SCREW; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 9207- ●
18 BELT; SEAT,RR
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-75618-624-0 01 1 9207- ●
18 BELT; SEAT,RR
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-75618-623-0 01 1 9207- ●
18 BELT; SEAT,RR
REAR SEAT BELT<A47> AUSTRALIA EQUIPMENT(RR3) 		1-75618-622-0 02 1 9207- ●
18 BELT; SEAT,RR
REAR SEAT BELT<A47> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75618-627-0 02 1 9207- ●
83 BELT; RR SEAT,INNER
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-75618-626-0 01 1 9207- ●
83 BELT; RR SEAT,INNER
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-75618-625-0 01 1 9207- ●

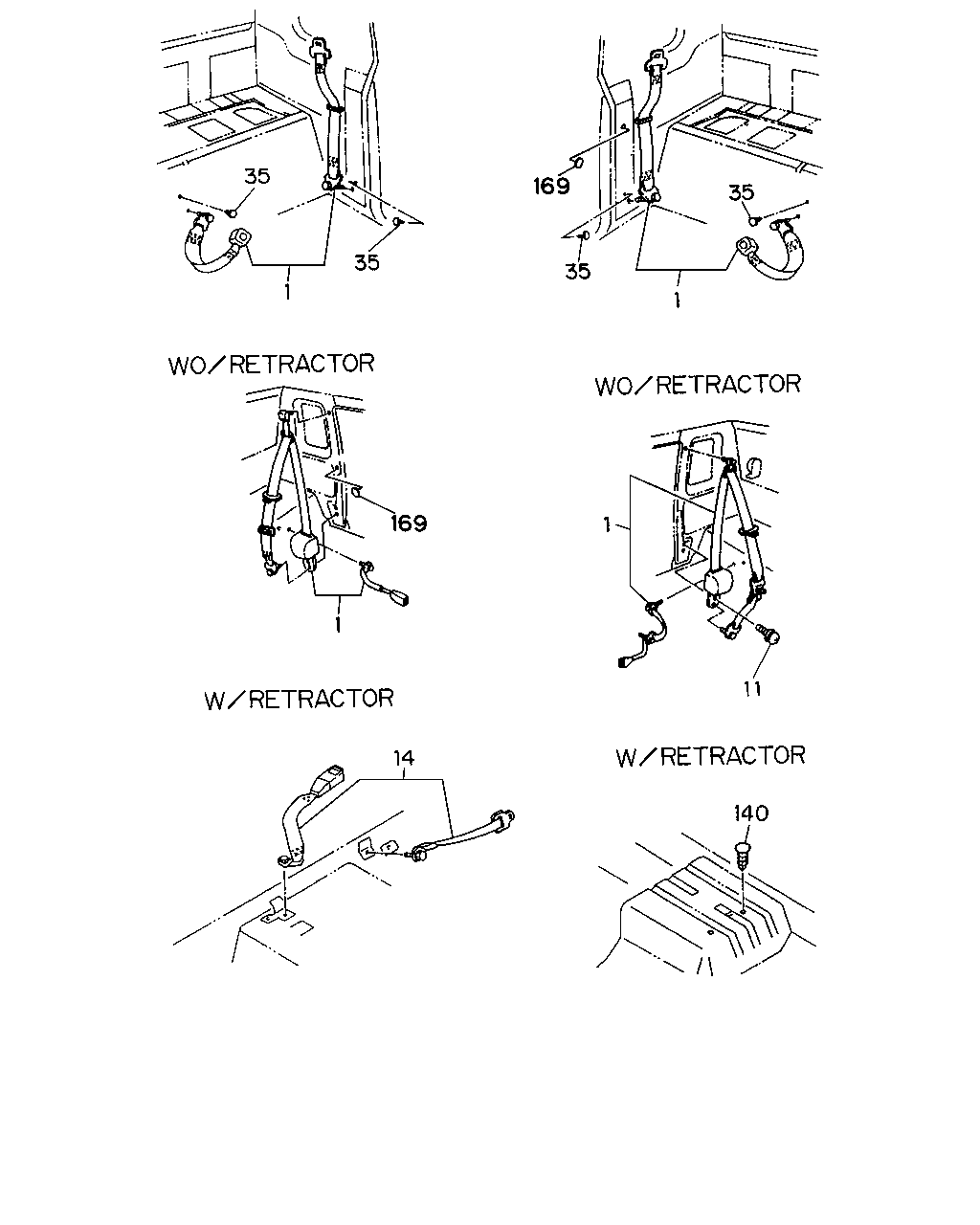

çizim 94049
35 1 35 169 35 1 35 169 1 1 11 14 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AUSTRALIA EQUIPMENT(RR3),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DRIVER 		1-75618-589-1 01 1 9207- ● ● ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. AUSTRALIA EQUIPMENT(RR3) DRIVER 		1-75618-613-1 01 1 9207- ● ● ● ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> AUSTRALIA EQUIPMENT(RR3) PASSENGER 		1-75618-591-0 01 1 9207- ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37> AUSTRALIA EQUIPMENT(RR3) PASSENGER 		1-75618-591-0 01 1 9207- ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> DRIVER 		1-75618-588-0 01 1 9207- ● ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> PASSENGER 		1-75618-592-0 01 1 9207- ● ●
1 BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> AUSTRALIA EQUIPMENT(RR3) DRIVER 		1-75618-603-1 01 1 9207- ● ● ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> DRIVER 		1-75618-615-0 01 1 9207- ●
1 BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> PASSENGER 		1-75618-620-0 01 1 9207- ●
11 SCREW; SEAT BELT
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 9207- ●
11 SCREW; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 9207- ●
14 BELT; SEAT,CENTER
FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-519-1 01 1 9207- ● ●
14 BELT; SEAT,CENTER
FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75618-519-1 01 1 9207- ● ●
14 BELT; SEAT,CENTER
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONTSEAT BELT WO/RETRACTOR 2 POINT<W25> AUSTRALIA EQUIPMENT(RR3) 		1-75618-590-0 01 1 9207- ● ●
14 BELT; SEAT,CENTER
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-621-0 01 1 9207- ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 04 1 9207- ● ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 02 1 9207- ● ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22 		9-61168-535-0 02 1 9207- ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 06 1 9207- ● ● ● ● ●
35 GROMMET; SEAT BELT ANCHOR
REAR SEAT BELT<A47> OD=22 		9-61168-535-0 01 1 9207- ●
35 GROMMET; SEAT BELT ANCHOR
EXC. REAR SEAT BELT<A47>,REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> OD=22 		9-61168-535-0 05 1 9207- ●
140 PLUG; CENTER SEAT,PARCEL BOX SIDE
D4.7X11 		1-76378-154-0 01 1 9207- ● ● ● ● ●
140 PLUG; CENTER SEAT,PARCEL BOX SIDE
REAR WHEEL PARKING(B3A) D4.7X11 		1-76378-154-0 02 1 9207- ● ● ● ●
169 SEAL
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9207- ● ● ● ●
169 SEAL
FRONT SEAT BELT WO/RETRACTOR<A37> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9207- ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9207- ● ● ● ● ●
