1 |

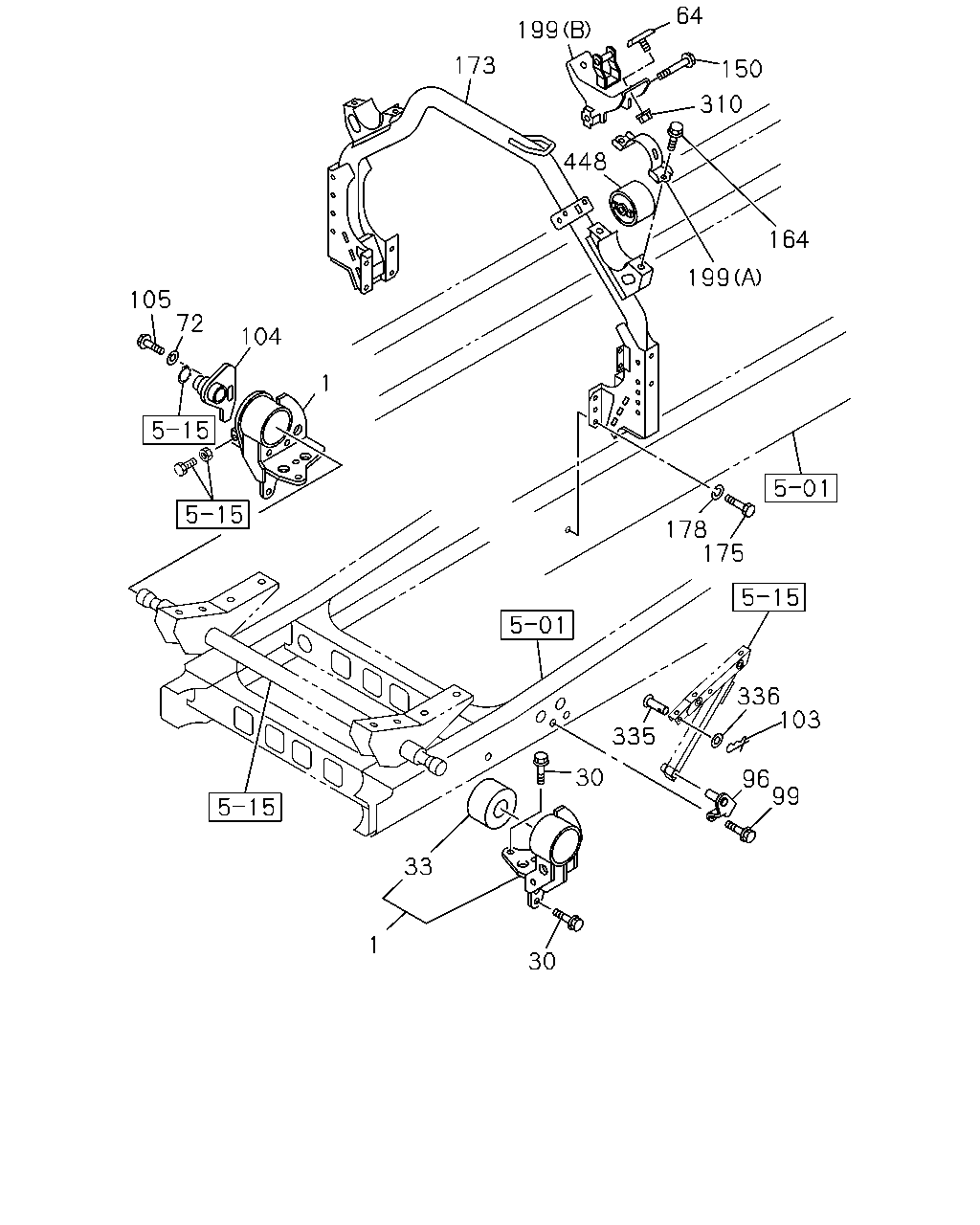

BRACKET; CAB MTG
|
8-98051-002-1 |
01 |
1 |
0906-1204 |
● |
|
| |
1 |
BRACKET; CAB MTG
|
8-98051-002-1 |
01 |
1 |
1205- |
● |
● |
| |
1 |
BRACKET; CAB MTG
|
8-98051-001-1 |
01 |
1 |
0906-1204 |
● |
|
| |
1 |
BRACKET; CAB MTG
|
8-98051-001-1 |
01 |
1 |
1205- |
● |
● |
| |
30 |
BOLT; CAB FRT FOOT
M14X45 FLANGE
|
0-28861-445-0 |
10 |
1 |
0906-1204 |
● |
|
| |
30 |
BOLT; CAB FRT FOOT
M14X45 FLANGE
|
0-28861-445-0 |
10 |
1 |
1205- |
● |
● |
| |
33 |
BUSHING; RUBBER,CAB MTG BRKT,FRT
|
8-98013-932-2 |
02 |
1 |
0906-1204 |
● |
|
| |
33 |
BUSHING; RUBBER,CAB MTG BRKT,FRT
|
8-98013-932-2 |
02 |
1 |
1205- |
● |
● |
| |
64 |
RUBBER; CUSHION
|
8-97113-340-0 |
04 |
1 |
0906-1204 |
● |
|
| |
64 |
RUBBER; CUSHION
|
8-97113-340-0 |
04 |
1 |
1205- |
● |
● |
| |
72 |
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
|
0-91614-714-0 |
01 |
1 |
0906-1204 |
● |
|
| |
72 |
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
|
0-91614-714-0 |
01 |
1 |
1205- |
● |
● |
| |
96 |
BRACKET; CAB STAY
|
1-62500-628-0 |
01 |
1 |
0906-1204 |
● |
|
| |
96 |
BRACKET; CAB STAY
|
1-62500-628-0 |
01 |
1 |
1205- |
● |
● |
| |
99 |
BOLT; BRKT
M10X30 FLANGE
|
0-28661-030-0 |
02 |
1 |
0906-1204 |
● |
|
| |
99 |
BOLT; BRKT
M10X30 FLANGE
|
0-28661-030-0 |
02 |
1 |
1205- |
● |
● |
| |
103 |
PIN; SPLIT,CAB STAY
L=32.6
|
8-98062-280-0 |
01 |
1 |
0906-1204 |
● |
|
| |
103 |
PIN; SPLIT,CAB STAY
L=32.6
|
8-98062-280-0 |
01 |
1 |
1205- |
● |
● |
| |
104 |
BRACKET; CAB FRAME,CAB FRT MTG
|
8-98017-610-3 |
01 |
1 |
0906-1204 |
● |
|
| |
104 |
BRACKET; CAB FRAME,CAB FRT MTG
|
8-98017-610-3 |
01 |
1 |
1205- |
● |
● |
| |
105 |
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
|
0-28661-435-0 |
01 |
1 |
0906-1204 |
● |
|
| |
105 |
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
|
0-28661-435-0 |
01 |
1 |
1205- |
● |
● |
| |
150 |
BOLT; CAB MTG RR
M14X100
|
0-10956-400-0 |
02 |
1 |
0906-1204 |
● |
|
| |
150 |
BOLT; CAB MTG RR
M14X100
|
0-10956-400-0 |
02 |
1 |
1205- |
● |
● |
| |
164 |
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE
|
0-28651-225-0 |
04 |
1 |
0906-1204 |
● |
|
| |
164 |
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE
|
0-28651-225-0 |
04 |
1 |
1205- |
● |
● |
| |
173 |
MEMBER; CAB MTG RR
|
8-98010-756-5 |
01 |
1 |
0906-1204 |
● |
|
| |
173 |
MEMBER; CAB MTG RR
|
8-98010-756-5 |
01 |
1 |
1205- |
● |
● |
| |
175 |
BOLT; MEMBER TO FRAME
M12X35
|
0-20951-235-0 |
08 |
1 |
0906-1204 |
● |
|
| |
175 |
BOLT; MEMBER TO FRAME
M12X35
|
0-20951-235-0 |
08 |
1 |
1205- |
● |
● |
| |
178 |
WASHER; LK,MEMBER
ID=12.2
|
0-91510-612-0 |
08 |
1 |
0906-1204 |
● |
|
| |
178 |
WASHER; LK,MEMBER
ID=12.2
|
0-91510-612-0 |
08 |
1 |
1205- |
● |
● |
| |
199 |
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF>
(B)
|
8-98099-068-0 |
01 |
1 |
1503- |
● |
|
| |
199 |
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF>
(B)
|
8-98297-105-0 |
01 |
1 |
1503- |
● |
|
| |
199 |
BRACKET; CAB RR MTG
(A)
|
8-98044-556-1 |
02 |
1 |
0906-1204 |
● |
|
| |
199 |
BRACKET; CAB RR MTG
(A)
|
8-98044-556-1 |
02 |
1 |
1205- |
● |
● |
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98023-692-0 |
01 |
1 |
0906-1204 |
● |
|
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98023-692-0 |
01 |
1 |
1205-1301 |
● |
● |
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98099-068-0 |
01 |
1 |
0906-1204 |
● |
|
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98099-068-0 |
01 |
1 |
1205-1301 |
● |
● |
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98099-068-0 |
02 |
1 |
1302-1502 |
● |
● |
| |
199 |
BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF>
(B)
|
8-98099-068-0 |
02 |
1 |
1503- |
● |
|
| |
199 |
BRACKET; CAB RR MTG
(B)
|
8-98099-068-0 |
02 |
1 |
1503- |
|
● |
| |
310 |
NUT; CUSHION
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0906-1204 |
● |
|
| |
310 |
NUT; CUSHION
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1205- |
● |
● |
| |
335 |
PIN; ADJ,STAY LOCK
OD=10 L=48
|
1-09744-107-0 |
01 |
1 |
0906-1204 |
● |
|
| |
335 |
PIN; ADJ,STAY LOCK
OD=10 L=48
|
1-09744-107-0 |
01 |
1 |
1205- |
● |
● |
| |
336 |
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
|
1-09985-183-0 |
01 |
1 |
0906-1204 |
● |
|
| |
336 |
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
|
1-09985-183-0 |
01 |
1 |
1205- |
● |
● |
| |
448 |
BUSHING; CAB MTG
|
8-98010-759-2 |
02 |
1 |
0906-1204 |
● |
|
| |
448 |
BUSHING; CAB MTG
|
8-98010-759-2 |
02 |
1 |
1205- |
● |
● |
