5-01 — FRAME AND OTHER PARTS (#16817) — 231 parça

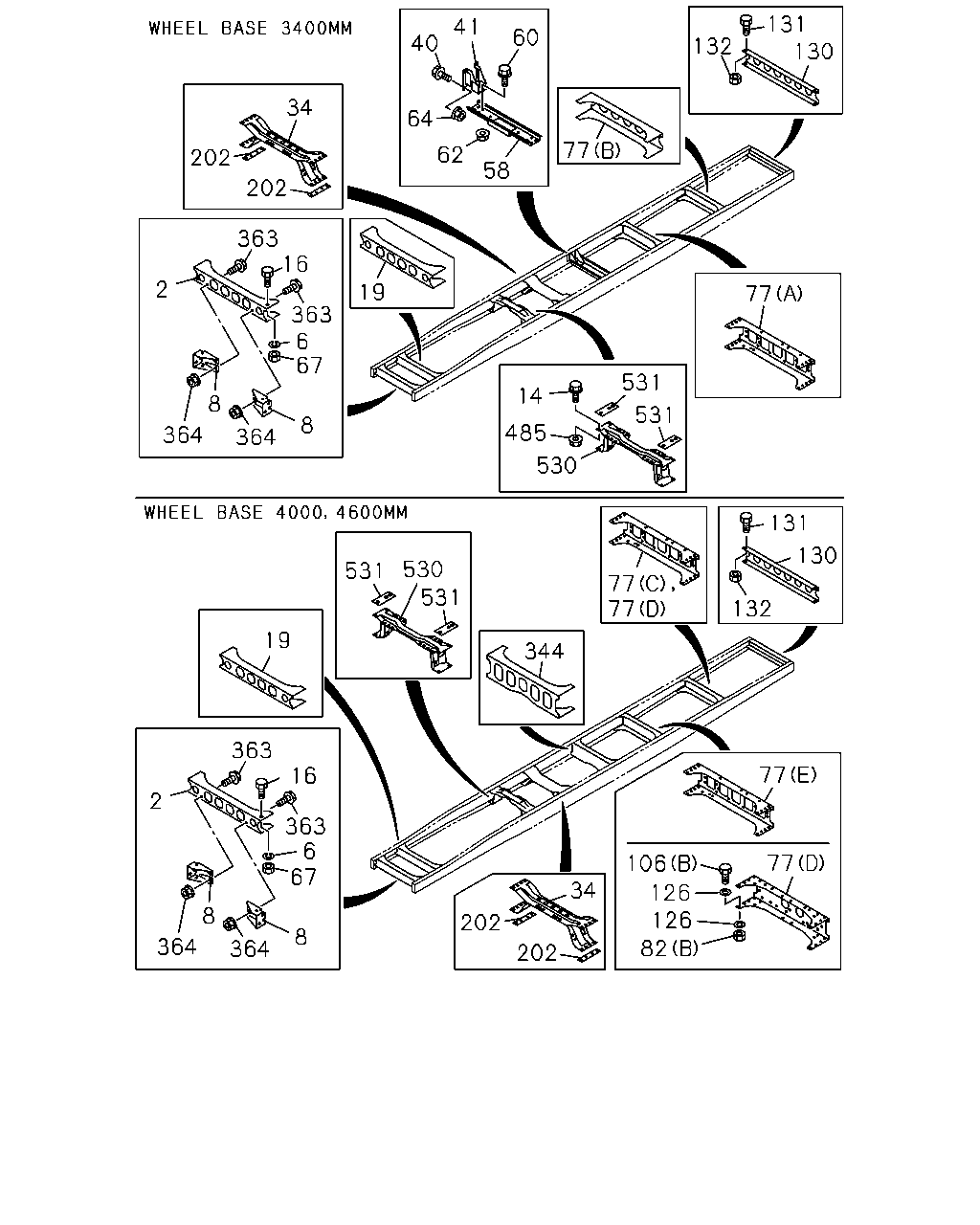

çizim 15215
131 132 130 41 60 40 34 64 77 62 202 58 202 363 16 2 19 77 363 6 67 531 14 8 531 8 485 364 364 530 77 77 131 130 530 531 531 132 19 344 363 77 16 2 363 6 67 77 106 34 126 126 8 202 8 364 82 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97609-462-7 01 1 0906-1204 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 0906-1204 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1205- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 0906-1204 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1205- ● ● ● ● ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12X35 FLANGE 		0-28661-235-0 04 1 0906- ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12X40 FLANGE 		0-28661-240-0 02 1 0906- ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-2 01 1 0906-1204 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1205- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0906-1204 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1205- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
MLD6S M/T(X7W) M10X30 FLANGE 		0-28651-030-0 08 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T(X7W) 		8-97615-973-2 01 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T(X7W) 		8-97615-974-2 01 1 0906- ●
58 MEMBER; CENTER BRG
MLD6S M/T(X7W) 		8-97619-112-0 01 1 0906- ●
60 BOLT; MBR
MLD6S M/T(X7W) M10X25 FLANGE 		0-28651-025-0 08 1 0906- ●
62 NUT; MBR
MLD6S M/T(X7W) M10 FLANGE 		0-91180-110-0 08 1 0906- ●
64 NUT; BRKT TO FRAME
MLD6S M/T(X7W) M10 FLANGE 		0-91180-110-0 08 1 0906- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR AIR SUS(FCD***) (E) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR AIR SUS(FCD***) (D) 		8-97609-483-0 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1205- ●
82 NUT; BRKT
FRR AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1205- ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0906-1204 ● ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1205- ● ●
82 NUT; BRKT
FRR LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906-1204 ● ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1205- ● ●
106 BOLT; BRKT
FRR LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1205- ● ● ●
126 WASHER; PL,BRKT
FRR AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
FRR AIR SUS(FCD***) M10X30 W/LK WASHER 		0-50541-030-0 04 1 1205- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ●
131 BOLT; END C/MBR
FRR LEAF SUS(FCR***) M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0906-1204 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1205- ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1205- ●
344 MEMBER; CROSS,4TH
FRR LEAF SUS(FCR***) 		8-97609-472-2 01 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ●
344 MEMBER; CROSS,4TH
FRR AIR SUS(FCD***) 		8-97609-473-2 01 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ● ●
485 NUT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12 FLANGE 		0-91180-212-0 06 1 0906- ●
530 MEMBER; CROSS,T/M
MLD6S M/T(X7W) 		8-97627-753-0 01 1 0906- ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0906-1204 ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1205- ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1205- ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0906-1204 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1205- ● ● ● ● ●

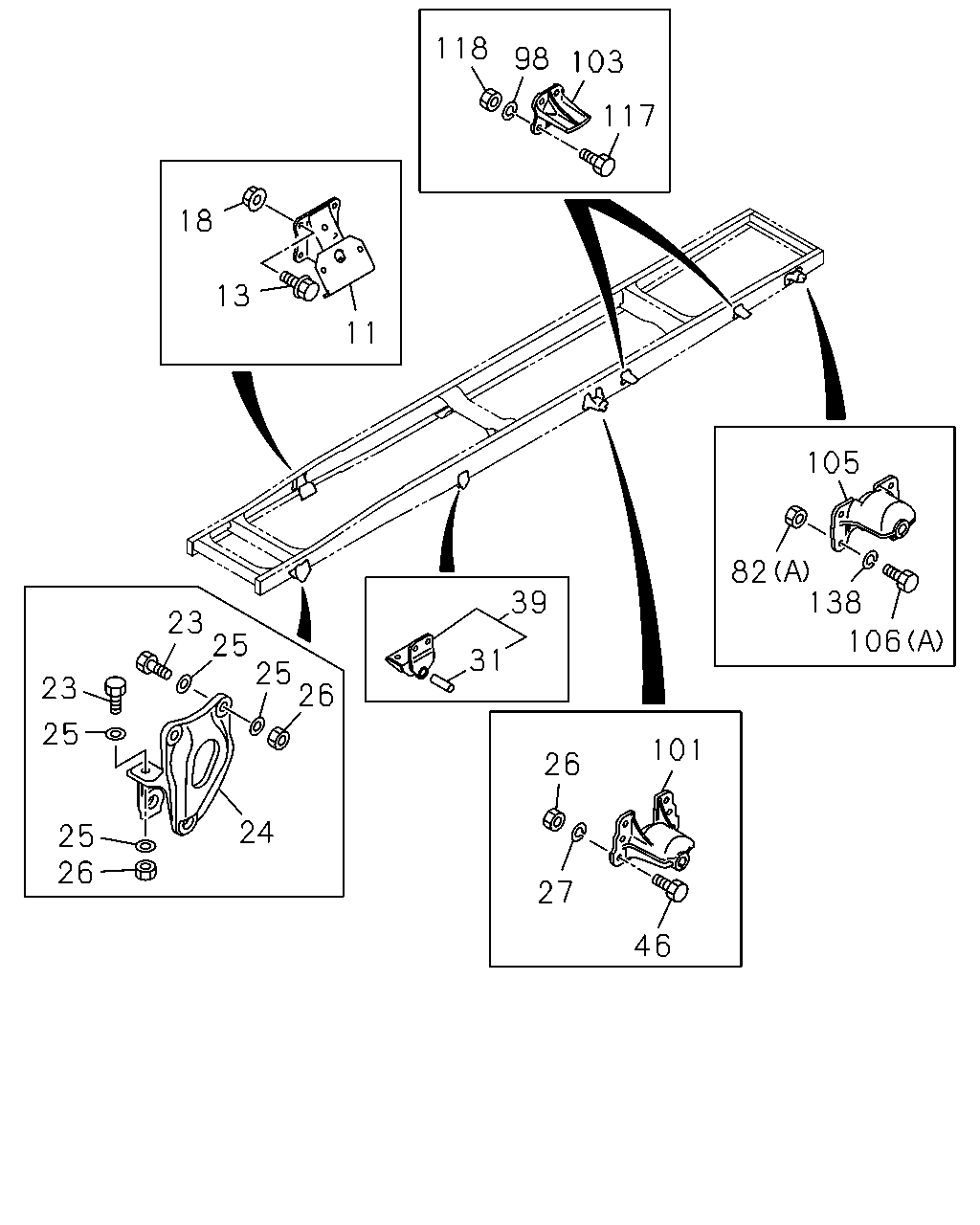

çizim 61856
118 98 103 117 18 13 11 105 82 138 39 23 25 25 26 106 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0906-1204 ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1205- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906-1204 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1205- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906-1204 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1205- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906-1204 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1205- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0906-1204 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1205- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0906-1204 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1205- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906-1204 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1205- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1205- ● ●
26 NUT; BRKT,SPR
FRR LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1205- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0906-1204 ● ● ● ●
26 NUT; BRKT,SPR
FRR AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1205- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0906-1204 ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1205- ● ●
27 WASHER; LK,BRKT,FRT SPR
FRR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1205- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906-1204 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1205- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0906-1204 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1205- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0906-1204 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1205- ● ●
46 BOLT; BRKT FIX
FRR LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1205- ● ● ●
82 NUT; BRKT
FRR AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1205- ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0906-1204 ● ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1205- ● ●
82 NUT; BRKT
FRR LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1205- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0906-1204 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1205- ● ●
98 WASHER; LK,STOPPER
FRR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1205- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0906-1204 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1205- ● ●
101 BRACKET; RR SPR,FRT
FRR LEAF SUS(FCR***) 		1-53353-090-4 02 1 1205- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0906-1204 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1205- ● ●
103 STOPPER; SUB SPR
FRR LEAF SUS(FCR***) 		1-53356-059-1 04 1 1205- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0906-1204 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1205- ● ●
105 BRACKET; RR SPR,RR
FRR LEAF SUS(FCR***) 		1-53354-074-0 02 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906-1204 ● ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1205- ● ●
106 BOLT; BRKT
FRR LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1205- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0906-1204 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1205- ● ●
117 BOLT; STOPPER
FRR LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1205- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0906-1204 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1205- ● ●
118 NUT; STOPPER
FRR LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1205- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0906-1204 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1205- ● ●
138 WASHER; LK,BRKT
FRR LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1205- ● ● ●

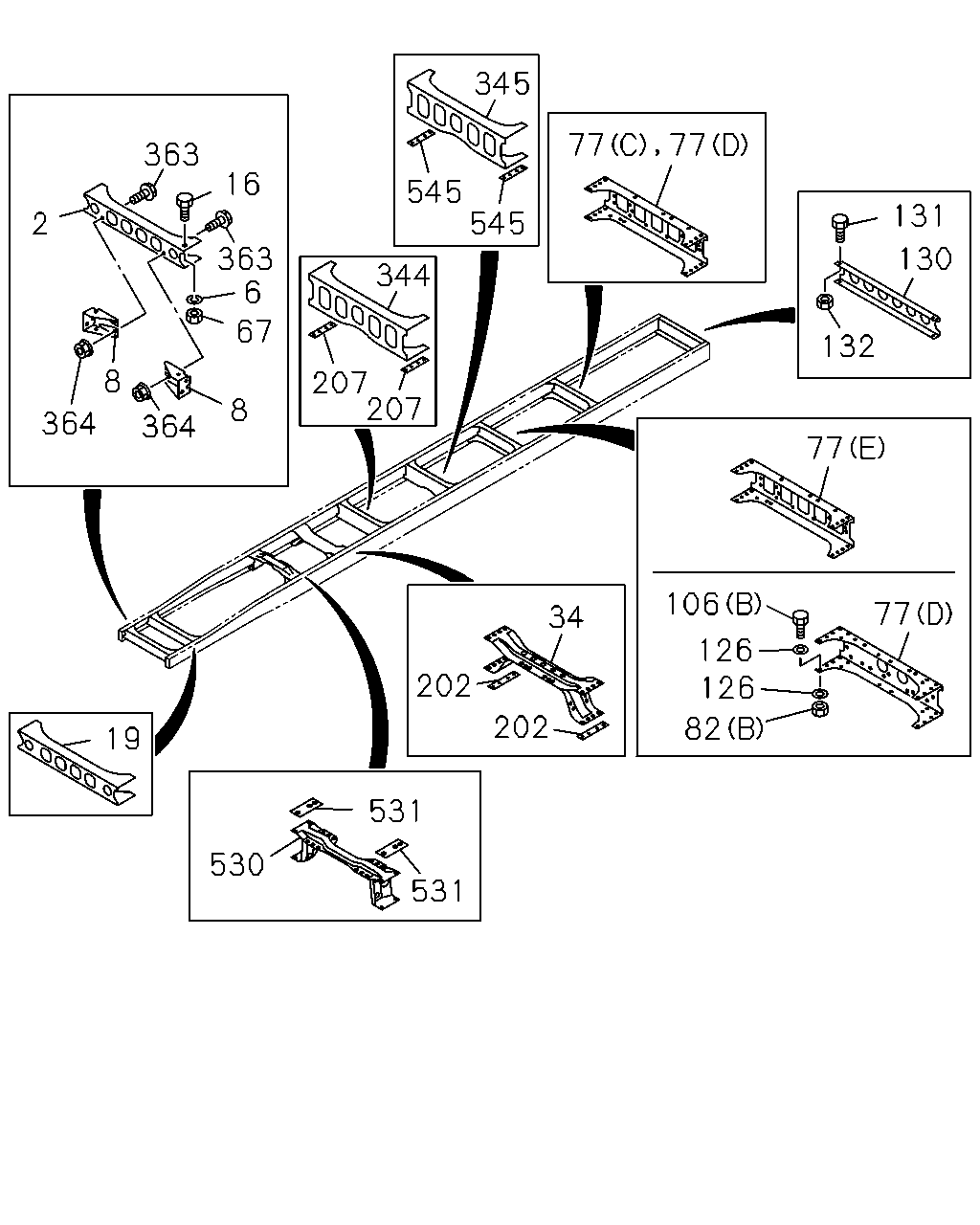

çizim 61869
345 363 16 545 545 131 2 363 6 130 344 67 132 8 207 207 8 364 364 77 106 77 34 126 126 202 202 82 19 531 530 531 77 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97609-462-7 01 1 0906-1204 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1205- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906-1204 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1205- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-1 01 1 0906-1204 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1205- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-2 01 1 0906-1204 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1205- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906-1204 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1205- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-2 01 1 0906-1204 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1205- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0906-1204 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1205- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906-1204 ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1205- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR AIR SUS(FCD***) (E) 		8-97609-481-4 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR AIR SUS(FCD***) (D) 		8-97609-483-0 01 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0906-1204 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
FRR LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1205- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1205- ●
82 NUT; BRKT
FRR AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1205- ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0906-1204 ● ● ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1205- ● ●
82 NUT; BRKT
FRR LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906-1204 ● ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1205- ● ●
106 BOLT; BRKT
FRR LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1205- ● ● ●
126 WASHER; PL,BRKT
FRR AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1205- ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906-1204 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1205- ● ● ● ●
131 BOLT; END C/MBR
FRR AIR SUS(FCD***) M10X30 W/LK WASHER 		0-50541-030-0 04 1 1205- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906-1204 ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ●
131 BOLT; END C/MBR
FRR LEAF SUS(FCR***) M10X25 W/LK WASHER 		0-50541-025-0 04 1 1205- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906-1204 ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1205- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0906-1204 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1205- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906-1204 ●
207 SPACER; 4TH C/MBR
FRR LEAF SUS(FCR***) 		8-97609-758-0 02 1 1205- ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906-1204 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1205- ●
344 MEMBER; CROSS,4TH
FRR LEAF SUS(FCR***) 		8-97609-472-2 01 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906-1204 ●
344 MEMBER; CROSS,4TH
FRR AIR SUS(FCD***) 		8-97609-473-2 01 1 1205- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1205- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0906-1204 ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1205- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906-1204 ● ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1205- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906-1204 ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1205- ● ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6S M/T(X7W) 		8-97627-753-0 01 1 0906- ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0906-1204 ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 1205- ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1205- ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0906-1204 ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1205- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0906-1204 ●
545 SPACER; 5TH C/MBR
FRR LEAF SUS(FCR***) 		8-97609-758-0 02 1 1205- ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1205- ●

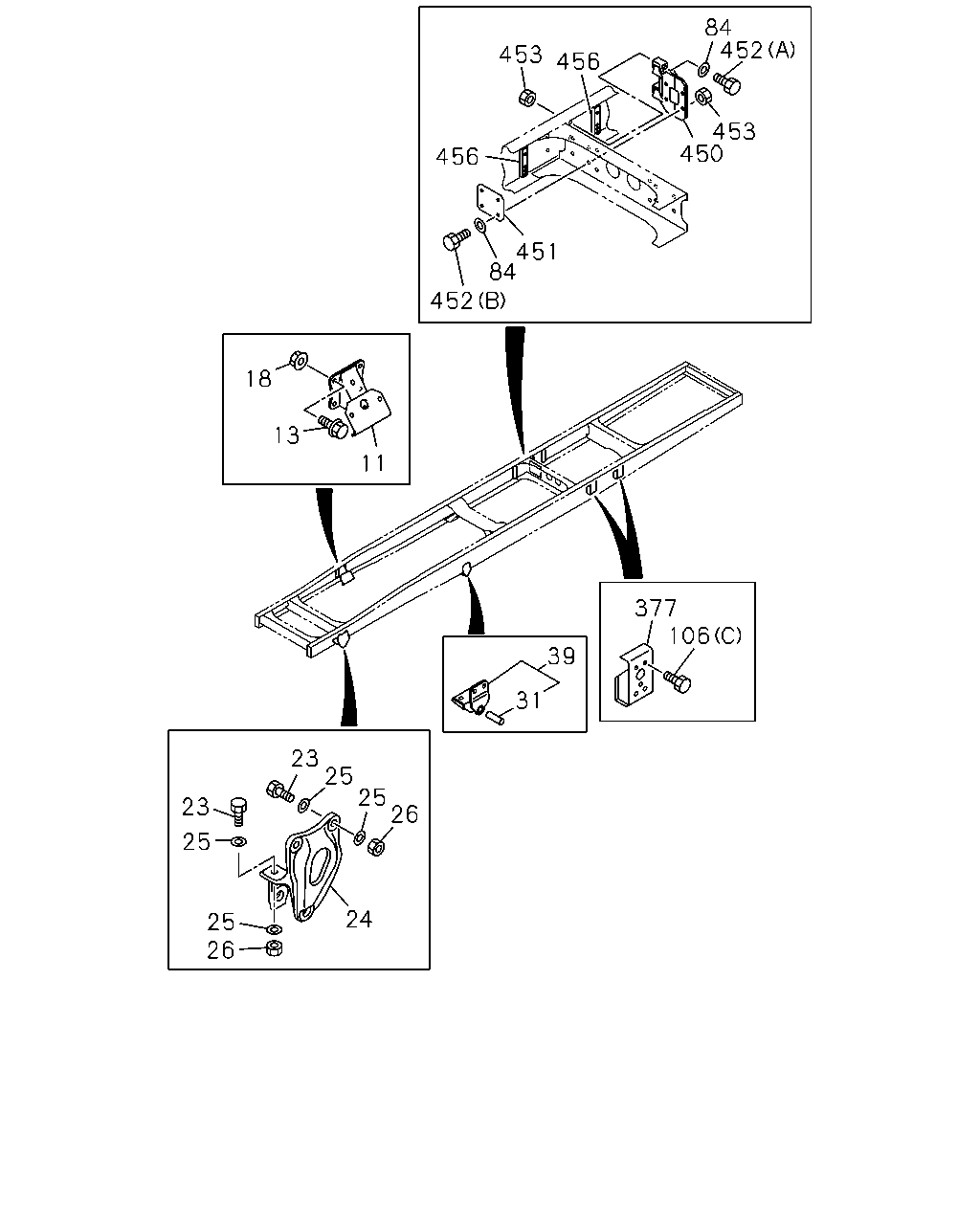

çizim 283274
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0906-1204 ● ● ● ●
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1205- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906-1204 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1205- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906-1204 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1205- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906-1204 ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1205- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0906-1204 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1205- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0906-1204 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1205- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906-1204 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1205- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1205- ● ●
26 NUT; BRKT,SPR
FRR LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1205- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0906-1204 ● ● ● ●
26 NUT; BRKT,SPR
FRR AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1205- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906-1204 ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1205- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0906-1204 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1205- ● ● ● ● ●
84 WASHER; PL,BRKT
FRR AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1205- ● ● ●
106 BOLT; BRKT
FRR AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1205- ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906-1204 ● ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1205- ● ●
106 BOLT; BRKT
FRR LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1205- ● ● ●
377 BRACKET; TOP PLATE
FRR AIR SUS(FCD***) 		8-98061-350-0 04 1 1205- ● ● ●
450 BRACKET; V ROD
FRR AIR SUS(FCD***) 		1-53353-121-0 02 1 1205- ● ● ●
451 GUSSET; V ROD
FRR AIR SUS(FCD***) 		8-97610-436-0 02 1 1205- ● ● ●
452 BOLT; V ROD
FRR AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 1205- ● ● ●
452 BOLT; V ROD
FRR AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 1205- ● ● ●
453 NUT; V ROD
FRR AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 1205- ● ● ●
456 PATCH; STOPPER
FRR AIR SUS(FCD***) 		8-97610-437-1 04 1 1205- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
