Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#168168) — 31 parça
◀

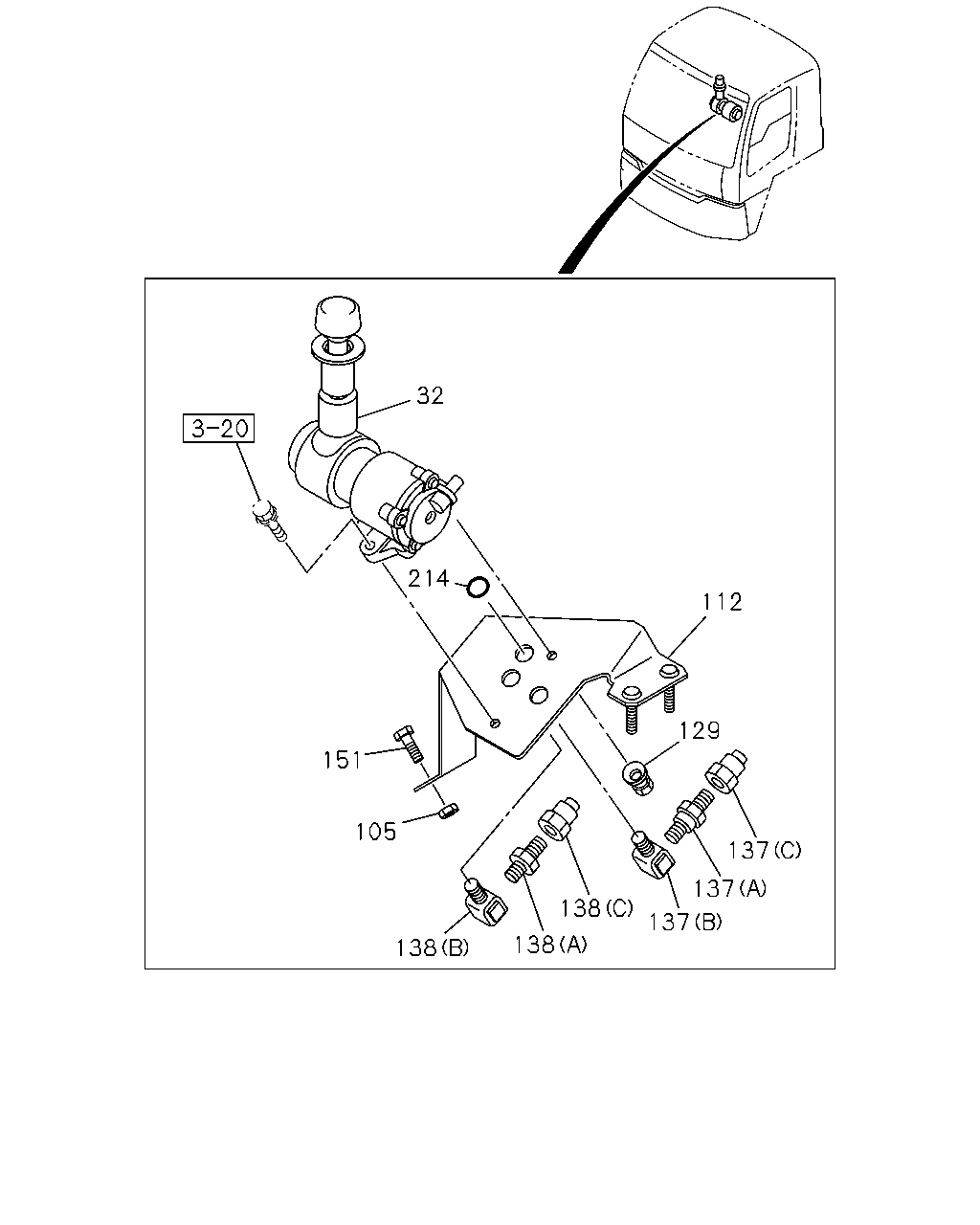

[326A] FIXING (12 parça)
[326A] COMPONENT AND REPAIR KIT (19 parça)
▶
32
214
112
129
137
137
137
138
138
138
105
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
1508-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1508-
112
BRACKET; CONT VLV
1-79996-387-0
01
1
1508-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1508-
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1508-
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1508-
137
CONNECTOR; SUPPLY
(C) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
1508-
138
CONNECTOR; DELIVERY
(A) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
1508-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1508-
138
CONNECTOR; DELIVERY
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1508-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1508-
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
01
1
1508-

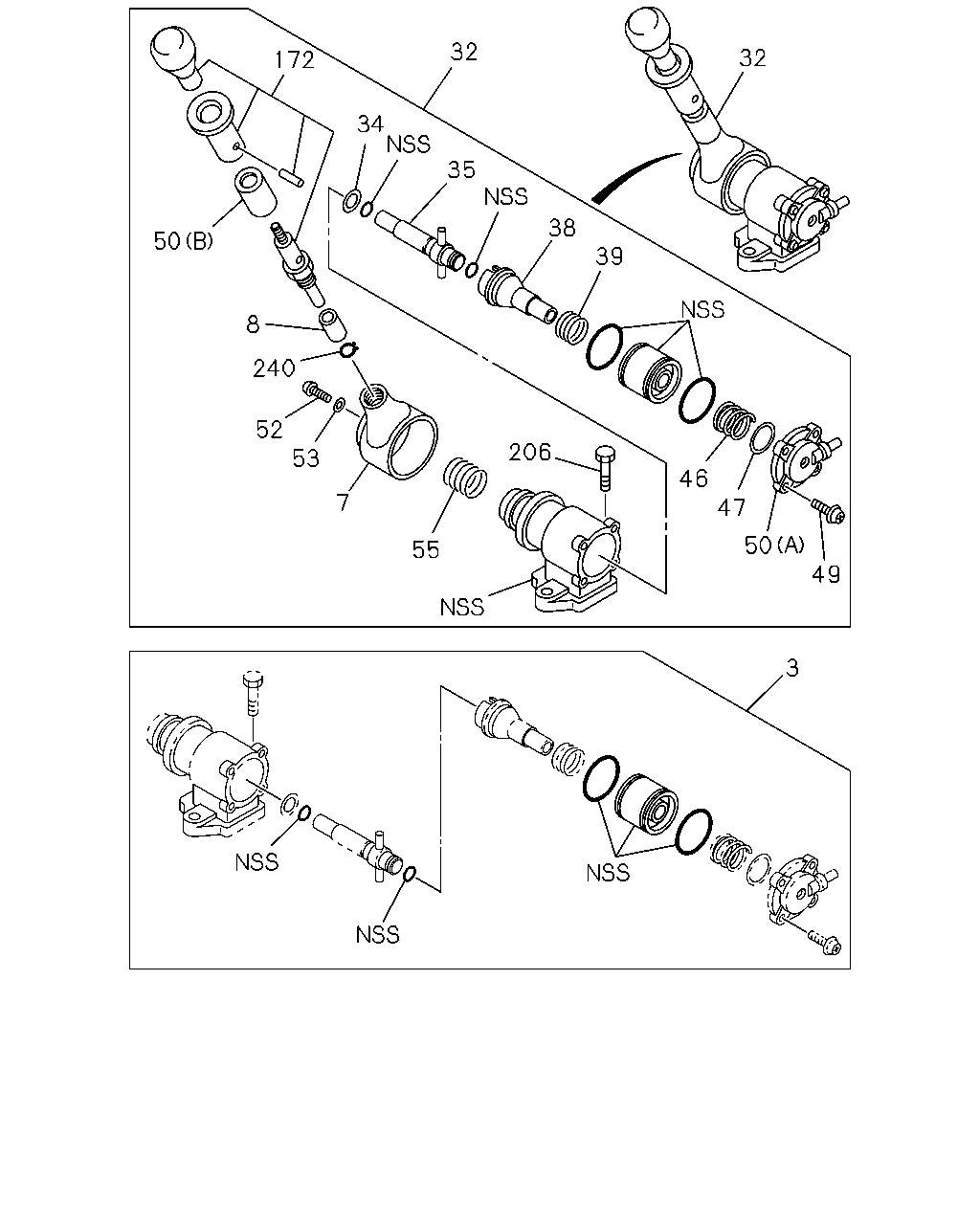

172
34
35
38
39
46
47
50
49
206
55
7
53
52
240
8
50
32
32
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-85576-375-0
01
1
1508-
7
HEAD; BRK VLV
1-48469-195-0
01
1
1508-
8
STOPPER; BRK VLV
1-48469-194-0
01
1
1508-
32
VALVE; BRK,HAND CONT
1-48460-340-1
01
1
1508-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1508-
35
HOLDER; CAM
1-48469-148-0
01
1
1508-
38
SEAT; EXH VLV
1-48469-149-0
01
1
1508-
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
1508-
46
SPRING; MAIN,PISTON
1-48469-152-0
01
1
1508-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1508-
49
SCREW; COVER
1-48469-169-0
04
1
1508-
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
1508-
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
1508-
52
SCREW; HANDLE
1-48469-062-0
01
1
1508-
53
WASHER; HANDLE
1-48469-061-0
01
1
1508-
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
1508-
172
KNOB; VALVE
1-48469-204-0
01
1
1508-
206
BOLT; HAND BRK VALVE
1-48469-160-0
01
1
1508-
240
RING; STOPPER
1-48469-193-0
01
1
1508-
