Sayfa 3-22 - Isuzu EPC

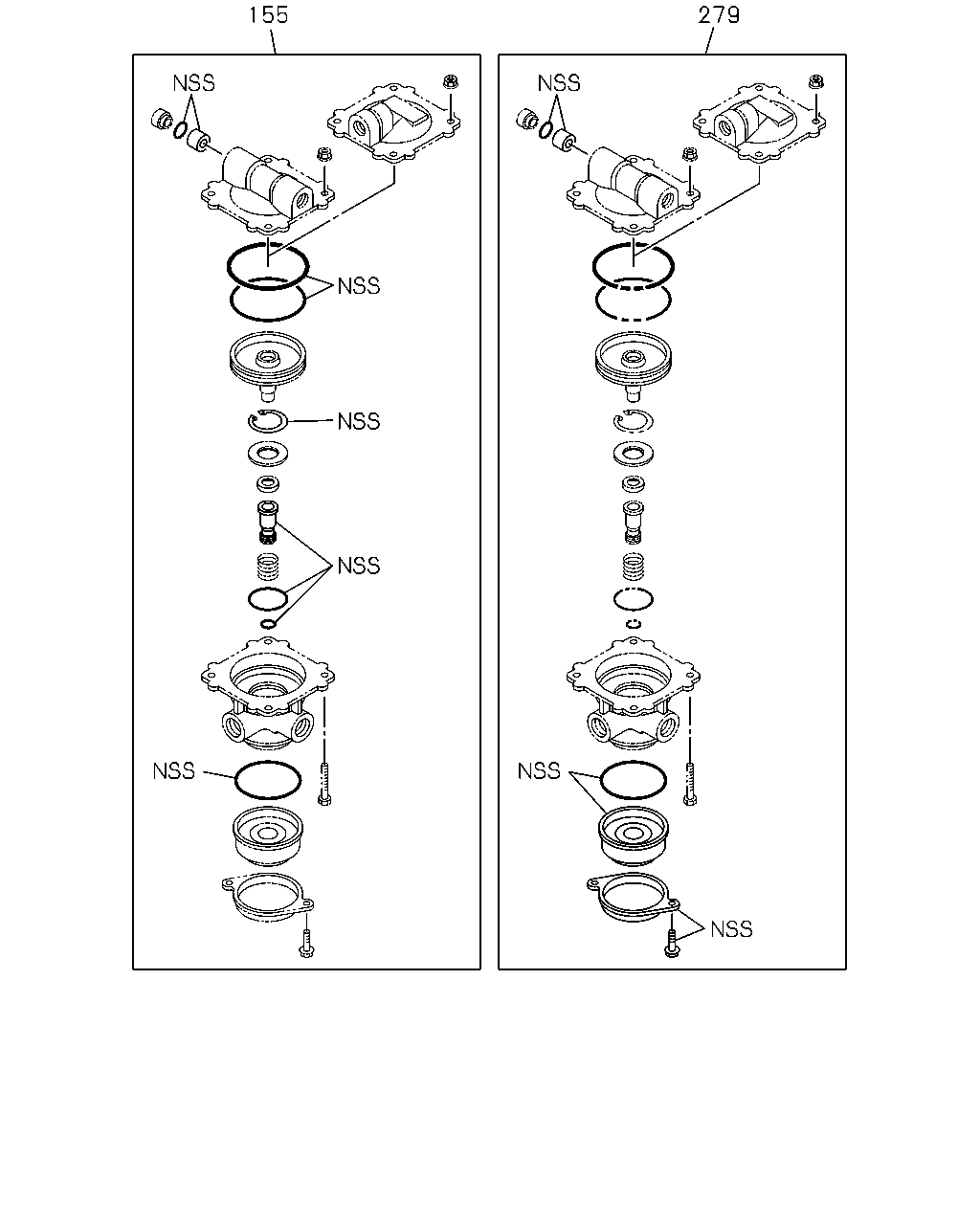

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE	8-98165-977-0	01	1	1508-
155	REPAIR KIT; RELAY VALVE	8-98165-977-0	02	1	1508-
279	REPAIR KIT; SILENCER	8-98165-978-0	01	1	1508-
279	REPAIR KIT; SILENCER	8-98165-978-0	02	1	1508-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV	1-85576-304-1	01	1	1508-
	204	PIPE ASM; HSA VLV	1-46366-194-0	01	1	1508-

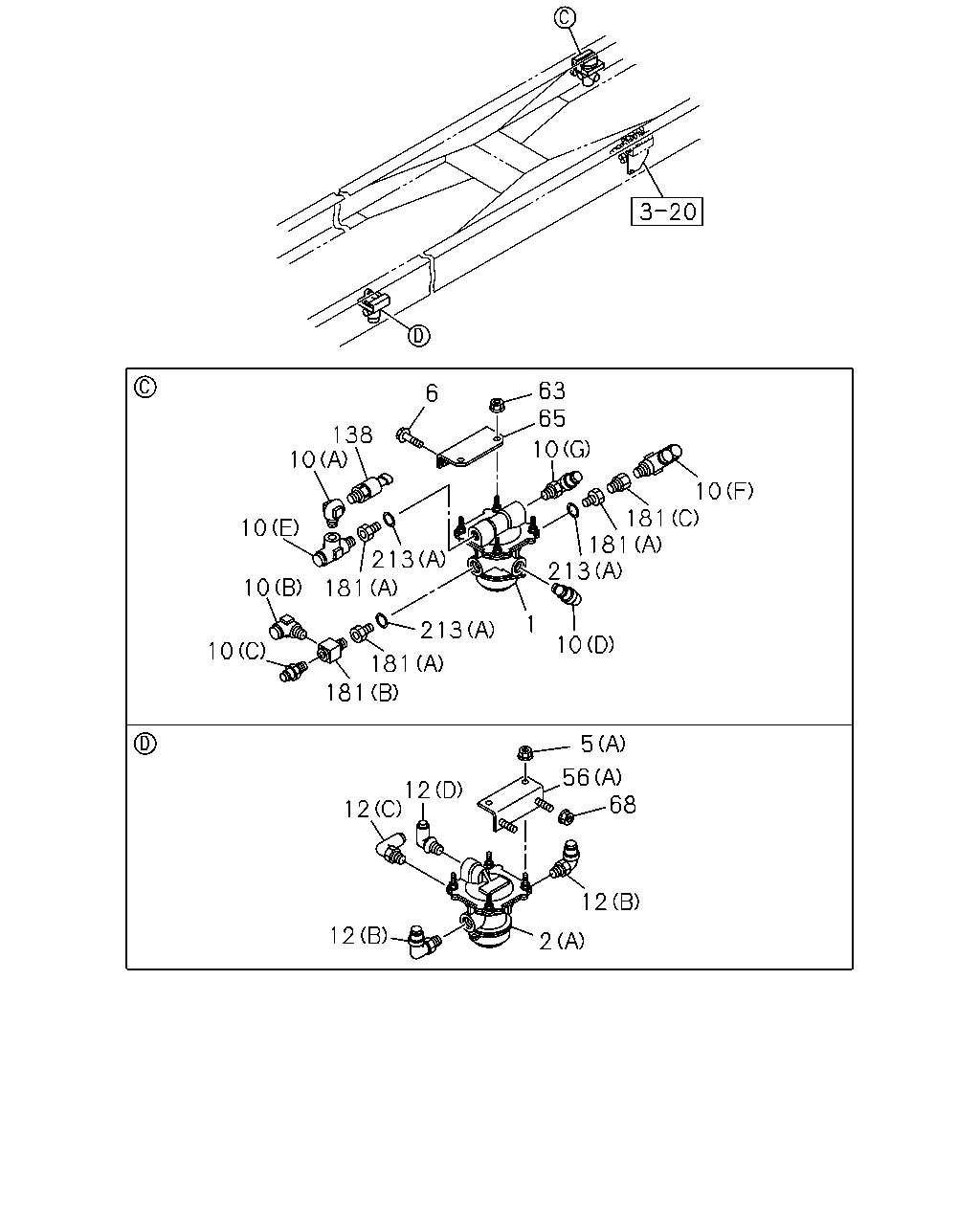

6 63 10 65 138 10 10 10 10 181 181 181 213 213 10 213 181 181 10 5 56 68 12 2 12 12 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	8-98091-528-0	01	1	1508-
2	VALVE; RELAY (A)	8-98091-529-0	01	1	1508-
2	VALVE; RELAY EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A)	8-98091-529-0	01	1	1508-
2	VALVE; RELAY PARKING BRAKE - BRAKE LOCK(6LL) (B)	8-98091-528-0	01	1	1508-
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98320-459-0	01	1	1508-
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1508-
10	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	1508-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1508-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
10	CONNECTOR (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1508-
10	CONNECTOR (G) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1508-
10	CONNECTOR (D) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1508-
10	CONNECTOR (E) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1508-
10	CONNECTOR AIR DRYER WITH OIL CATCH TANK<PS8> (H) R1/4	8-98296-460-0	02	1	1508-
12	CONNECTOR; RELAY VLV (B) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1508-
12	CONNECTOR; RELAY VLV MJT7U M/T(Y4X) (B) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1508-
12	CONNECTOR; RELAY VLV (C) DIN16 & M22 ELBOW	1-09661-498-0	01	1	1508-
12	CONNECTOR; RELAY VLV (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1508-
12	CONNECTOR; RELAY VLV EXC. PARKING BRAKE - BRAKE LOCK(6LL) (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) (H) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (I) PT1/4 2WAY	1-09660-693-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1508-
12	CONNECTOR; RELAY VLV EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1508-
56	BRACKET; RELAY VLV (A)	8-97625-545-1	01	1	1508-
56	BRACKET; RELAY VLV (B)	8-97629-431-0	01	1	1508-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1508-
65	BRACKET; RELAY VLV RR	8-97629-209-0	01	1	1508-
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	02	1	1508-
138	SWITCH; RELAY VALVE STAMP 2.0	8-98010-856-2	01	1	1508-
181	ADAPTER; PRESSURE SW (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1508-
181	ADAPTER; PRESSURE SW (B) PT3/8 3WAY	1-09661-300-0	01	1	1508-
181	ADAPTER; PRESSURE SW (C) PT3/8	1-09664-210-0	01	1	1508-
213	GASKET (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET MJT7U M/T(Y4X) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98296-442-0	01	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	04	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	01	1	1508-

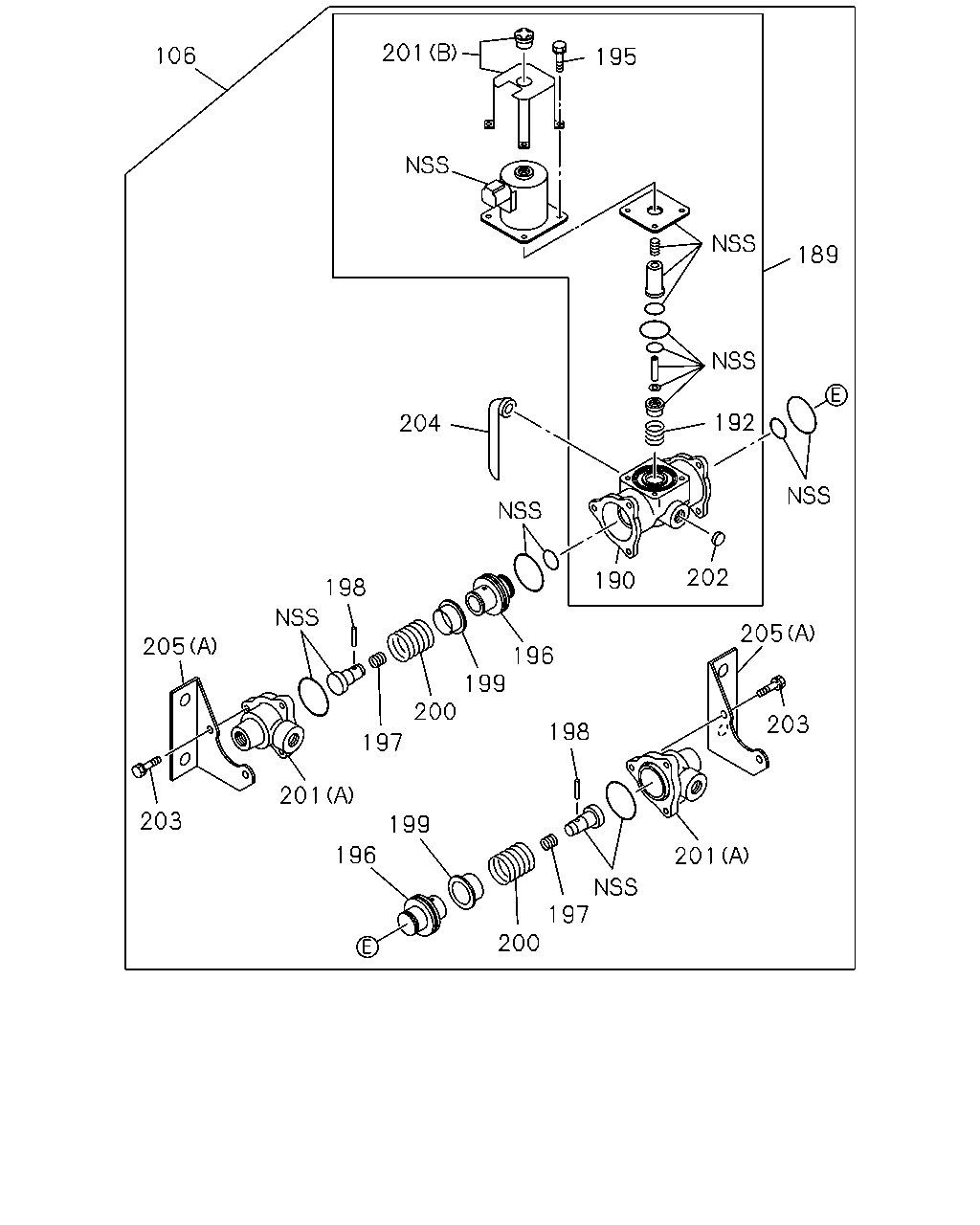

106 201 195 189 192 202 190 204 198 196 199 200 197 201 203 205 196 200 199 197 198 201 203 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA	1-46362-118-1	01	1	1508-
189	VALVE ASM; SOLENOID,HSA VLV	1-46366-242-0	01	1	1508-
190	BODY; SOLENOID VLV,HSA VLV	1-46366-234-0	01	1	1508-
192	SPRING; SOLENOID VLV,HSA VLV	1-46366-181-0	01	1	1508-
195	SCREW; SOLENOID VLV,HSA VLV	1-46366-191-0	04	1	1508-
196	PISTON; HSA VLV	1-46366-232-0	02	1	1508-
197	SPRING; INNER,HSA VLV	1-46366-161-0	02	1	1508-
198	PIN; STRAIGHT,HSA VLV	1-46366-122-0	02	1	1508-
199	RETAINER; HSA VLV	1-46366-121-0	02	1	1508-
200	SPRING; OUTER,HSA VLV	1-46366-120-0	02	1	1508-
201	COVER; HSA VLV (A)	1-46366-118-1	02	1	1508-
201	COVER; HSA VLV (B)	1-46366-241-0	01	1	1508-
202	FILTER; HSA VLV	1-46366-117-1	02	1	1508-
203	SCREW; HSA VLV	1-46366-116-1	06	1	1508-
204	PIPE ASM; HSA VLV	1-46366-194-0	01	1	1508-
205	BRACKET; HSA VLV (A)	1-46366-243-0	02	1	1508-
205	BRACKET; HSA VLV (B)	8-97630-150-0	01	1	1508-

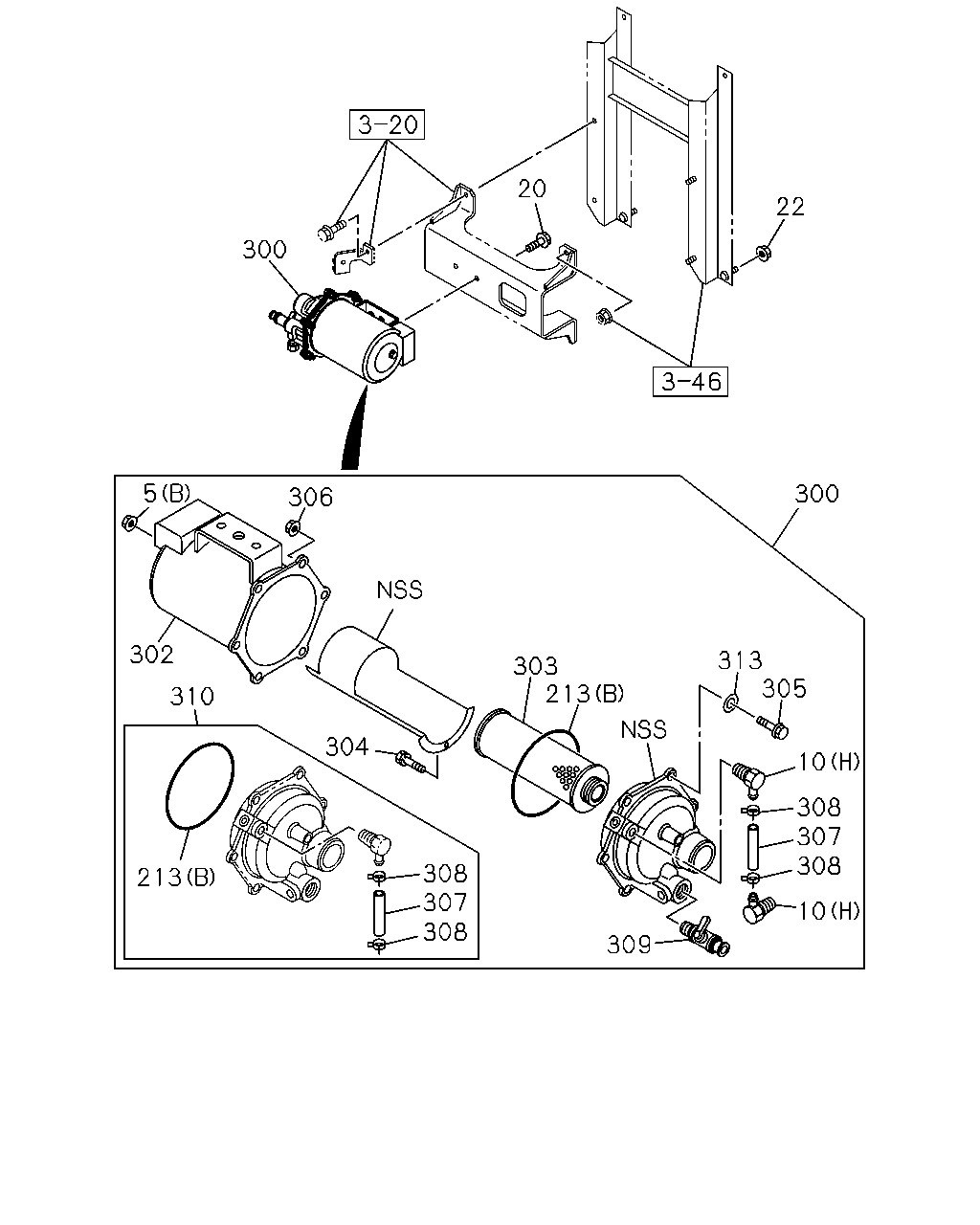

300 20 22 300 313 305 10 308 307 308 10 213 303 304 310 302 5 306 213 308 307 308 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98320-459-0	01	1	1508-
10	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	1508-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1508-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
10	CONNECTOR (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1508-
10	CONNECTOR (G) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1508-
10	CONNECTOR (D) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1508-
10	CONNECTOR (E) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1508-
10	CONNECTOR AIR DRYER WITH OIL CATCH TANK<PS8> (H) R1/4	8-98296-460-0	02	1	1508-
20	BOLT; BRKT AIR DRYER WITH OIL CATCH TANK<PS8> M8X25 FLANGE	0-28650-825-0	02	1	1508-
22	NUT; BRKT AIR DRYER WITH OIL CATCH TANK<PS8> M8 FLANGE	0-91180-108-0	02	1	1508-
213	GASKET (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET MJT7U M/T(Y4X) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98296-442-0	01	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	04	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	01	1	1508-
300	TANK; CATCH AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-422-0	01	1	1508-
302	SHELL ASM AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-438-0	01	1	1508-
303	FILTER AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-441-0	01	1	1508-
304	BOLT AIR DRYER WITH OIL CATCH TANK<PS8> M8X16	8-98296-445-0	01	1	1508-
305	BOLT; PURGE TANK AIR DRYER WITH OIL CATCH TANK<PS8> M8X35	8-98320-460-0	06	1	1508-
306	NUT; PURGE TANK AIR DRYER WITH OIL CATCH TANK<PS8> M8	8-98320-458-0	06	1	1508-
307	HOSE AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-461-0	01	1	1508-
308	CLIP; HOSE AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-462-0	02	1	1508-
309	COCK; DRAIN AIR DRYER WITH OIL CATCH TANK<PS8>	8-98296-463-0	01	1	1508-
310	REPAIR KIT AIR DRYER WITH OIL CATCH TANK<PS8>	8-98299-390-0	01	1	1508-
313	WASHER AIR DRYER WITH OIL CATCH TANK<PS8>	8-98320-457-0	06	1	1508-

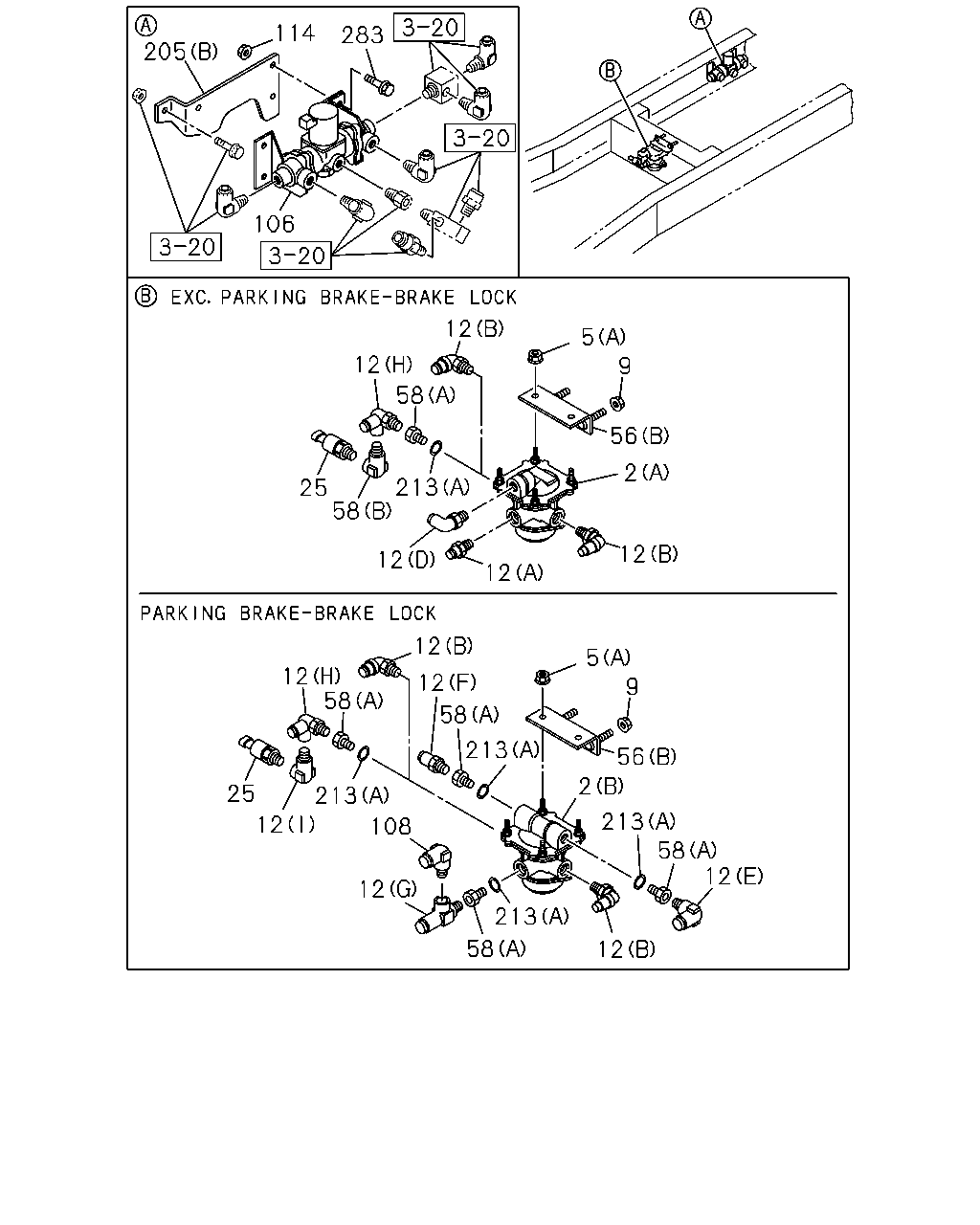

205 114 106 283 12 12 58 5 56 9 12 2 12 12 213 58 25 12 12 12 58 213 5 9 56 2 213 58 12 12 213 58 12 108 213 12 25 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (A)	8-98091-529-0	01	1	1508-
2	VALVE; RELAY EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A)	8-98091-529-0	01	1	1508-
2	VALVE; RELAY PARKING BRAKE - BRAKE LOCK(6LL) (B)	8-98091-528-0	01	1	1508-
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
5	NUT AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98320-459-0	01	1	1508-
9	NUT M8 FLANGE	0-91180-108-0	02	1	1508-
12	CONNECTOR; RELAY VLV (B) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1508-
12	CONNECTOR; RELAY VLV MJT7U M/T(Y4X) (B) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1508-
12	CONNECTOR; RELAY VLV (C) DIN16 & M22 ELBOW	1-09661-498-0	01	1	1508-
12	CONNECTOR; RELAY VLV (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1508-
12	CONNECTOR; RELAY VLV EXC. PARKING BRAKE - BRAKE LOCK(6LL) (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) (H) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1508-
12	CONNECTOR; RELAY VLV MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (I) PT1/4 2WAY	1-09660-693-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
12	CONNECTOR; RELAY VLV PARKING BRAKE - BRAKE LOCK(6LL) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1508-
12	CONNECTOR; RELAY VLV EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1508-
25	SWITCH; PRESSURE MJX12P M/T SMOOTHER-G(Y4S) STAMP 2.2	8-98010-858-0	01	1	1508-
56	BRACKET; RELAY VLV (A)	8-97625-545-1	01	1	1508-
56	BRACKET; RELAY VLV (B)	8-97629-431-0	01	1	1508-
58	ADAPTER MJT7U M/T(Y4X) PARKING BRAKE - BRAKE LOCK(6LL) (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1508-
58	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1508-
58	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1508-
58	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) PT1/4 2WAY	1-09660-693-0	01	1	1508-
106	VALVE; HSA	1-46362-118-1	01	1	1508-
108	CONNECTOR; ELBOW PARKING BRAKE - BRAKE LOCK(6LL) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
114	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1508-
205	BRACKET; HSA VLV (A)	1-46366-243-0	02	1	1508-
205	BRACKET; HSA VLV (B)	8-97630-150-0	01	1	1508-
213	GASKET (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET MJT7U M/T(Y4X) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	03	1	1508-
213	GASKET AIR DRYER WITH OIL CATCH TANK<PS8> (B)	8-98296-442-0	01	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	04	1	1508-
213	GASKET MJX12P M/T SMOOTHER-G(Y4S) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (A) ID=22.5	9-09571-422-0	01	1	1508-
283	BOLT; HSA VLV M8X25 FLANGE	0-28650-825-0	03	1	1508-
