Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#168162) — 366 parça

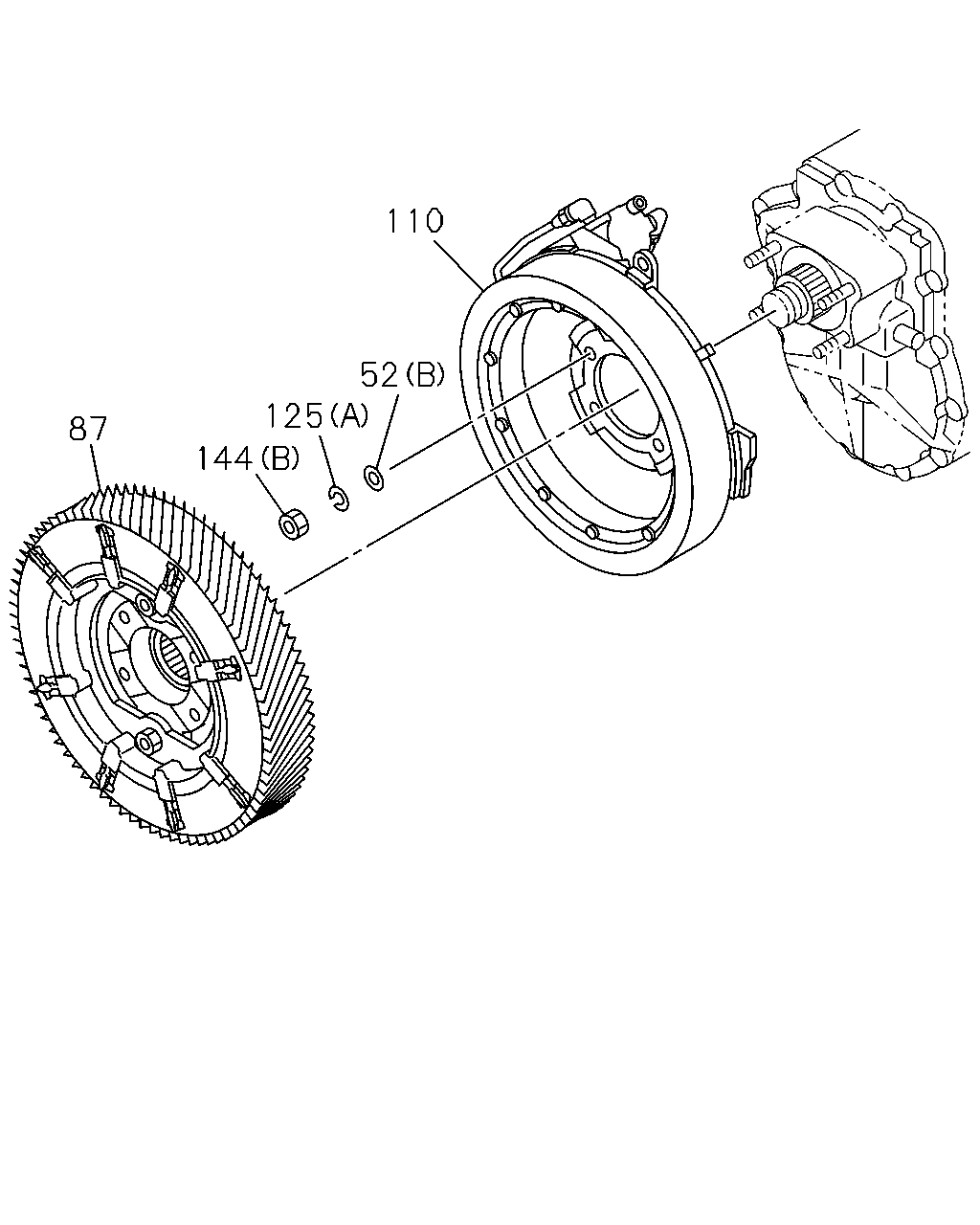

110 52 125 144 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	8-98213-321-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-320-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-498-1	01	1	1508-		●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●

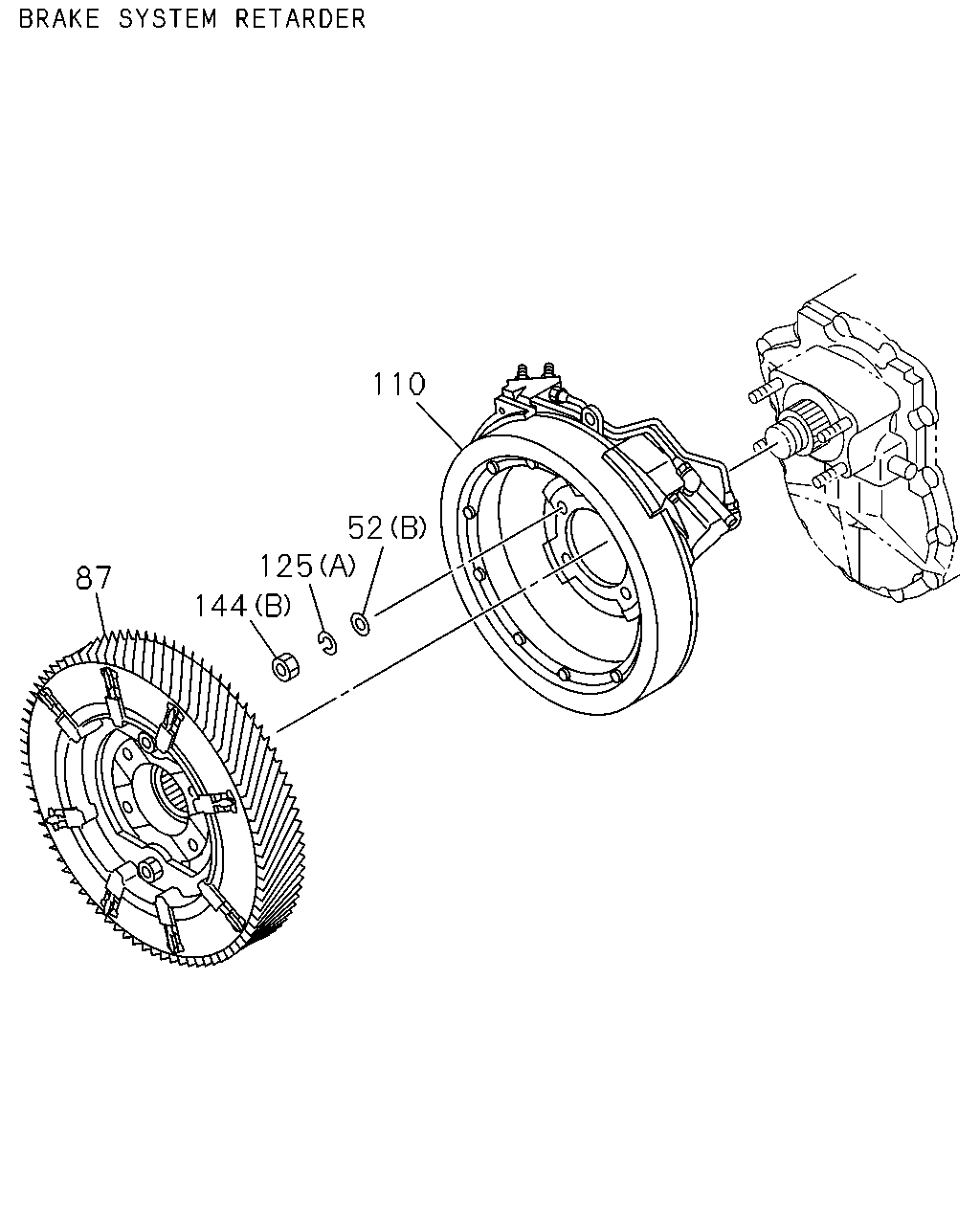

110 52 125 144 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	8-98213-321-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-320-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-498-1	01	1	1508-		●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●

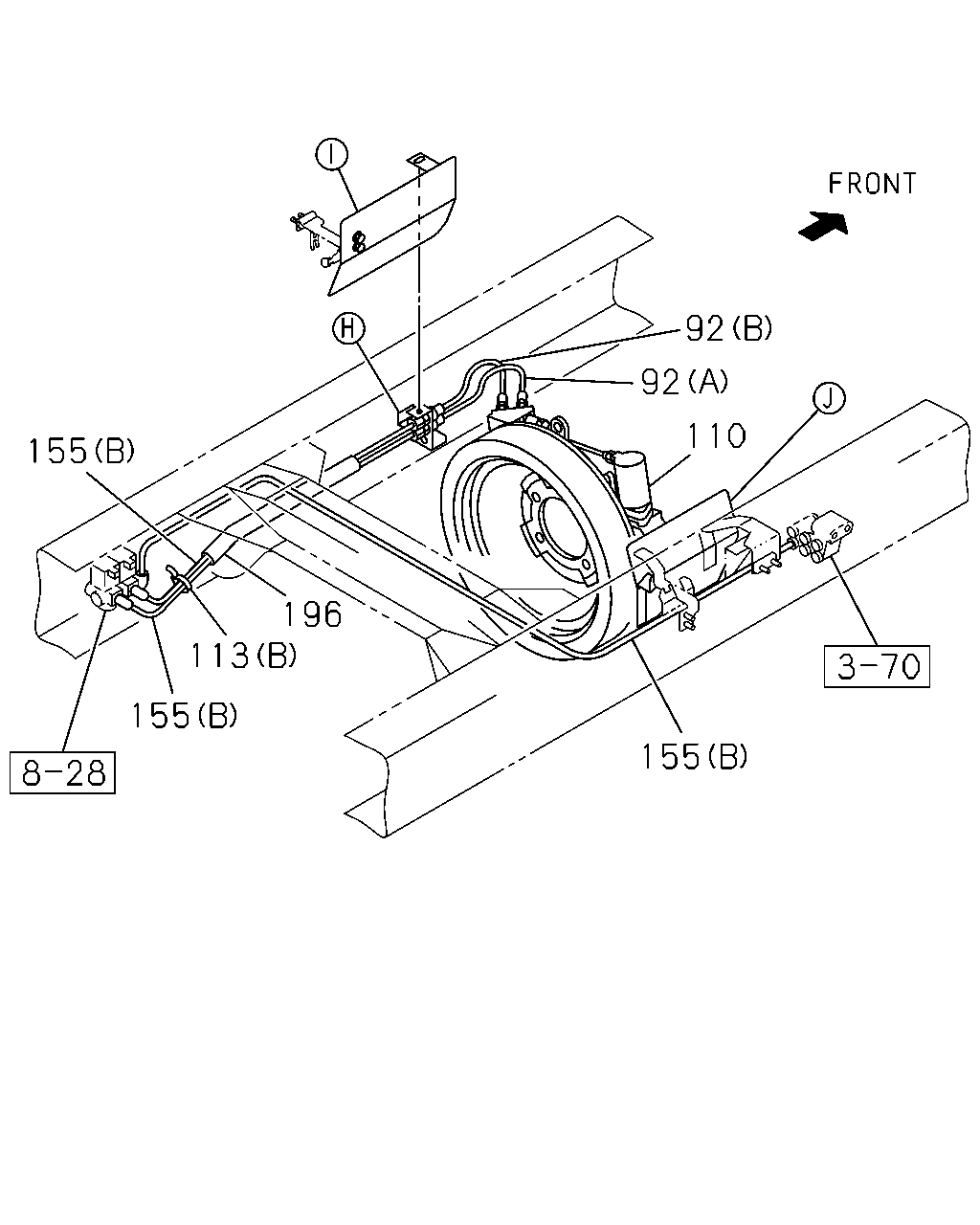

92 92 196 110 155 113 155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-609-0	01	1	1508-	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-609-0	01	1	1508-		●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) L=310	1-09363-944-0	01	1	1508-	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=310	1-09363-944-0	01	1	1508-		●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) L=350	1-09707-183-0	02	1	1508-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) ID=10 & 10	1-09709-277-1	02	1	1508-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=10 & 10	1-09709-277-1	01	1	1508-	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-092-0	01	1	1508-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1508-	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1508-	●	●
196	TUBE; CORRUGATE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1508-	●	●

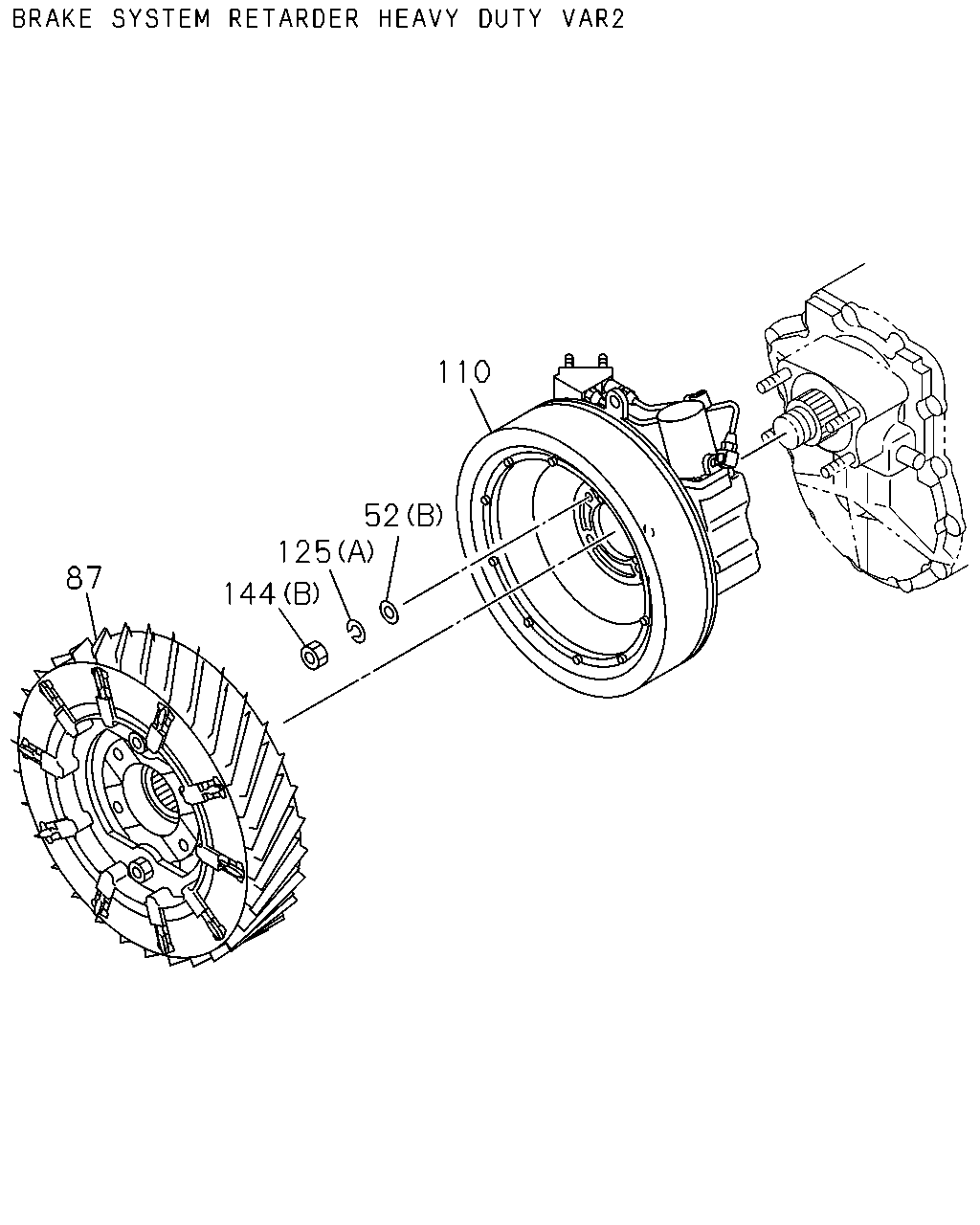

110 52 125 144 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-		●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	8-98213-321-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-320-0	01	1	1508-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-498-1	01	1	1508-		●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●

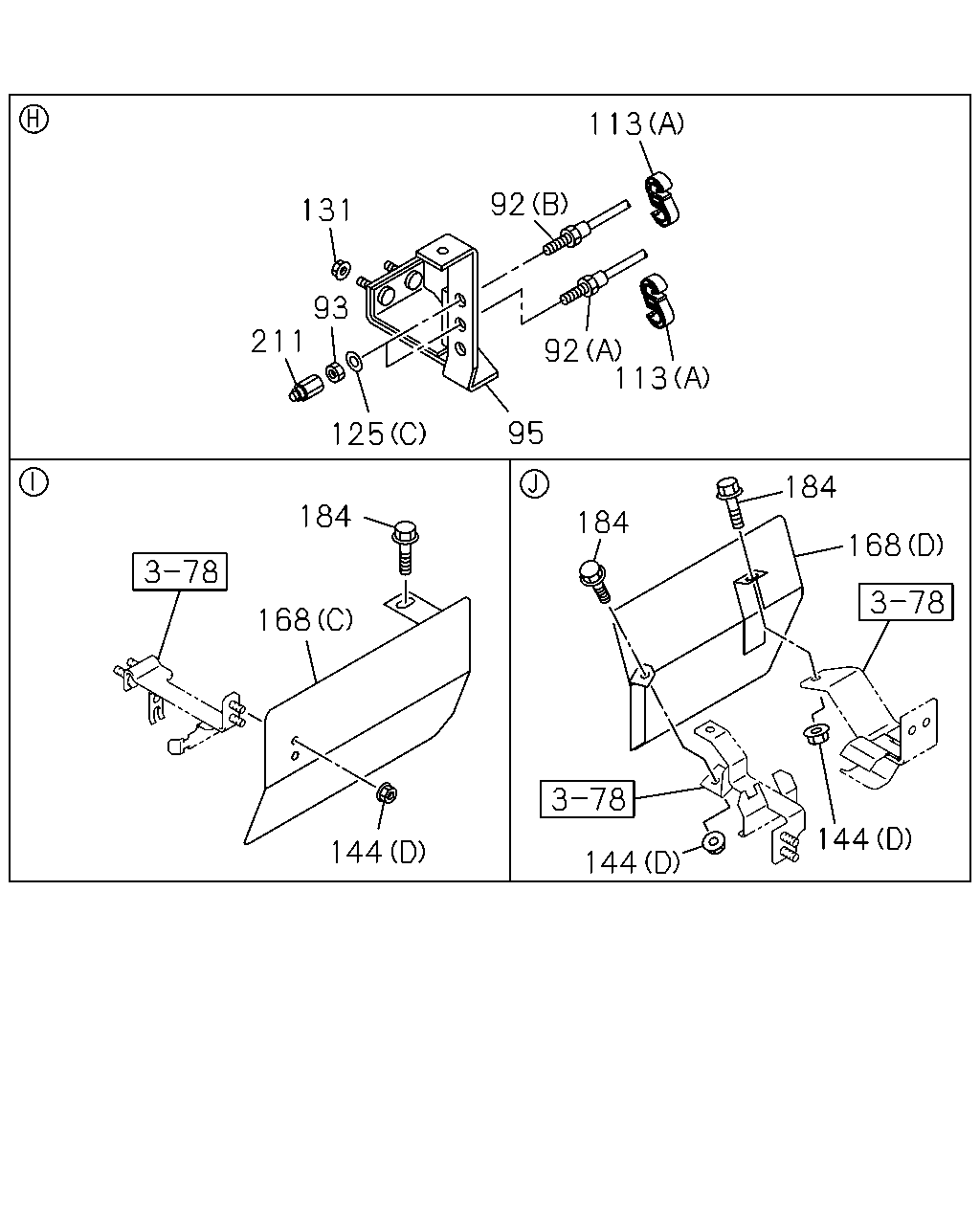

144 144 184 168 184 184 168 144 125 113 92 95 113 92 131 93 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-609-0	01	1	1508-	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-609-0	01	1	1508-		●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) L=310	1-09363-944-0	01	1	1508-	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=310	1-09363-944-0	01	1	1508-		●
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	1508-	●
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	1508-		●
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2>	8-97617-036-0	01	1	1508-	●
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	8-97617-036-0	01	1	1508-		●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) L=350	1-09707-183-0	02	1	1508-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) ID=10 & 10	1-09709-277-1	02	1	1508-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) ID=10 & 10	1-09709-277-1	01	1	1508-	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-421-0	02	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D)	8-97609-118-0	01	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	8-97617-038-0	01	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-447-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (C)	8-97617-039-0	01	1	1508-	●	●
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28650-820-0	02	1	1508-	●
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28650-820-0	01	1	1508-	●	●
211	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1508-	●
211	ADAPTER BRAKE SYSTEM RETARDER<RE2> DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1508-		●

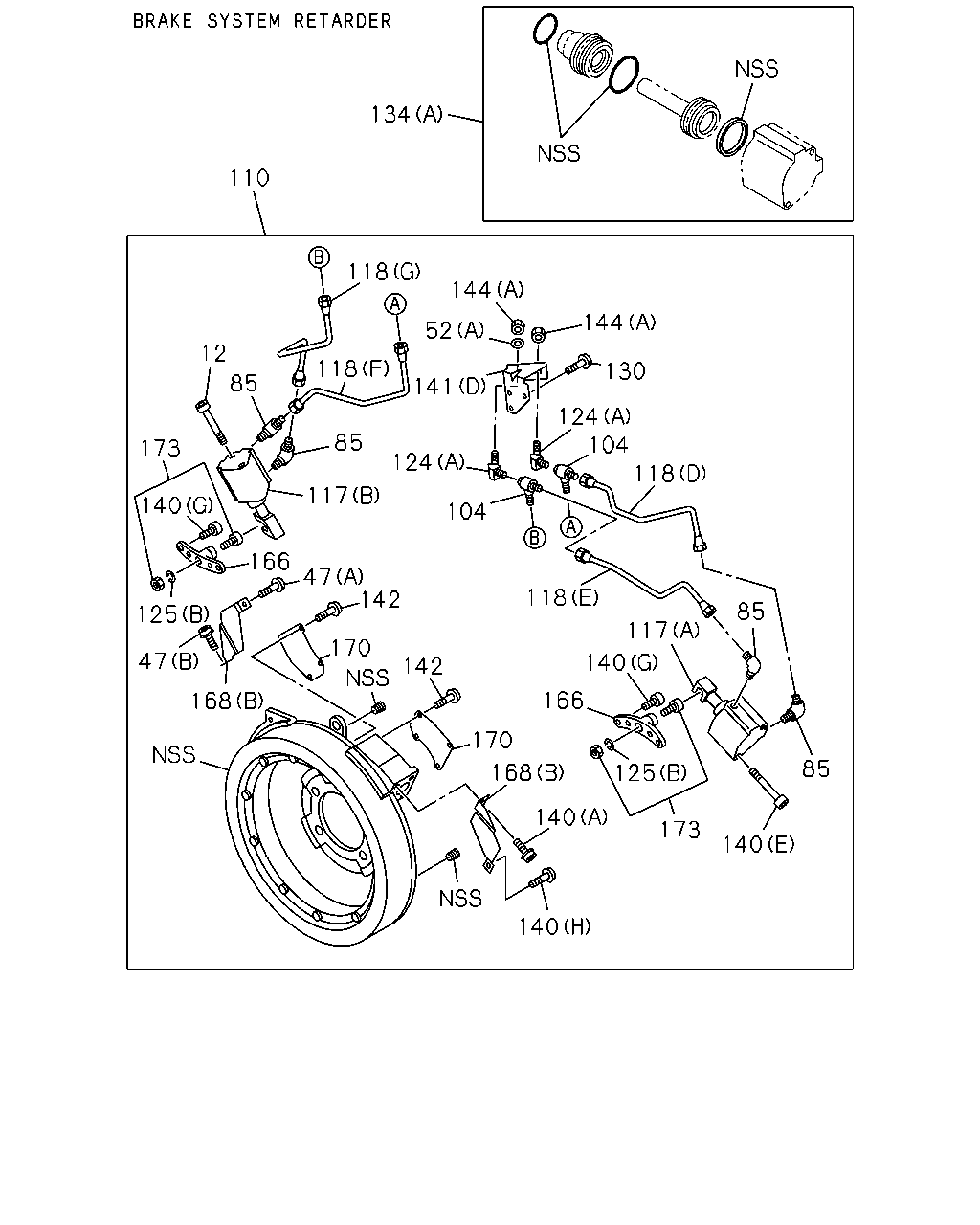

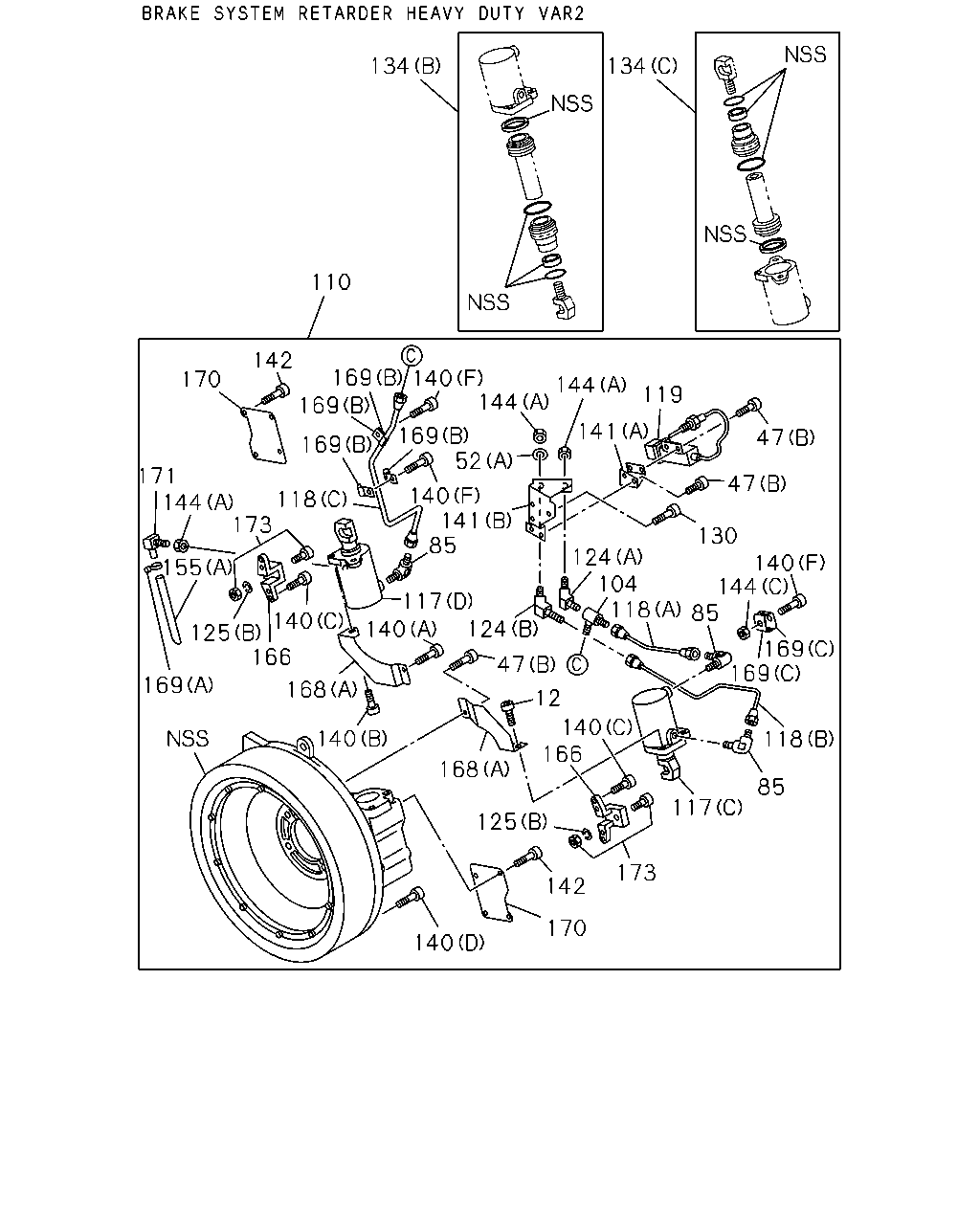

134 110 118 144 144 130 124 104 118 85 117 85 140 173 125 166 140 118 104 124 141 52 118 85 12 173 85 117 47 166 140 125 47 142 142 170 170 168 140 140 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-428-0	03	1	1508-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-461-0	02	1	1508-	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-471-0	01	1	1508-	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M12 & PT1/8	0-92124-306-0	03	1	1508-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8	0-92124-306-0	04	1	1508-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-202-0	01	1	1508-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	02	1	1508-	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) MAIN	1-48629-431-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) SUB	1-48629-432-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-464-0	01	1	1508-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-465-0	01	1	1508-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-425-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-426-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-427-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-453-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-454-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F)	1-48629-455-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-456-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-457-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (I)	1-48629-458-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (J)	1-48629-459-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (K)	1-48629-460-0	01	1	1508-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-267-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-268-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	02	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (D) M12 2WAY	1-09654-257-1	01	1	1508-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-452-0	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	03	1	1508-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	1508-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B) MAIN	1-48629-433-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) SUB	1-48629-434-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) MAIN,SUB	1-48629-463-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-182-0	08	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) M8X12	1-48629-205-0	02	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-428-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-461-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-462-0	08	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-471-0	01	1	1508-	●	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-266-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-278-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-449-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-450-0	01	1	1508-		●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M5X10 HEX SOCKET	1-48629-274-0	08	1	1508-	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	08	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-418-0	02	1	1508-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-446-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-421-0	02	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D)	8-97609-118-0	01	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	8-97617-038-0	01	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-447-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (C)	8-97617-039-0	01	1	1508-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-422-0	02	1	1508-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-448-0	02	1	1508-	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-417-0	02	1	1508-	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-468-0	02	1	1508-	●	●

134 134 110 142 170 171 144 173 118 169 169 169 140 169 140 141 85 52 144 144 119 141 47 47 130 124 104 118 85 144 140 169 169 118 85 117 173 142 170 125 168 166 140 12 47 124 140 140 168 169 125 166 140 140 117 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-428-0	03	1	1508-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-461-0	02	1	1508-	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-471-0	01	1	1508-	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1508-		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M12 & PT1/8	0-92124-306-0	03	1	1508-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8	0-92124-306-0	04	1	1508-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-202-0	01	1	1508-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	02	1	1508-	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) MAIN	1-48629-431-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) SUB	1-48629-432-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-464-0	01	1	1508-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-465-0	01	1	1508-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-425-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-426-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-427-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-453-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-454-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F)	1-48629-455-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-456-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-457-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (I)	1-48629-458-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (J)	1-48629-459-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (K)	1-48629-460-0	01	1	1508-		●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-82450-054-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-267-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-268-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	02	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (D) M12 2WAY	1-09654-257-1	01	1	1508-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-452-0	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	03	1	1508-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	1508-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B) MAIN	1-48629-433-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) SUB	1-48629-434-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) MAIN,SUB	1-48629-463-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-182-0	08	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) M8X12	1-48629-205-0	02	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-428-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-461-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-462-0	08	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-471-0	01	1	1508-	●	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-266-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-278-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-449-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-450-0	01	1	1508-		●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M5X10 HEX SOCKET	1-48629-274-0	08	1	1508-	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	08	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-092-0	01	1	1508-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1508-	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	1508-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-418-0	02	1	1508-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-446-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-421-0	02	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D)	8-97609-118-0	01	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	8-97617-038-0	01	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-447-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (C)	8-97617-039-0	01	1	1508-	●	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-126-0	01	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-249-0	04	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	04	1	1508-		●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-276-0	02	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-276-0	02	1	1508-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-422-0	02	1	1508-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-448-0	02	1	1508-	●	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-144-0	01	1	1508-	●
173	FOLLOWER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-417-0	02	1	1508-	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-468-0	02	1	1508-	●	●

85 117 85 12 173 85 173 166 168 142 117 170 140 140 140 166 125 85 47 140 168 47 142 170 125 140 140 118 169 124 130 169 141 110 144 144 118 169 124 169 118 140 169 104 104 118 169 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-428-0	03	1	1508-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-461-0	02	1	1508-	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-471-0	01	1	1508-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M12 & PT1/8	0-92124-306-0	03	1	1508-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8	0-92124-306-0	04	1	1508-	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-202-0	01	1	1508-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	02	1	1508-	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48610-488-3	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-495-2	01	1	1508-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	1508-		●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) MAIN	1-48629-431-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) SUB	1-48629-432-0	01	1	1508-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-464-0	01	1	1508-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-465-0	01	1	1508-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-425-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-426-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-427-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-453-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-454-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F)	1-48629-455-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-456-0	01	1	1508-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-457-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (I)	1-48629-458-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (J)	1-48629-459-0	01	1	1508-		●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (K)	1-48629-460-0	01	1	1508-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-267-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-268-0	01	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	02	1	1508-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (D) M12 2WAY	1-09654-257-1	01	1	1508-		●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-452-0	01	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	1508-		●
125	WASHER; LK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	1508-		●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	03	1	1508-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	1508-		●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B) MAIN	1-48629-433-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) SUB	1-48629-434-0	01	1	1508-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) MAIN,SUB	1-48629-463-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-182-0	08	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (D) M8X12	1-48629-205-0	02	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M6X20 HEX SOCKET	1-48629-270-0	03	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-428-0	03	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	1508-		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-461-0	02	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G)	1-48629-462-0	08	1	1508-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (H)	1-48629-471-0	01	1	1508-	●	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-266-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-278-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-449-0	01	1	1508-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-450-0	01	1	1508-		●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> M5X10 HEX SOCKET	1-48629-274-0	08	1	1508-	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	08	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-430-0	01	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A) M12	9-09840-280-0	03	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	1508-		●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D) M8 FLANGE	0-91180-108-0	02	1	1508-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	1508-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-418-0	02	1	1508-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-446-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-421-0	02	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (D)	8-97609-118-0	01	1	1508-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	8-97617-038-0	01	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-447-0	02	1	1508-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> (C)	8-97617-039-0	01	1	1508-	●	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (A)	1-48629-126-0	01	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (B)	1-48629-249-0	04	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	04	1	1508-		●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C)	1-48629-276-0	02	1	1508-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-276-0	02	1	1508-		●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-422-0	02	1	1508-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-448-0	02	1	1508-	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>	1-48629-417-0	02	1	1508-	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-468-0	02	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
