◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#168161) — 112 parça
çizim 498189
346 301 328 327 319 297 334 297 335 311 348 329 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1508-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1508-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1508-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1508-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1508-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1508-
311 BOOT; WEDGE 1-47649-042-0 02 1 1508-
311 BOOT; WEDGE 1-47649-042-0 02 1 1508-
319 RING; DRIVE 1-47629-200-0 04 1 1508-
319 RING; DRIVE 1-47629-200-0 04 1 1508-
327 SPRING; ADJ 1-47629-196-0 04 1 1508-
327 SPRING; ADJ 1-47629-196-0 04 1 1508-
328 CAGE; SPRING 1-47629-192-0 04 1 1508-
328 CAGE; SPRING 1-47629-192-0 04 1 1508-
329 SCREW; LOCATING 1-47619-149-1 04 1 1508-
329 SCREW; LOCATING 1-47619-149-1 04 1 1508-
334 SPRING; ROD 1-47649-041-0 02 1 1508-
334 SPRING; ROD 1-47649-041-0 02 1 1508-
335 RETAINER; SPRING 1-47649-020-0 02 1 1508-
335 RETAINER; SPRING 1-47649-020-0 02 1 1508-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1508-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1508-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1508-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1508-
348 CAP; EXPANDER 1-47649-044-0 02 1 1508-
348 CAP; EXPANDER 1-47649-044-0 02 1 1508-

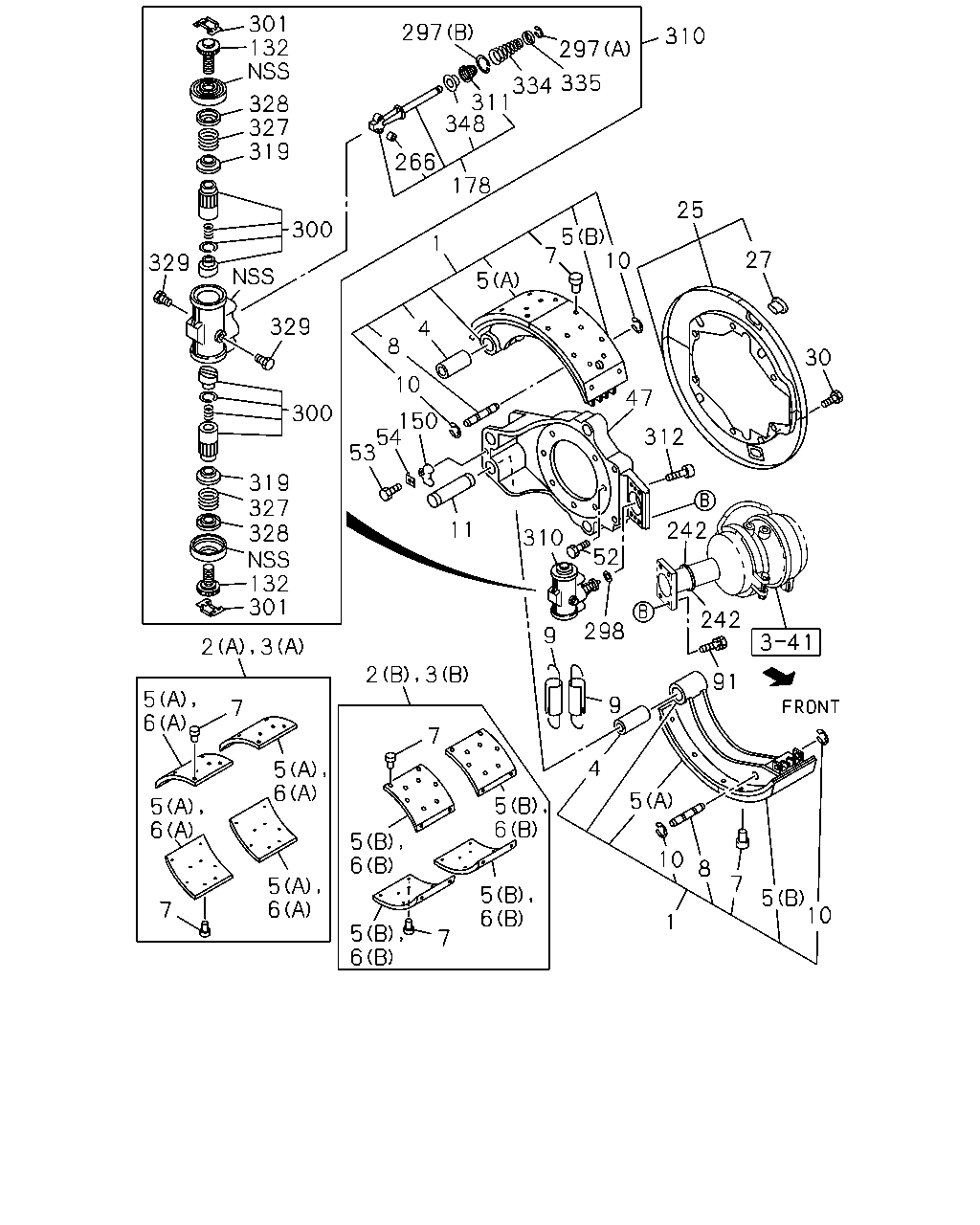

çizim 498490
310 297 335 334 311 348 297 266 1 178 25 10 5 7 5 4 8 10 150 54 53 11 310 52 242 312 47 27 30 242 91 298 9 9 4 5 10 1 8 7 5 10 6 5 6 5 7 3 2 5 6 5 6 7 6 5 7 6 5 6 5 7 6 5 2 3 301 132 328 327 319 300 329 329 300 319 327 328 132 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47170-267-0 04 1 1508-
1 SHOE; BRK,RR 1-47170-267-0 04 1 1508-
2 LINING SET; RR BRK,STANDARD
(B) 		1-88311-260-0 01 1 1508-
2 LINING SET; RR BRK,STANDARD
(B) 		1-88311-260-0 01 1 1508-
2 LINING SET; RR BRK,STANDARD
(A) 		1-88311-261-0 01 1 1508-
2 LINING SET; RR BRK,STANDARD
(A) 		1-88311-261-0 01 1 1508-
3 LINING SET; RR BRK,OVER SIZE
(B) 		1-88311-262-0 01 1 1508-
3 LINING SET; RR BRK,OVER SIZE
(B) 		1-88311-262-0 01 1 1508-
3 LINING SET; RR BRK,OVER SIZE
(A) 		1-88311-263-0 01 1 1508-
3 LINING SET; RR BRK,OVER SIZE
(A) 		1-88311-263-0 01 1 1508-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-022-0 04 1 1508-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-022-0 04 1 1508-
5 LINING; RR BRK SHOE,STANDARD
(B) 		1-47126-677-0 04 1 1508-
5 LINING; RR BRK SHOE,STANDARD
(B) 		1-47126-677-0 04 1 1508-
5 LINING; RR BRK SHOE,STANDARD
(A) 		1-47126-679-0 04 1 1508-
5 LINING; RR BRK SHOE,STANDARD
(A) 		1-47126-679-0 04 1 1508-
6 LINING; RR BRK SHOE,OVER SIZE
(B) 		1-47126-678-0 04 1 1508-
6 LINING; RR BRK SHOE,OVER SIZE
(B) 		1-47126-678-0 04 1 1508-
6 LINING; RR BRK SHOE,OVER SIZE
(A) 		1-47126-680-0 04 1 1508-
6 LINING; RR BRK SHOE,OVER SIZE
(A) 		1-47126-680-0 04 1 1508-
7 RIVET; LINING,RR BRK 1-09732-055-0 88 1 1508-
7 RIVET; LINING,RR BRK 1-09732-055-0 88 1 1508-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-171-1 04 1 1508-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-171-1 04 1 1508-
9 SPRING; RETURN,BRK SHOE 1-09583-370-0 04 1 1508-
9 SPRING; RETURN,BRK SHOE 1-09583-370-0 04 1 1508-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 1508-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 1508-
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-051-0 04 1 1508-
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-051-0 04 1 1508-
25 COVER SET; RR BRK DRUM 1-47151-865-0 02 1 1508-
25 COVER SET; RR BRK DRUM 1-47151-865-0 02 1 1508-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1508-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1508-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1508-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1508-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-564-0 01 1 1508-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-565-0 01 1 1508-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-566-0 02 1 1508-
52 BOLT; ANCHOR BRKT
M14X43 		1-09040-045-0 03 1 1508-
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1508-
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1508-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1508-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1508-
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1508-
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1508-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1508-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1508-
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1508-
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1508-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1508-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1508-
242 SEAL 1-47159-223-0 04 1 1508-
242 SEAL 1-47159-223-0 04 1 1508-
266 ROLLER; WEDGE 1-47643-007-0 04 1 1508-
266 ROLLER; WEDGE 1-47643-007-0 04 1 1508-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1508-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1508-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1508-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1508-
298 GASKET 1-48259-231-0 02 1 1508-
298 GASKET 1-48259-231-0 02 1 1508-
300 SLEEVE 1-47629-247-1 04 1 1508-
300 SLEEVE 1-47629-247-1 04 1 1508-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1508-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1508-
310 EXPANDER 1-47601-087-0 02 1 1508-
310 EXPANDER 1-47601-087-0 02 1 1508-
311 BOOT; WEDGE 1-47649-042-0 02 1 1508-
311 BOOT; WEDGE 1-47649-042-0 02 1 1508-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1508-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1508-
319 RING; DRIVE 1-47629-200-0 04 1 1508-
319 RING; DRIVE 1-47629-200-0 04 1 1508-
327 SPRING; ADJ 1-47629-196-0 04 1 1508-
327 SPRING; ADJ 1-47629-196-0 04 1 1508-
328 CAGE; SPRING 1-47629-192-0 04 1 1508-
328 CAGE; SPRING 1-47629-192-0 04 1 1508-
329 SCREW; LOCATING 1-47619-149-1 04 1 1508-
329 SCREW; LOCATING 1-47619-149-1 04 1 1508-
334 SPRING; ROD 1-47649-041-0 02 1 1508-
334 SPRING; ROD 1-47649-041-0 02 1 1508-
335 RETAINER; SPRING 1-47649-020-0 02 1 1508-
335 RETAINER; SPRING 1-47649-020-0 02 1 1508-
348 CAP; EXPANDER 1-47649-044-0 02 1 1508-
348 CAP; EXPANDER 1-47649-044-0 02 1 1508-
