◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#168160) — 104 parça

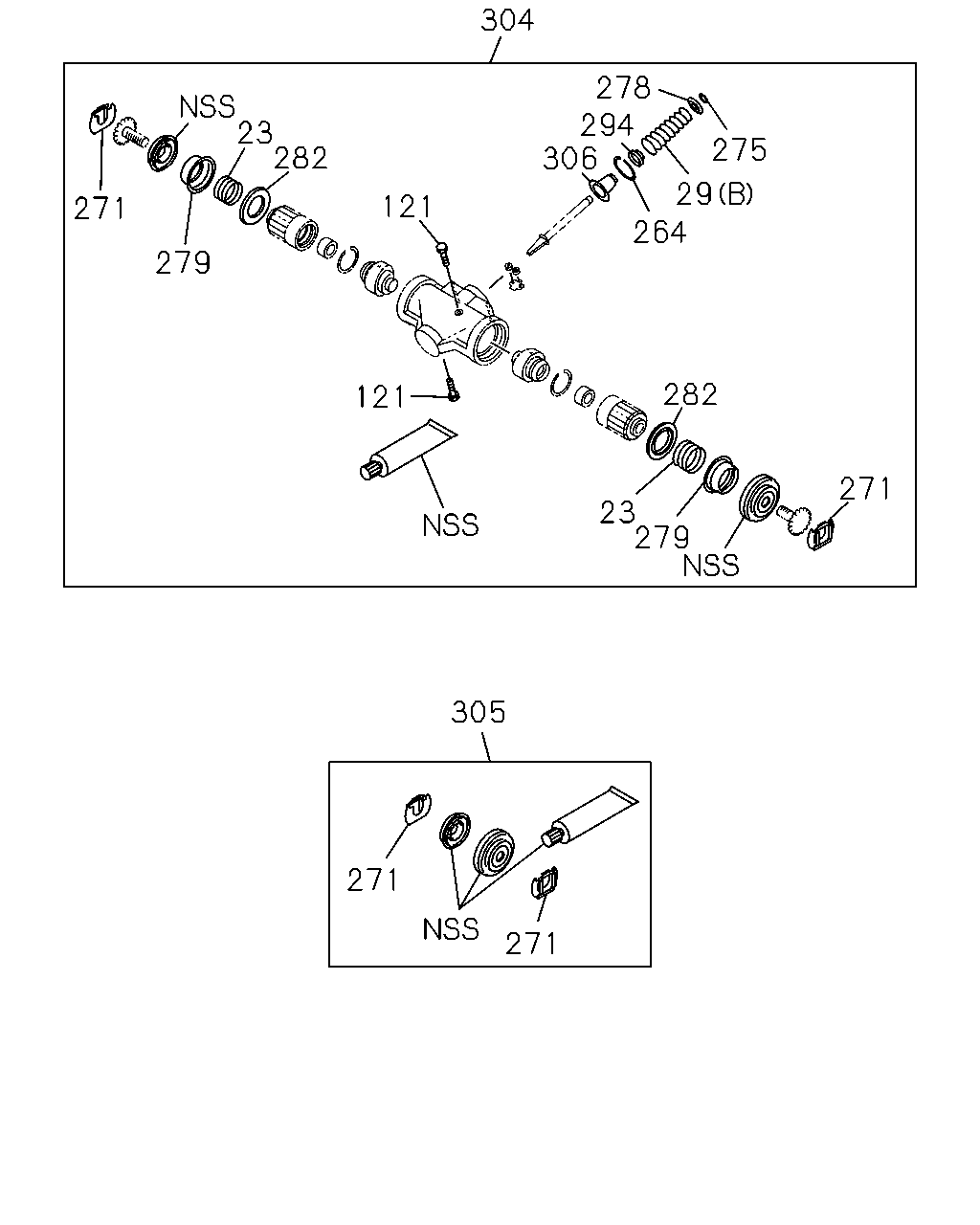

çizim 498188
304 278 294 306 121 282 23 279 271 121 23 279 271 282 264 29 275 305 271 271
BalonParca AdiParca NoAdetTipApplied Date
23 SPRING; COIL 1-47629-196-0 04 1 1508-
23 SPRING; COIL 1-47629-196-0 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1508-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1508-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1508-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1508-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1508-
271 CLIP; ADJ 1-47621-017-0 04 1 1508-
271 CLIP; ADJ 1-47621-017-0 04 1 1508-
275 RING; RETAINER 1-47649-031-0 02 1 1508-
275 RING; RETAINER 1-47649-031-0 02 1 1508-
278 RETAINER; SPRING 1-47649-020-0 02 1 1508-
278 RETAINER; SPRING 1-47649-020-0 02 1 1508-
279 CAGE; SPRING 1-47629-192-0 04 1 1508-
279 CAGE; SPRING 1-47629-192-0 04 1 1508-
282 RING; DRIVE 1-47629-200-0 04 1 1508-
282 RING; DRIVE 1-47629-200-0 04 1 1508-
294 BOOT; WEDGE 1-47649-042-0 02 1 1508-
294 BOOT; WEDGE 1-47649-042-0 02 1 1508-
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1508-
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1508-
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1508-
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1508-
306 CAP; EXPANDER 1-47649-044-0 02 1 1508-
306 CAP; EXPANDER 1-47649-044-0 02 1 1508-

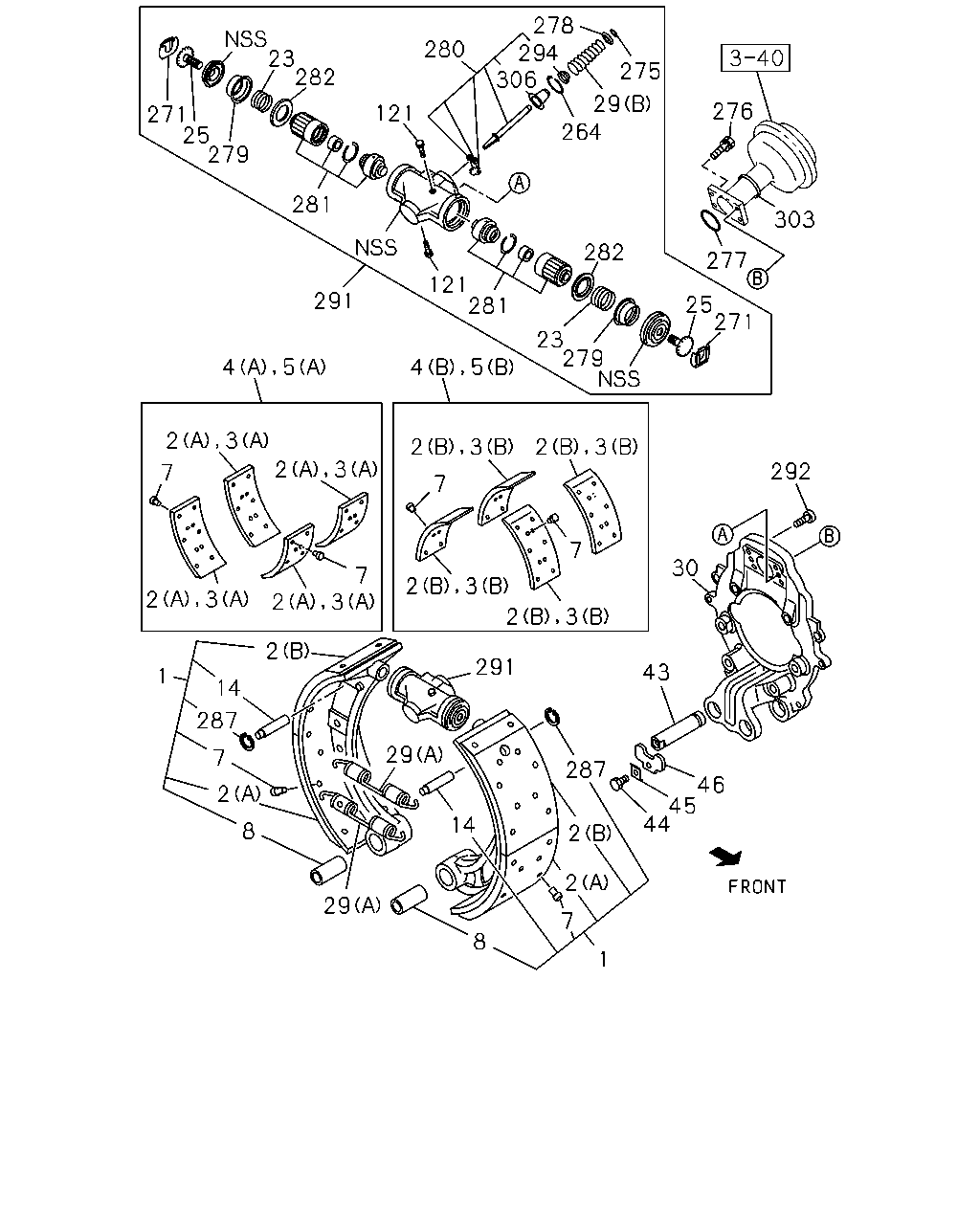

çizim 498400
278 294 306 280 121 282 23 271 25 279 281 291 121 281 23 279 271 25 282 277 303 276 275 29 264 292 30 43 46 45 44 1 7 2 2 287 8 14 29 29 8 2 7 287 1 14 2 291 3 2 2 3 3 2 3 2 7 2 3 2 3 4 5 4 5 2 3 2 3 7 7 7
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 1-47170-266-0 04 1 1508-
1 SHOE; BRK,FRT 1-47170-266-0 04 1 1508-
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47126-673-0 04 1 1508-
2 LINING; FRT BRK SHOE,STANDARD
(B) 		1-47126-673-0 04 1 1508-
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47126-675-0 04 1 1508-
2 LINING; FRT BRK SHOE,STANDARD
(A) 		1-47126-675-0 04 1 1508-
3 LINING; FRT BRK SHOE,OVER SIZE
(B) 		1-47126-674-0 04 1 1508-
3 LINING; FRT BRK SHOE,OVER SIZE
(B) 		1-47126-674-0 04 1 1508-
3 LINING; FRT BRK SHOE,OVER SIZE
(A) 		1-47126-676-0 04 1 1508-
3 LINING; FRT BRK SHOE,OVER SIZE
(A) 		1-47126-676-0 04 1 1508-
4 LINING SET; FRT BRK,STANDARD
(B) 		1-88311-264-0 01 1 1508-
4 LINING SET; FRT BRK,STANDARD
(B) 		1-88311-264-0 01 1 1508-
4 LINING SET; FRT BRK,STANDARD
(A) 		1-88311-265-0 01 1 1508-
4 LINING SET; FRT BRK,STANDARD
(A) 		1-88311-265-0 01 1 1508-
5 LINING SET; FRT BRK,OVER SIZE
(B) 		1-88311-266-0 01 1 1508-
5 LINING SET; FRT BRK,OVER SIZE
(B) 		1-88311-266-0 01 1 1508-
5 LINING SET; FRT BRK,OVER SIZE
(A) 		1-88311-267-0 01 1 1508-
5 LINING SET; FRT BRK,OVER SIZE
(A) 		1-88311-267-0 01 1 1508-
7 RIVET; LINING,FRT BRK 1-09732-055-0 80 1 1508-
7 RIVET; LINING,FRT BRK 1-09732-055-0 80 1 1508-
8 BUSHING; BRK SHOE 1-47112-022-0 04 1 1508-
8 BUSHING; BRK SHOE 1-47112-022-0 04 1 1508-
14 PIN; SHOE RETURN SPR 1-47119-171-1 04 1 1508-
14 PIN; SHOE RETURN SPR 1-47119-171-1 04 1 1508-
23 SPRING; COIL 1-47629-196-0 04 1 1508-
23 SPRING; COIL 1-47629-196-0 04 1 1508-
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1508-
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-370-0 04 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1508-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1508-
30 BRACKET; ANCHOR,FRT 1-47137-523-0 02 1 1508-
30 BRACKET; ANCHOR,FRT 1-47137-523-0 02 1 1508-
43 PIN; ANCHOR 1-47131-051-0 04 1 1508-
43 PIN; ANCHOR 1-47131-051-0 04 1 1508-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1508-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1508-
45 WASHER; LK 1-47133-011-0 02 1 1508-
45 WASHER; LK 1-47133-011-0 02 1 1508-
46 PLATE; LOCK 1-47133-005-0 02 1 1508-
46 PLATE; LOCK 1-47133-005-0 02 1 1508-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1508-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1508-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1508-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1508-
271 CLIP; ADJ 1-47621-017-0 04 1 1508-
271 CLIP; ADJ 1-47621-017-0 04 1 1508-
275 RING; RETAINER 1-47649-031-0 02 1 1508-
275 RING; RETAINER 1-47649-031-0 02 1 1508-
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1508-
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1508-
277 RING; CHAMBER 1-48259-231-0 02 1 1508-
277 RING; CHAMBER 1-48259-231-0 02 1 1508-
278 RETAINER; SPRING 1-47649-020-0 02 1 1508-
278 RETAINER; SPRING 1-47649-020-0 02 1 1508-
279 CAGE; SPRING 1-47629-192-0 04 1 1508-
279 CAGE; SPRING 1-47629-192-0 04 1 1508-
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1508-
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1508-
281 SLEEVE 1-47629-247-1 04 1 1508-
281 SLEEVE 1-47629-247-1 04 1 1508-
282 RING; DRIVE 1-47629-200-0 04 1 1508-
282 RING; DRIVE 1-47629-200-0 04 1 1508-
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1508-
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1508-
291 EXPANDER 1-47601-087-0 02 1 1508-
291 EXPANDER 1-47601-087-0 02 1 1508-
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1508-
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1508-
294 BOOT; WEDGE 1-47649-042-0 02 1 1508-
294 BOOT; WEDGE 1-47649-042-0 02 1 1508-
303 SEAL; CHAMBER 1-47159-223-0 04 1 1508-
303 SEAL; CHAMBER 1-47159-223-0 04 1 1508-
306 CAP; EXPANDER 1-47649-044-0 02 1 1508-
306 CAP; EXPANDER 1-47649-044-0 02 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
