2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#168158) — 94 parça

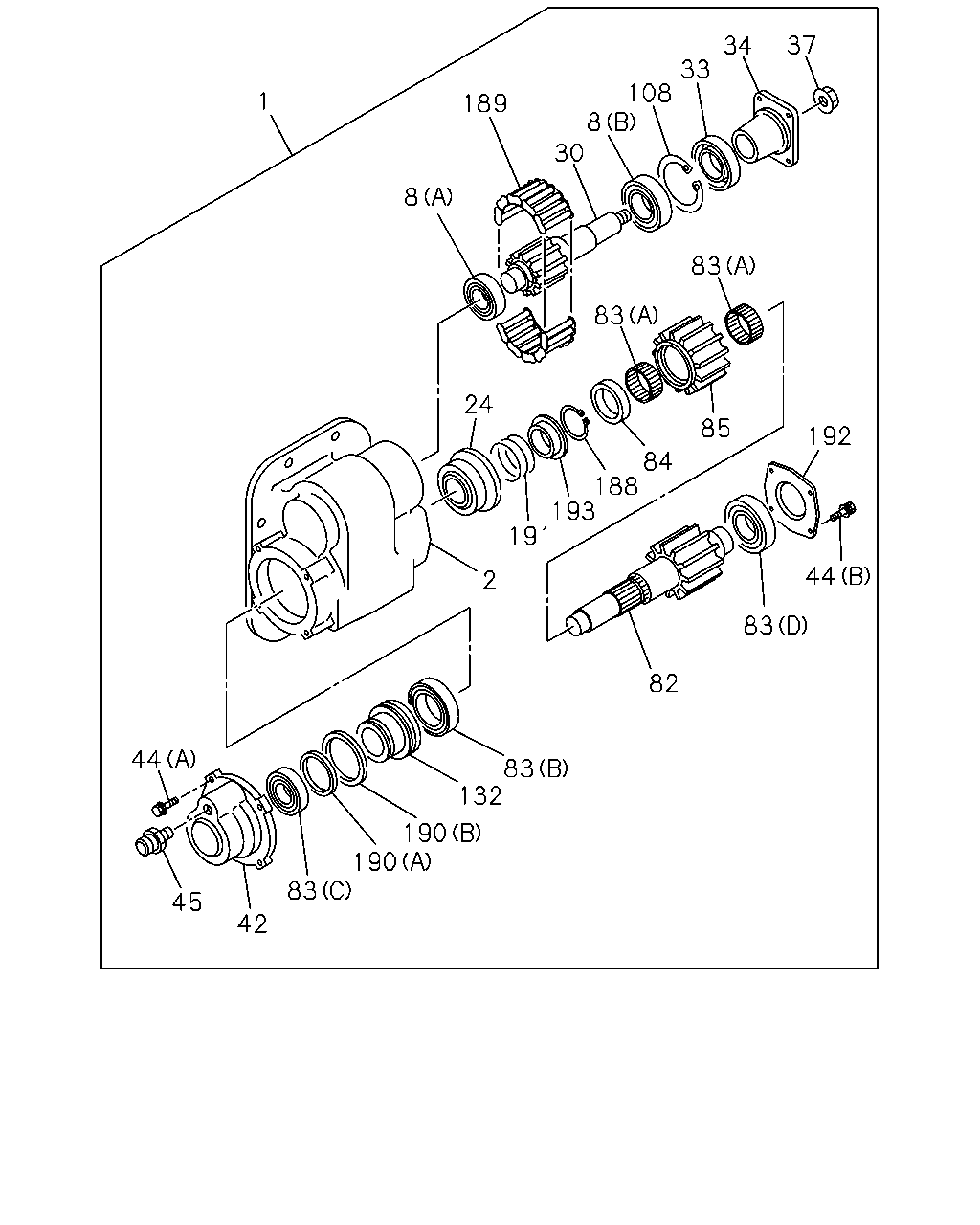

1 8 189 30 8 108 33 34 37 83 83 24 191 193 188 84 85 192 44 83 82 83 132 190 190 83 42 45 44 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-1	01	1	1508-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38000-380-3	01	1	1508-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	1508-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38111-115-0	01	1	1508-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-38225-011-0	01	1	1508-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-38225-012-0	01	1	1508-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	1508-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38225-010-0	01	1	1508-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	1508-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38221-056-0	01	1	1508-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	1508-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-98036-323-0	01	1	1508-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	1508-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38512-028-0	01	1	1508-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	1508-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M24 FLANGE	8-98189-932-0	01	1	1508-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	1508-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-597-0	01	1	1508-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X20 FLANGE	0-28080-820-0	02	1	1508-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	1508-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	1508-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	1508-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	1508-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	1508-	●
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	1508-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	1508-	●
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	1508-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	1508-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	1508-	●
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	1508-	●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	1508-	●
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	1508-	●

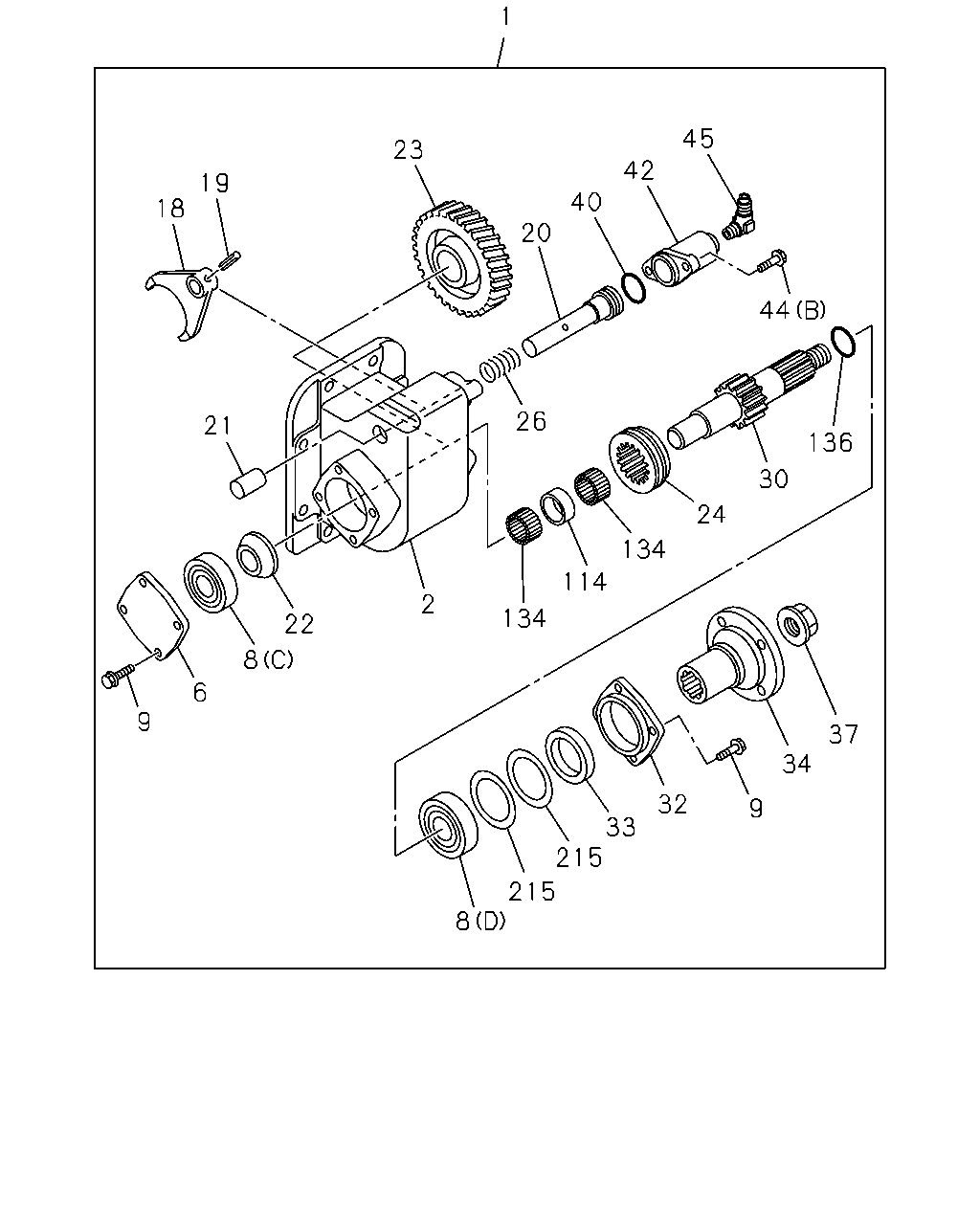

1 45 42 40 20 23 19 18 21 22 2 134 136 30 44 24 134 114 26 8 6 9 37 34 9 32 33 215 215 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-1	01	1	1508-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38000-380-3	01	1	1508-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	1508-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38111-115-0	01	1	1508-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38151-022-0	01	1	1508-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	1508-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-38225-011-0	01	1	1508-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-38225-012-0	01	1	1508-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE	0-28080-820-0	08	1	1508-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38361-036-0	01	1	1508-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-596-0	01	1	1508-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38371-058-1	01	1	1508-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-33545-001-0	01	1	1508-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38245-023-0	01	1	1508-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) Z=23	1-38241-134-1	01	1	1508-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	1508-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38225-010-0	01	1	1508-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38121-009-0	01	1	1508-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	1508-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38221-056-0	01	1	1508-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97305-793-0	01	1	1508-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	1508-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-98036-323-0	01	1	1508-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	1508-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38512-028-0	01	1	1508-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	1508-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M24 FLANGE	8-98189-932-0	01	1	1508-		●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-09561-324-0	01	1	1508-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	1508-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-597-0	01	1	1508-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	1508-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X20 FLANGE	0-28080-820-0	02	1	1508-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-		●
114	COLLAR; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38229-045-0	01	1	1508-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-09811-412-0	02	1	1508-		●
136	GASKET; PTO SHAFT TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-09623-246-0	01	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.05	1-38229-013-0	AR	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.07	1-38229-014-0	AR	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.10	1-38229-015-0	AR	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.15	1-38229-016-0	AR	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.50	1-38229-017-0	AR	1	1508-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.75	1-38229-018-0	AR	1	1508-		●
