Sayfa 2-53 - Isuzu EPC

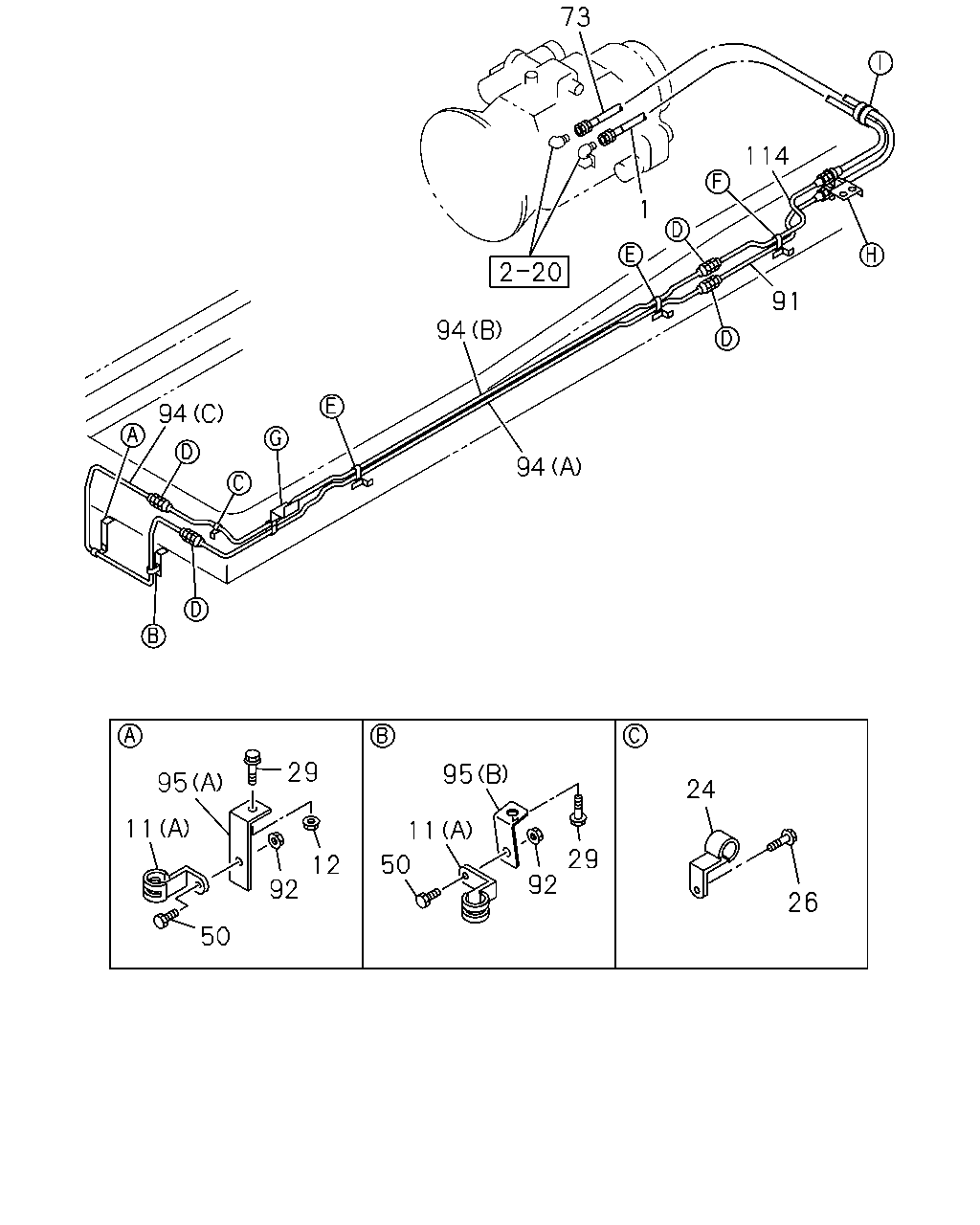

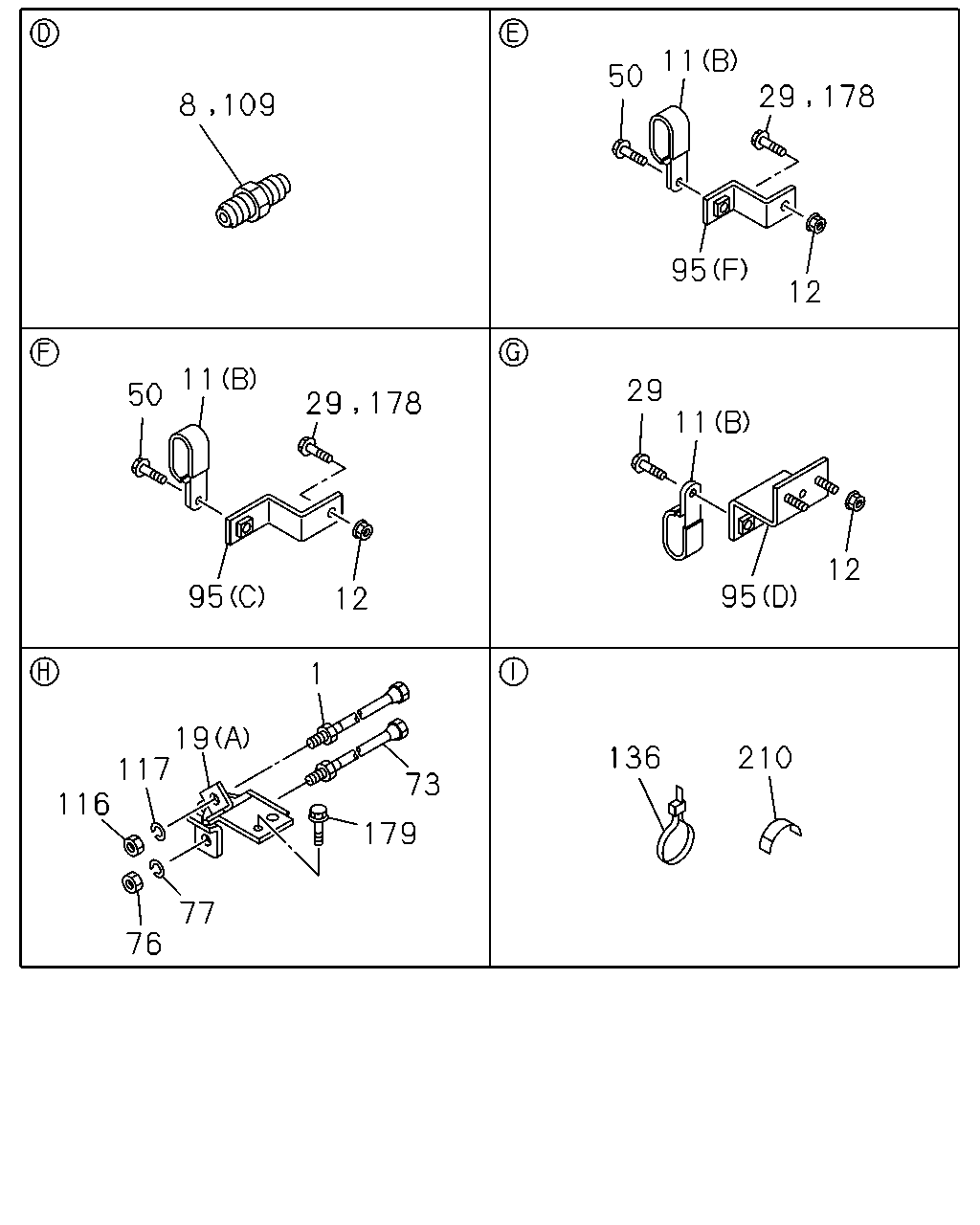

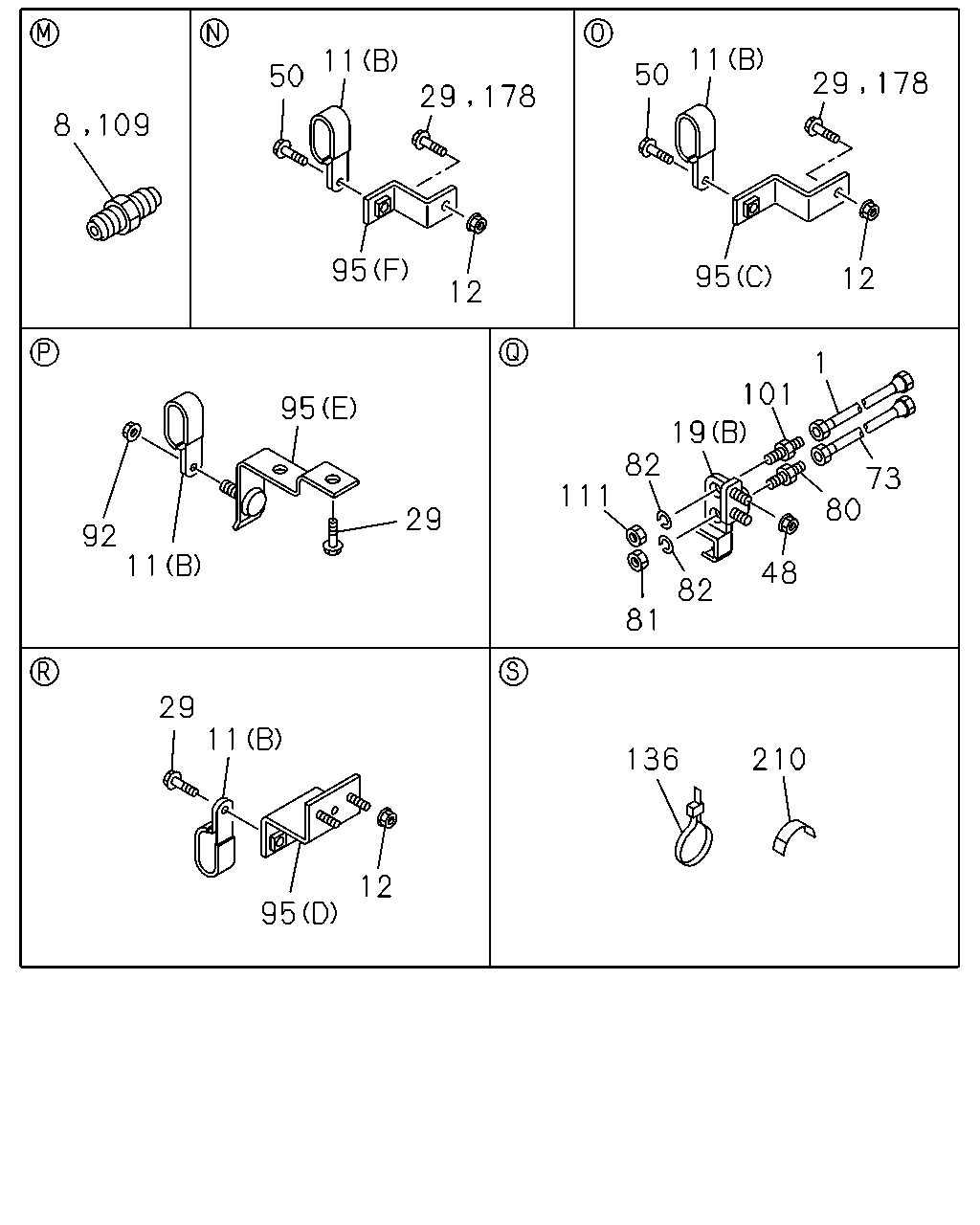

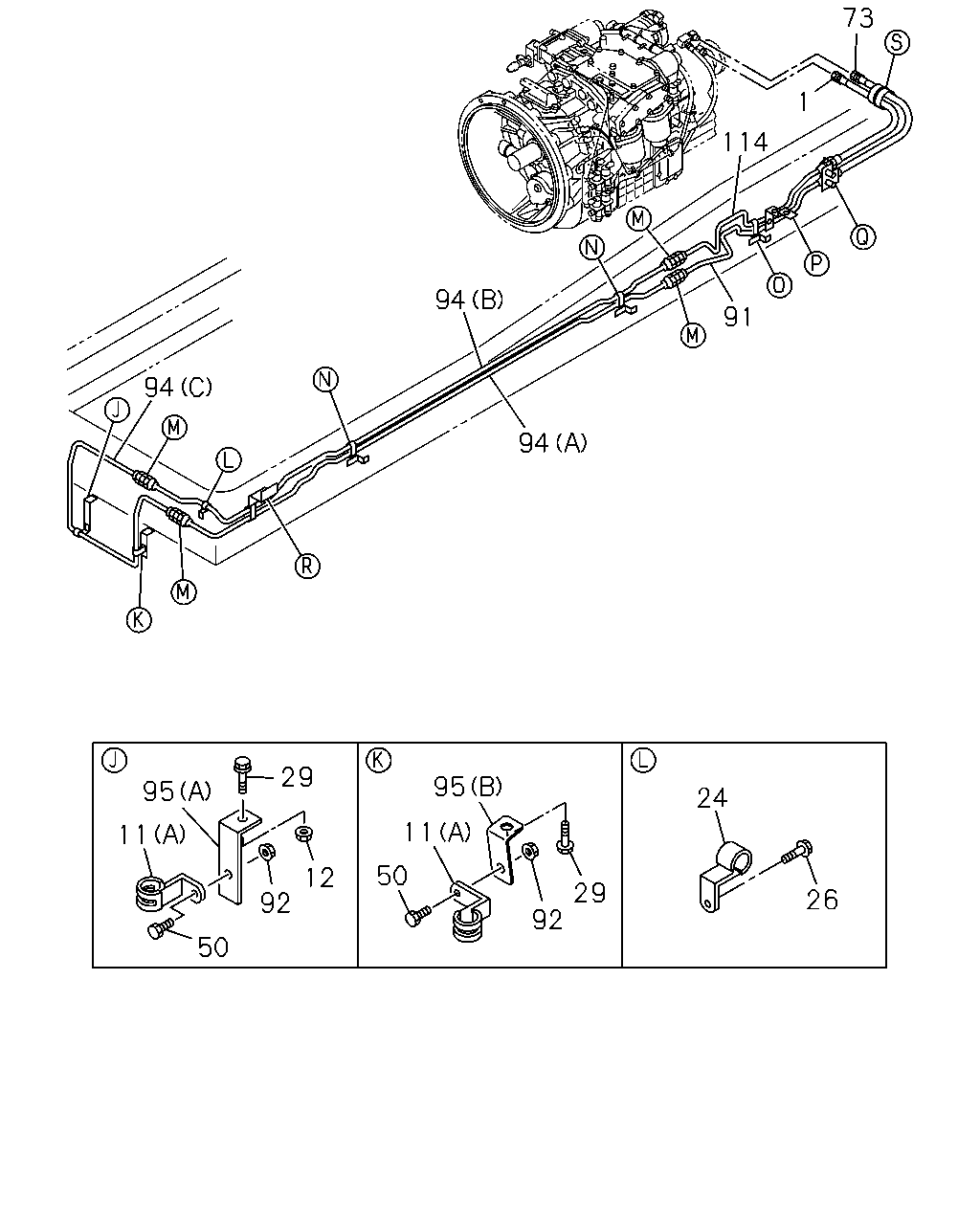

2-53 — TRANSMISSION OIL COOLER SYSTEM (#168157) — 135 parça

114 73 1 91 94 94 94 95 29 12 92 11 50 11 95 50 29 92 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=595	1-09365-370-0	01	1	1508-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	01	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) ID=19 L=28	0-95235-856-0	02	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	04	1	1508-
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
12	NUT; BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	05	1	1508-
24	CLIP; OIL PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> ID=15 H=24 L=20	1-09700-606-0	01	1	1508-
26	BOLT; PIPE CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X16 FLANGE	0-28050-816-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M10X20 FLANGE	0-28051-020-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X25 FLANGE	0-28650-825-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	02	1	1508-
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	01	1	1508-
50	BOLT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	06	1	1508-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=520	1-09365-235-0	01	1	1508-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=730	8-98164-922-0	01	1	1508-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=1230	8-98164-926-0	01	1	1508-
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
92	NUT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	02	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C) L=1010	8-97619-241-0	01	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) L=1229	8-98164-923-0	01	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) L=1613	8-98164-924-0	01	1	1508-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (E)	8-97625-724-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97610-663-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	8-97610-664-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (F)	8-97624-332-0	02	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (D)	8-97627-340-1	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C)	8-97631-511-0	01	1	1508-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=612	8-98164-925-0	01	1	1508-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=1147	8-98164-927-0	01	1	1508-

73 1 114 91 94 94 29 95 11 92 50 12 95 11 50 92 24 29 26 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=595	1-09365-370-0	01	1	1508-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	01	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) ID=19 L=28	0-95235-856-0	02	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	04	1	1508-
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
12	NUT; BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	05	1	1508-
24	CLIP; OIL PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> ID=15 H=24 L=20	1-09700-606-0	01	1	1508-
26	BOLT; PIPE CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X16 FLANGE	0-28050-816-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M10X20 FLANGE	0-28051-020-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X25 FLANGE	0-28650-825-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	02	1	1508-
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	01	1	1508-
50	BOLT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	06	1	1508-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=520	1-09365-235-0	01	1	1508-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=730	8-98164-922-0	01	1	1508-
91	PIPE; OIL,FLEX HOSE TO UNION MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=1230	8-98164-926-0	01	1	1508-
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
92	NUT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	02	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C) L=1010	8-97619-241-0	01	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) L=1229	8-98164-923-0	01	1	1508-
94	PIPE; OIL,UNION TO UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) L=1613	8-98164-924-0	01	1	1508-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (E)	8-97625-724-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97610-663-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	8-97610-664-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (F)	8-97624-332-0	02	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (D)	8-97627-340-1	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C)	8-97631-511-0	01	1	1508-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=612	8-98164-925-0	01	1	1508-
114	PIPE; OIL,UNION TO FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=1147	8-98164-927-0	01	1	1508-

8 109 50 11 178 29 95 12 29 12 11 95 210 136 73 179 19 117 116 77 76 12 1 95 29 178 11 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=595	1-09365-370-0	01	1	1508-
8	UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 L=51	0-92123-015-0	02	1	1508-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	01	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) ID=19 L=28	0-95235-856-0	02	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	04	1	1508-
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
12	NUT; BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	05	1	1508-
19	BRACKET; FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97634-064-0	01	1	1508-
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	1-47471-299-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M10X20 FLANGE	0-28051-020-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X25 FLANGE	0-28650-825-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	02	1	1508-
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	01	1	1508-
50	BOLT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	06	1	1508-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=520	1-09365-235-0	01	1	1508-
76	NUT; FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22	0-91111-522-0	01	1	1508-
77	WASHER; LK MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> ID=22.5	0-91510-522-0	01	1	1508-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (E)	8-97625-724-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97610-663-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	8-97610-664-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (F)	8-97624-332-0	02	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (D)	8-97627-340-1	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C)	8-97631-511-0	01	1	1508-
109	UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 L=51	0-92123-015-0	02	1	1508-
116	NUT; BRKT,FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22	0-91111-522-0	01	1	1508-
117	WASHER; LK,FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> ID=22.5	0-91510-522-0	01	1	1508-
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=350	1-09707-183-0	01	1	1508-
136	CLIP; FLEX HOSE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=350	1-09707-183-0	01	1	1508-
178	BOLT; BRKT,CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X40 FLANGE	0-28650-840-0	01	1	1508-
178	BOLT; BRKT,CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	01	1	1508-
179	BOLT; BRKT MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X40 FLANGE	0-28050-840-0	02	1	1508-
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=175	1-09707-178-0	01	1	1508-
210	BAND; FLEX HOSE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=175	1-09707-178-0	01	1	1508-

50 11 178 29 95 109 8 92 95 11 29 29 11 95 136 210 48 82 81 111 82 19 101 1 73 80 12 95 50 11 29 178 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
1	HOSE; ATF MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=595	1-09365-370-0	01	1	1508-
8	UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 L=51	0-92123-015-0	02	1	1508-
11	CLIP; PIPE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	01	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A) ID=19 L=28	0-95235-856-0	02	1	1508-
11	CLIP; PIPE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B) ID=16X2 L=20	0-95325-535-0	04	1	1508-
12	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
12	NUT; BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	05	1	1508-
19	BRACKET; FLEX HOSE MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97634-064-0	01	1	1508-
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	1-47471-299-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M10X20 FLANGE	0-28051-020-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X25 FLANGE	0-28650-825-0	01	1	1508-
29	BOLT; FILTER TO BRKT TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	02	1	1508-
48	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	02	1	1508-
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	01	1	1508-
50	BOLT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X20 FLANGE	0-28650-820-0	06	1	1508-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=440	1-09365-318-0	01	1	1508-
73	HOSE; FLEX,TRANS MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=520	1-09365-235-0	01	1	1508-
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 & M22 STRAIGHT	1-09654-204-2	01	1	1508-
81	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22	0-91111-522-0	01	1	1508-
82	WASHER; LK,UNION MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> ID=22.5	0-91510-522-0	02	1	1508-
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	01	1	1508-
92	NUT; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8 FLANGE	0-91180-108-0	02	1	1508-
95	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (E)	8-97625-724-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (A)	8-97610-663-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (B)	8-97610-664-0	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (F)	8-97624-332-0	02	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (D)	8-97627-340-1	01	1	1508-
95	BRACKET; CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> (C)	8-97631-511-0	01	1	1508-
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 & M22 STRAIGHT	1-09654-204-2	01	1	1508-
109	UNION TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22 L=51	0-92123-015-0	02	1	1508-
111	NUT; UNION MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M22	0-91111-522-0	01	1	1508-
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=350	1-09707-183-0	01	1	1508-
136	CLIP; FLEX HOSE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=350	1-09707-183-0	01	1	1508-
178	BOLT; BRKT,CLIP MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X40 FLANGE	0-28650-840-0	01	1	1508-
178	BOLT; BRKT,CLIP TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> M8X30 FLANGE	0-28650-830-0	01	1	1508-
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=175	1-09707-178-0	01	1	1508-
210	BAND; FLEX HOSE TRANS OIL COOLER DELETE "OIL PUMP ONLY"<BGE> L=175	1-09707-178-0	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
