◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#168156) — 63 parça

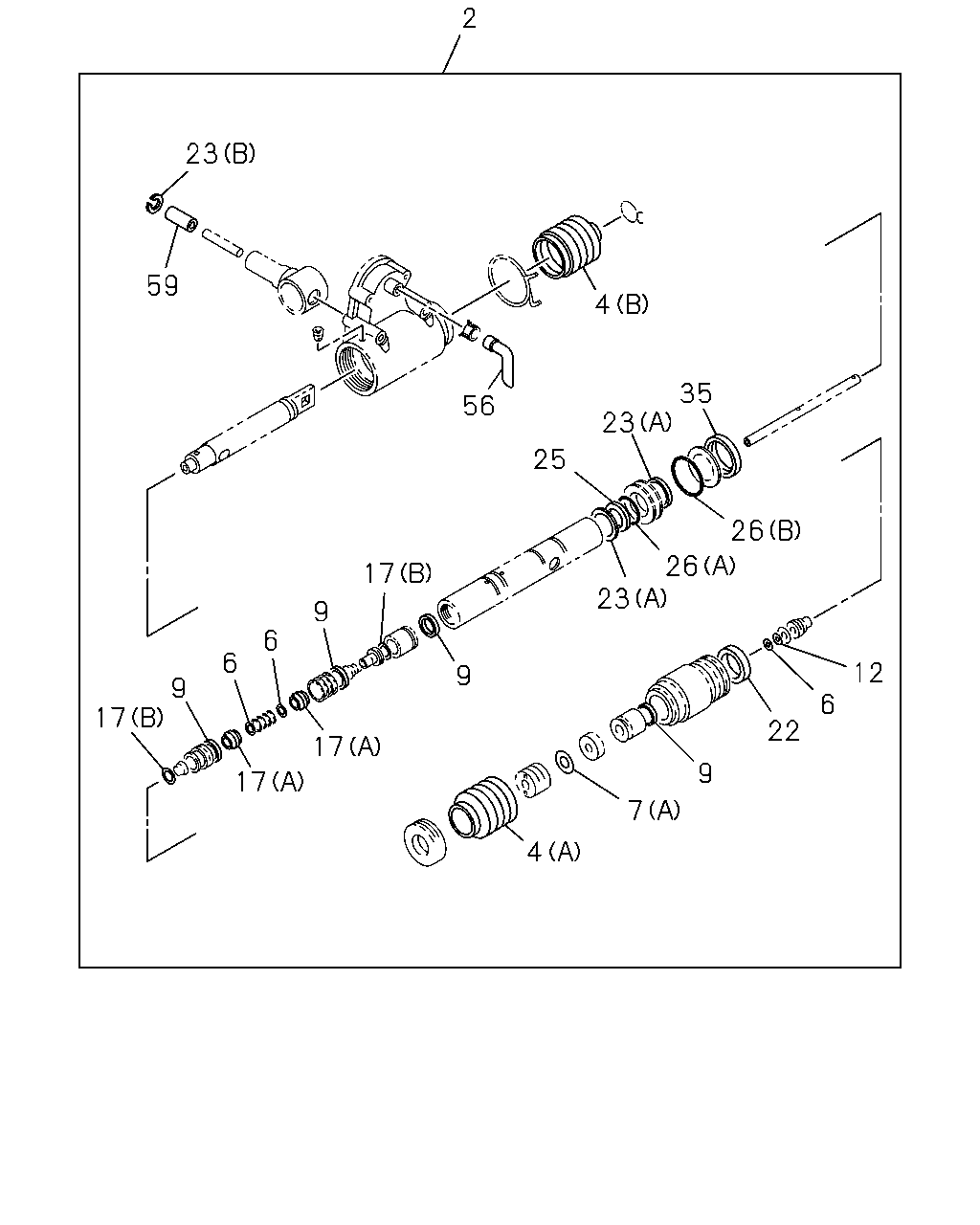

çizim 498178
2 4 35 23 25 26 26 23 12 6 22 9 7 9 17 9 6 6 9 17 17 17 59 23 56 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-85572-129-0 01 1 1508-
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 1508-
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 1508-
6 GASKET 1-33739-013-0 03 1 1508-
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 1508-
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 1508-
9 RING; SQUARE 1-33739-086-0 04 1 1508-
12 RING; RET 1-33739-016-0 01 1 1508-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 1508-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 1508-
22 SEAL; OIL 1-33739-353-0 01 1 1508-
23 RING; RET
(A) 		1-33739-022-0 02 1 1508-
23 RING; RET
(B) 		1-33739-564-0 01 1 1508-
25 RING; "X",PISTON 1-33739-613-0 01 1 1508-
26 GASKET
(A) 		1-33739-124-0 01 1 1508-
26 GASKET
(B) 		1-33739-604-0 01 1 1508-
35 GASKET; CUP 1-33739-073-0 01 1 1508-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 1508-
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 1508-

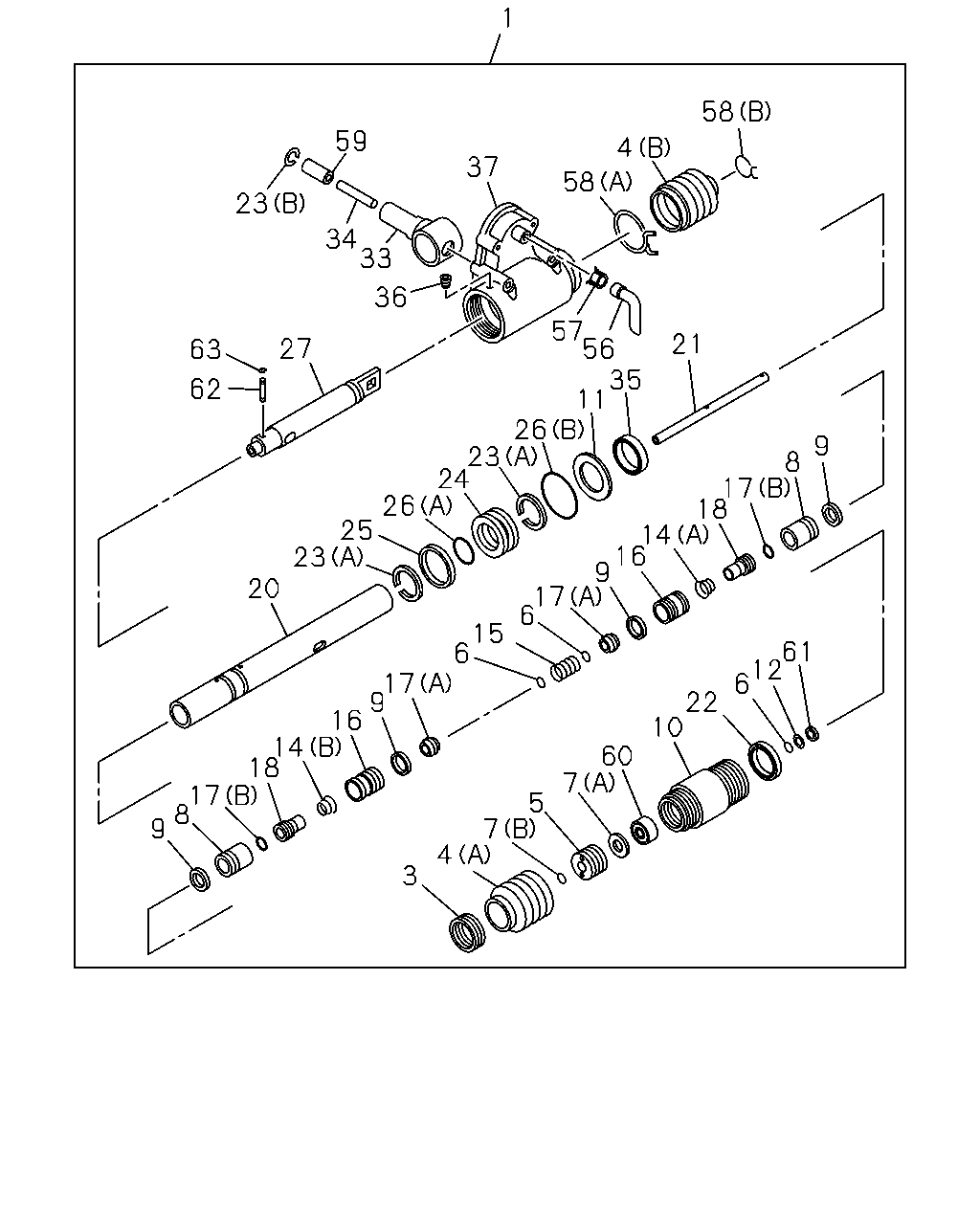

çizim 498454
1 59 37 4 58 58 33 34 23 36 27 63 57 21 56 26 11 35 9 8 17 18 14 16 9 17 6 15 6 17 9 16 14 18 17 8 9 3 7 4 5 60 7 10 12 6 22 61 20 25 23 26 24 23 62
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-272-2 01 1 1508-
3 NUT; LK,ROD 1-33739-025-0 01 1 1508-
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 1508-
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 1508-
5 CONNECTOR; CYL 1-33739-596-0 01 1 1508-
6 GASKET 1-33739-013-0 03 1 1508-
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 1508-
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 1508-
8 TUBE 1-33739-560-0 02 1 1508-
9 RING; SQUARE 1-33739-086-0 04 1 1508-
10 CYLINDER; POWER SHIFTER 1-33739-605-0 01 1 1508-
11 PLATE; CYL 1-33739-600-0 01 1 1508-
12 RING; RET 1-33739-016-0 01 1 1508-
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 1508-
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 1508-
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 1508-
16 SEAT; VALVE 1-33739-067-0 02 1 1508-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 1508-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 1508-
18 LIFTER; VALVE 1-33739-586-0 02 1 1508-
20 ROD ASM; W/CAP 1-33739-599-0 01 1 1508-
21 PIPE; AIR,POWER SHIFTER 1-33739-960-0 01 1 1508-
22 SEAL; OIL 1-33739-353-0 01 1 1508-
23 RING; RET
(A) 		1-33739-022-0 02 1 1508-
23 RING; RET
(B) 		1-33739-564-0 01 1 1508-
24 PISTON 1-33739-601-0 01 1 1508-
25 RING; "X",PISTON 1-33739-613-0 01 1 1508-
26 GASKET
(A) 		1-33739-124-0 01 1 1508-
26 GASKET
(B) 		1-33739-604-0 01 1 1508-
27 ROD; POWER SHIFTER 1-33739-959-0 01 1 1508-
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 1508-
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 1508-
35 GASKET; CUP 1-33739-073-0 01 1 1508-
36 SCREW; SET 1-33739-040-0 01 1 1508-
37 HOUSING; POWER SHIFTER 1-33739-603-0 01 1 1508-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 1508-
57 CLAMP; HOSE 1-33739-569-0 01 1 1508-
58 CLAMP; BOOT
(A) 		1-33739-562-0 01 1 1508-
58 CLAMP; BOOT
(B) 		1-33739-977-0 01 1 1508-
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 1508-
60 COLLAR; CYL 1-33739-595-0 01 1 1508-
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 1508-
62 PIN; PIPE 1-33739-566-0 01 1 1508-
63 CLAMP; CYL 1-33739-565-0 01 1 1508-
