2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#168151) — 65 parça

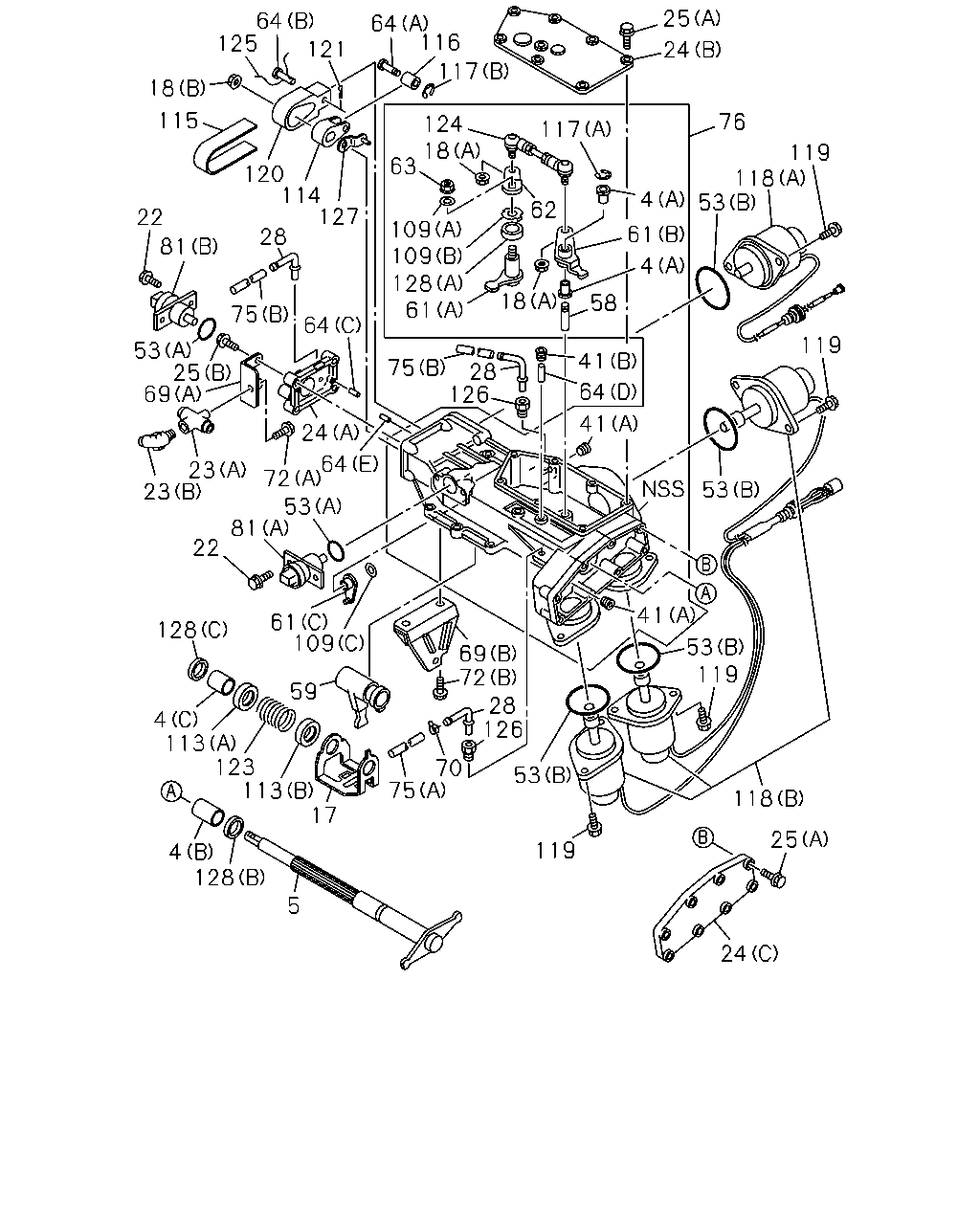

çizim 498463
24 25 118 119 119 53 53 41 53 119 119 118 53 4 76 61 4 58 41 64 41 75 126 28 72 69 70 17 5 128 4 113 123 113 4 59 126 28 128 61 109 22 81 53 64 72 23 23 18 75 69 25 53 75 64 81 22 28 24 61 128 109 109 62 117 18 63 124 24 25 117 116 64 121 127 114 120 115 18 125 64
BalonParca AdiParca NoAdetTipApplied Date
4 BUSHING; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		1-09330-144-0 02 1 -
4 BUSHING; SHIFT UNIT
(C), ID=20 OD=23 ASM PART: A = 8-98302-715-0 		1-33549-016-0 01 1 -
4 BUSHING; SHIFT UNIT
(B), ID=28 OD=32 ASM PART: A = 8-98302-715-0 		1-33549-104-0 01 1 -
5 ROD; SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-98046-922-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-98044-040-0 01 1 -
18 NUT; ROD
(B), M10 FLANGE ASM PART: A = 8-98302-715-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M8 FLANGE ASM PART: A = 8-98302-715-0 		1-09440-062-1 02 1 -
22 BOLT; SW
M6X12 FLANGE ASM PART: A = 8-98302-715-0 		0-28050-612-0 04 1 -
23 CONNECTOR; SHIFT UNIT
(B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98302-715-0 		1-09660-959-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98302-715-0 		1-09661-129-0 01 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: A = 8-98302-715-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		8-98047-742-0 01 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: A = 8-98302-715-0 		0-28050-816-0 15 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: A = 8-98302-715-0 		0-28650-625-0 04 1 -
28 PIPE; SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-97358-318-0 03 1 -
41 PLUG; SHIFT UNIT
(B), PT3/8 ASM PART: A = 8-98302-715-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		8-94403-163-0 02 1 -
53 GASKET
(A), ID=26.8 ASM PART: A = 8-98302-715-0 		1-09623-058-0 02 1 -
53 GASKET
(B) ASM PART: A = 8-98302-715-0 		9-09561-360-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
ASM PART: A = 8-98302-715-0 		1-33659-240-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-715-0 		1-33521-188-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: A = 8-98302-715-0 		8-98186-070-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		8-98302-746-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-98302-744-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
M10 FLANGE ASM PART: A = 8-98302-715-0 		0-91180-110-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: A = 8-98302-715-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=3 L=6.36 ASM PART: A = 8-98302-715-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: A = 8-98302-715-0 		9-08150-510-0 02 1 -
69 BRACKET; SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		1-82569-396-2 01 1 -
69 BRACKET; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		1-82698-527-0 01 1 -
70 CLIP; SHIFT UNIT
ID=7.8 ASM PART: A = 8-98302-715-0 		8-94246-958-0 01 1 -
72 BOLT; BRKT
(A), M8X16 FLANGE ASM PART: A = 8-98302-715-0 		0-28050-816-0 01 1 -
72 BOLT; BRKT
(B), M12X30 FLANGE ASM PART: A = 8-98302-715-0 		0-28151-230-0 02 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		8-98070-399-0 01 1 -
76 CASE; SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-98302-738-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		8-98107-824-0 01 1 -
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		8-98123-907-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: A = 8-98302-715-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: A = 8-98302-715-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: A = 8-98302-715-0 		1-09532-008-0 01 1 -
113 SEAT; SPRING
(B) ASM PART: A = 8-98302-715-0 		1-33537-024-0 01 1 -
113 SEAT; SPRING
(A) ASM PART: A = 8-98302-715-0 		8-98147-548-0 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: A = 8-98302-715-0 		8-98046-921-0 01 1 -
115 GUIDE; PLATE,CAM
ASM PART: A = 8-98302-715-0 		1-33549-401-0 01 1 -
116 ROLLER; SHAFT
ASM PART: A = 8-98302-715-0 		1-33529-121-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: A = 8-98302-715-0 		0-91805-504-0 01 1 -
117 RING; SNAP
(A), ID=10 ASM PART: A = 8-98302-715-0 		0-91805-510-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-715-0 		8-98162-694-1 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-715-0 		8-98254-312-0 01 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: A = 8-98302-715-0 		0-28751-025-0 08 1 -
120 PLATE; CAM
ASM PART: A = 8-98302-715-0 		1-33529-125-0 01 1 -
121 PIN; SPRIT
L=27.7 ASM PART: A = 8-98302-715-0 		1-09747-005-0 01 1 -
123 SPRING; SELECT
ASM PART: A = 8-98302-715-0 		1-09580-586-1 01 1 -
124 ROD ASM; LINK
ASM PART: A = 8-98302-715-0 		8-98302-741-0 01 1 -
125 WIRE
L=200 ASM PART: A = 8-98302-715-0 		9-08351-020-0 01 1 -
126 PLUG; BREATHER
ASM PART: A = 8-98302-715-0 		1-33149-023-0 02 1 -
127 PLATE; PIN,CAM TO SHIFT SENSOR
ASM PART: A = 8-98302-715-0 		8-98046-924-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(A), OD=30 ASM PART: A = 8-98302-715-0 		1-09625-386-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(C) ASM PART: A = 8-98302-715-0 		1-09625-612-1 01 1 -
128 SEAL; OIL,SHIFT UNIT
(B), OD=41 ASM PART: A = 8-98302-715-0 		1-09625-647-0 01 1 -
