◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#168147) — 242 parça

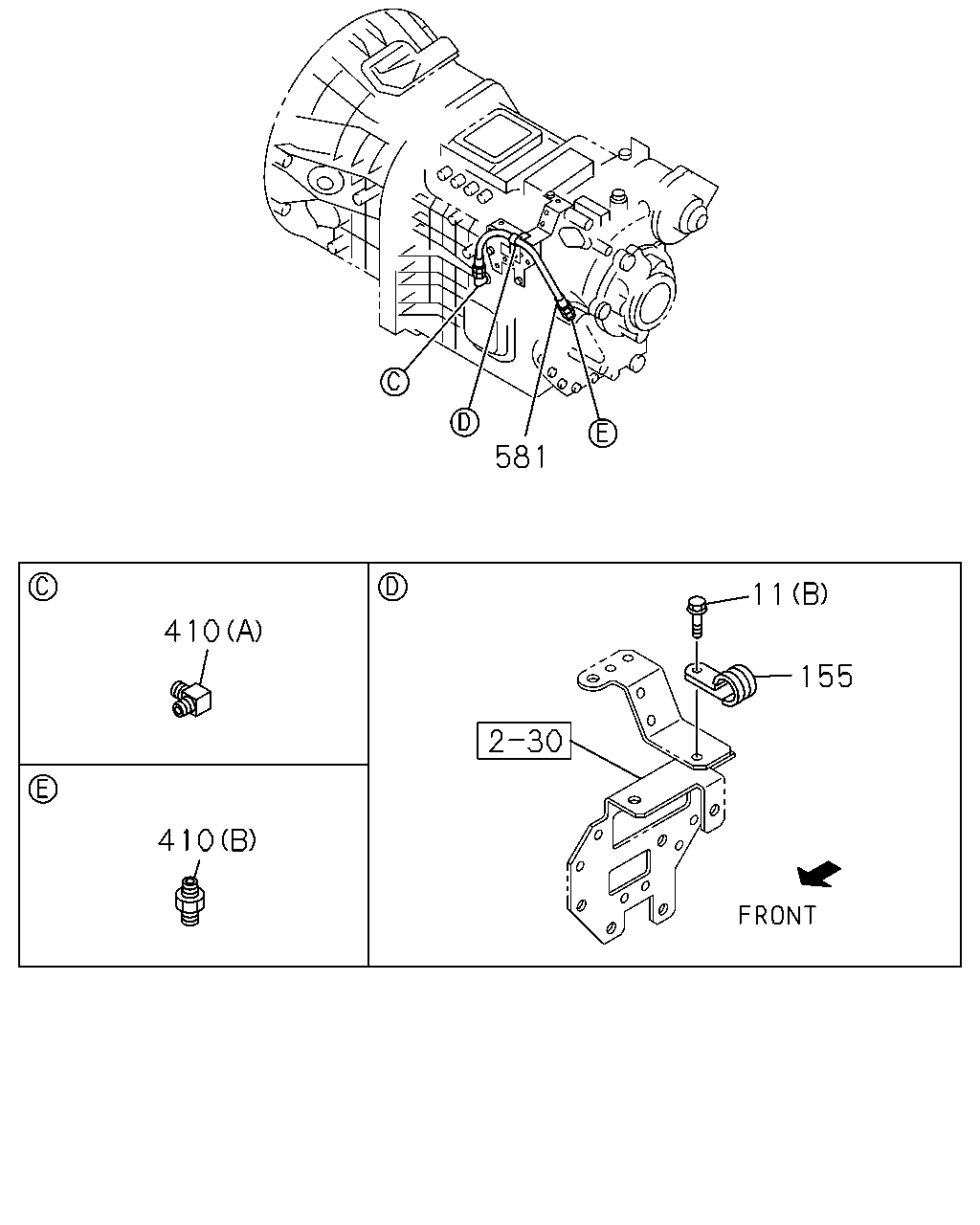

çizim 498118
581 11 155 410 410
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1508- ●
11 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1508- ●
11 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
155 CLIP; HOSE
ID=19 L=28 		0-95235-856-0 01 1 1508- ●
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 02 1 1508- ●
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 1508- ●
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 1508- ●
581 HOSE; OIL COOLER
L=500 		1-09364-851-0 01 1 1508- ●

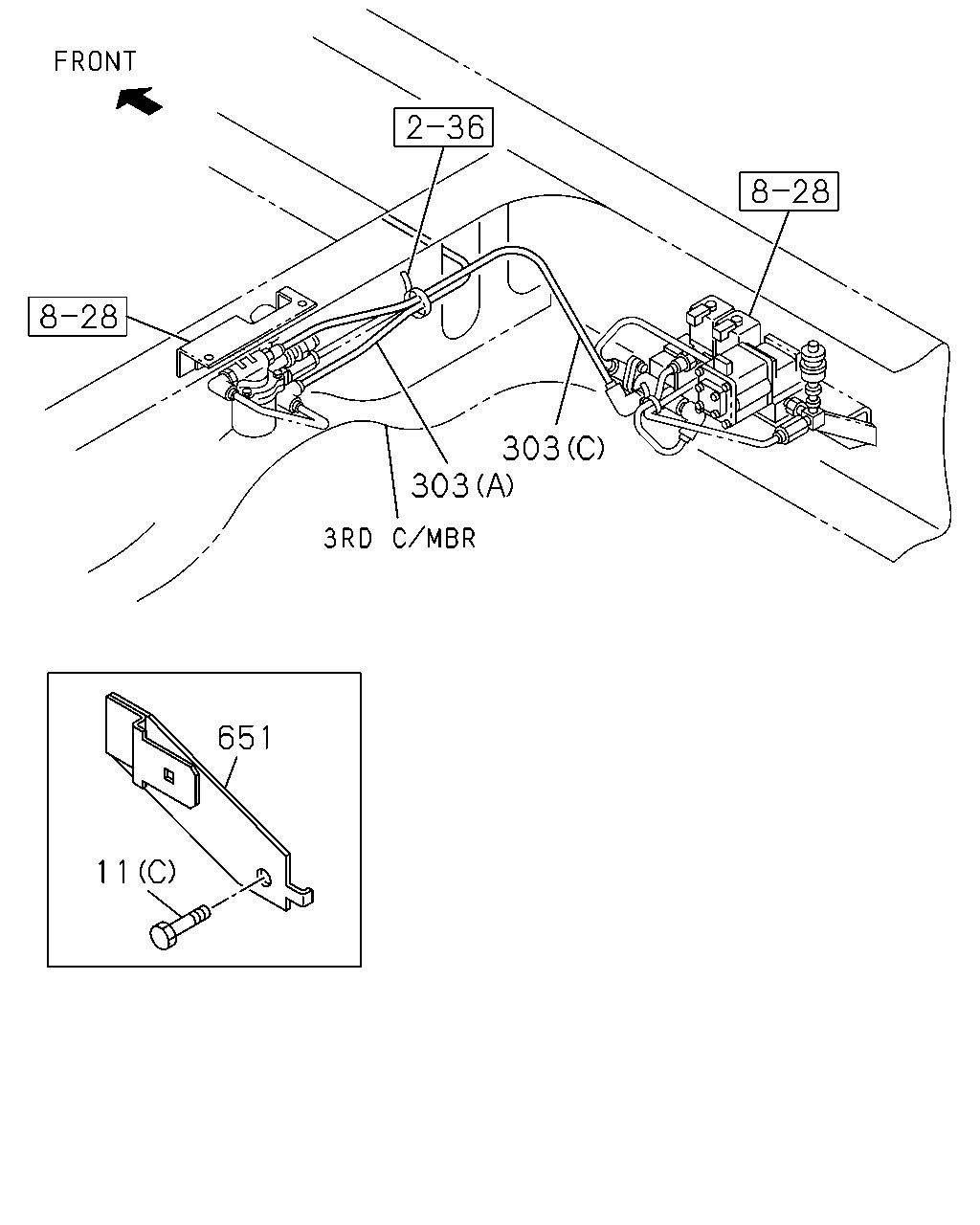

çizim 498119
303 303 651 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1508- ●
11 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1508- ●
11 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1508- ●
303 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 03 1 1508- ●
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-97631-020-1 01 1 1508- ●
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1508- ●
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1508- ●
651 BRACKET; T/M HARNESS
L=120 H=35 		1-82698-088-0 01 1 1508- ●
651 BRACKET; T/M HARNESS 1-82698-655-0 01 1 1508- ●

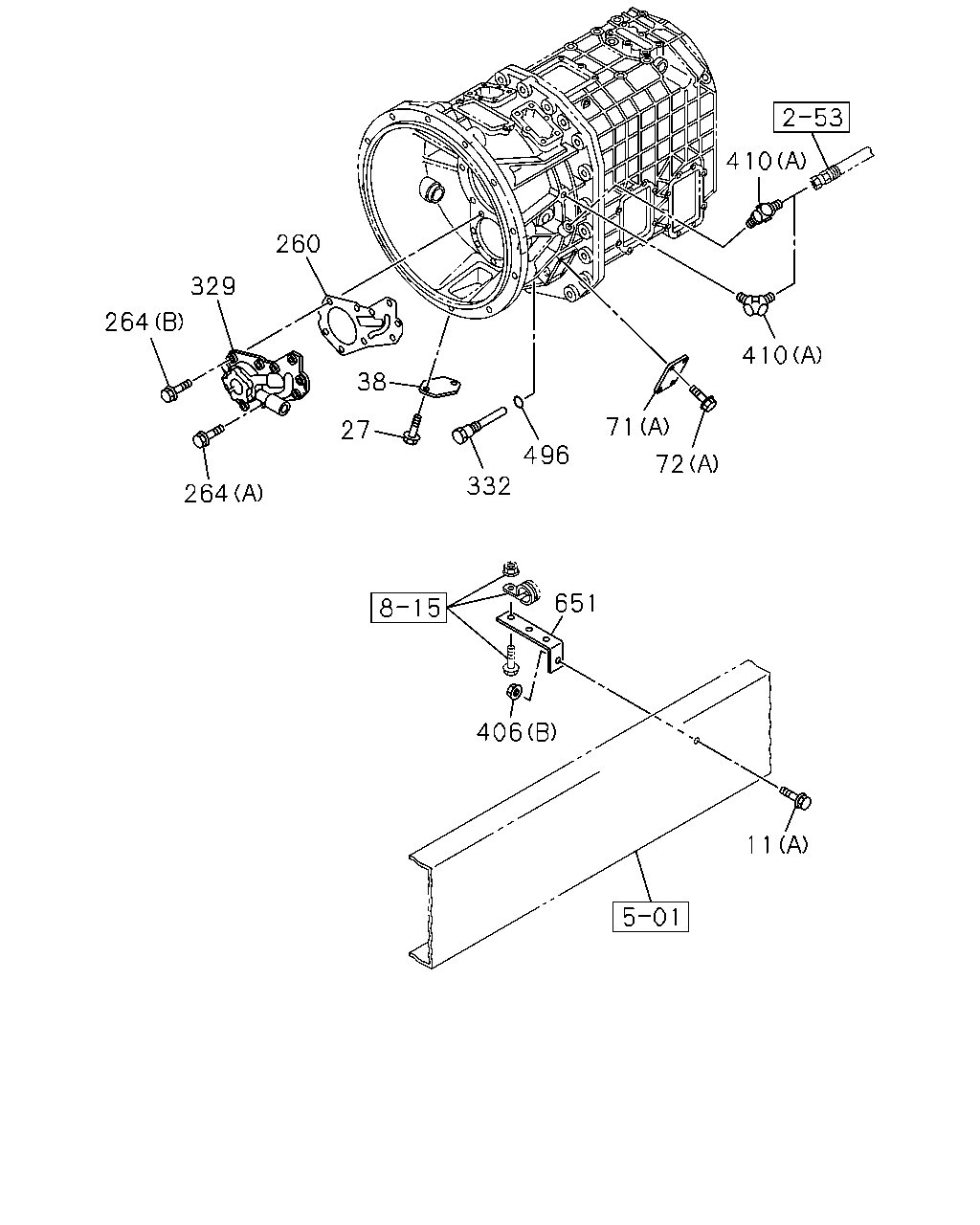

çizim 498166
71 410 410 72 496 651 406 11 332 27 264 38 264 329 260
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1508- ●
11 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1508- ●
11 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 1508- ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 1508- ● ●
71 COVER; SIDE,TRANS CASE
(C) 		1-33141-057-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-058-0 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-33141-044-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) 		1-33141-066-0 01 1 1508- ●
72 BOLT; SIDE COVER
(A) M10X30 FLANGE 		0-28151-030-0 04 1 1508- ●
72 BOLT; SIDE COVER
(C) M12X40 FLANGE 		0-28151-240-0 07 1 1508- ●
72 BOLT; SIDE COVER
(E) M10X16,M12X40 L=67.7 		1-09029-082-0 01 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE 		0-28751-230-0 08 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE 		0-28751-035-0 08 1 1508- ●
260 GASKET; OIL PUMP 1-34142-031-0 01 1 1508- ●
264 BOLT; OIL PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1508- ●
264 BOLT; OIL PUMP
(B) M10X40 FLANGE 		8-98230-249-0 09 1 1508- ●
264 BOLT; OIL PUMP
(C) M8X65 		0-10805-865-0 02 1 1508- ●
264 BOLT; OIL PUMP
(C) M8X50 		0-10855-850-0 02 1 1508- ●
329 PUMP ASM; OIL 1-34150-112-0 01 1 1508- ●
329 PUMP ASM; OIL 8-98283-996-0 01 1 1508- ●
332 FILTER; OIL 1-34159-050-1 01 1 1508- ●
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1508- ●
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1508- ●
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 02 1 1508- ●
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 1508- ●
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 1508- ●
496 GASKET; OIL FILTER
ID=24.2 		1-09630-090-0 01 1 1508- ●
651 BRACKET; T/M HARNESS
L=120 H=35 		1-82698-088-0 01 1 1508- ●
651 BRACKET; T/M HARNESS 1-82698-655-0 01 1 1508- ●

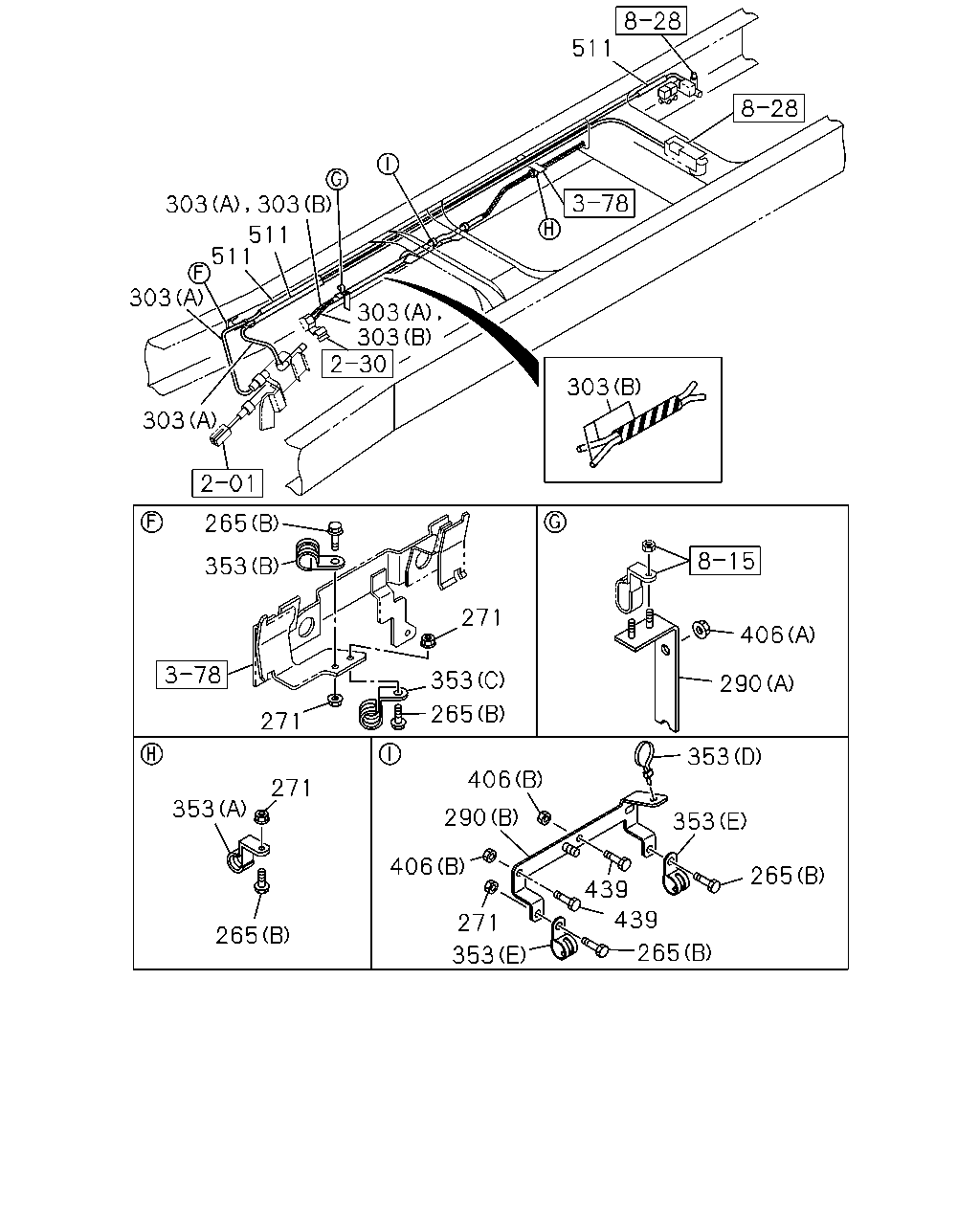

çizim 498176
353 265 439 439 271 406 290 265 353 353 406 265 271 353 271 265 290 406 271 353 353 265 303 303 303 303 511 511 303 303 511 303
BalonParca AdiParca NoAdetTipApplied Date A B
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1508- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1508- ●
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1508- ●
290 BRACKET; CLIP
(A) 		8-97611-316-1 01 1 1508- ●
290 BRACKET; CLIP
(B) 		8-97619-877-0 01 1 1508- ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1508- ●
303 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 03 1 1508- ●
303 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> (B) 		8-97631-020-1 01 1 1508- ●
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1508- ●
303 TUBE; NYLON
EXC. BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1508- ●
353 CLIP; NYLON TUBE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 1508- ●
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 1508- ●
353 CLIP; NYLON TUBE
(C) ID=18 L=38 H=23 		1-09701-147-0 01 1 1508- ●
353 CLIP; NYLON TUBE
(D) L=350 		1-09707-183-0 03 1 1508- ●
353 CLIP; NYLON TUBE
(E) ID=21 L=24 		8-94176-807-1 02 1 1508- ●
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1508- ● ●
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1508- ●
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1508- ●
439 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1508- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1508- ●
511 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 1508- ●

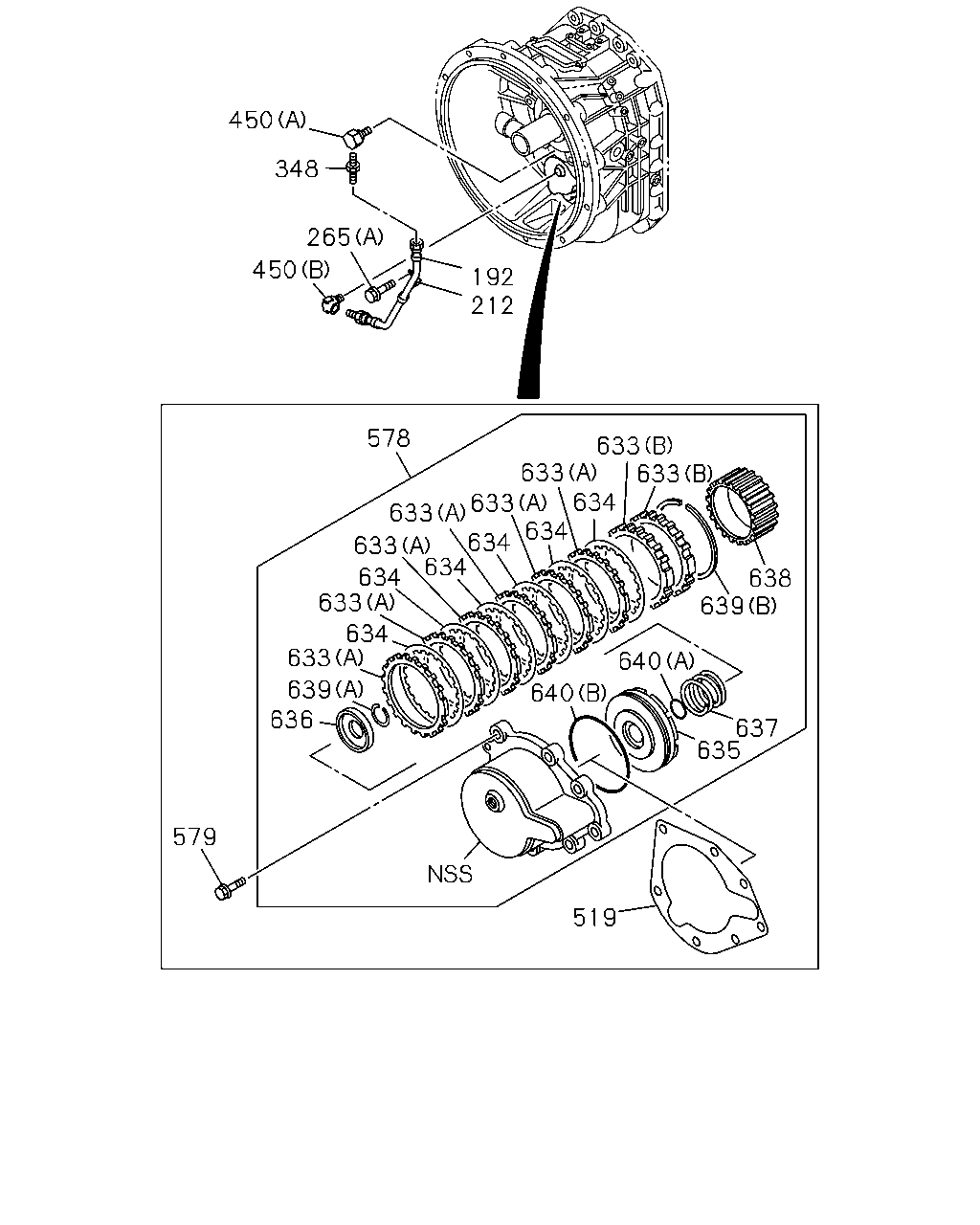

çizim 498177
519 635 637 640 640 639 638 579 636 639 633 633 634 633 634 633 634 633 634 633 633 634 633 212 192 578 450 265 348 450 634
BalonParca AdiParca NoAdetTipApplied Date A B
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 1508- ●
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 1508- ●
265 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1508- ●
265 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1508- ●
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 1508- ●
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 1508- ●
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 1508- ●
519 GASKET; SHAFT 1-34142-034-0 01 1 1508- ●
578 BRAKE; COUNTER SHAFT 1-33316-006-1 01 1 1508- ●
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 1508- ●
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 1508- ●
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 01 1 1508- ●
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 01 1 1508- ●
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 01 1 1508- ●
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 01 1 1508- ●
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 1508- ●
635 PISTON; BRAKE
T=4.80 		1-33319-231-0 01 1 1508- ●
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 1508- ●
637 SPRING; BRAKE 1-33319-215-0 01 1 1508- ●
638 HUB; BRAKE 1-33319-220-0 01 1 1508- ●
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 1508- ●
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 1508- ●
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 1508- ●
640 GASKET; BRAKE
(B) 		1-33319-225-0 01 1 1508- ●

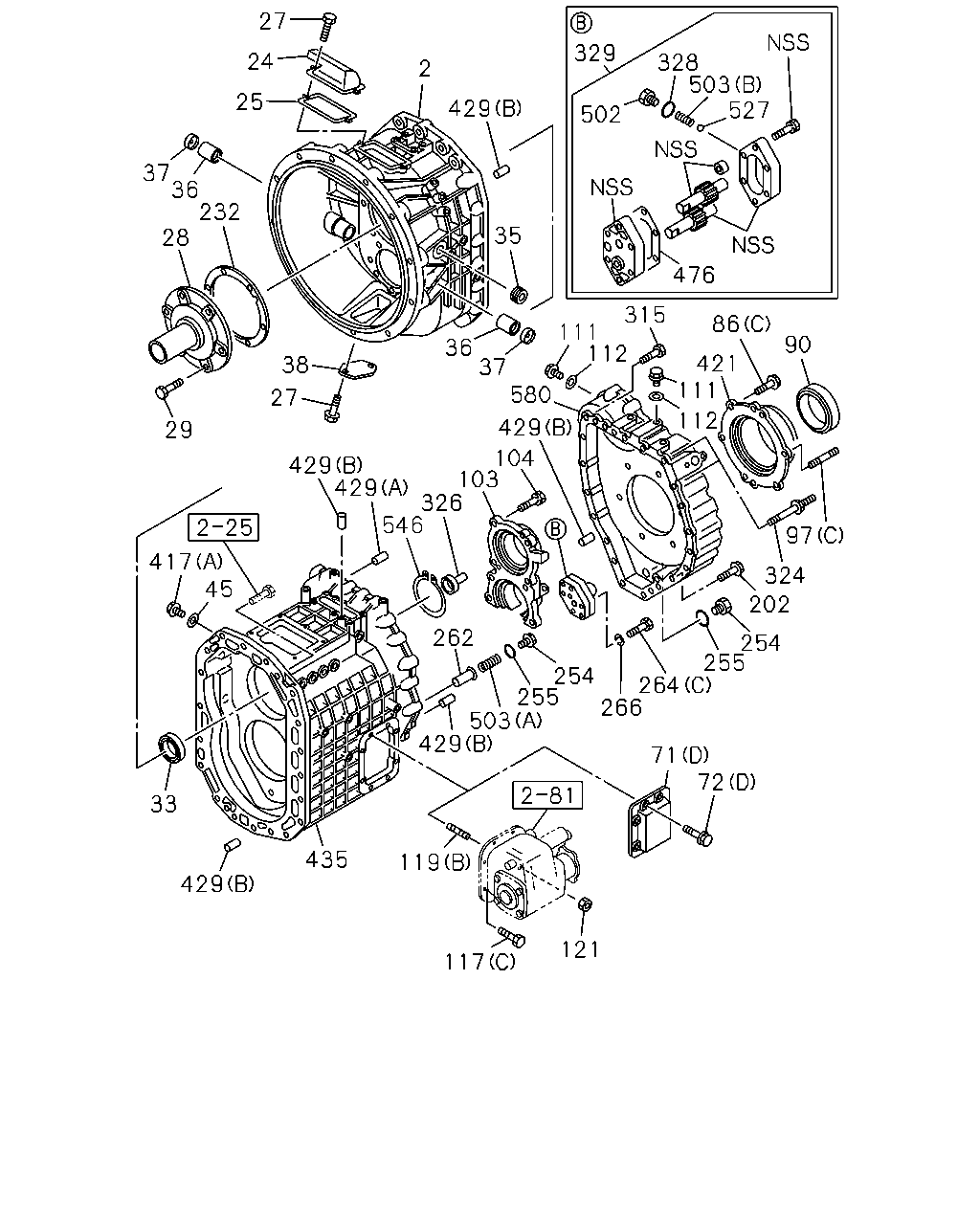

çizim 498414
121 117 119 72 71 254 255 202 264 266 324 97 254 255 503 429 435 429 33 112 111 421 90 86 103 104 326 262 546 429 429 45 417 429 580 315 112 111 476 527 503 328 329 502 429 35 36 37 2 27 24 25 38 27 29 28 232 36 37
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 8-98200-947-0 01 1 1508- ●
2 HOUSING; CLU 8-98168-736-0 01 1 1508- ●
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 1508- ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1508- ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 1508- ● ●
28 COVER; FRT,TRANS CASE 1-33121-158-3 01 1 1508- ● ●
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1508- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-562-0 01 1 1508- ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 1508- ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 1508- ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 1508- ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 1508- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1508- ● ●
71 COVER; SIDE,TRANS CASE
(C) 		1-33141-057-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-058-0 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-33141-044-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) 		1-33141-066-0 01 1 1508- ●
72 BOLT; SIDE COVER
(A) M10X30 FLANGE 		0-28151-030-0 04 1 1508- ●
72 BOLT; SIDE COVER
(C) M12X40 FLANGE 		0-28151-240-0 07 1 1508- ●
72 BOLT; SIDE COVER
(E) M10X16,M12X40 L=67.7 		1-09029-082-0 01 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE 		0-28751-230-0 08 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE 		0-28751-035-0 08 1 1508- ●
86 BOLT; RR COVER
(A) M12X40 FLANGE 		0-28151-240-0 14 1 1508- ●
86 BOLT; RR COVER
(B) M10X16,M12X40 L=67.7 		1-09029-082-0 02 1 1508- ●
86 BOLT; RR COVER
(C) M17X35 		1-09044-076-0 06 1 1508- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-577-1 01 1 1508- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 1508- ●
97 STUD; PARKING BRK
(A) M16X41 L=62 		1-09302-151-0 01 1 1508- ●
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16X51 L=72 		1-09302-002-0 03 1 1508- ●
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> (C) M16X45 L=69 		9-04411-645-0 04 1 1508- ●
103 RETAINER; BRG 1-33151-059-0 01 1 1508- ●
103 RETAINER; BRG 1-33151-060-1 01 1 1508- ●
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 1508- ● ●
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 02 1 1508- ●
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 1508- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X35 FLANGE 		0-28151-235-0 02 1 1508- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X130 FLANGE 		0-28166-213-0 02 1 1508- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) M10X28 FLANGE 		8-98044-944-0 02 1 1508- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 L=43 		0-44011-225-0 04 1 1508- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M10X25 L=40 		0-44011-025-0 06 1 1508- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE 		0-91180-212-0 04 1 1508- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE 		0-91180-210-0 06 1 1508- ●
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 1508- ●
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 1508- ● ●
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 1508- ●
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 1508- ●
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 1508- ●
264 BOLT; OIL PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1508- ●
264 BOLT; OIL PUMP
(B) M10X40 FLANGE 		8-98230-249-0 09 1 1508- ●
264 BOLT; OIL PUMP
(C) M8X65 		0-10805-865-0 02 1 1508- ●
264 BOLT; OIL PUMP
(C) M8X50 		0-10855-850-0 02 1 1508- ●
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 1508- ●
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 1508- ●
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 1508- ●
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 1508- ●
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1508- ●
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 1508- ●
328 GASKET; PLUG 1-34159-100-0 01 1 1508- ●
329 PUMP ASM; OIL 1-34150-112-0 01 1 1508- ●
329 PUMP ASM; OIL 8-98283-996-0 01 1 1508- ●
417 PLUG; OIL FILLER,TRANS
(B) M22X12 		1-09604-035-0 01 1 1508- ●
417 PLUG; OIL FILLER,TRANS
(A) M24X17 FLANGE 		1-09604-022-0 01 1 1508- ● ●
421 COVER; RR,TRANS 8-98304-558-0 01 1 1508- ●
421 COVER; RR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33131-256-0 01 1 1508- ●
421 COVER; RR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33131-238-0 01 1 1508- ●
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 1508- ● ●
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 1508- ●
435 CASE; TRANS 8-98132-969-0 01 1 1508- ●
435 CASE; TRANS 8-98249-273-0 01 1 1508- ●
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 1508- ●
502 PLUG; OIL PUMP 1-34159-101-0 01 1 1508- ●
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 1508- ●
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 1508- ●
527 BALL; OIL PUMP 9-00097-531-0 01 1 1508- ●
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 1508- ●
580 CASE; RANGE 1-33115-052-0 01 1 1508- ●

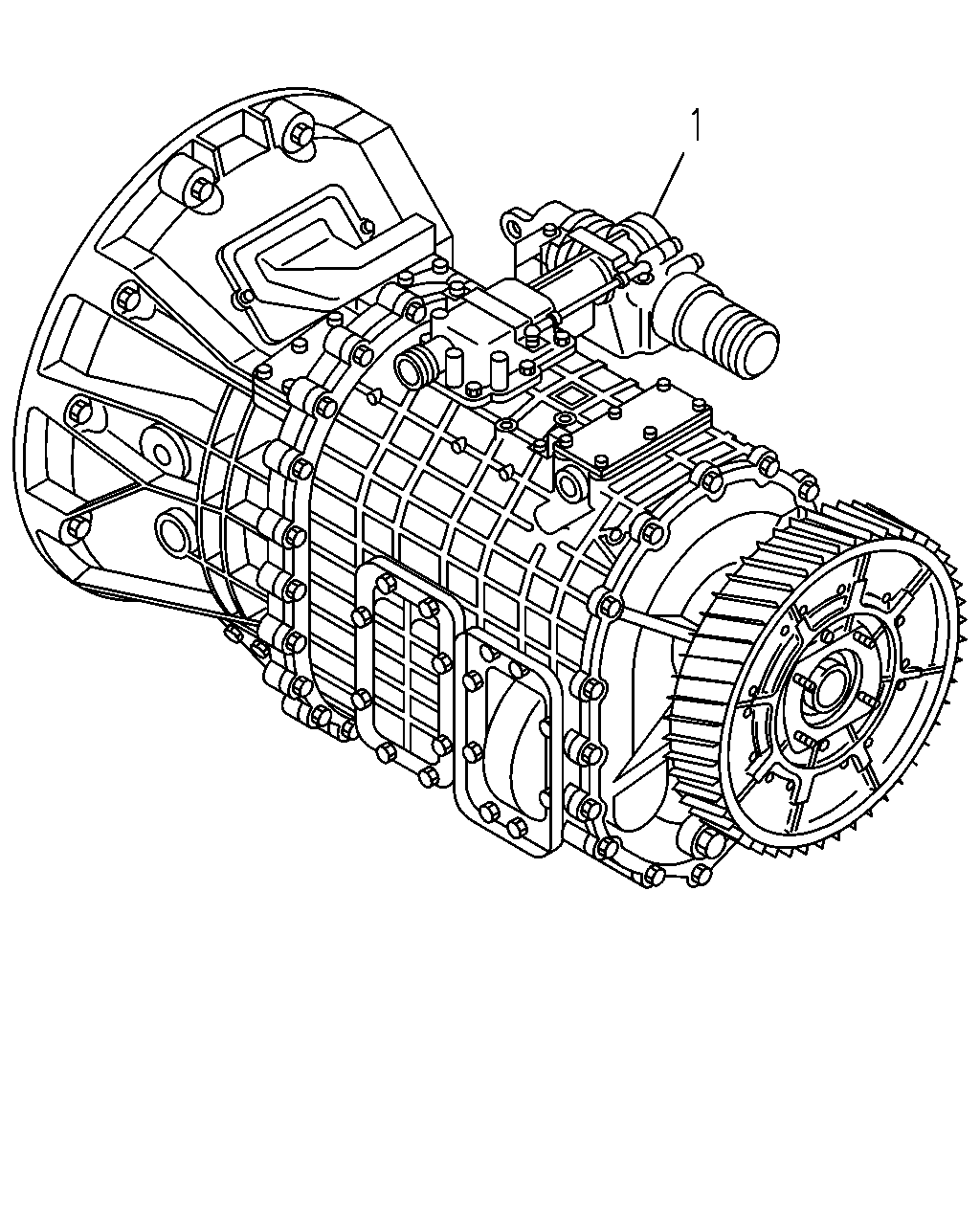

çizim 498446
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-409-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-409-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-403-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-406-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-406-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		1-33044-403-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33044-502-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> 		1-33044-502-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33044-500-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> 		1-33044-500-0 01 1 1508- ●

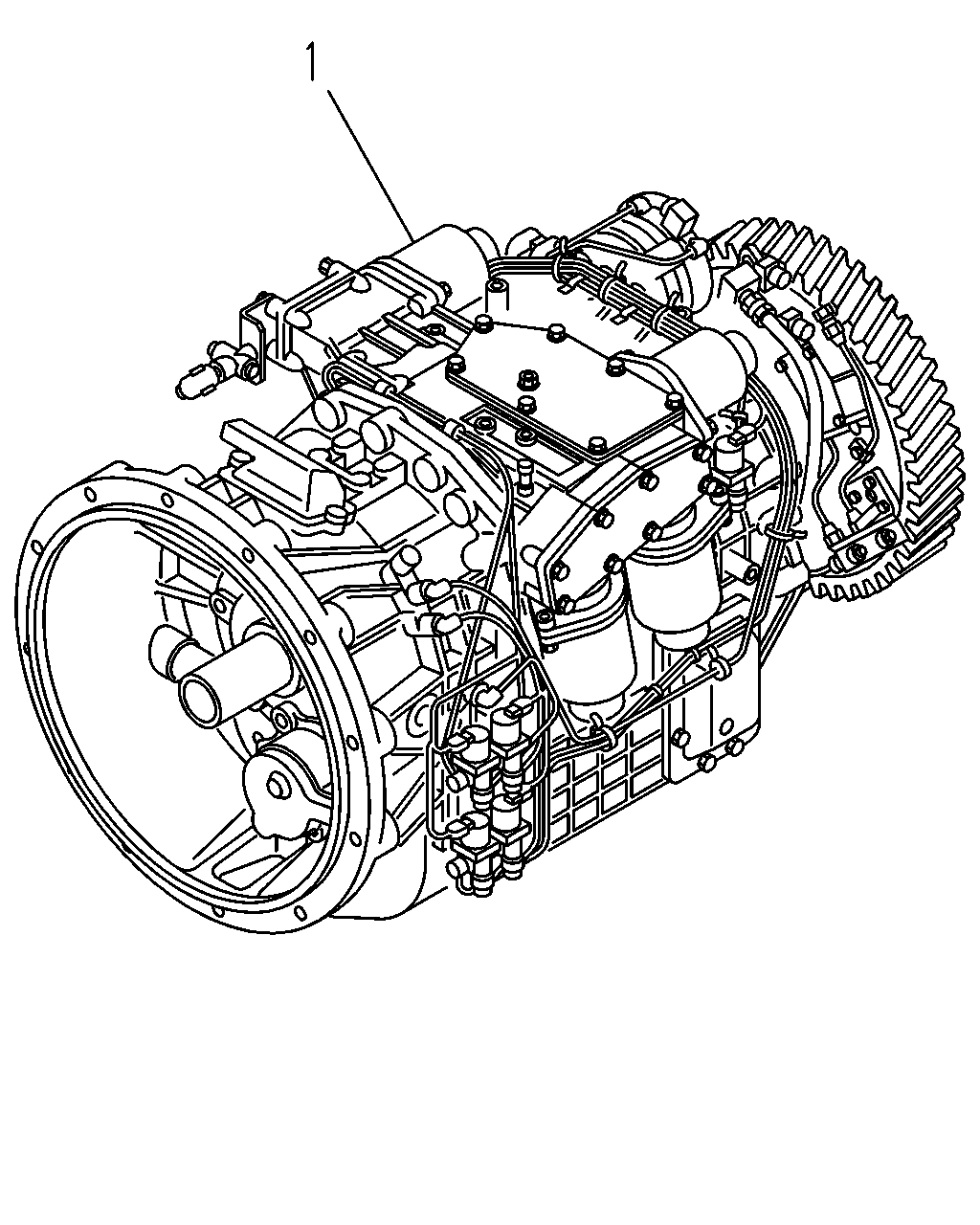

çizim 498502
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-409-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-409-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-403-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-406-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-406-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		1-33044-403-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-33044-502-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> 		1-33044-502-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33044-500-0 01 1 1508- ●
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> 		1-33044-500-0 01 1 1508- ●

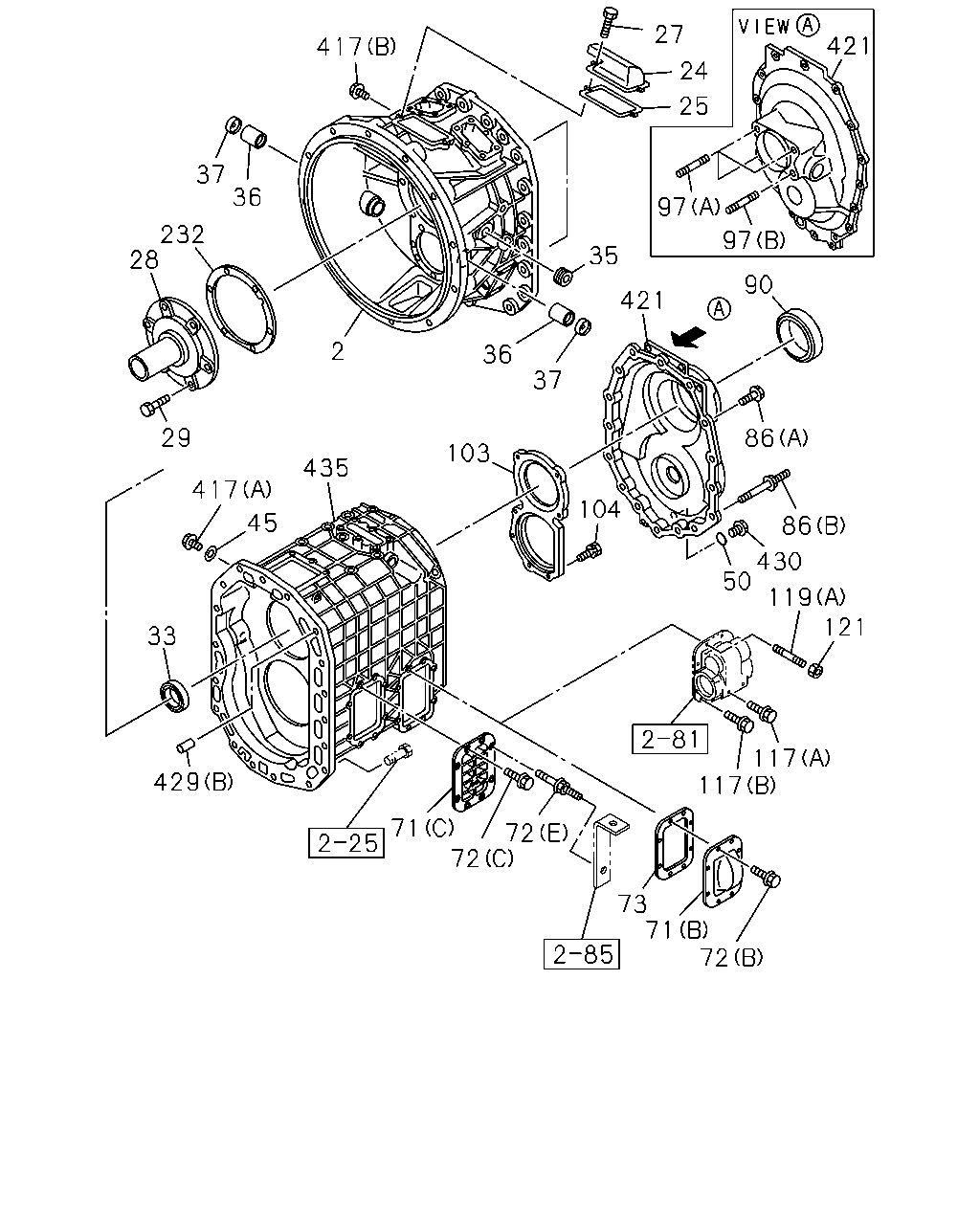

çizim 498549
24 27 25 97 90 97 421 417 37 232 28 36 2 36 421 35 37 103 104 86 86 430 121 119 50 117 117 71 73 72 72 72 71 429 33 45 435 417 29
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 8-98200-947-0 01 1 1508- ●
2 HOUSING; CLU 8-98168-736-0 01 1 1508- ●
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 1508- ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1508- ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 1508- ● ●
28 COVER; FRT,TRANS CASE 1-33121-158-3 01 1 1508- ● ●
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1508- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-562-0 01 1 1508- ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 1508- ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 1508- ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 1508- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1508- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
(C) 		1-33141-057-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-058-0 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-33141-044-1 01 1 1508- ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) 		1-33141-066-0 01 1 1508- ●
72 BOLT; SIDE COVER
(A) M10X30 FLANGE 		0-28151-030-0 04 1 1508- ●
72 BOLT; SIDE COVER
(C) M12X40 FLANGE 		0-28151-240-0 07 1 1508- ●
72 BOLT; SIDE COVER
(E) M10X16,M12X40 L=67.7 		1-09029-082-0 01 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE 		0-28751-230-0 08 1 1508- ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D) M10X35 FLANGE 		0-28751-035-0 08 1 1508- ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-041-0 01 1 1508- ●
86 BOLT; RR COVER
(A) M12X40 FLANGE 		0-28151-240-0 14 1 1508- ●
86 BOLT; RR COVER
(B) M10X16,M12X40 L=67.7 		1-09029-082-0 02 1 1508- ●
86 BOLT; RR COVER
(C) M17X35 		1-09044-076-0 06 1 1508- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-577-1 01 1 1508- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 1508- ●
97 STUD; PARKING BRK
(A) M16X41 L=62 		1-09302-151-0 01 1 1508- ●
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (B) M16X51 L=72 		1-09302-002-0 03 1 1508- ●
97 STUD; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> (C) M16X45 L=69 		9-04411-645-0 04 1 1508- ●
103 RETAINER; BRG 1-33151-059-0 01 1 1508- ●
103 RETAINER; BRG 1-33151-060-1 01 1 1508- ●
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 1508- ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X35 FLANGE 		0-28151-235-0 02 1 1508- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X130 FLANGE 		0-28166-213-0 02 1 1508- ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) M10X28 FLANGE 		8-98044-944-0 02 1 1508- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 L=43 		0-44011-225-0 04 1 1508- ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M10X25 L=40 		0-44011-025-0 06 1 1508- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE 		0-91180-212-0 04 1 1508- ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE 		0-91180-210-0 06 1 1508- ●
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 1508- ● ●
417 PLUG; OIL FILLER,TRANS
(B) M22X12 		1-09604-035-0 01 1 1508- ●
417 PLUG; OIL FILLER,TRANS
(A) M24X17 FLANGE 		1-09604-022-0 01 1 1508- ● ●
421 COVER; RR,TRANS 8-98304-558-0 01 1 1508- ●
421 COVER; RR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33131-256-0 01 1 1508- ●
421 COVER; RR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33131-238-0 01 1 1508- ●
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 1508- ● ●
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 1508- ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 1508- ●
435 CASE; TRANS 8-98132-969-0 01 1 1508- ●
435 CASE; TRANS 8-98249-273-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
