2-07 — CLUTCH BOOSTER; MINIPACK (#168144) — 175 parça

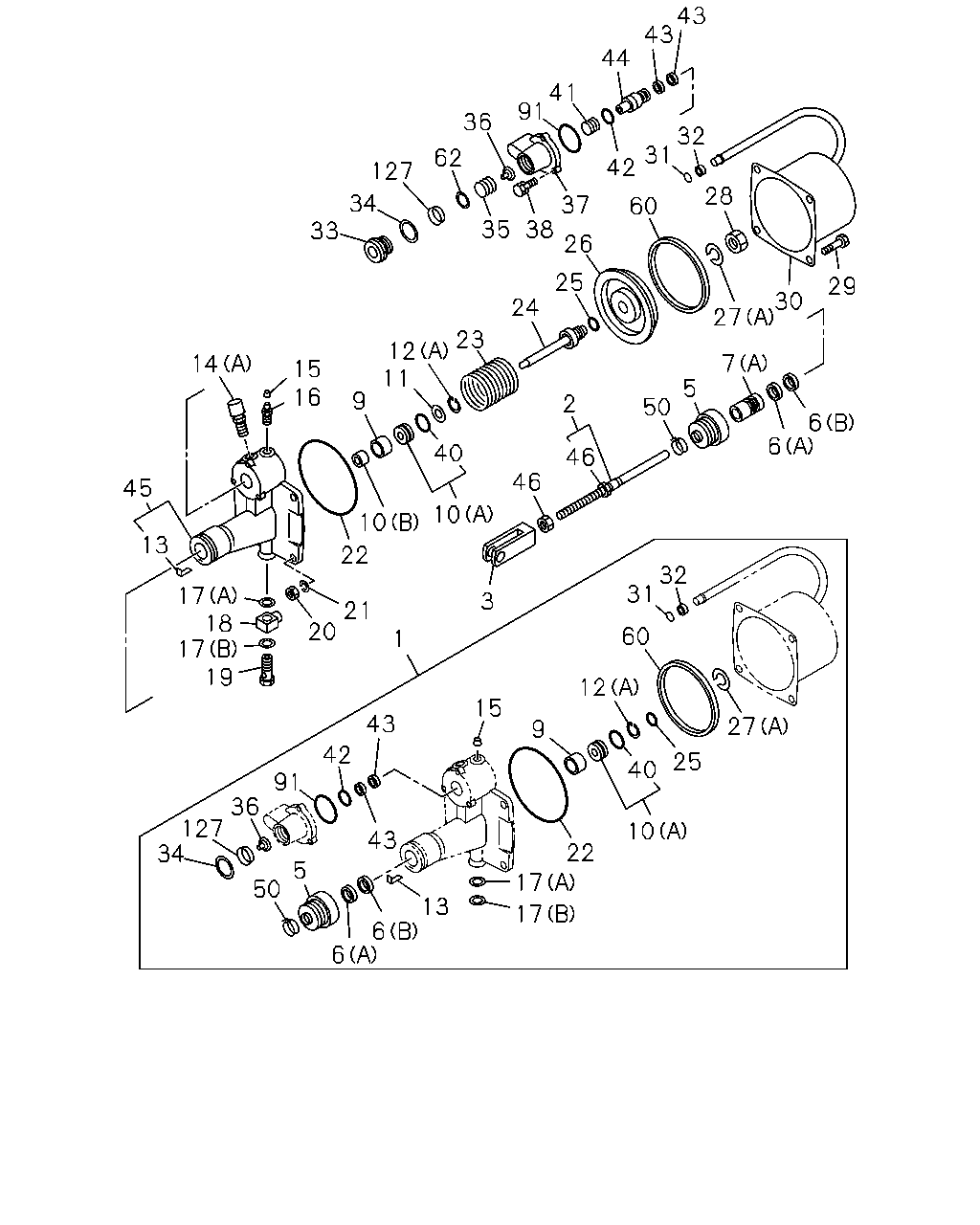

çizim 498395
43 43 44 41 42 31 32 28 27 7 30 29 5 50 6 6 46 46 2 25 24 26 60 37 38 35 36 91 62 127 34 33 23 12 11 40 10 10 22 21 1 15 3 15 14 16 9 45 13 18 17 17 19 20 9 43 42 43 13 17 17 5 50 6 91 36 127 34 6 40 25 10 27 12 60 32 31 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1508- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1508- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1508- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1508- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1508- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1508- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1508- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 1508- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1508- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1508- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1508- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1508- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1508- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1508- ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1508- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1508- ●
13 PIN; SPR 1-31829-109-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(C) 		1-31829-365-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1508- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1508- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1508- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1508- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1508- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1508- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1508- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1508- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1508- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1508- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1508- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1508- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1508- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1508- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1508- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1508- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1508- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1508- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1508- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1508- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1508- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1508- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1508- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1508- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1508- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1508- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1508- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1508- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1508- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1508- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1508- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1508- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1508- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1508- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1508- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1508- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1508- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1508- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1508- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1508- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1508- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1508- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1508- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1508- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1508- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1508- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1508- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1508- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1508- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1508- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1508- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1508- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1508- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1508- ● ●

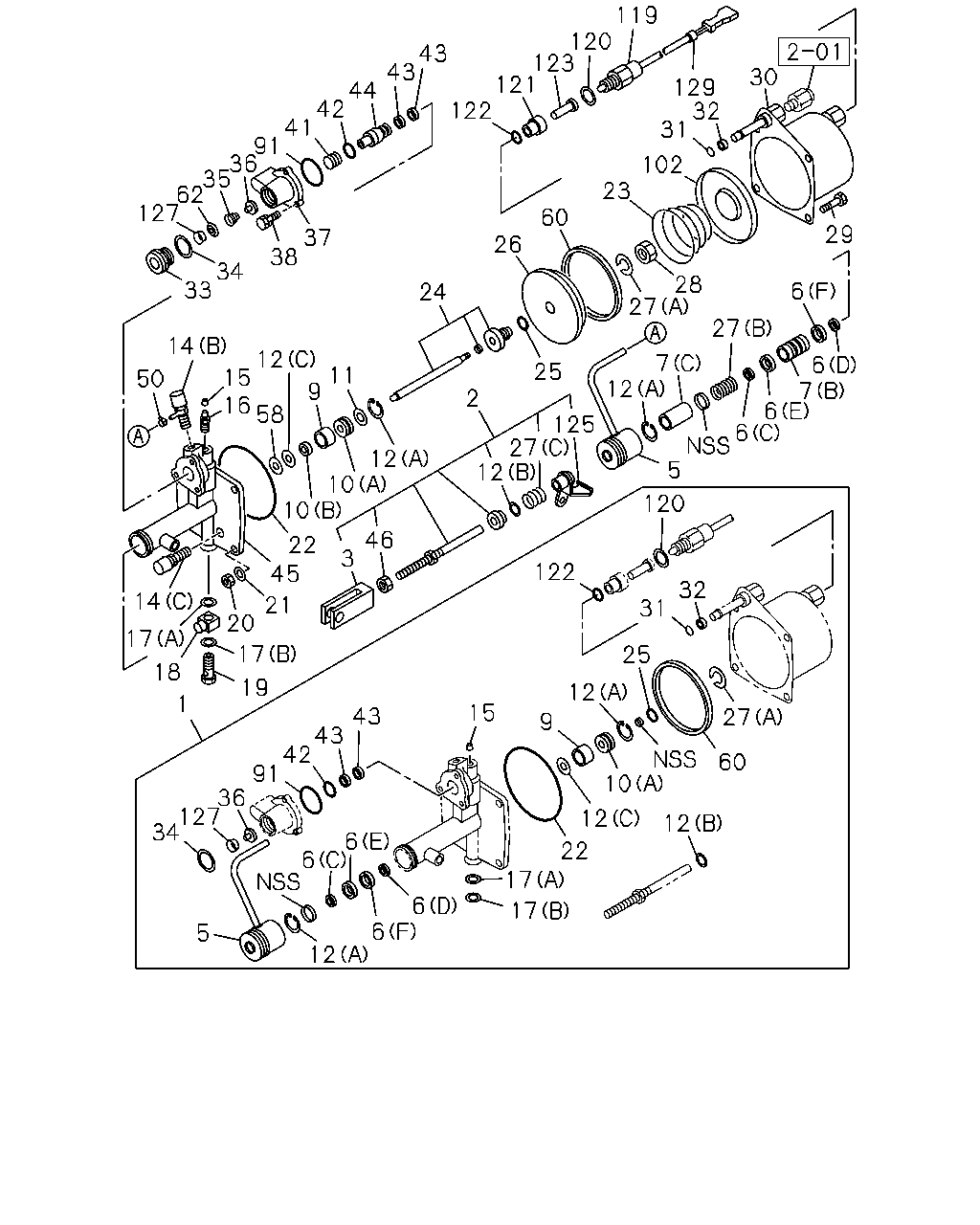

çizim 498578
30 32 31 129 119 120 123 121 23 102 122 43 43 44 42 41 91 36 35 62 127 33 34 38 37 24 26 60 27 28 27 6 29 6 7 6 6 5 120 32 31 25 122 12 10 12 12 27 60 17 17 22 15 9 6 12 6 43 43 42 91 36 127 34 5 19 21 20 17 1 18 17 45 14 10 10 22 46 3 12 2 25 125 27 12 12 7 12 16 15 14 50 58 9 11 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1508- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1508- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1508- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1508- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1508- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1508- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1508- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 1508- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1508- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 1508- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1508- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1508- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1508- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1508- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1508- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1508- ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1508- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(C) 		1-31829-365-0 01 1 1508- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1508- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1508- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1508- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1508- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1508- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1508- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1508- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1508- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1508- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1508- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1508- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1508- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1508- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1508- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1508- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1508- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1508- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1508- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1508- ● ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1508- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1508- ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1508- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1508- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1508- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1508- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1508- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1508- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1508- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1508- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1508- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1508- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1508- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1508- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1508- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1508- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1508- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1508- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1508- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1508- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1508- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1508- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1508- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1508- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1508- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1508- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1508- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1508- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1508- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1508- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 1508- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1508- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1508- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1508- ● ●
102 PLATE; BOOSTER 1-31829-508-0 01 1 1508- ●
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 1508- ●
120 GASKET; SWITCH 1-31829-361-0 01 1 1508- ●
121 GUIDE; ROD 1-31824-165-0 01 1 1508- ●
122 GASKET; ROD 1-31829-360-0 01 1 1508- ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1508- ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1508- ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1508- ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1508- ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1508- ●
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1508- ●
127 FILTER; POPPET 1-31829-488-0 01 1 1508- ● ●
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 1508- ●
