Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶
2-03 — CLUTCH PEDAL AND CONTROL
(#168142) — 54 parça
◀

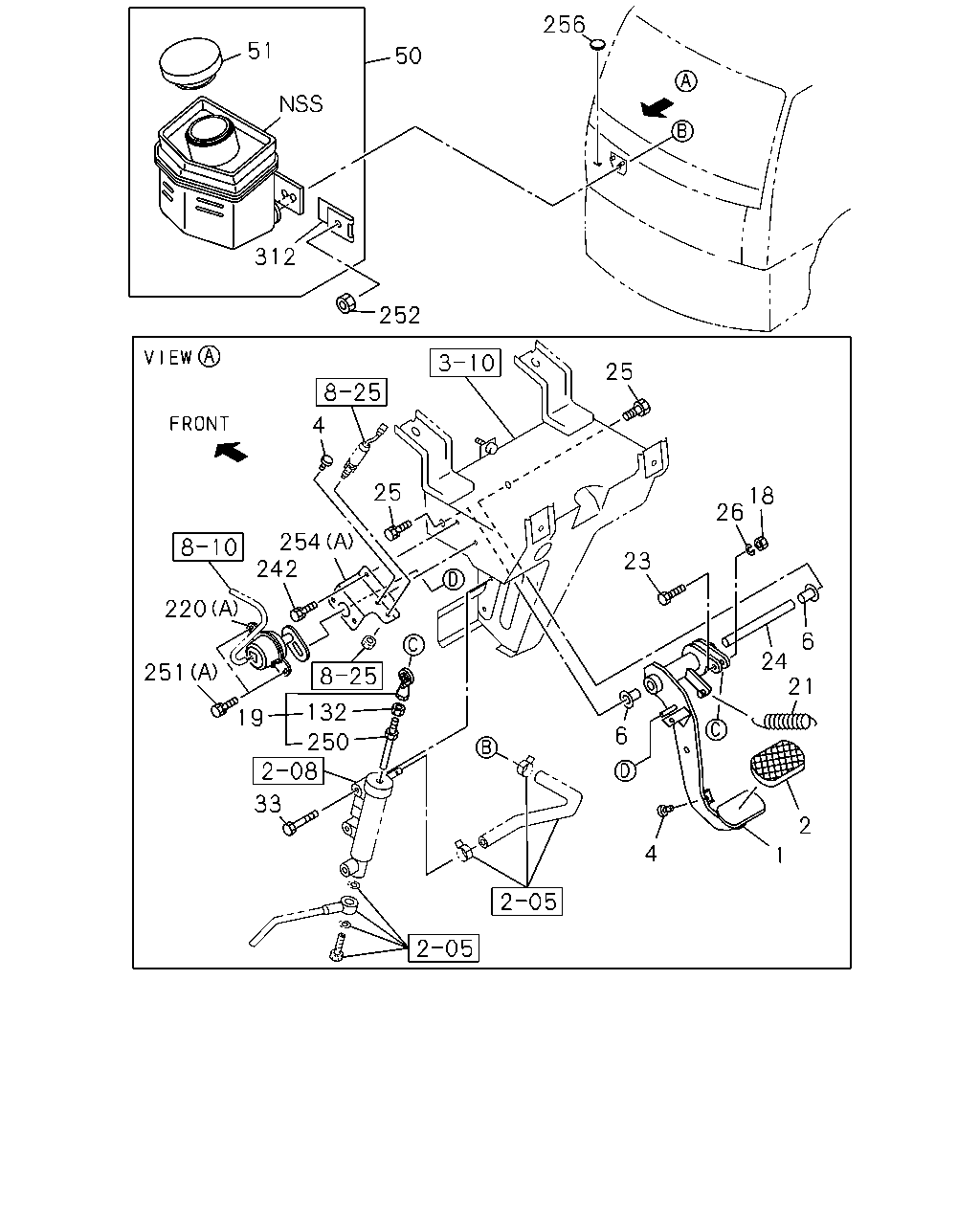

[203A] PEDAL AND TANK (27 parça)

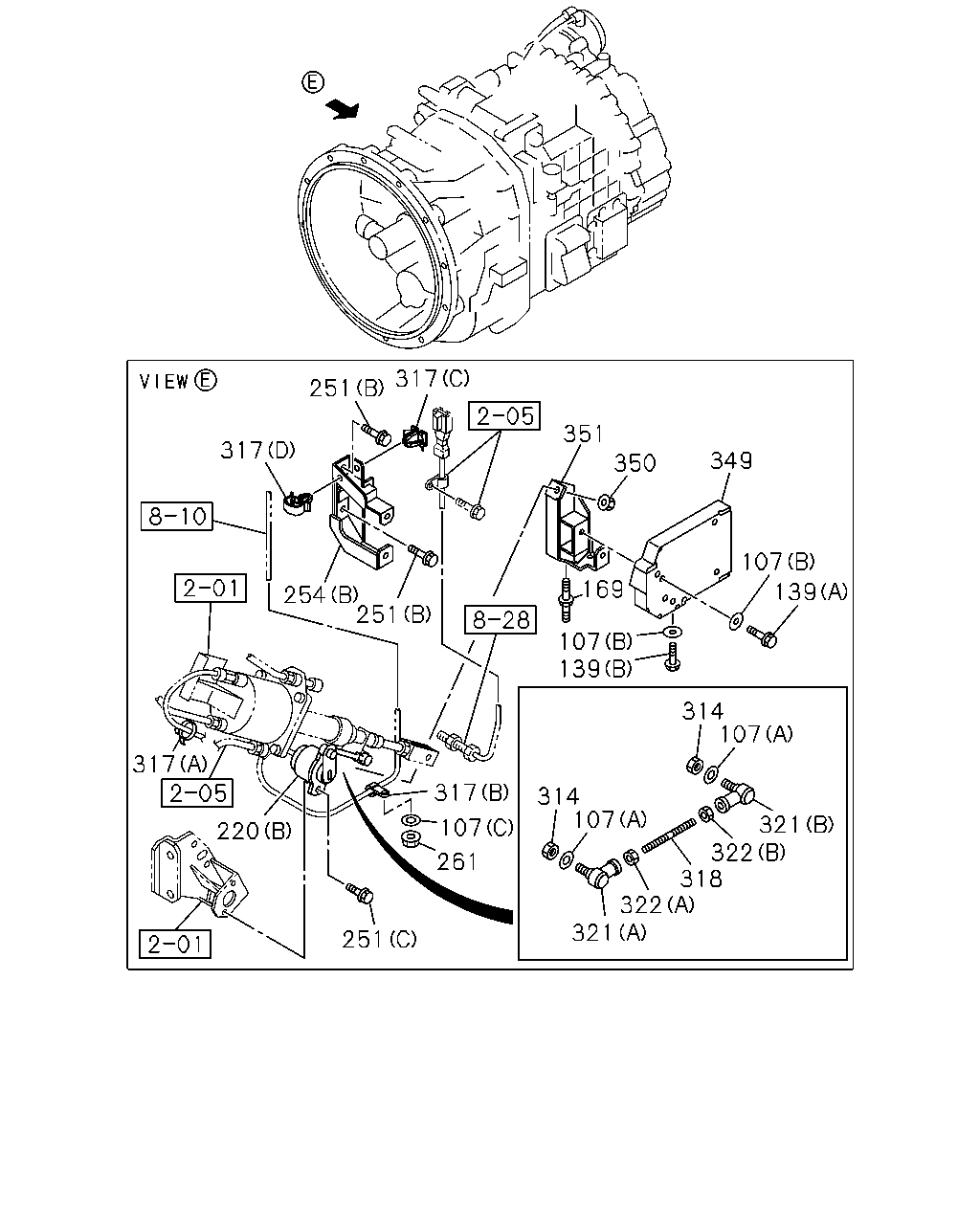

[203A] SENSOR AND BRACKET (27 parça)
▶
51
50
256
252
312
25
18
26
23
6
24
21
2
1
4
6
33
19
251
220
242
250
132
25
254
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-474-1
01
1
1508-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
1508-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
1508-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
1508-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
1508-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
1508-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
1508-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
1508-
24
SHAFT; CLU PEDAL
1-73908-195-1
01
1
1508-
25
BOLT; PEDAL
M10X35 W/LK WASHER
0-50051-035-0
02
1
1508-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
1508-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1508-
50
TANK; OIL,CLU
1-47530-182-0
01
1
1508-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
1508-
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
1508-
220
SENSOR; CLUTCH
(A)
1-80250-014-0
01
1
1508-
220
SENSOR; CLUTCH
SMOOTHER-G(C1W) (B)
8-98123-908-0
01
1
1508-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
1508-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
1508-
251
BOLT; SENSOR
(A) M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1508-
251
BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE
0-28650-616-0
02
1
1508-
251
BOLT; SENSOR
SMOOTHER-G(C1W) (B) M10X25 FLANGE
0-28751-025-0
02
1
1508-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1508-
254
BRACKET; CLU SENSOR
(A)
1-73998-979-5
01
1
1508-
254
BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B)
1-31349-076-1
01
1
1508-
256
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
01
1
1508-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
1508-
317
251
317
351
349
350
107
139
169
107
139
254
251
317
220
317
107
261
314
107
321
318
322
322
314
107
321
251
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
WASHER; PL
SMOOTHER-G(C1W) (C) ID=8.4 OD=16
0-91610-508-0
01
1
1508-
107
WASHER; PL
SMOOTHER-G(C1W) (B) ID=8.4 OD=22
0-91610-708-0
06
1
1508-
107
WASHER; PL
SMOOTHER-G(C1W) (A) ID=5.3 OD=16
0-91614-705-0
02
1
1508-
139
BOLT; COVER
SMOOTHER-G(C1W) (A) M8X16 FLANGE
0-28050-816-0
05
1
1508-
139
BOLT; COVER
SMOOTHER-G(C1W) (B) M8X35 FLANGE
0-28650-835-0
01
1
1508-
169
BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40
8-98009-913-0
01
1
1508-
220
SENSOR; CLUTCH
(A)
1-80250-014-0
01
1
1508-
220
SENSOR; CLUTCH
SMOOTHER-G(C1W) (B)
8-98123-908-0
01
1
1508-
251
BOLT; SENSOR
(A) M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1508-
251
BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE
0-28650-616-0
02
1
1508-
251
BOLT; SENSOR
SMOOTHER-G(C1W) (B) M10X25 FLANGE
0-28751-025-0
02
1
1508-
254
BRACKET; CLU SENSOR
(A)
1-73998-979-5
01
1
1508-
254
BRACKET; CLU SENSOR
SMOOTHER-G(C1W) (B)
1-31349-076-1
01
1
1508-
261
NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE
0-91180-108-0
01
1
1508-
314
NUT; ROD
SMOOTHER-G(C1W) M5
0-91110-505-0
02
1
1508-
317
CLIP; CABLE
SMOOTHER-G(C1W) (B) ID=11 L=32
0-95235-065-0
01
1
1508-
317
CLIP; CABLE
SMOOTHER-G(C1W) (A) L=180
1-09707-162-1
01
1
1508-
317
CLIP; CABLE
SMOOTHER-G(C1W) (C) OD=9 H=6
1-09709-178-0
01
1
1508-
317
CLIP; CABLE
SMOOTHER-G(C1W) (D) ID=5-12 L=14.5
1-09987-221-0
01
1
1508-
318
ROD; CLU
SMOOTHER-G(C1W)
0-84100-506-0
01
1
1508-
321
END; ROD
SMOOTHER-G(C1W) (A)
1-09760-103-2
01
1
1508-
321
END; ROD
SMOOTHER-G(C1W) (B)
1-09760-104-2
01
1
1508-
322
NUT; ROD END
SMOOTHER-G(C1W) (A) M5
0-91110-505-0
01
1
1508-
322
NUT; ROD END
SMOOTHER-G(C1W) (B) M5 LH THREAD
9-09840-277-0
01
1
1508-
349
COVER; SENSOR
SMOOTHER-G(C1W)
1-31349-077-0
01
1
1508-
350
NUT; COVER
SMOOTHER-G(C1W) M10 FLANGE
0-91180-210-0
01
1
1508-
351
BRACKET; COVER
SMOOTHER-G(C1W)
1-31349-078-1
01
1
1508-
