◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#168140) — 18 parça
çizim 498104
92 92 87 87 87 116 88 86
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1508-
86 VALVE; MAG,EXH BRK
PARKING BRAKE - BRAKE LOCK(6LL) 		1-82563-871-2 01 1 1508-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (D) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1508-
88 PLUG
PARKING BRAKE - BRAKE LOCK(6LL) PT1/4 		9-99204-513-0 01 1 1508-
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28050-825-0 04 1 1508-
116 SWITCH; AIR PRESSURE
PARKING BRAKE - BRAKE LOCK(6LL) 		8-97611-408-1 01 1 1508-

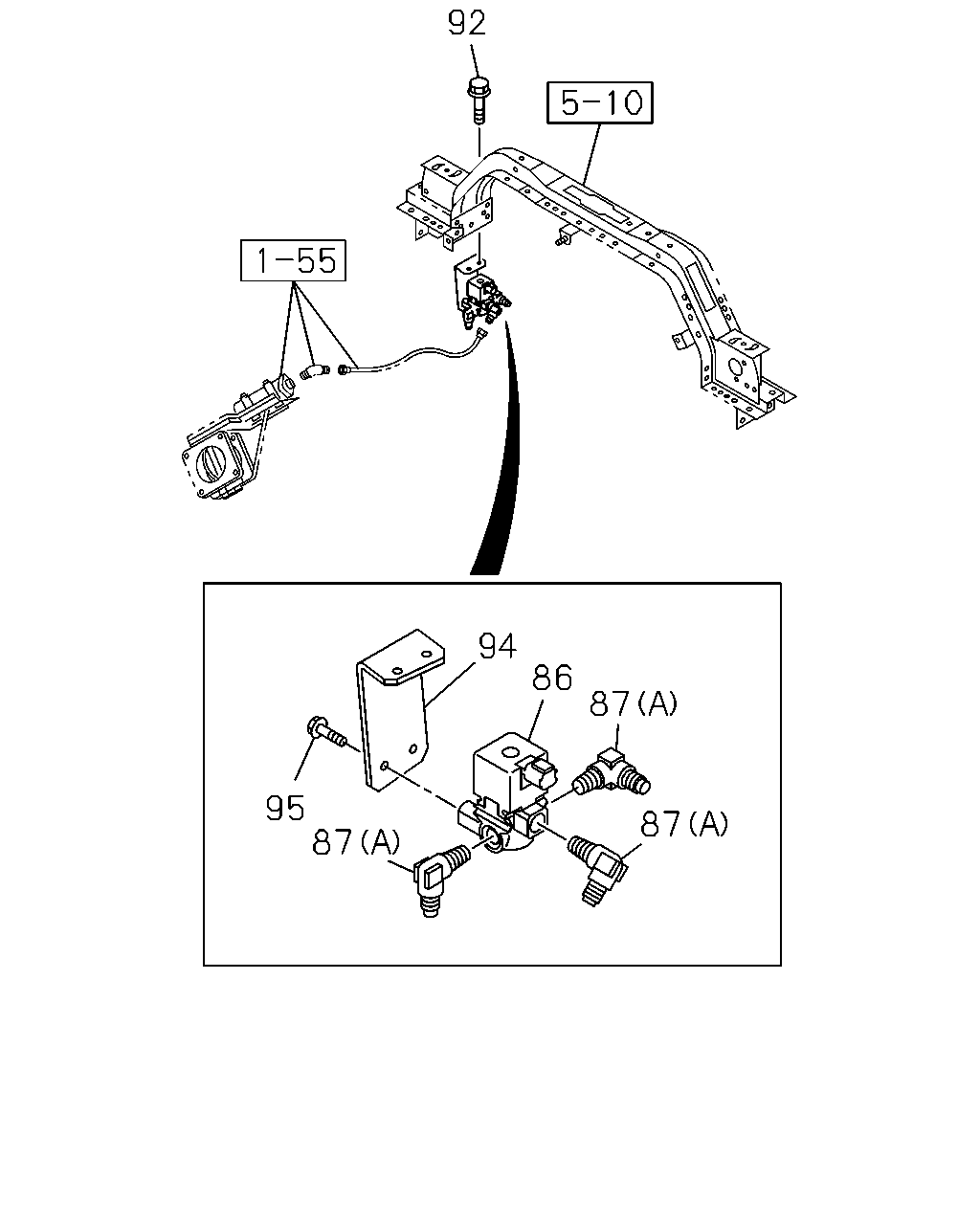

çizim 498449
92 94 86 87 87 87 95
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1508-
86 VALVE; MAG,EXH BRK
PARKING BRAKE - BRAKE LOCK(6LL) 		1-82563-871-2 01 1 1508-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1508-
87 CONNECTOR
PARKING BRAKE - BRAKE LOCK(6LL) (D) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1508-
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28050-825-0 04 1 1508-
94 BRACKET; MAG VLV,EXH BRAKE 8-98244-482-0 01 1 1508-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1508-
