1-11 — RADIATOR HOSE AND SUB TANK
(#168130) — 31 parça
◀

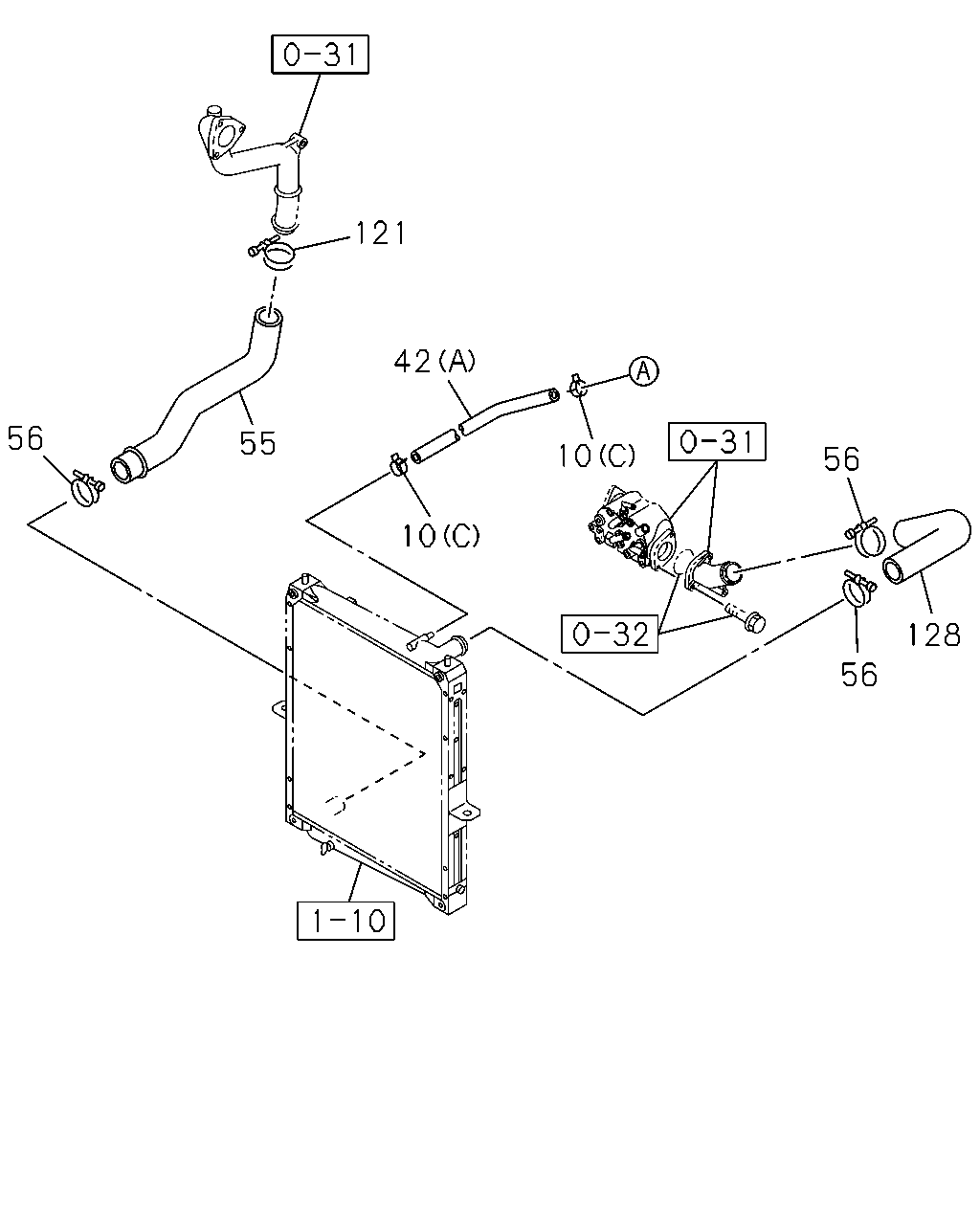

[111A] RADIATOR SIDE (9 parça)

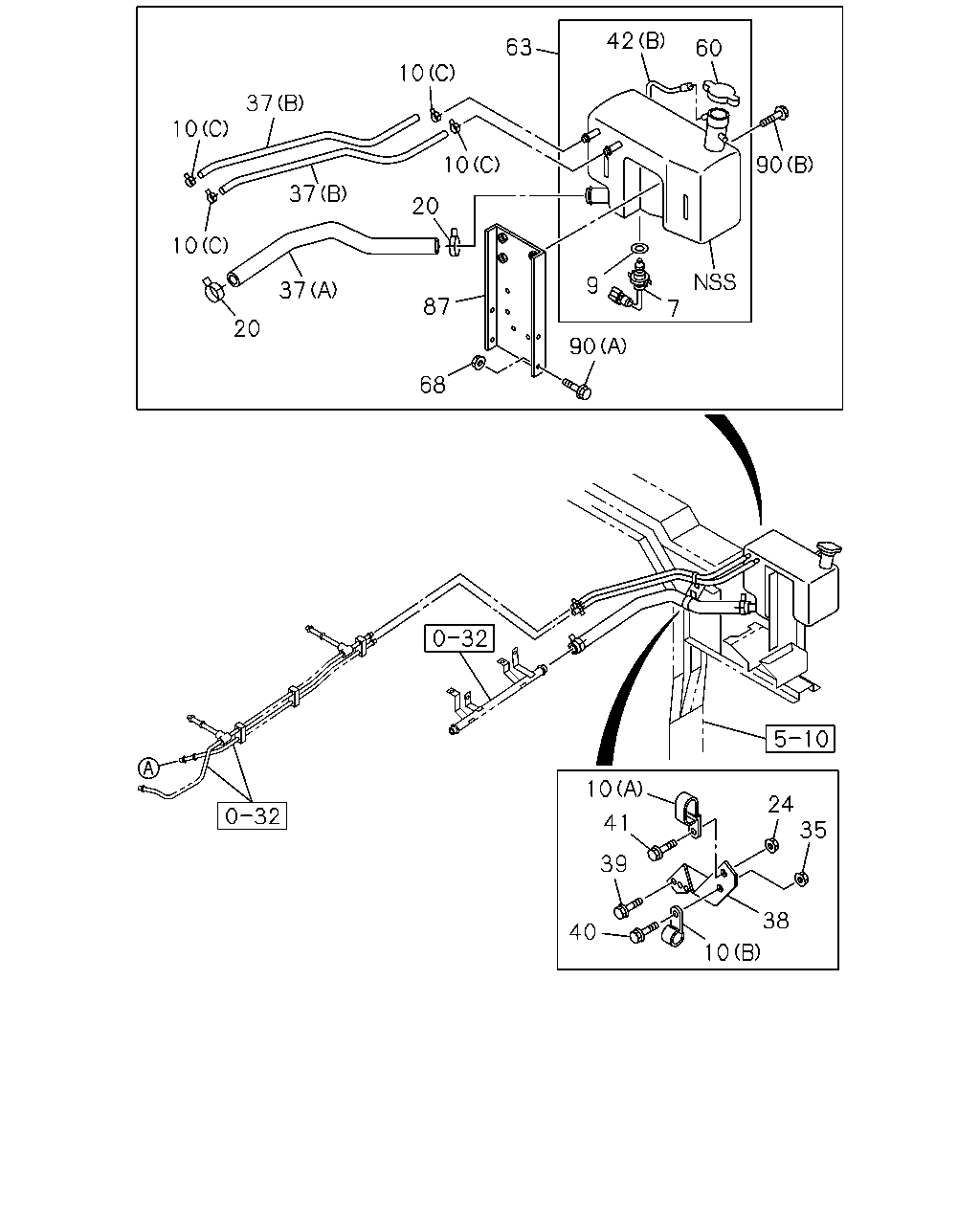

[111A] SUB TANK SIDE (22 parça)
▶
121
42
10
56
128
56
10
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1508-
10
CLIP; RUBBER HOSE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
1508-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1508-
42
HOSE; RUBBER
(A) L=440 SERVICED BY L=3000
0-03559-300-0
01
1
1508-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1508-
55
HOSE; WATER,RAD OUTLET
8-98254-941-0
01
1
1508-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
03
1
1508-
121
CLAMP; HOSE
ID=75
8-98206-613-0
01
1
1508-
128
HOSE; WATER,RAD INL
1-21430-189-0
01
1
1508-
10
37
10
63
42
60
90
90
9
7
87
68
37
20
10
37
20
10
10
41
39
40
10
38
35
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1508-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1508-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1508-
10
CLIP; RUBBER HOSE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
1508-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
06
1
1508-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1508-
24
NUT
M8 FLANGE
0-91180-108-0
01
1
1508-
35
NUT
M10 FLANGE
0-91180-210-0
01
1
1508-
37
HOSE; RUBBER
(A)
1-21430-192-0
01
1
1508-
37
HOSE; RUBBER
(B) L=630
8-98052-530-0
02
1
1508-
38
BRACKET; RUBBER HOSE
1-21489-198-0
01
1
1508-
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1508-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
1508-
41
BOLT
M8X25 FLANGE
0-28650-825-0
01
1
1508-
42
HOSE; RUBBER
(A) L=440 SERVICED BY L=3000
0-03559-300-0
01
1
1508-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1508-
60
CAP; SUB TANK
1-21450-137-0
01
1
1508-
63
TANK ASM; SUB
1-21481-147-2
01
1
1508-
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1508-
87
BRACKET; SUB TANK
1-21489-194-2
01
1
1508-
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1508-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1508-
