◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#168124) — 107 parça

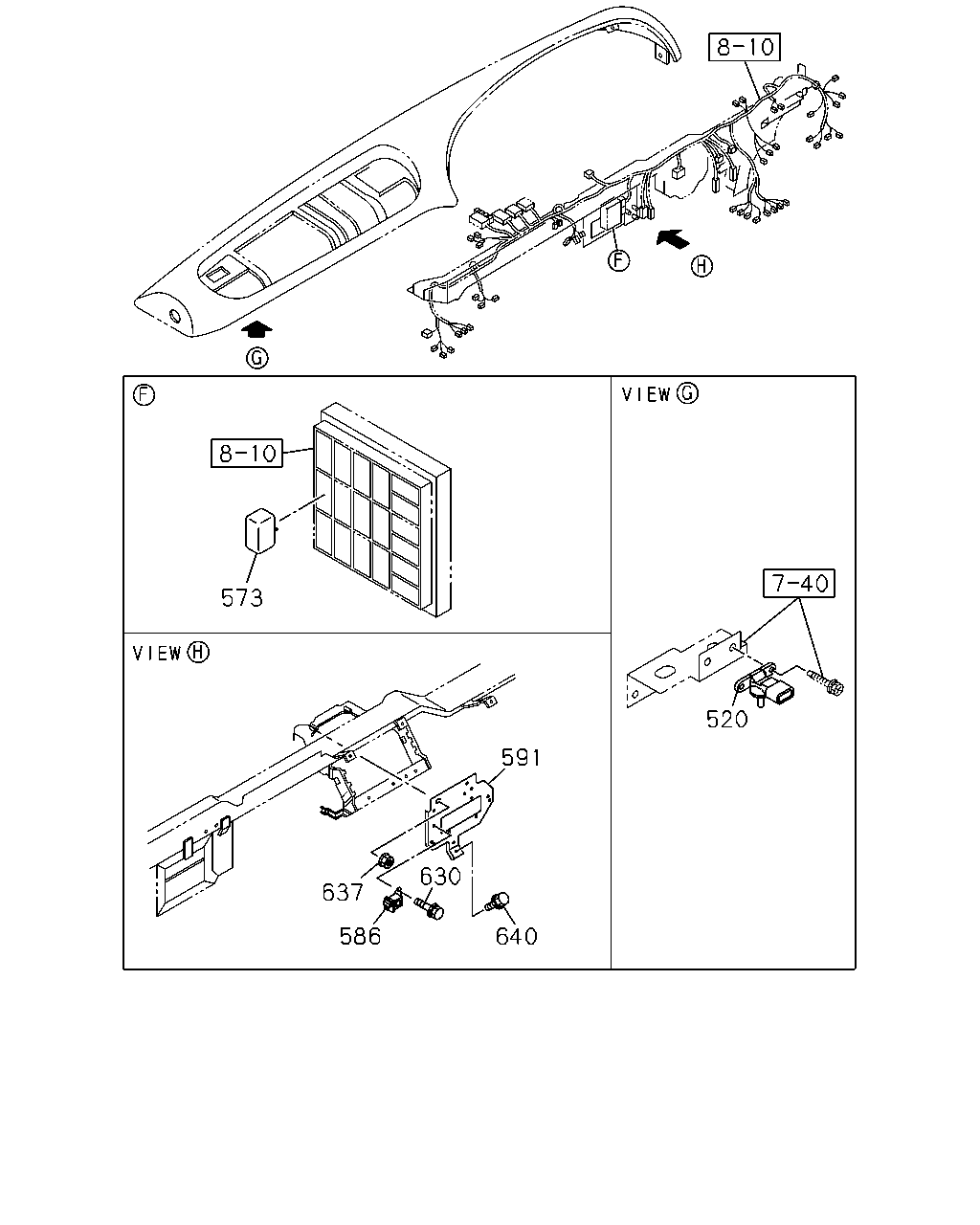

çizim 498038
573 637 586 630 640 591 520
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1508-
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-98167-173-0 01 1 1508-
586 RELAY; QOS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82550-237-0 01 1 1508-
591 BRACKET ASM; QOS UNIT
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-73907-742-0 01 1 1508-
630 SCREW; UNIT
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1508-
637 NUT; FLANGE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE 		0-91180-106-0 02 1 1508-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
640 BOLT; BRKT,QOS GLOW TIMER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1508-

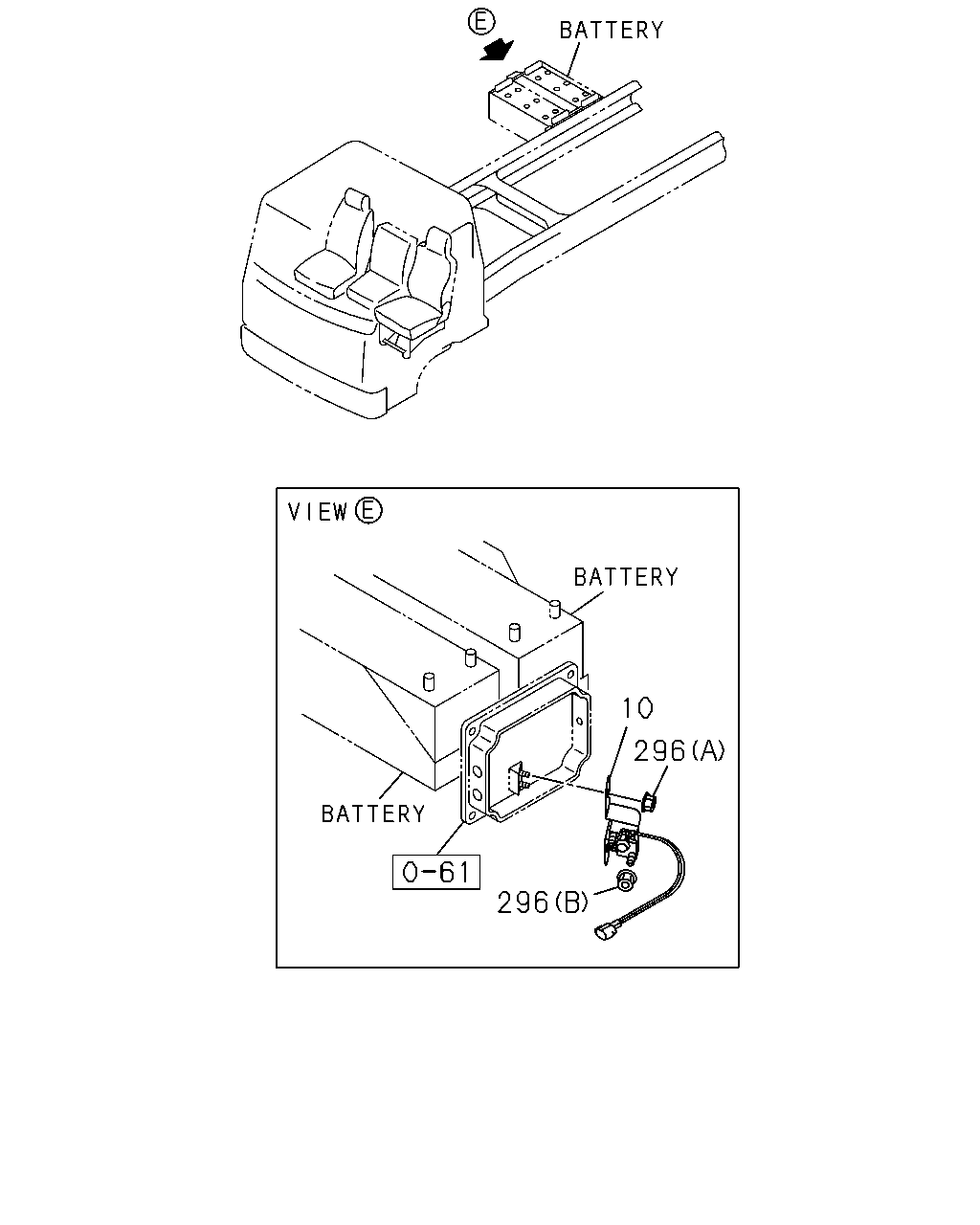

çizim 498040
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 8-98104-680-0 01 1 1508-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1508-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1508-

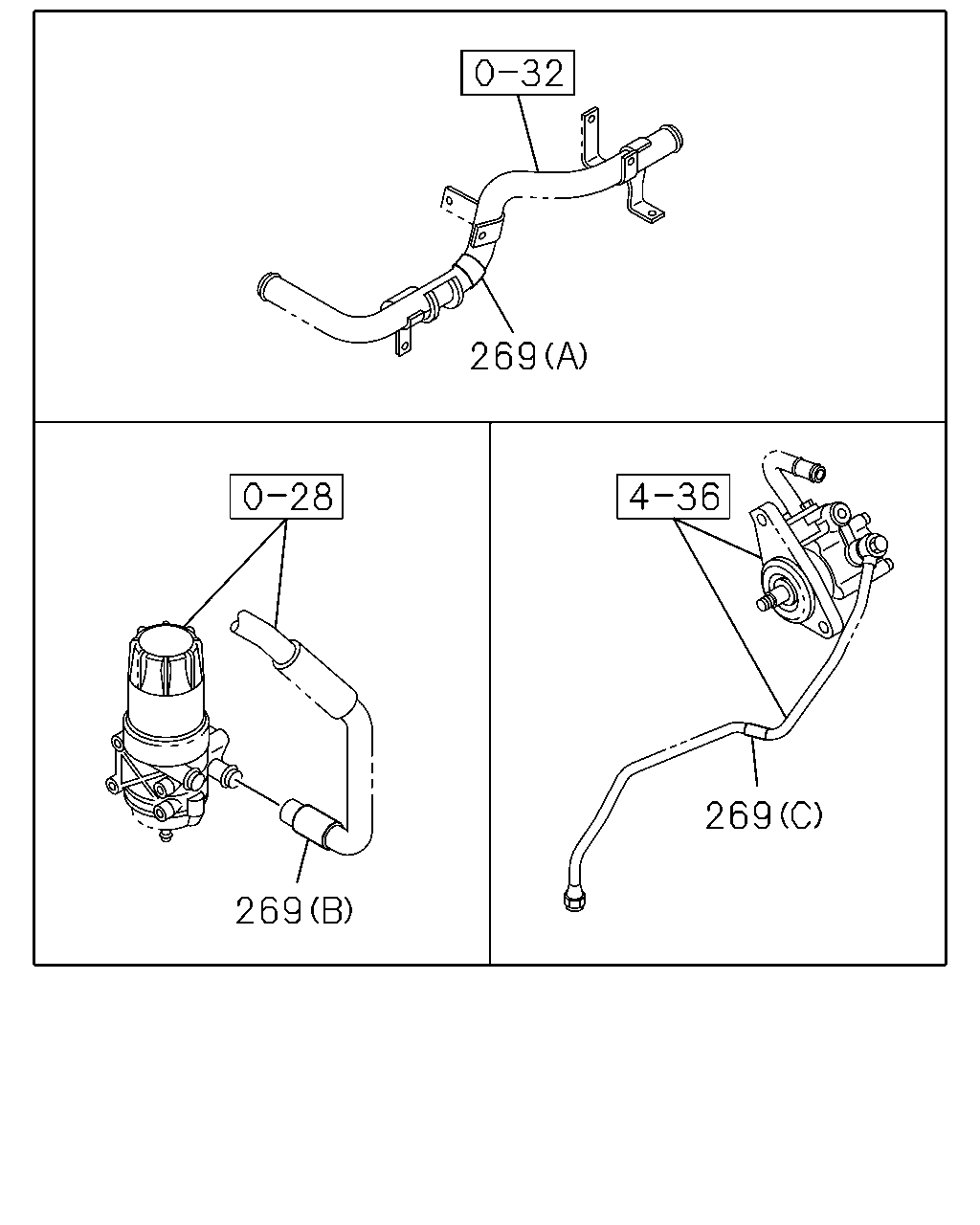

çizim 498041
269 269 269
BalonParca AdiParca NoAdetTipApplied Date
269 SLEEVE; RUBBER,CABLE
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1508-
269 SLEEVE; RUBBER,CABLE
(B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 1508-
269 SLEEVE; RUBBER,CABLE
(C) ID=10 OD=14 L=30 		9-09956-682-0 02 1 1508-
çizim 498045
428 441 428 441 428 441 428 441
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(A) ID=30X2 L=28 		1-09701-266-0 01 1 1508-
428 CLIP; HARNESS
(B) ID=35X2 L=32 		1-09701-314-0 04 1 1508-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 1508-
428 CLIP; HARNESS
(D) 		8-97636-270-0 01 1 1508-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1508-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1508-

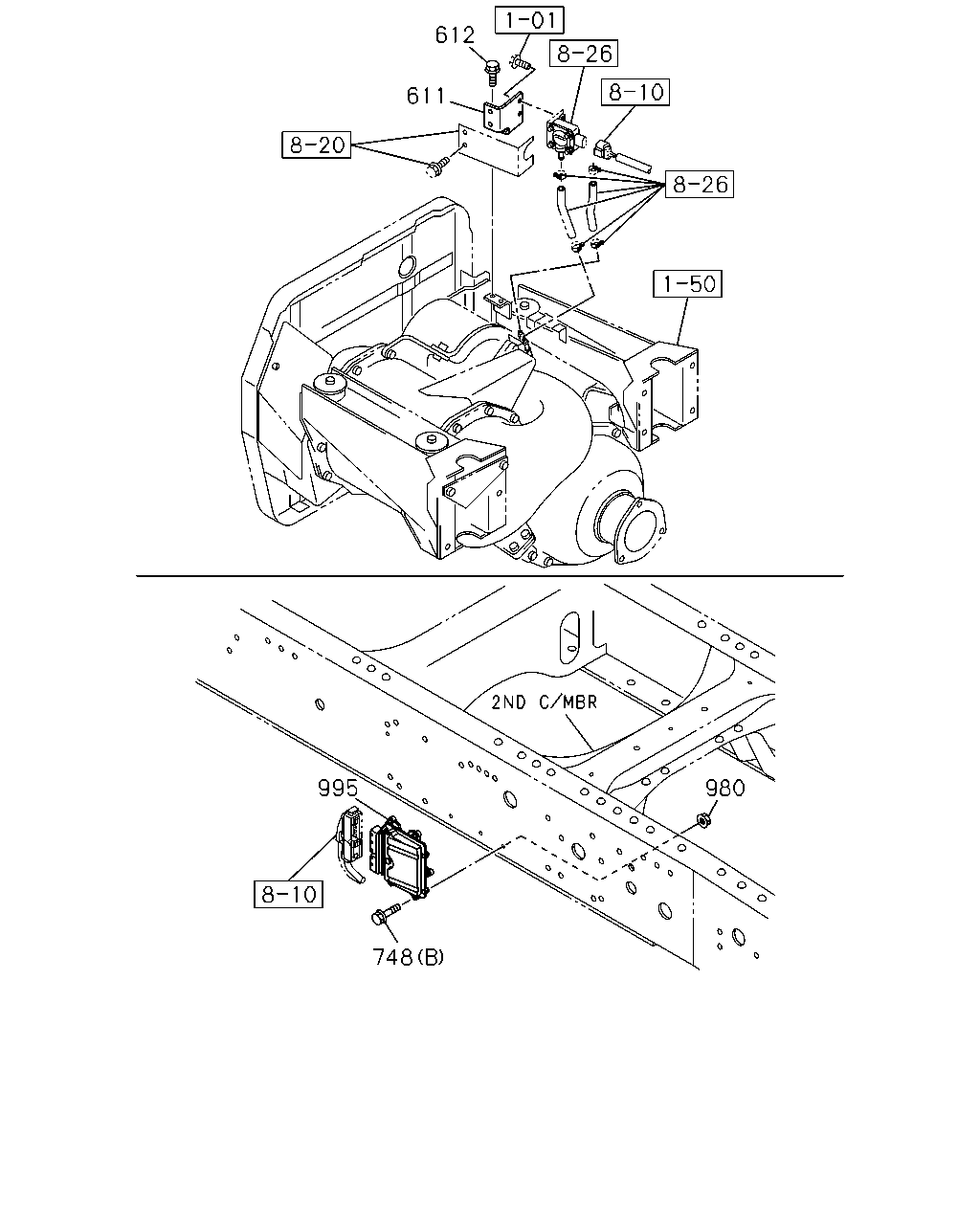

çizim 498047
612 611 995 748 980
BalonParca AdiParca NoAdetTipApplied Date
611 BRACKET; SENSOR 8-97631-970-1 01 1 1508-
612 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1508-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1508-
748 BOLT; CONT UNIT
(B) M8X45 FLANGE 		0-28050-845-0 04 1 1508-
980 NUT; CONT UNIT
M8 FLANGE 		0-91180-108-0 02 1 1508-
995 CONTROL UNIT; DEF DCM
VIN MODEL YEAR 2013(VZD) 		8-98276-889-0 01 1 1508-
995 CONTROL UNIT; DEF DCM
EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98276-877-0 01 1 1508-
995 CONTROL UNIT; DEF DCM
VIN MODEL YEAR 2014(VZE) 		8-98290-491-0 01 1 1508-

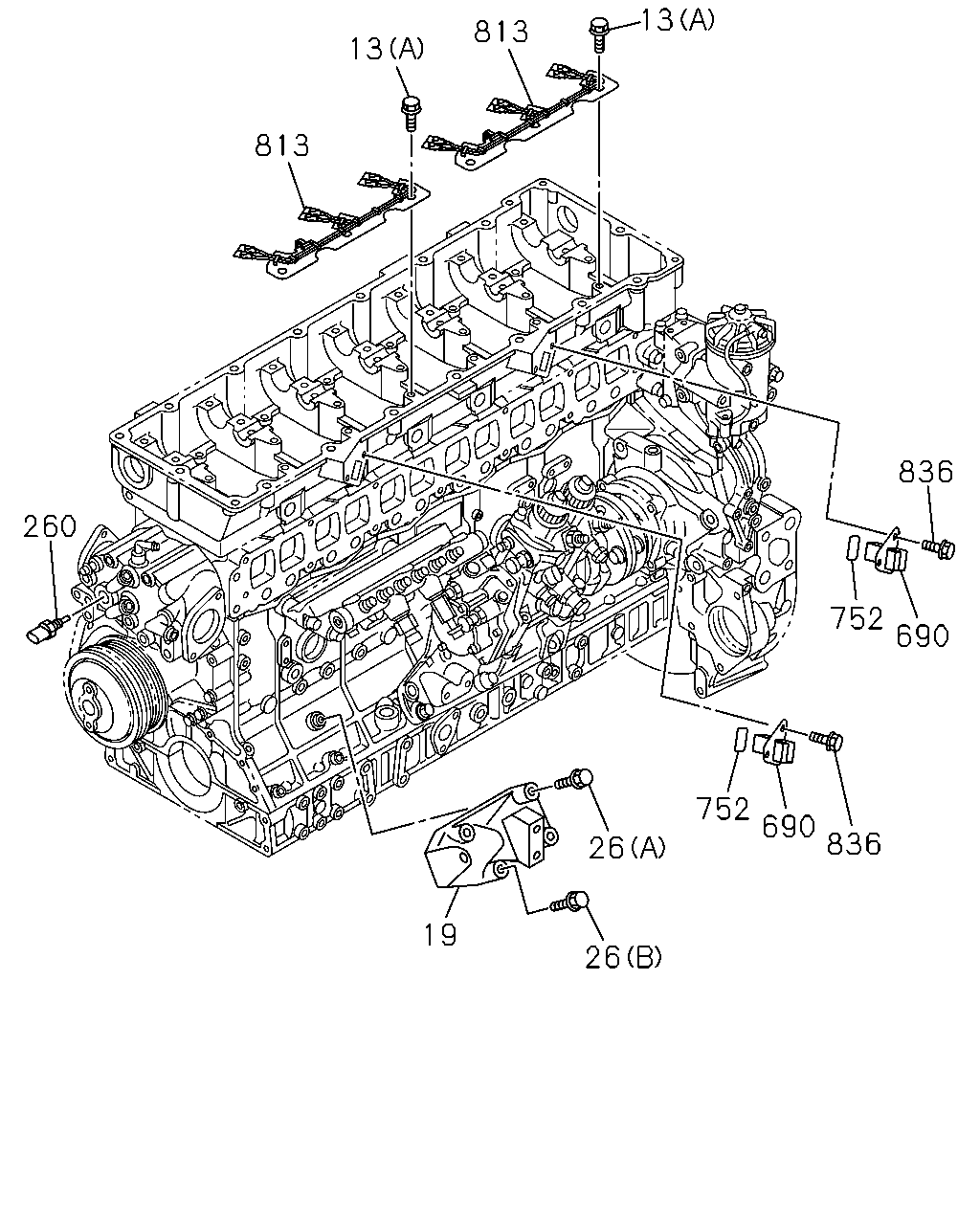

çizim 498085
836 752 690 836 690 752 26 26 19 260 13 813 13 813
BalonParca AdiParca NoAdetTipApplied Date
13 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1508-
13 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1508-
13 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 1508-
19 BRACKET; GEN 8-97605-943-0 01 1 1508-
26 BOLT; GEN BRKT
(A) M12X50 FLANGE 		0-28151-250-0 03 1 1508-
26 BOLT; GEN BRKT
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1508-
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1508-
690 CONNECTOR 8-94390-858-1 02 1 1508-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1508-
813 HARNESS; INJECTOR 8-97603-762-1 02 1 1508-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1508-

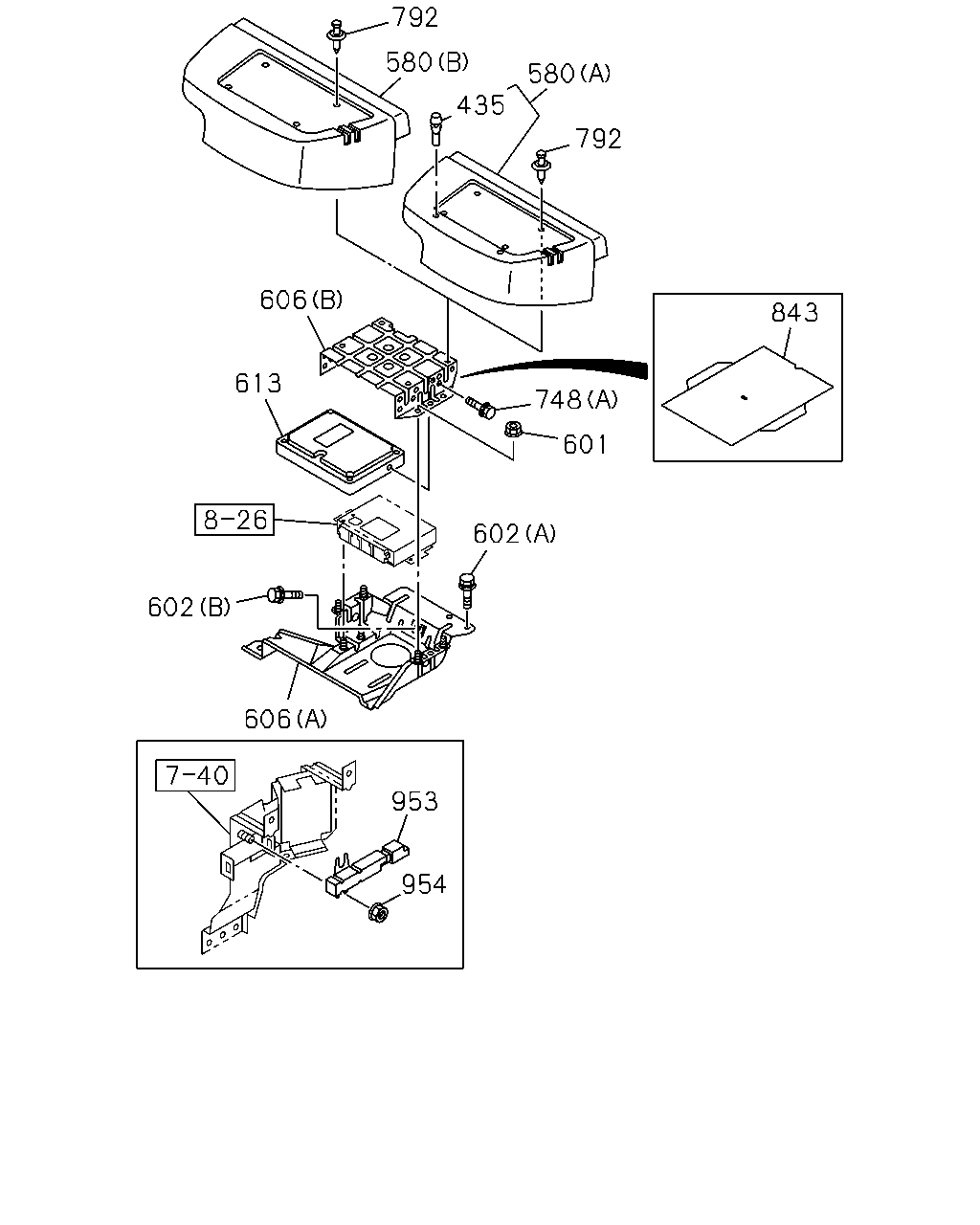

çizim 498086
954 953 606 602 613 606 435 580 792 843 748 602 601 580 792
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 1508-
580 COVER; CONT UNIT
SEAT ASM - WITH CENTER SEAT(7BC) (B) 		1-72537-273-1 01 1 1508-
580 COVER; CONT UNIT
1 CREWS SEAT ASM PASSENGER DELETE(AP5),CENTER SEAT DELETE(SP9) (A) 		1-72537-279-2 01 1 1508-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1508-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1508-
606 BRACKET; CONT UNIT
(A) 		8-98182-920-0 01 1 1508-
606 BRACKET; CONT UNIT
(B) 		8-98182-921-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-98315-572-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2014(VZE) 		8-98315-578-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) VIN MODEL YEAR 2013(VZD) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-98317-543-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2013(VZD) 		8-98317-549-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-456-0 01 1 1508-1508
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-929-0 01 1 1509-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-462-0 01 1 1508-1508
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-935-0 01 1 1509-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-98315-576-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2014(VZE) 		8-98315-582-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2013(VZD) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-98317-547-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2013(VZD) 		8-98317-553-0 01 1 1508-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-460-0 01 1 1508-1508
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-933-0 01 1 1509-
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-466-0 01 1 1508-1508
613 CONTROL UNIT; ENG
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-939-0 01 1 1509-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-455-0 01 1 1508-1508
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-928-0 01 1 1509-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VI N MODEL YEAR 2014(VZE) 		8-98319-461-0 01 1 1508-1508
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VI N MODEL YEAR 2014(VZE) 		8-98328-934-0 01 1 1509-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2013(VZD) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98317-548-0 01 1 1508-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2014(VZE) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98315-577-0 01 1 1508-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) VIN MODEL YEAR 2013(VZD) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2> 		8-98317-542-0 01 1 1508-
613 CONTROL UNIT; ENG
SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2> 		8-98315-571-0 01 1 1508-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98319-459-0 01 1 1508-1508
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98328-932-0 01 1 1509-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VI N MODEL YEAR 2014(VZE) 		8-98319-465-0 01 1 1508-1508
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>,VIN MODEL YEAR 2013(VZD),VI N MODEL YEAR 2014(VZE) 		8-98328-938-0 01 1 1509-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2013(VZD) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98317-552-0 01 1 1508-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> VIN MODEL YEAR 2014(VZE) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98315-581-0 01 1 1508-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2013(VZD) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2> 		8-98317-546-0 01 1 1508-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL CABLE TYPE(C1A) VIN MODEL YEAR 2014(VZE) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,BRAKE SYSTEM RETARDER<RE2> 		8-98315-575-0 01 1 1508-
748 BOLT; CONT UNIT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1508-
748 BOLT; CONT UNIT
(B) M8X45 FLANGE 		0-28050-845-0 04 1 1508-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 1508-
843 SEAL; BRKT 8-98119-974-0 01 1 1508-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1508-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1508-

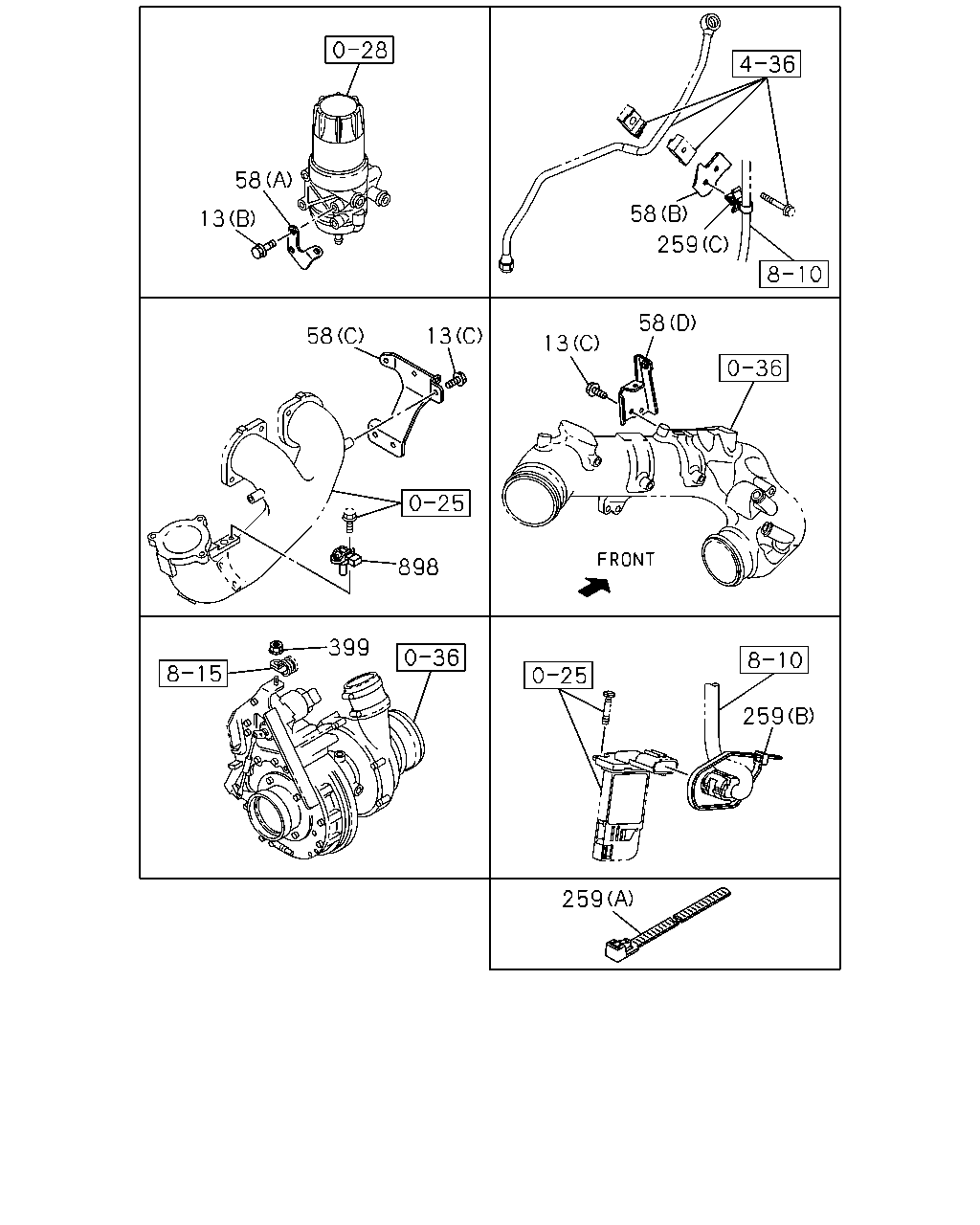

çizim 498088
58 13 58 259 58 13 13 58 898 399 259 259
BalonParca AdiParca NoAdetTipApplied Date
13 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1508-
13 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1508-
13 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 1508-
58 BRACKET; CLIP
(A) 		8-97604-122-0 01 1 1508-
58 BRACKET; CLIP
(B) 		8-97625-412-0 02 1 1508-
58 BRACKET; CLIP
(C) 		8-97628-235-1 01 1 1508-
58 BRACKET; CLIP
(D) 		8-97628-321-1 01 1 1508-
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1508-
259 CLIP; BAND,HARNESS TO OIL PIPE
(C) L=109.5 		8-97807-385-0 01 1 1508-
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=250 		8-98216-430-0 10 1 1508-
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1508-
898 SENSOR; BOOST 8-98009-418-0 01 1 1508-

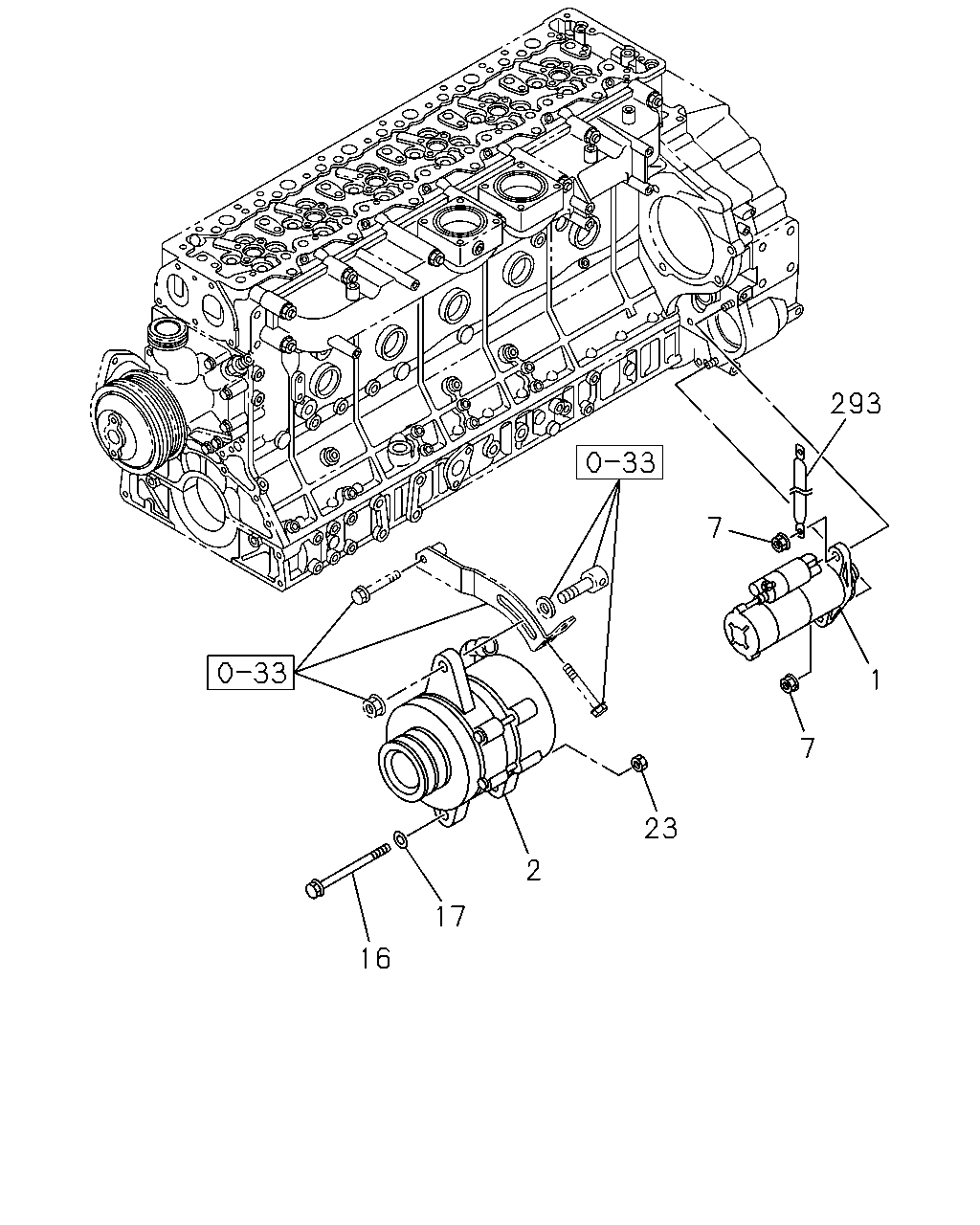

çizim 498475
293 7 1 7 23 2 17 16
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-203-2 01 1 1508-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98201-085-1 01 1 1508-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98169-360-1 01 1 1508-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A MITSUBISHI 		8-98127-499-0 01 1 1508-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 1508-
16 BOLT; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M14X123 		9-09801-204-1 01 1 1508-
16 BOLT; GEN
GENERATOR 24V90A(K44) M14X157 		1-09040-106-0 01 1 1508-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1508-
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1508-
293 CABLE; STARTER EARTH 8-97633-822-0 01 1 1508-
