Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#168119) — 28 parça
◀

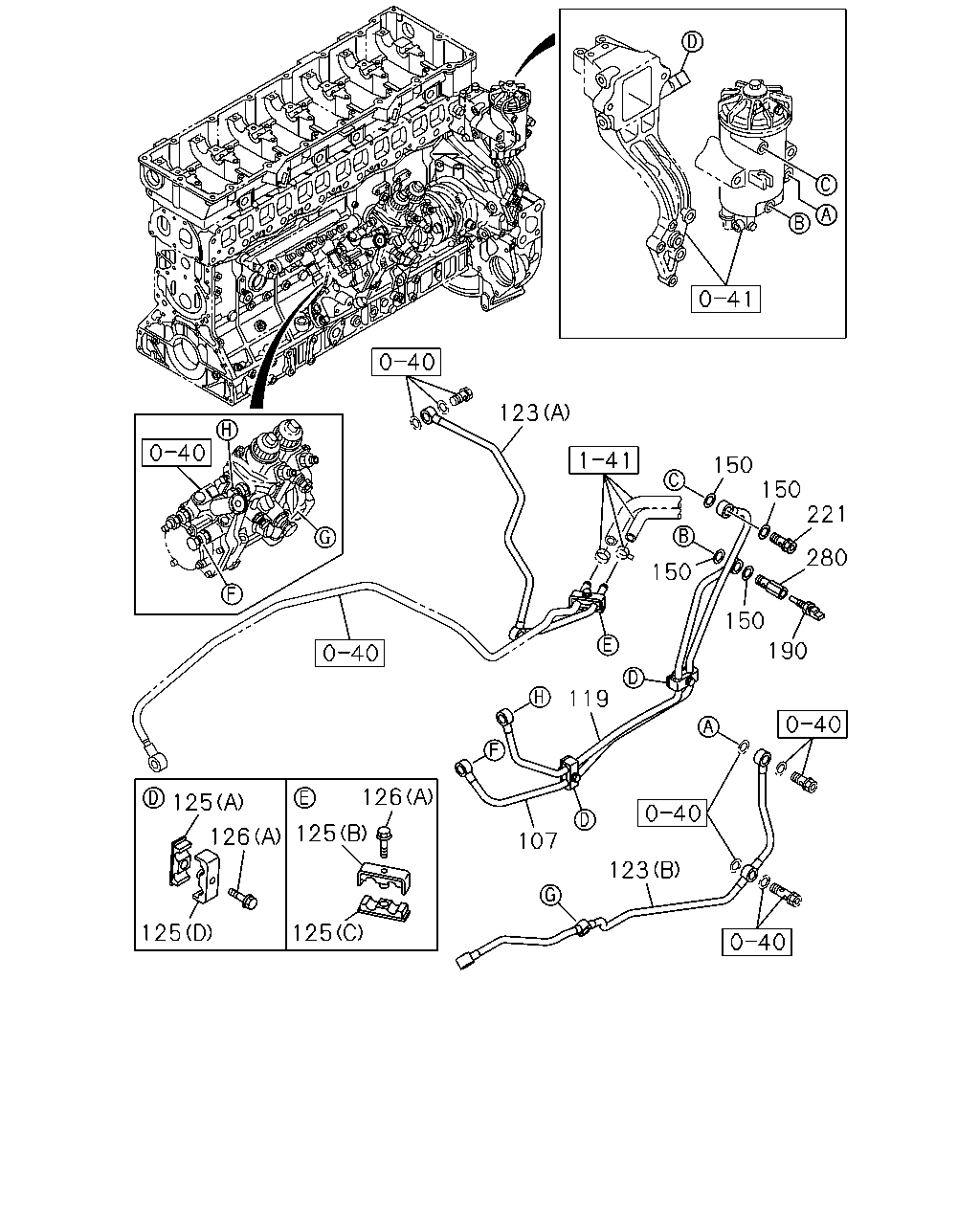

[042A] PIPING (16 parça)

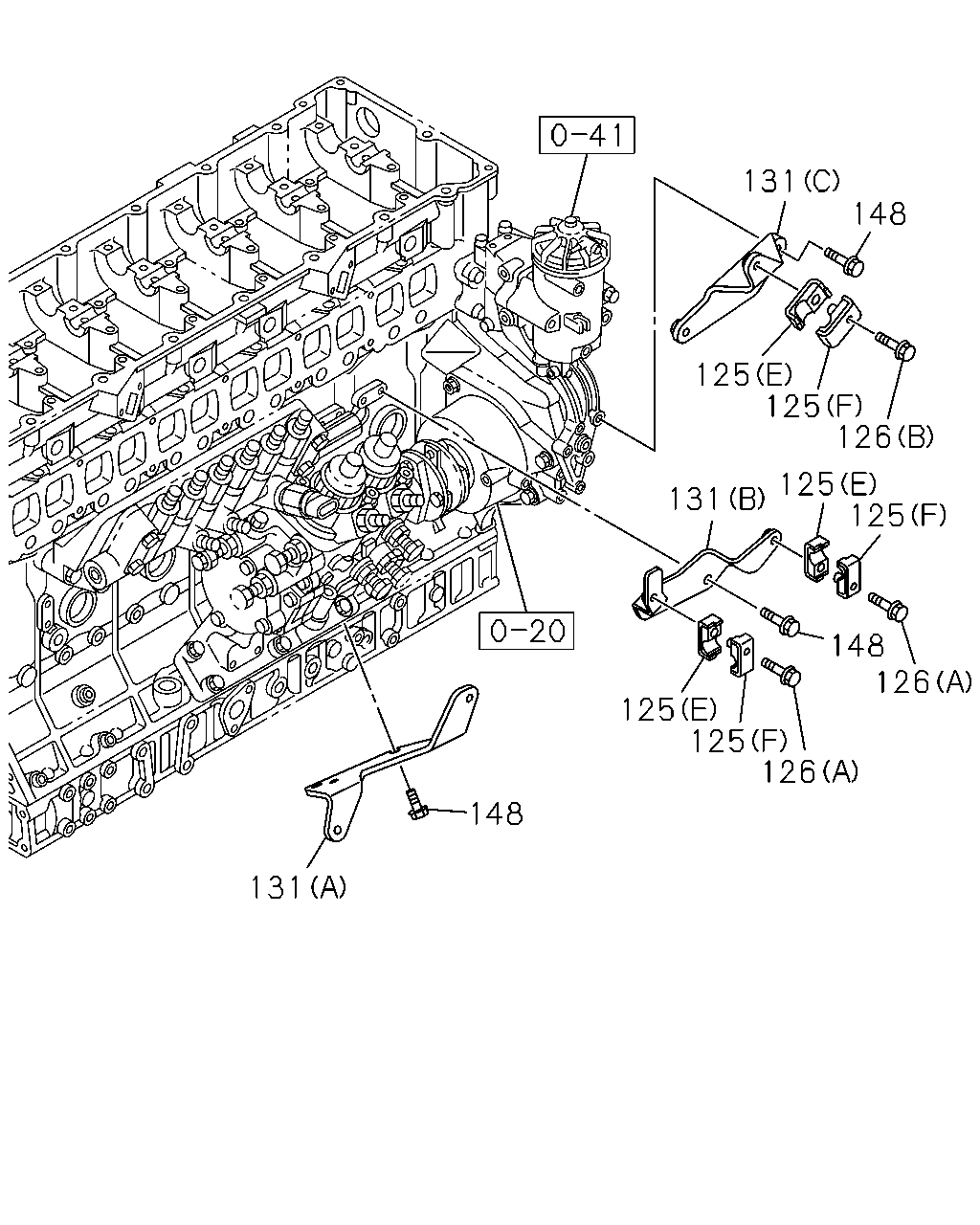

[042A] BRACKET (12 parça)
▶
123
150
221
150
150
150
190
119
107
123
126
125
125
125
126
125
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97627-768-0
01
1
1508-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97640-751-0
01
1
1508-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97619-458-0
01
1
1508-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-98201-694-0
01
1
1508-
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1508-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
01
1
1508-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
01
1
1508-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1508-
125
CLIP; FUEL PIPE
(E) ID=8 L=14
8-98060-970-0
02
1
1508-
125
CLIP; FUEL PIPE
(F) ID=8 L=14
8-98060-971-0
02
1
1508-
126
BOLT; CLIP,FUEL PIPE
(A) M6X35 FLANGE
0-28650-635-0
05
1
1508-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28650-640-0
01
1
1508-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
04
1
1508-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1508-
221
BOLT; FUEL PIPE
M14X27 FLANGE
1-09675-086-0
01
1
1508-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1508-
131
148
125
125
126
126
148
131
125
131
125
148
126
125
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
03
1
1508-
125
CLIP; FUEL PIPE
(B) ID=9 & 11 L=28
1-09701-193-1
01
1
1508-
125
CLIP; FUEL PIPE
(C) ID=9 & 11 L=28
1-09701-194-1
01
1
1508-
125
CLIP; FUEL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
03
1
1508-
125
CLIP; FUEL PIPE
(E) ID=8 L=14
8-98060-970-0
02
1
1508-
125
CLIP; FUEL PIPE
(F) ID=8 L=14
8-98060-971-0
02
1
1508-
126
BOLT; CLIP,FUEL PIPE
(A) M6X35 FLANGE
0-28650-635-0
05
1
1508-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28650-640-0
01
1
1508-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97605-982-1
01
1
1508-
131
BRACKET; FUEL PIPE CLIP
(C)
8-97624-140-0
01
1
1508-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97624-141-0
01
1
1508-
148
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
07
1
1508-
