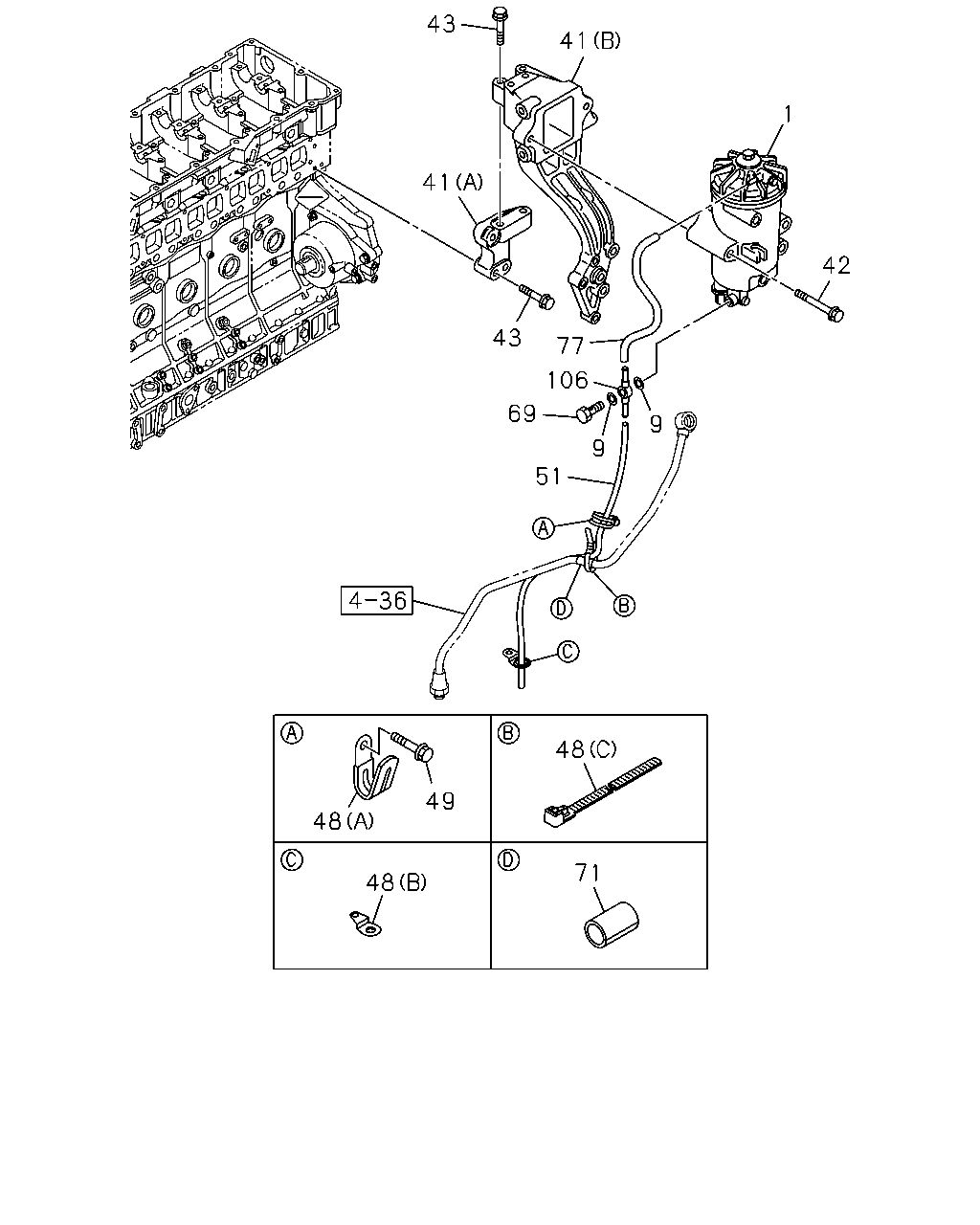

0-41 — FUEL FILTER AND BRACKET (#168118) — 27 parça

43 41 41 1 42 43 69 106 77 51 48 49 48 71 48 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	8-98258-162-0	01	1	1508-
9	GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1508-
41	BRACKET; FUEL FILTER (A)	8-97603-935-1	01	1	1508-
41	BRACKET; FUEL FILTER (B)	8-97619-260-0	01	1	1508-
42	BOLT; FUEL FILTER M12X100 FLANGE	0-28151-200-0	02	1	1508-
43	BOLT; BRKT M10X45 FLANGE	0-28151-045-0	07	1	1508-
48	CLIP; VINYL PIPE (A) ID=21 L=47.5	8-94178-108-0	01	1	1508-
48	CLIP; VINYL PIPE (C) L=250	8-98216-430-0	01	1	1508-
48	CLIP; VINYL PIPE (B)	9-11229-070-0	01	1	1508-
49	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	1508-
51	PIPE; VINYL L=600 SERVICED BY L=10000	9-09914-909-0	01	1	1508-
69	BOLT; EYE,FUEL FILTER M10X21 FLANGE	8-97372-239-0	01	1	1508-
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1508-
77	HOSE; FUEL FILTER	8-98118-453-0	01	1	1508-
106	PIPE; FUEL	8-98081-827-0	01	1	1508-

1 22 24 21 23 14 26 61 146 32 135 2 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	8-98258-162-0	01	1	1508-
2	ELEMENT KIT; FUEL FILTER	8-98116-662-0	01	1	1508-
14	SPRING; ELEMENT SUPPORT,FUEL FILTER	8-98116-657-0	01	1	1508-
21	COVER; UPR,FUEL FILTER	8-98116-653-0	01	1	1508-
22	BOLT; CENTER TUBE,COVER	8-98117-014-0	01	1	1508-
23	PLUG; COVER	8-98116-652-0	01	1	1508-
24	GASKET; CENTER TUBE BOLT	8-98116-655-0	01	1	1508-
26	GASKET; COVER TO BODY	8-98116-661-0	01	1	1508-
32	BOLT; DRAIN,FUEL FILTER	8-98116-652-0	01	1	1508-
61	SEAT; SPR ELEMENT	8-98116-658-0	01	1	1508-
135	SENSOR	8-98116-659-0	01	1	1508-
146	PLUG KIT; BODY	8-98195-093-0	01	1	1508-
