Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#168114) — 20 parça
◀

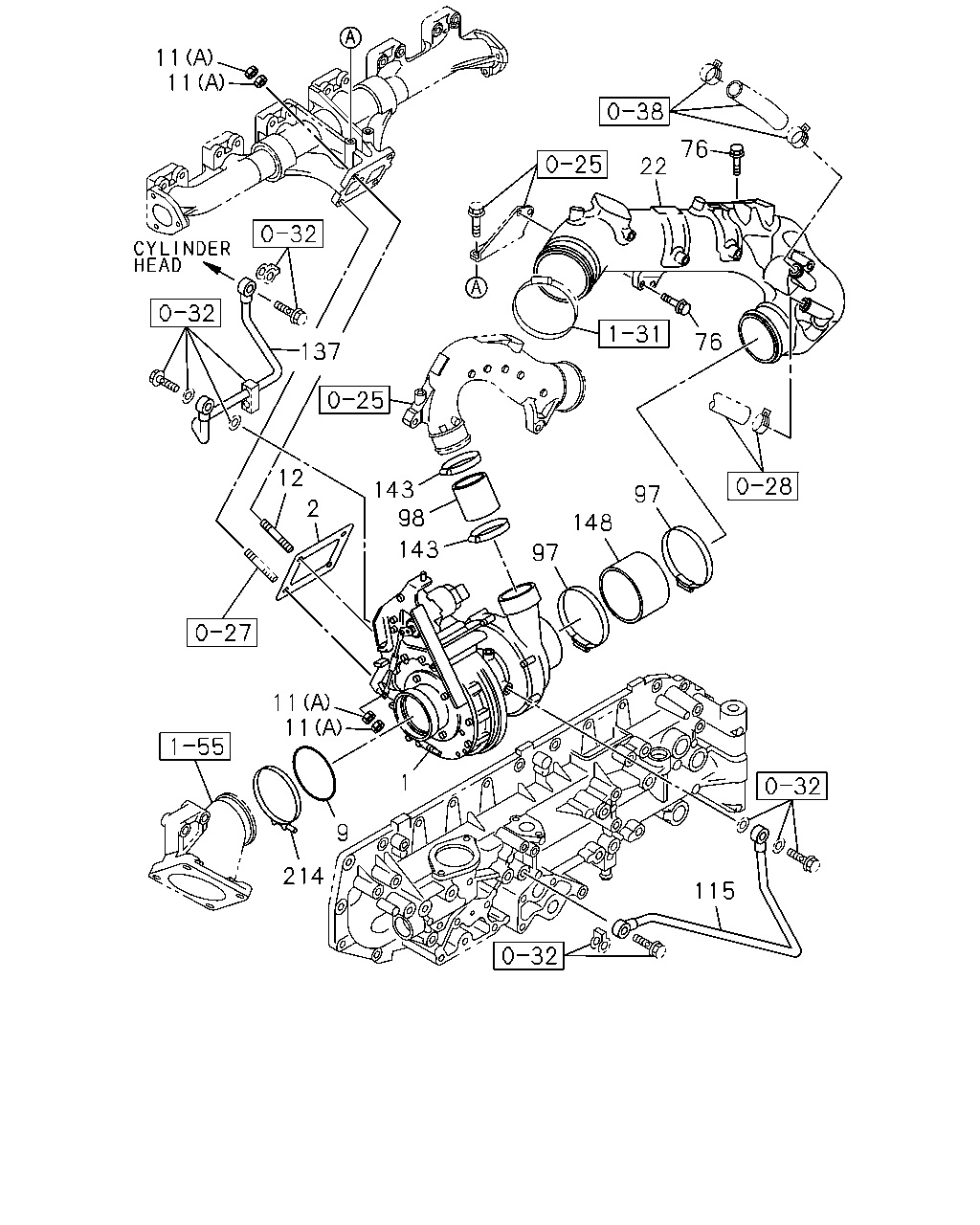

[036A] FIXING; TURBOCHARGER (15 parça)
[036A] FIXING; BRACKET (5 parça)
▶
11
11
137
12
2
143
143
98
11
11
214
9
1
115
97
148
97
76
22
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98284-258-0
01
1
1508-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1508-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1508-
11
NUT; TURBOCHARGER
(B) M6 FLANGE
0-91180-106-0
02
1
1508-
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
08
1
1508-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1508-
22
DUCT; INL,ACL TO TURBOCHARGER
8-98231-861-0
01
1
1508-
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
1508-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1508-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1508-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1508-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1508-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1508-
148
HOSE; TURBOCHARGER,INL
L=70
1-09360-913-0
01
1
1508-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1508-
11
309
309
527
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
NUT; TURBOCHARGER
(B) M6 FLANGE
0-91180-106-0
02
1
1508-
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
08
1
1508-
309
BOLT; TURBOCHARGER
(A) M6X20 FLANGE
0-28050-620-0
02
1
1508-
309
BOLT; TURBOCHARGER
(B) M8X30 FLANGE
0-28650-830-0
02
1
1508-
527
BRACKET; TURBOCHARGER
8-98108-364-0
01
1
1508-
