Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

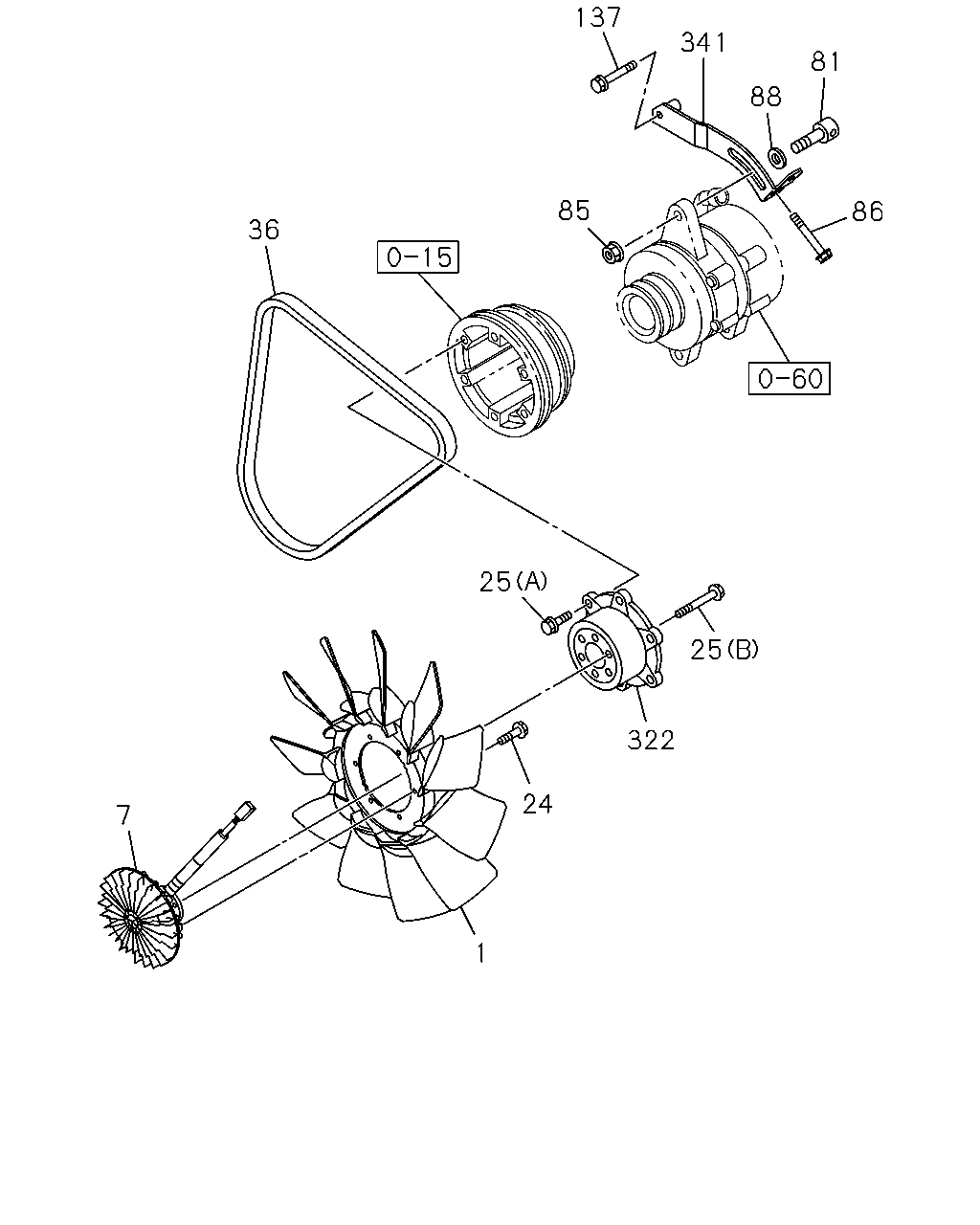

0-33 — FAN AND FAN BELT
(#168112) — 16 parça
137
341
88
81
86
85
36
25
25
322
24
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
8-98135-410-2
01
1
1508-
7
COUPLING; FAN
8-98317-675-0
01
1
1508-
24
BOLT; FAN
M8X16 FLANGE
0-28050-816-0
06
1
1508-
25
BOLT; ADAPTER
(A) M10X30 FLANGE
0-28161-030-0
06
1
1508-
25
BOLT; ADAPTER
(B) M10X75 FLANGE
8-94399-669-1
06
1
1508-
36
BELT; COOLING FAN
L=1241
8-97603-284-0
01
1
1508-
81
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45
1-13674-160-0
01
1
1508-
81
PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59
1-13674-161-0
01
1
1508-
85
NUT; AC GEN
M12 FLANGE
0-91180-112-0
01
1
1508-
86
BOLT; ADJ
M10X135
1-09009-113-1
01
1
1508-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
1508-
137
BOLT; TENSION
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X70 FLANGE
0-28151-270-0
01
1
1508-
137
BOLT; TENSION
GENERATOR 24V90A(K44) M12X60 FLANGE
0-28151-260-0
01
1
1508-
322
ADAPTER; COUPLING
8-97607-150-0
01
1
1508-
341
PLATE ASM; ADJUST
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
8-97632-243-0
01
1
1508-
341
PLATE ASM; ADJUST
GENERATOR 24V90A(K44)
8-97603-825-1
01
1
1508-
