Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#168109) — 26 parça
◀

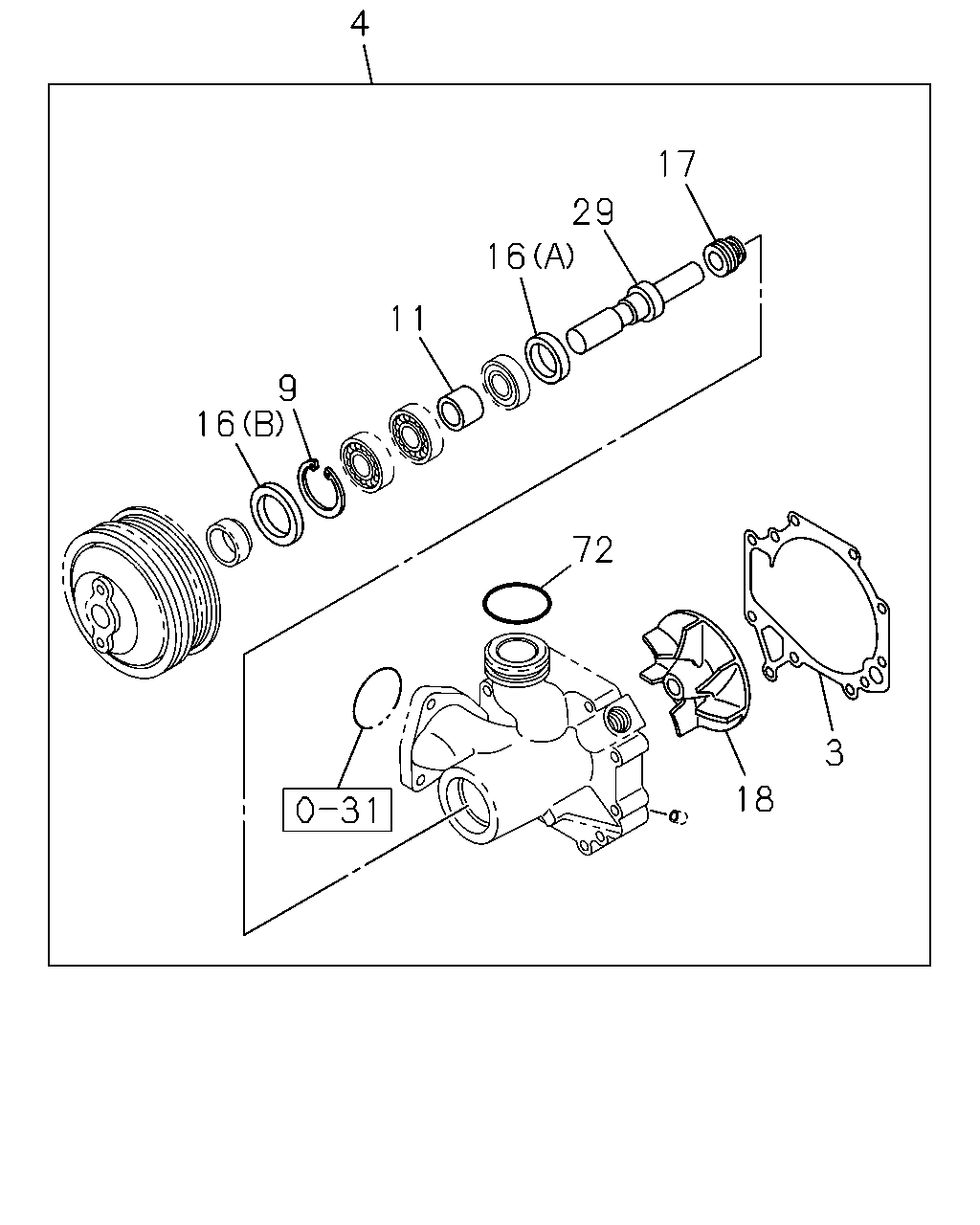

[030A] REPAIR KIT (10 parça)

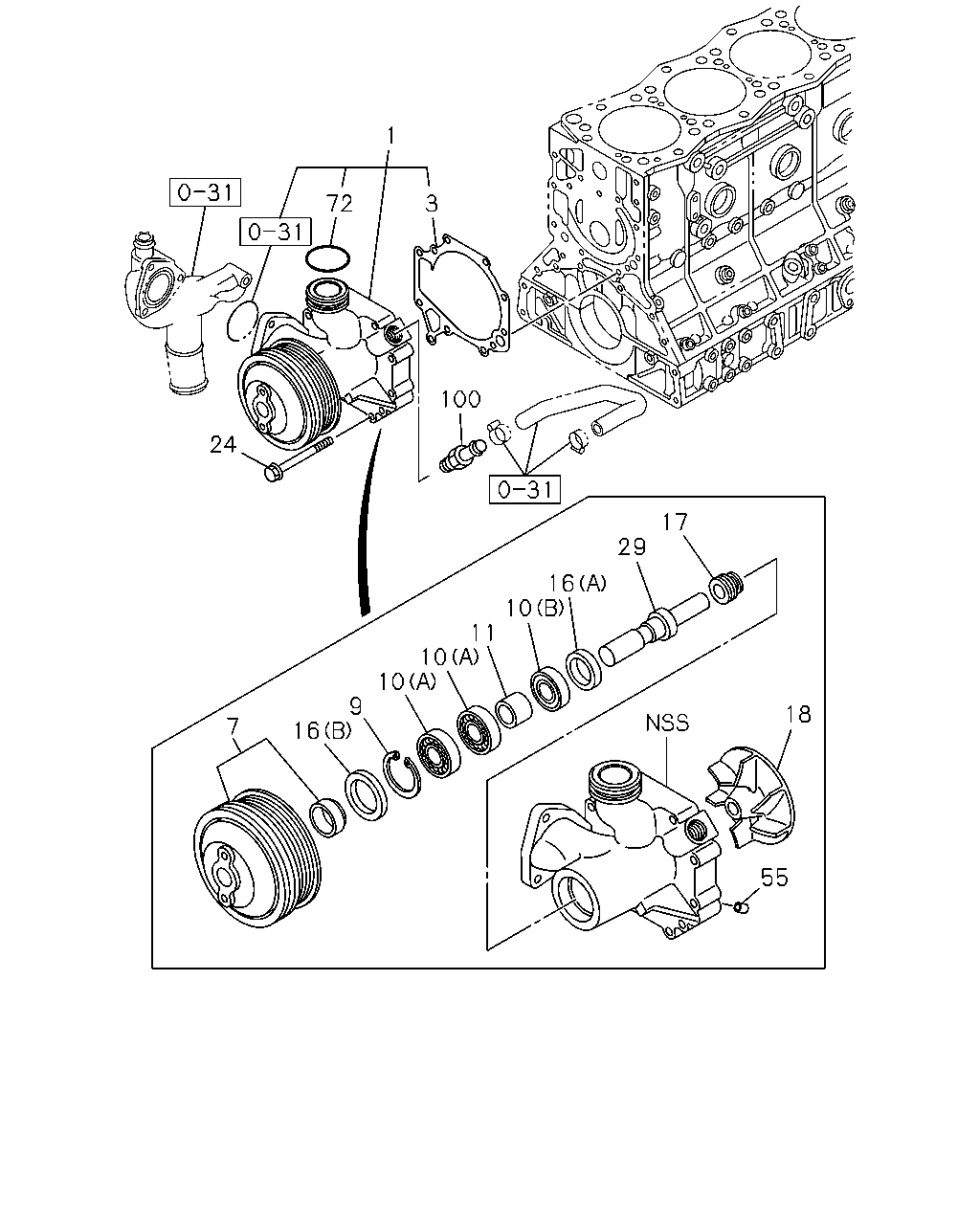

[030A] COMPONENT (16 parça)
▶
4
16
9
11
16
29
17
72
18
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-027-0
01
1
1508-
4
REPAIR KIT; WATER PUMP
1-87814-616-0
01
1
1508-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1508-
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
1508-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
1508-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
1508-
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1508-
18
IMPELLER; WATER PUMP
8-97605-265-0
01
1
1508-
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
1508-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=54.5
8-98236-254-0
01
1
1508-
1
72
24
100
17
29
16
10
11
10
10
9
16
18
55
3
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
1-87310-991-0
01
1
1508-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-027-0
01
1
1508-
7
PULLEY; WATER PUMP
8-97606-580-0
01
1
1508-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1508-
10
BEARING; WATER PUMP
(A)
1-09800-252-0
02
1
1508-
10
BEARING; WATER PUMP
(B)
8-97605-268-0
01
1
1508-
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
1508-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
1508-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
1508-
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1508-
18
IMPELLER; WATER PUMP
8-97605-265-0
01
1
1508-
24
BOLT; WATER PUMP
M10X45 FLANGE
0-28151-045-0
11
1
1508-
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
1508-
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
1508-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=54.5
8-98236-254-0
01
1
1508-
100
JOINT; HTR
8-98139-785-0
01
1
1508-
