11730 - CYJ NEW ZEALAND SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

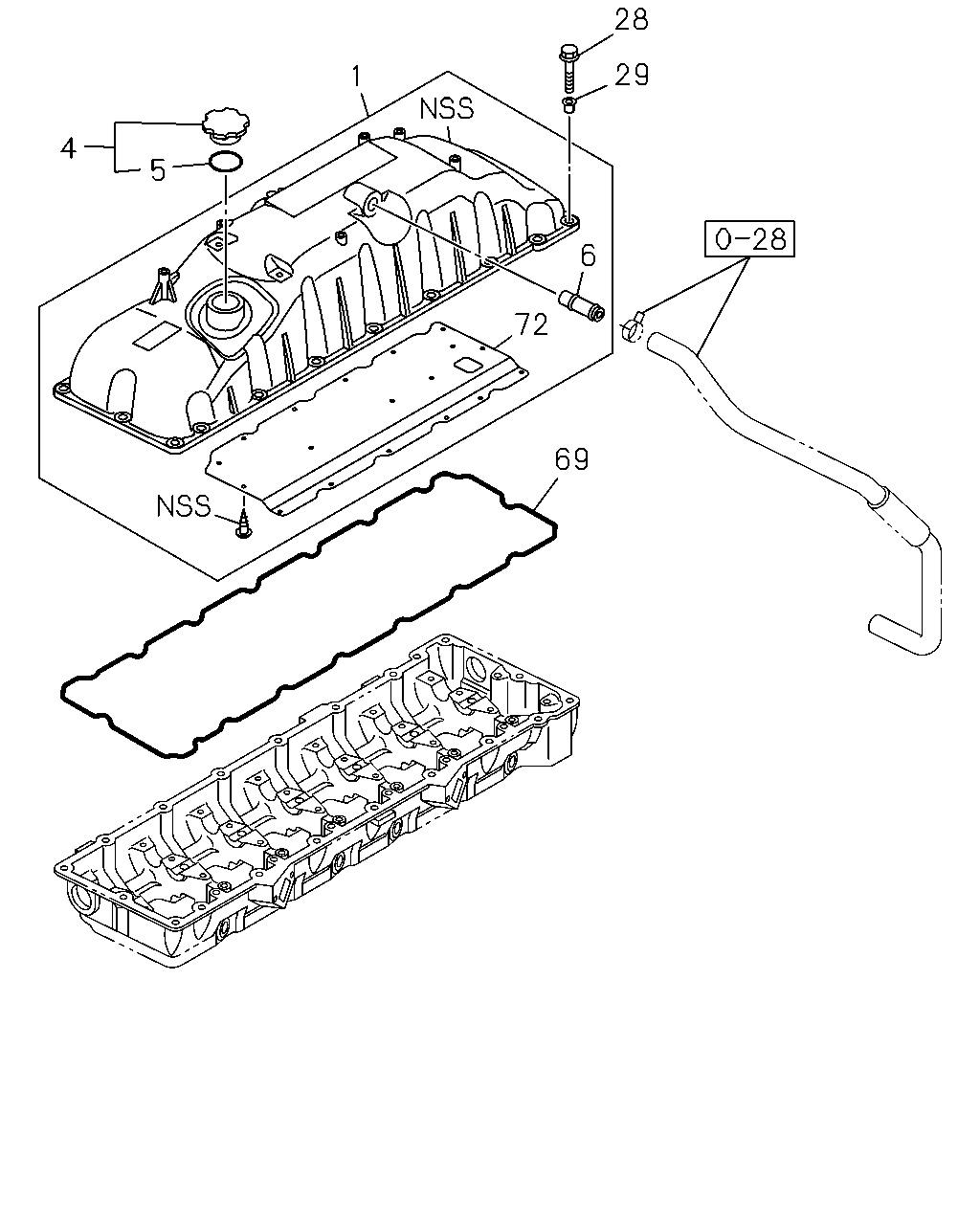

0-10 — CYLINDER HEAD COVER
(#168098) — 8 parça
4
5
1
28
29
6
72
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98114-535-2
01
1
1508-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1508-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1508-
6
PIPE; PCV HOSE
8-97603-427-1
01
1
1508-
28
BOLT; HD COVER
M8X35 FLANGE
0-28650-835-0
20
1
1508-
29
RUBBER; MTG,HD COVER
OD=22
8-94395-684-0
20
1
1508-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98114-538-0
01
1
1508-
72
PLATE; INNER HD COVER
8-98114-537-2
01
1
1508-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
