◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#168095) — 85 parça
çizim 498291
169 171 172 182 186 192 227 353
BalonParca AdiParca NoAdetTipApplied Date
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1508-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1508-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1508-
182 REMOVER ASM 1-85239-008-0 01 1 1508-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1508-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1508-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1508-
353 REPLACER KIT; BUSHING,V ROD
BUSH OD=62 		1-85230-016-0 01 1 1508-
353 REPLACER KIT; BUSHING,V ROD
BUSH OD=70 		1-85230-017-0 01 1 1508-
çizim 498292
405 407 408 408 408 408 408 408 453
BalonParca AdiParca NoAdetTipApplied Date
405 GUIDE; COUNTER 1-85221-264-0 01 1 1508-
407 SOCKET; SW 1-85221-267-1 01 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-262-0 02 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (D) 		1-85221-257-0 01 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (E) 		1-85221-259-0 01 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (F) 		1-85221-260-0 01 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (B) 		1-85221-268-0 01 1 1508-
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (C) 		1-85221-269-0 01 1 1508-
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 1508-

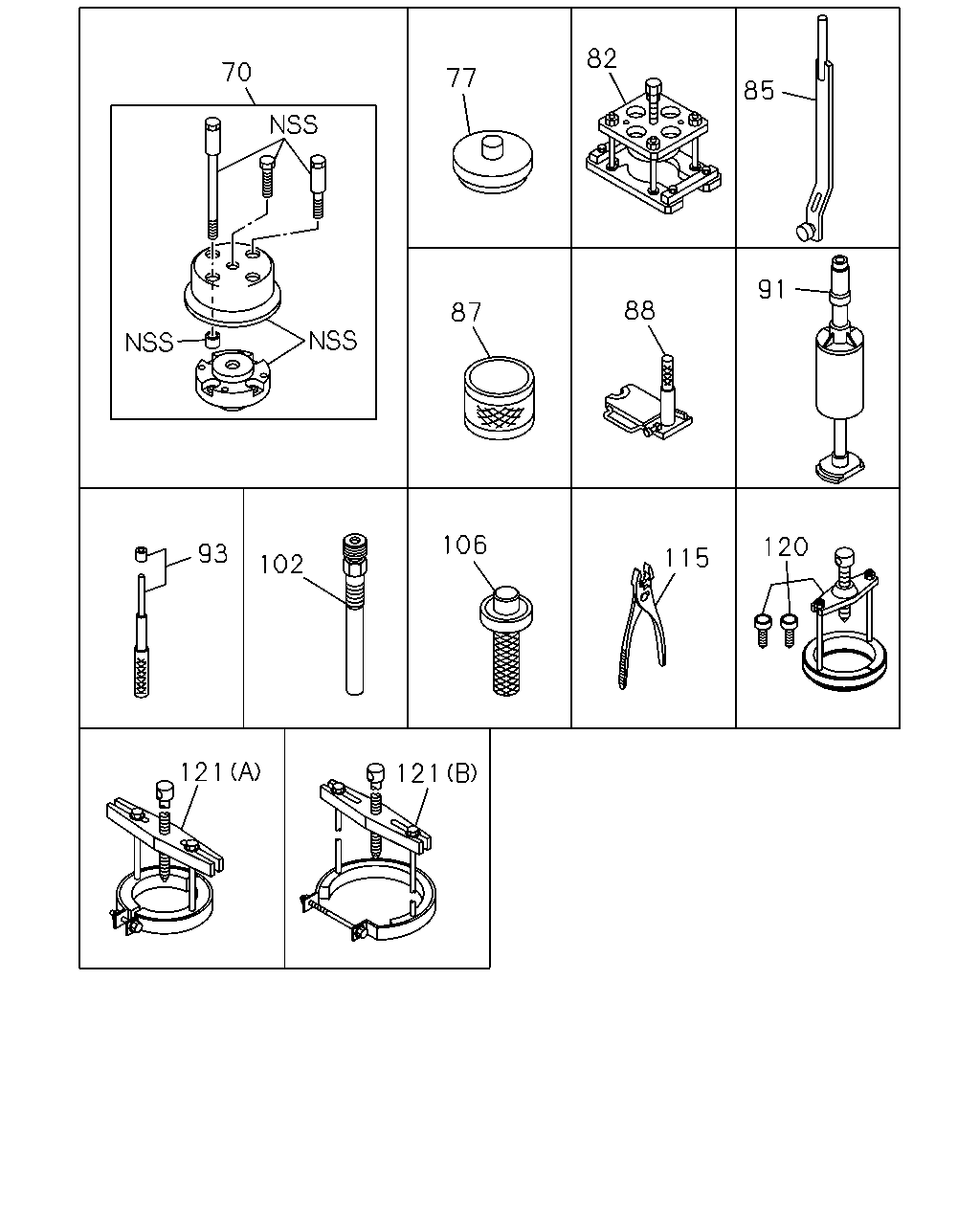

çizim 498359
121 121 120 115 106 102 93 91 88 87 85 82 77 70
BalonParca AdiParca NoAdetTipApplied Date
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 AR 1 1508-
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 1508-
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 1508-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 1508-
87 TOOL; PISTON 1-85221-082-0 01 1 1508-
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 1508-
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 1508-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 1508-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 1508-
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 1508-
115 PLIER 8-98282-845-0 01 1 1508-
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 1508-
121 PULLER ASM; COUNTER REAR
(B) 		1-85210-069-0 01 1 1508-
121 PULLER ASM; COUNTER REAR
MJT7U M/T(Y4X) (A) OD=146 		1-85210-074-0 01 1 1508-

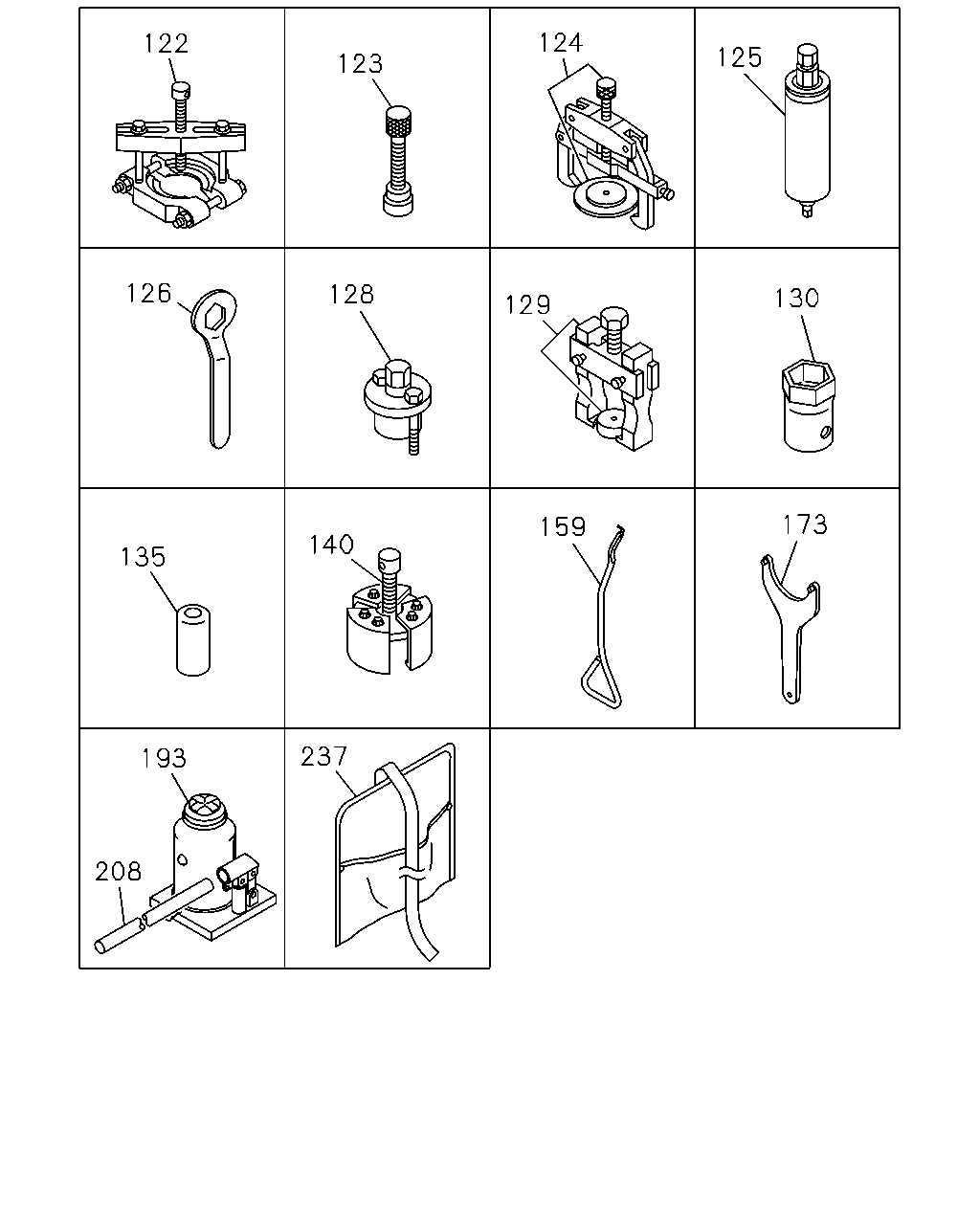

çizim 498366
122 123 124 125 126 128 129 130 135 140 159 173 193 208 237
BalonParca AdiParca NoAdetTipApplied Date
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 1508-
123 PULLER; SPEEDOMETER BUSHING
MJT7U M/T(Y4X) 		9-85210-091-0 01 1 1508-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1508-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1508-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1508-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 1508-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1508-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 1508-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1508-
140 REMOVER; WEAR RING 1-85210-053-0 01 1 1508-
159 REMOVER; RETURN SPR 1-85237-023-0 01 1 1508-
173 WRENCH; COUPLING DRIVER 9-85111-944-0 01 1 1508-
193 JACK ASM
15TON 		1-85510-020-2 01 1 1508-
208 HANDLE; JACK
AIR SUSP AIR TANK<NBY> L=642 		8-98153-670-0 01 1 1508-
208 HANDLE; JACK
EXC. AIR SUSP AIR TANK<NBY> L=600 		8-98181-437-0 01 1 1508-
237 BAG; TOOL 8-97130-902-1 01 1 1508-
çizim 498368
12 43 141 143 144 153 160 162 156 154 162 163 163 163 164 165
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1508-
43 BAR; EXTENSION,SOCKET WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1508-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 1508-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1508-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1508-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1508-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1508-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1508-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1508-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 1508-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 1508-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 1508-
163 TOOL; SETTING
MJT7U M/T(Y4X) (C) L=150 		1-85221-163-0 01 1 1508-
163 TOOL; SETTING
MJT7U M/T(Y4X) (A) OD=150 		1-85221-167-0 01 1 1508-
164 GUIDE; SNAP RING PILOT BRG 1-85176-001-0 01 1 1508-
165 SETTING TOOL; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-85221-177-0 01 1 1508-
çizim 498379
62 61 57 29 44 52 23 22 21 20 9 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
AIR SUSP AIR TANK<NBY> L=815 		8-98153-732-0 01 1 1508-
1 HANDLE; SPARE TIRE CARRIER
EXC. AIR SUSP AIR TANK<NBY> L=730 		9-23110-018-0 01 1 1508-
9 WRENCH; WHEEL PIN 8-98316-700-0 01 1 1508-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1508-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1508-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1508-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1508-
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1508-
44 STOPPER; TIRE
PARKING BRAKE - BRAKE LOCK(6LL) 		8-98040-334-0 02 1 1508-
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 1508-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 1508-
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 1508-
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 1508-
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 1508-
çizim 498398
273 417 425 445 447
BalonParca AdiParca NoAdetTipApplied Date
273 PLUG; DUMMY HOLE 1-73317-480-0 02 1 1508-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1508-
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=500 		8-98300-004-0 01 1 1508-
425 EXTENSION; T/M
MJX12P M/T SMOOTHER-G(Y4S) L=550 		8-98300-006-0 01 1 1508-
445 PULLER ATTACHMENT
MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM RETARDER<RE2> 		1-85221-334-0 02 1 1508-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=65 OD=90 L=65 		8-97608-200-0 01 1 1508-
447 REPLACER KIT; BUSH,STABILIZER BAR
ID=43.1 OD=48.6 L=65 		8-97608-274-0 01 1 1508-
