Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

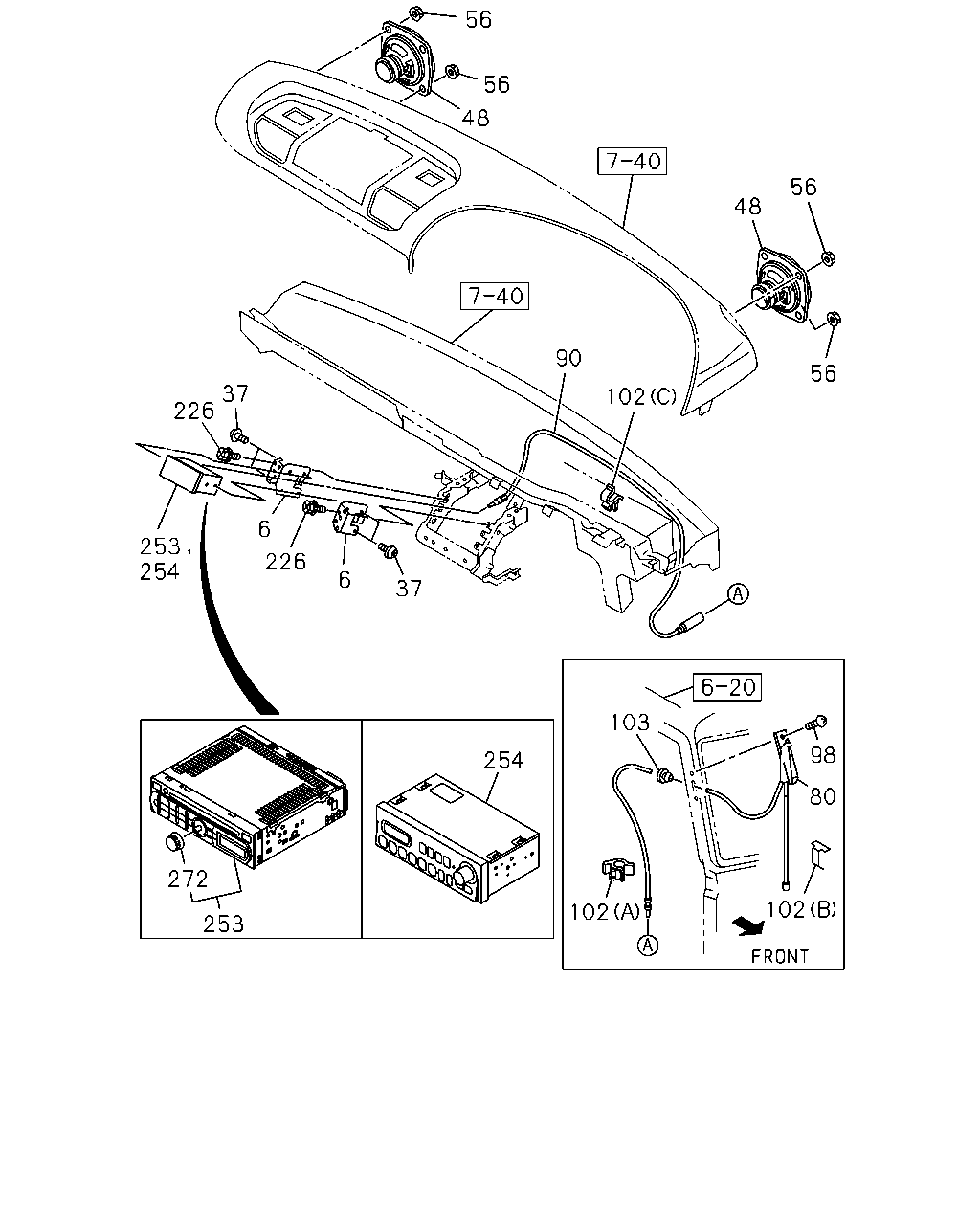

8-90 — RADIO AND TV
(#168094) — 15 parça
56
56
48
48
56
56
102
90
37
6
226
6
37
226
253
254
272
253
254
103
98
80
102
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
1508-
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO CD(UT3),RADIO AM/FM(U69) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1508-
48
SPEAKER; AUDIO
8-98140-326-1
02
1
1508-
56
NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE
1-09984-170-0
04
1
1508-
80
ANTENNA
8-98210-874-1
01
1
1508-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
1508-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
1508-
102
CLIP; CABLE
(B) L=20 SET=10 PIECE
1-09987-246-2
01
1
1508-
102
CLIP; CABLE
(A) ID=4.8
1-73907-618-0
05
1
1508-
102
CLIP; CABLE
(C) ID=4.8
8-94128-483-0
03
1
1508-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
1508-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
1508-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3)
8-97611-724-0
01
1
1508-
254
RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM(U69) CLARION AM/FM RADIO
8-98029-146-0
01
1
1508-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION
8-98048-329-0
01
1
1508-
