◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#168093) — 96 parça

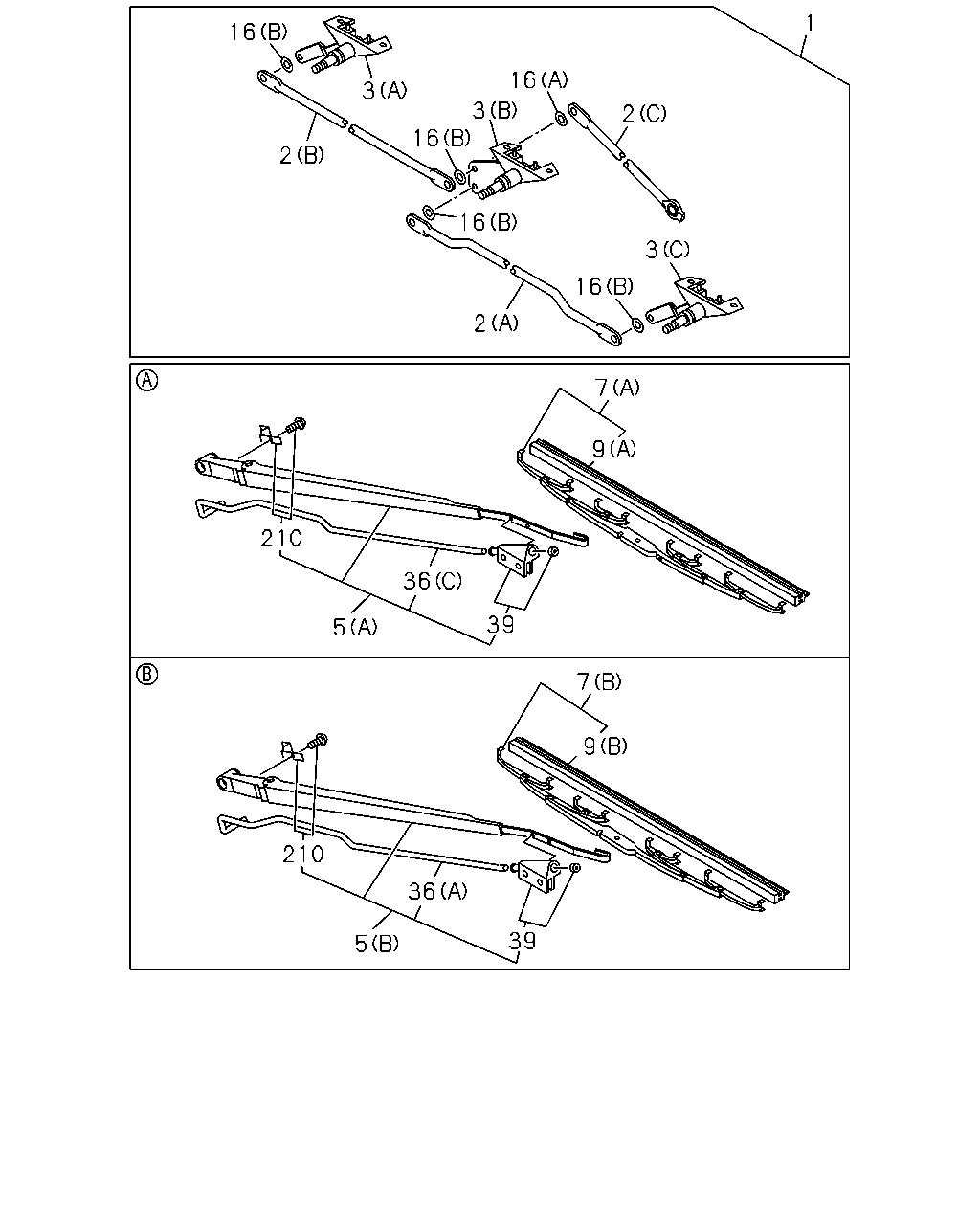

çizim 498370
1 2 16 3 16 3 16 2 16 2 16 3 7 9 39 36 5 210 210 5 36 39 9 7
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 1508-
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 1508-
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 1508-
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 1508-
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-104-0 01 1 1508-
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-105-0 01 1 1508-
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-106-0 01 1 1508-
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 1508-
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 1508-
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 1508-
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 1508-
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 1508-
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 1508-
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 1508-
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 1508-
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 1508-
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 1508-
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 1508-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 1508-
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 1508-
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 1508-
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 1508-

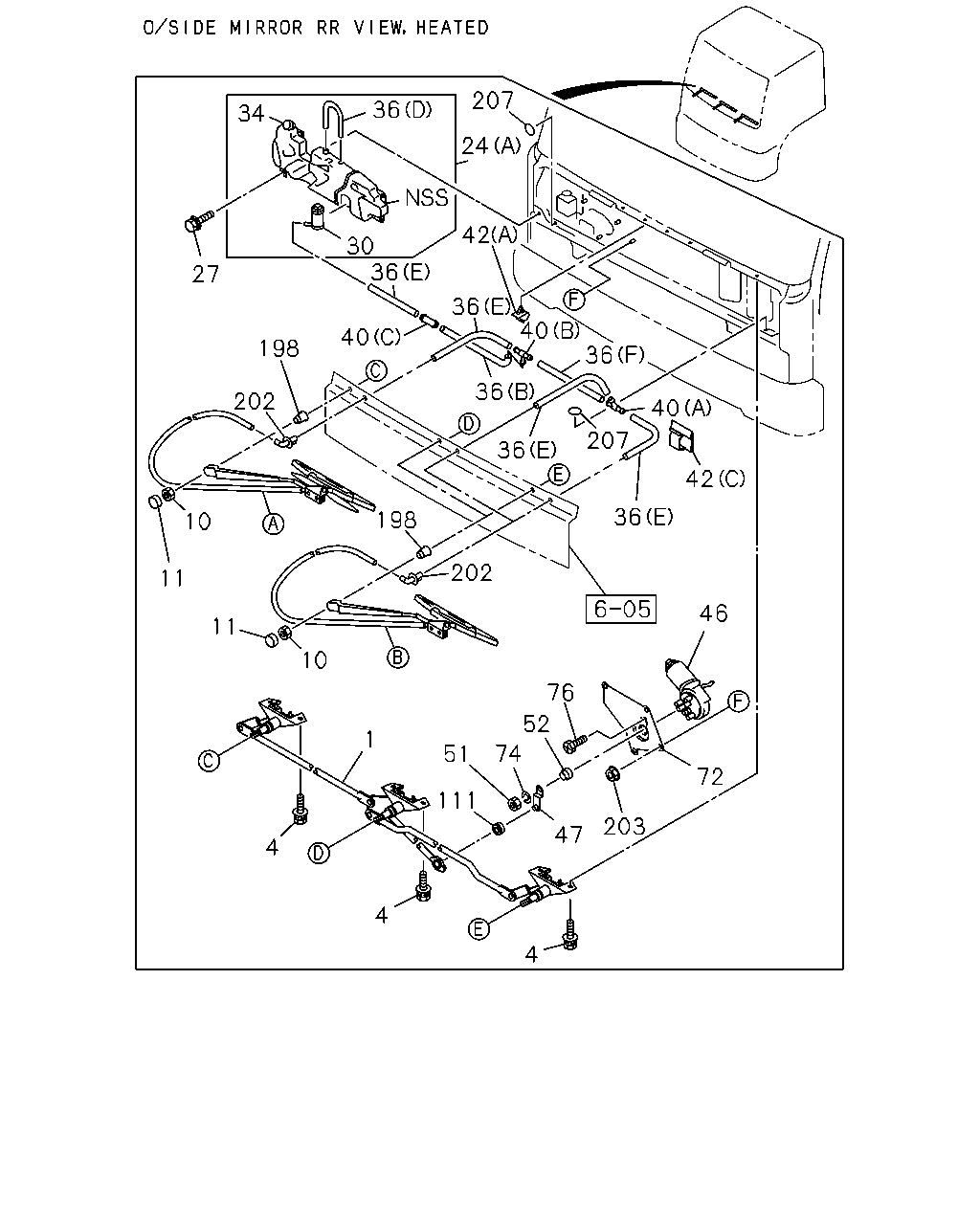

çizim 498517
207 24 36 34 30 42 36 40 198 27 202 10 11 11 10 1 4 4 111 51 74 76 72 203 47 4 46 42 36 36 207 40 36 36 40 36 198 202 52
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 1508-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1508-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1508-
11 COVER; WIPER ARM 1-86810-028-0 03 1 1508-
24 TANK ASM; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-86815-001-7 01 1 1508-
24 TANK ASM; WASHER
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-86815-013-7 01 1 1508-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 1508-
30 MOTOR ASM; FRT WASHER TANK
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-86815-016-1 02 1 1508-
30 MOTOR ASM; FRT WASHER TANK
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-86815-016-1 01 1 1508-
34 CAP; WASHER TANK 1-86815-018-0 01 1 1508-
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 1508-
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 1508-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 1508-
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 1508-
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 1508-
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 1508-
40 JOINT; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 3WAY 		1-83338-005-0 01 1 1508-
40 JOINT; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 3WAY 		1-83338-005-0 01 1 1508-
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 1508-
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 1508-
42 CLIP; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-94144-956-0 02 1 1508-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1508-
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 1508-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 1508-
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 1508-
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 1508-
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 1508-
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 1508-
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 1508-
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 1508-
202 GROMMET; WIPER 1-86815-003-2 03 1 1508-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1508-
207 SEAL; HOLE
O/SIDE MIRROR RR VIEW,HEATED<7SV> OD=25 BLACK 		1-76798-019-0 02 1 1508-

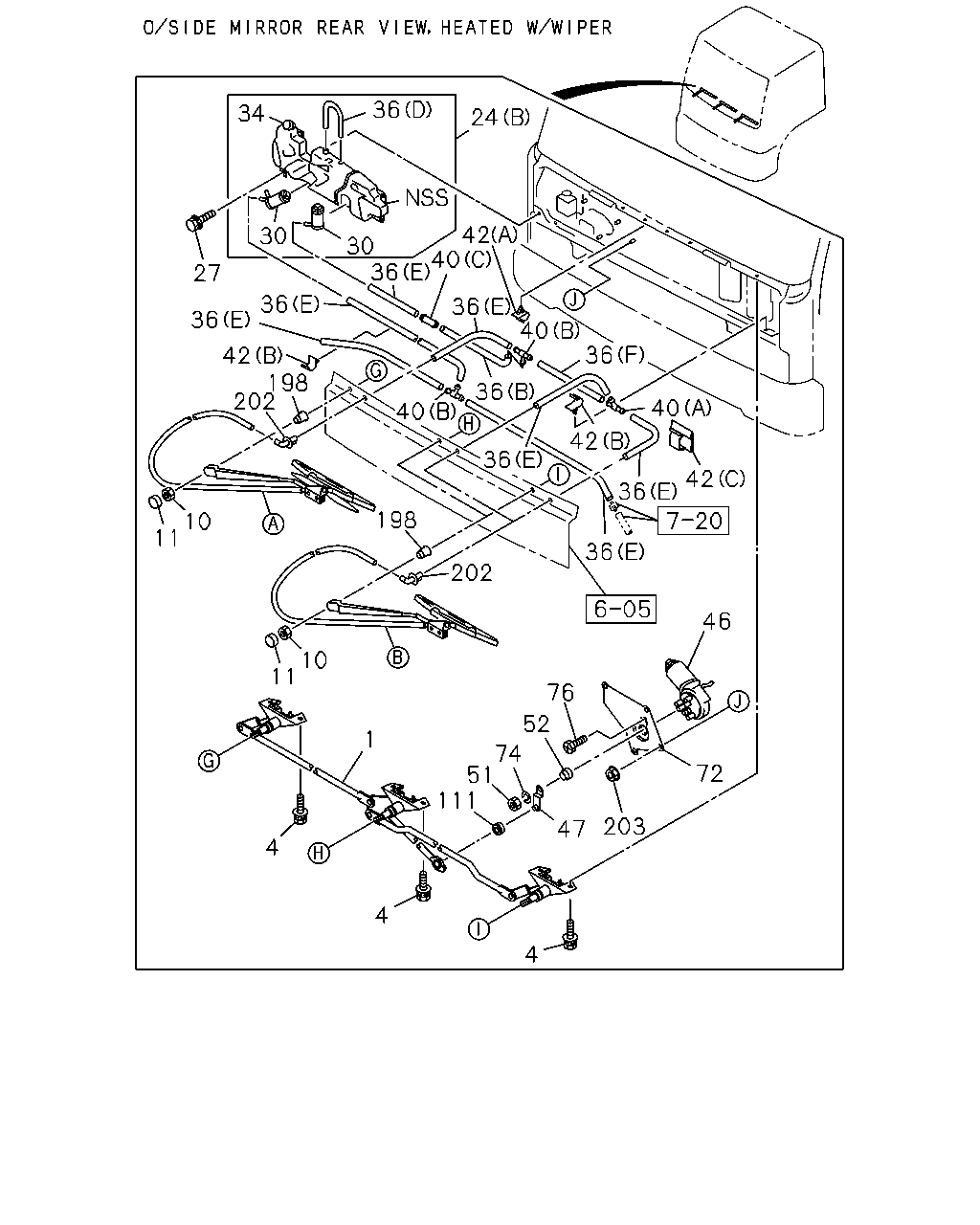

çizim 498561
36 24 34 30 27 36 36 30 36 40 42 36 40 40 36 36 40 42 36 42 36 198 202 36 202 198 42 10 11 10 11 1 4 4 4 47 203 72 46 76 52 74 51 111
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 1508-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1508-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1508-
11 COVER; WIPER ARM 1-86810-028-0 03 1 1508-
24 TANK ASM; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		1-86815-001-7 01 1 1508-
24 TANK ASM; WASHER
O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) 		1-86815-013-7 01 1 1508-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 1508-
30 MOTOR ASM; FRT WASHER TANK
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 		1-86815-016-1 02 1 1508-
30 MOTOR ASM; FRT WASHER TANK
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		1-86815-016-1 01 1 1508-
34 CAP; WASHER TANK 1-86815-018-0 01 1 1508-
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 1508-
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 1508-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 1508-
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 1508-
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
36 HOSE; WASHER
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 1508-
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 1508-
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 1508-
40 JOINT; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) 3WAY 		1-83338-005-0 01 1 1508-
40 JOINT; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 3WAY 		1-83338-005-0 01 1 1508-
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 1508-
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 1508-
42 CLIP; WASHER HOSE
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-94144-956-0 02 1 1508-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1508-
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 1508-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 1508-
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 1508-
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 1508-
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 1508-
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 1508-
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 1508-
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 1508-
202 GROMMET; WIPER 1-86815-003-2 03 1 1508-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1508-
