◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#168088) — 39 parça

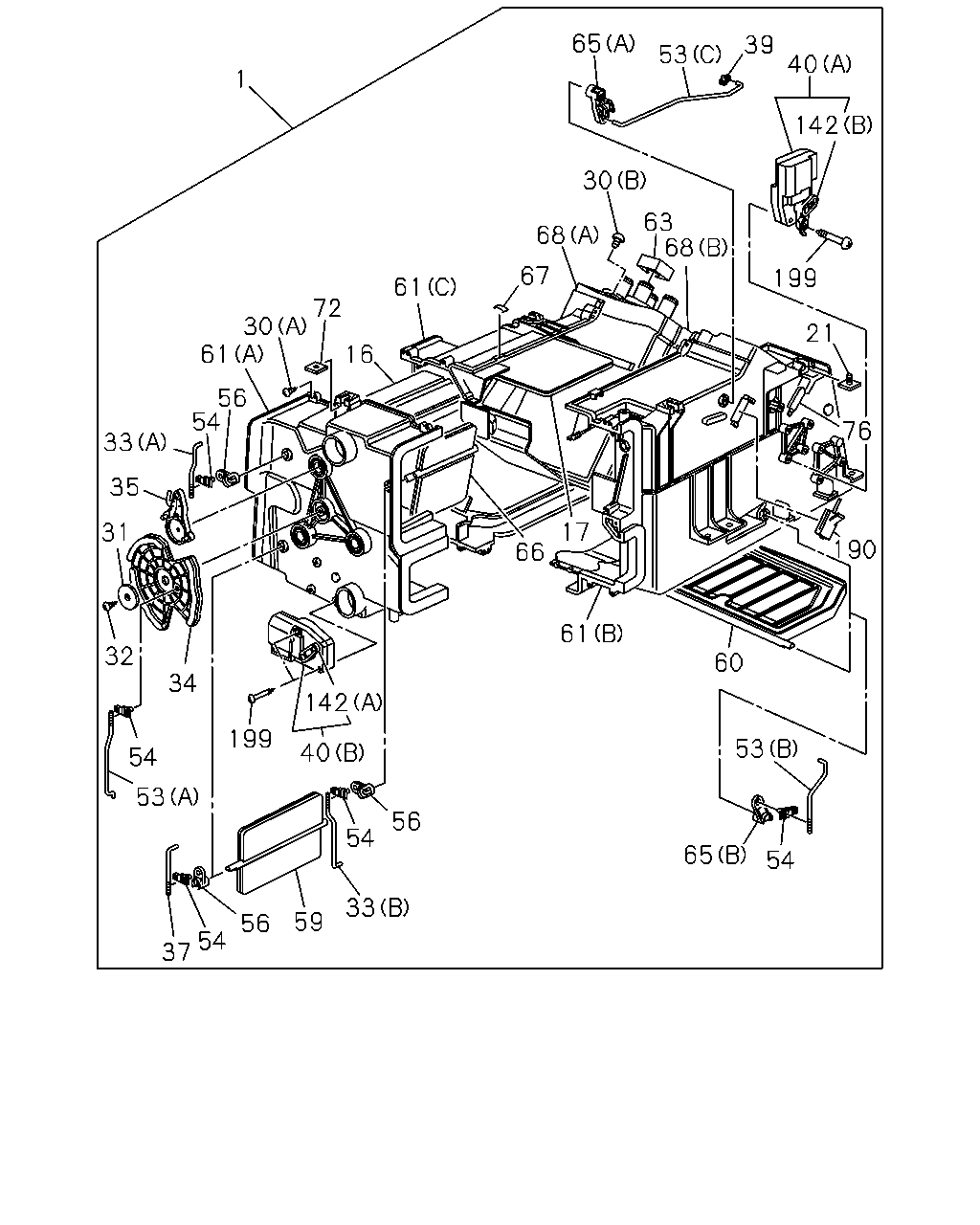

çizim 498468
190 53 65 54 60 61 66 17 76 21 199 68 63 30 68 67 61 16 72 30 61 54 56 33 35 31 32 34 54 53 37 59 54 33 54 56 199 142 40 56 65 39 53 40 142 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-485-0 01 1 1508-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1508-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1508-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1508-
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1508-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1508-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1508-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1508-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1508-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1508-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1508-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1508-
37 ROD; LEVER 1-83579-620-1 01 1 1508-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1508-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1508-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1508-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1508-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1508-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1508-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1508-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1508-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1508-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1508-
61 CASE; HTR UNIT
(C) 		1-83564-348-3 01 1 1508-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1508-
61 CASE; HTR UNIT
(B) 		1-83564-403-0 01 1 1508-
63 LINING; HTR UNIT 1-83579-557-0 04 1 1508-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1508-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1508-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1508-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1508-
68 CORE; HTR UNIT
(A) 		8-98238-475-0 01 1 1508-
68 CORE; HTR UNIT
(B) 		8-98238-731-0 01 1 1508-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1508-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1508-
142 LEVER; ACTUATOR
(A) 		1-83564-345-1 01 1 1508-
142 LEVER; ACTUATOR
(B) 		1-83564-414-0 01 1 1508-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1508-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1508-
