◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#168086) — 17 parça

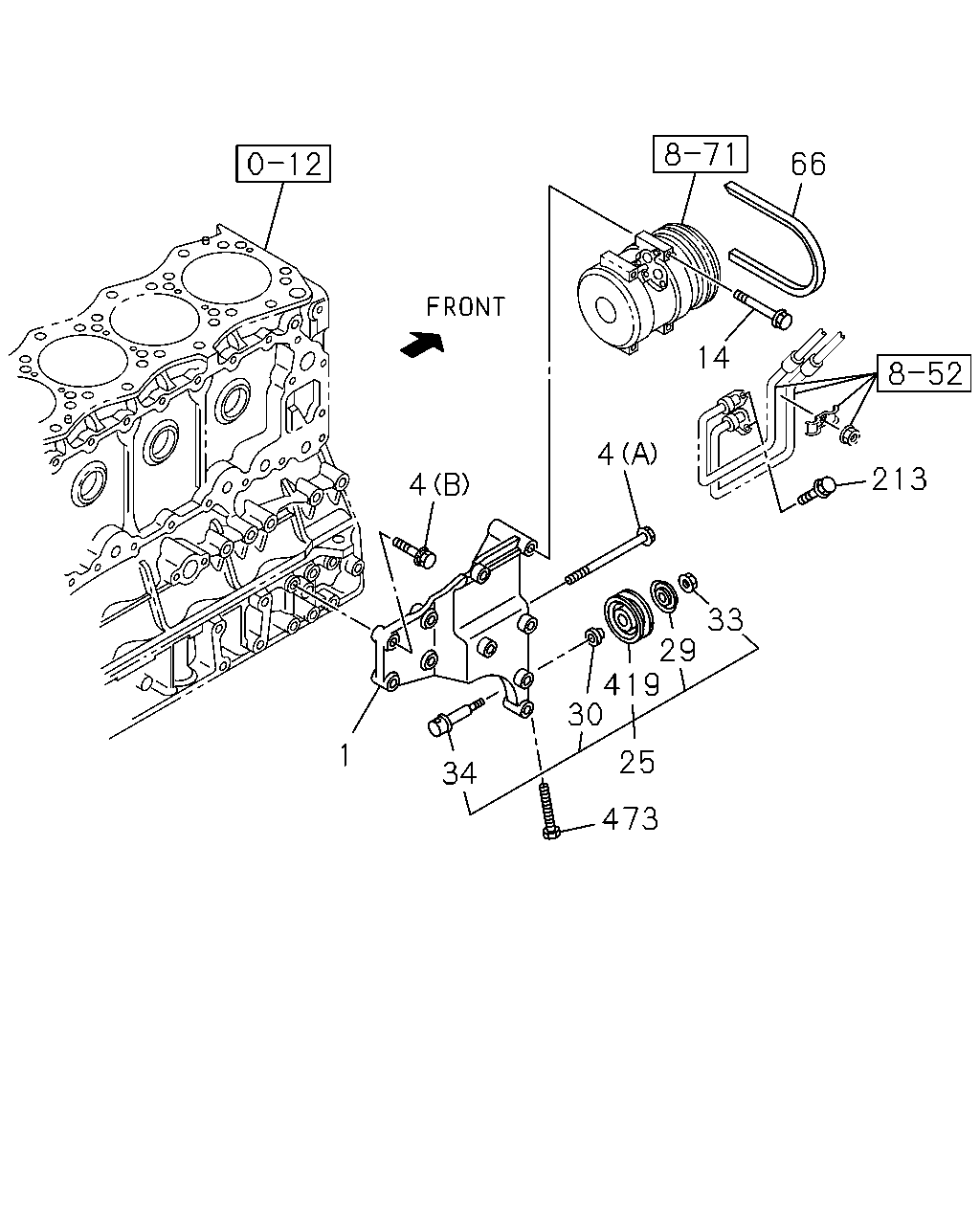

çizim 498360
33 29 419 30 25 473 34 1 4 66 14 4 213
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C 8-97632-242-1 01 1 1508-
4 BOLT; A/C CMPR BRKT
(B) M10X45 FLANGE 		0-28151-045-0 04 1 1508-
4 BOLT; A/C CMPR BRKT
(A) M10X150 FLANGE 		0-28156-015-0 01 1 1508-
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 1508-
25 PULLEY ASM; IDLER,CMPR 8-97603-949-0 01 1 1508-
29 COVER; DUST,IDLE PULLEY 1-83578-100-0 01 1 1508-
30 COLLAR; IDLE PULLEY 1-87540-319-0 01 1 1508-
33 NUT; IDLER PULLEY 1-83579-985-0 01 1 1508-
34 SHAFT; IDLE PULLEY 1-83579-982-0 01 1 1508-
66 BELT; A/C CMPR
L=1274 		8-98204-691-0 01 1 1508-
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE 		0-28050-625-0 02 1 1508-
419 PULLEY; IDLE 1-87540-322-0 01 1 1508-
473 BOLT; TENSIONER
M8X80 FLANGE 		1-09044-091-0 01 1 1508-

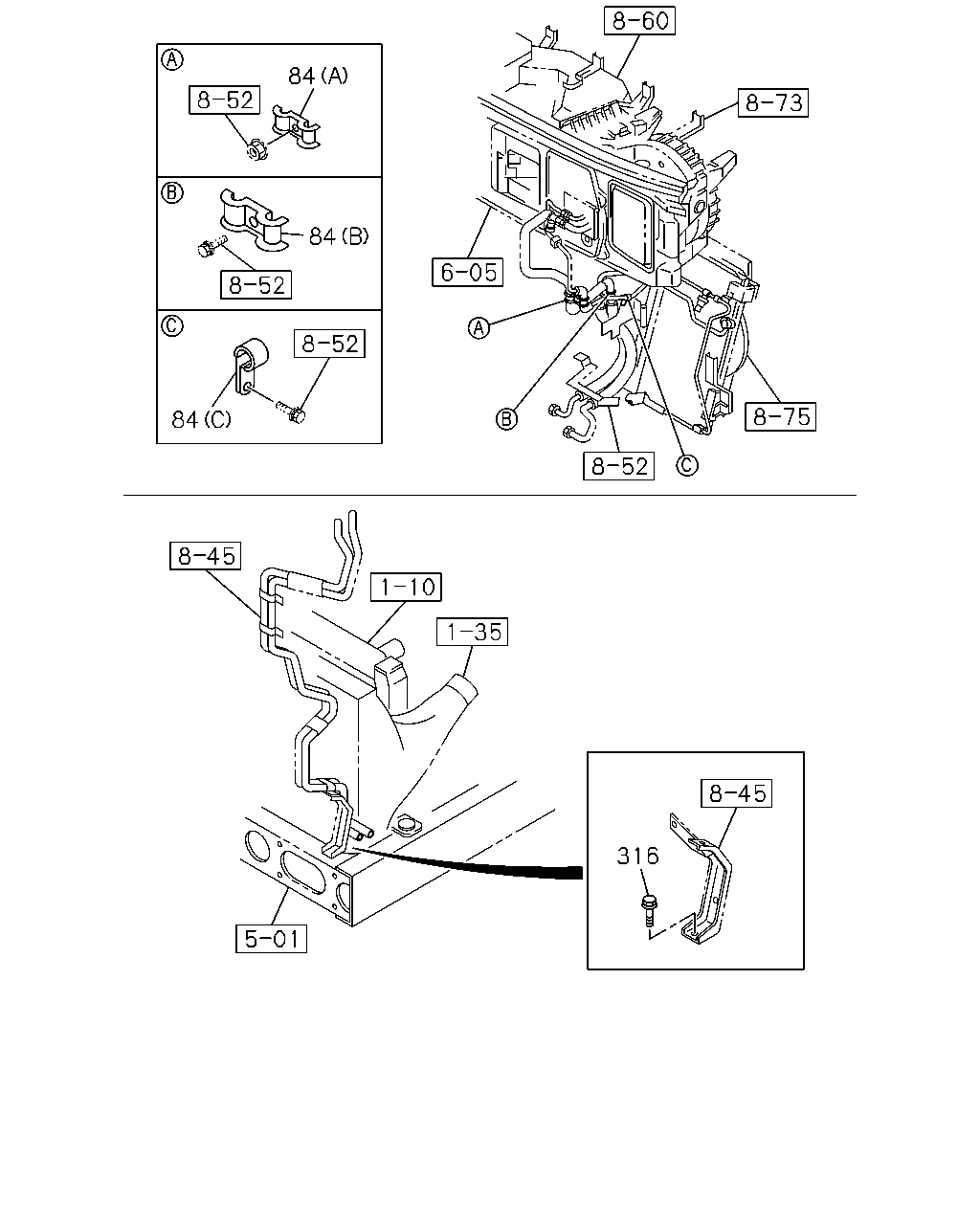

çizim 498508
84 316 84 84
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
(C) ID=9 L=20 		0-95234-835-0 01 1 1508-
84 CLIP; PIPE
(A) ID=12.2 & 16.2 		1-83574-190-0 01 1 1508-
84 CLIP; PIPE
(B) ID=20 & 20 		1-83574-195-1 01 1 1508-
316 BOLT; BRKT FIX
M8X18 FLANGE 		0-28080-818-0 01 1 1508-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
