Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11730 - CYJ NEW ZEALAND SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

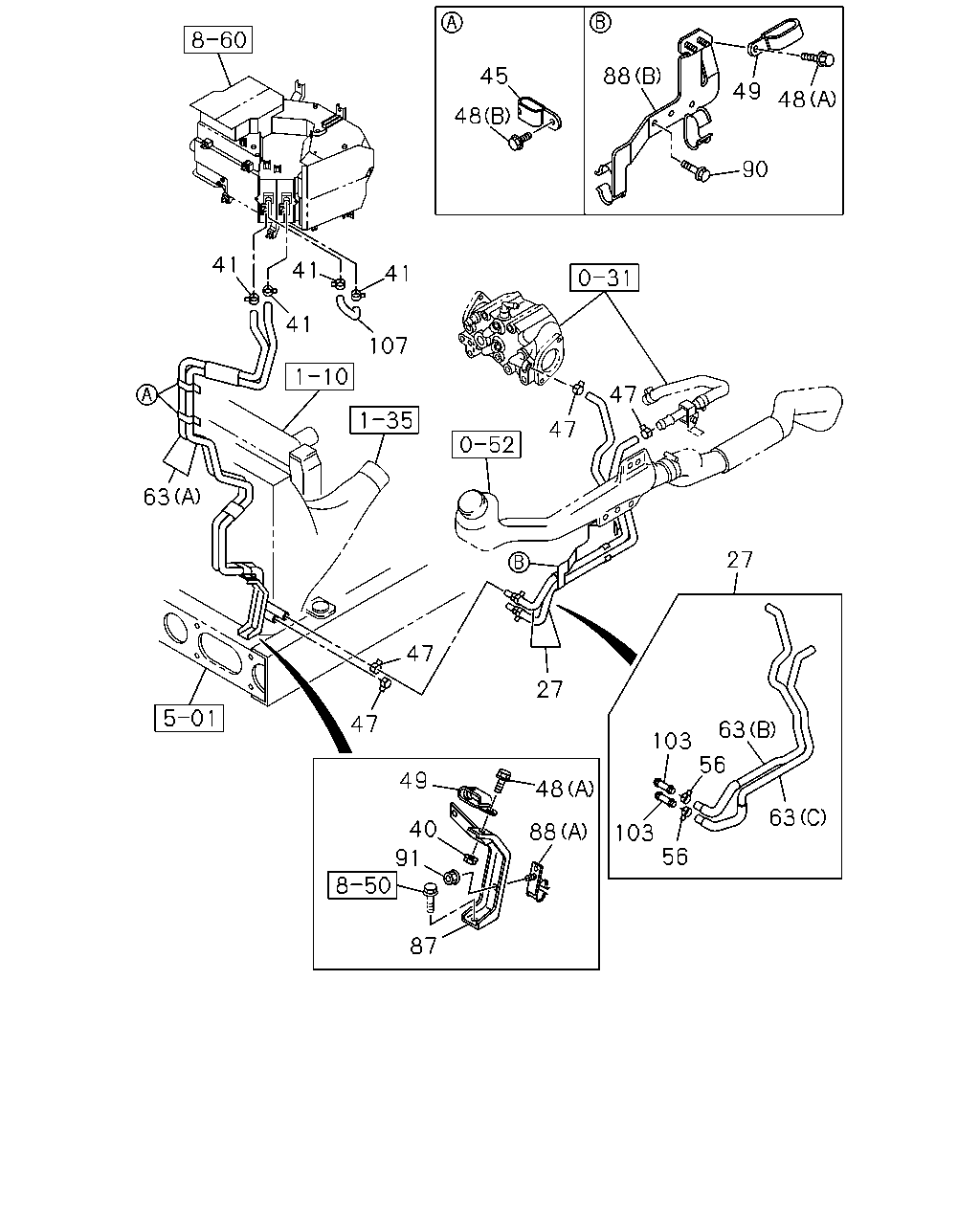

8-45 — HEATER PIPING
(#168085) — 20 parça
90
48
49
88
45
48
41
41
41
41
63
107
47
47
27
63
63
56
103
103
56
88
48
27
40
49
47
47
91
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-97635-189-1
01
1
1508-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1508-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1508-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1508-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
1508-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1508-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1508-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1508-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
02
1
1508-
56
CLAMP; HTR HOSE
ID=22
8-94382-401-0
02
1
1508-
63
HOSE; WATER
(A)
8-98147-764-2
01
1
1508-
63
HOSE; WATER
(B)
8-98167-193-0
01
1
1508-
63
HOSE; WATER
(C)
8-98167-194-0
01
1
1508-
87
BRACKET; HTR HOSE CLIP
8-97628-984-1
01
1
1508-
88
STAY; WATER HOSE
(A)
8-97628-987-0
01
1
1508-
88
STAY; WATER HOSE
(B)
8-98163-443-0
01
1
1508-
90
BOLT; STAY
M8X20 FLANGE
0-28650-820-0
02
1
1508-
91
NUT; STAY,HTR HOSE
M8 FLANGE
0-91180-108-0
01
1
1508-
103
CONNECTOR; HOSE
9-09703-048-0
02
1
1508-
107
HOSE; WATER,HTR
1-83565-497-0
01
1
1508-
