Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#168084) — 63 parça

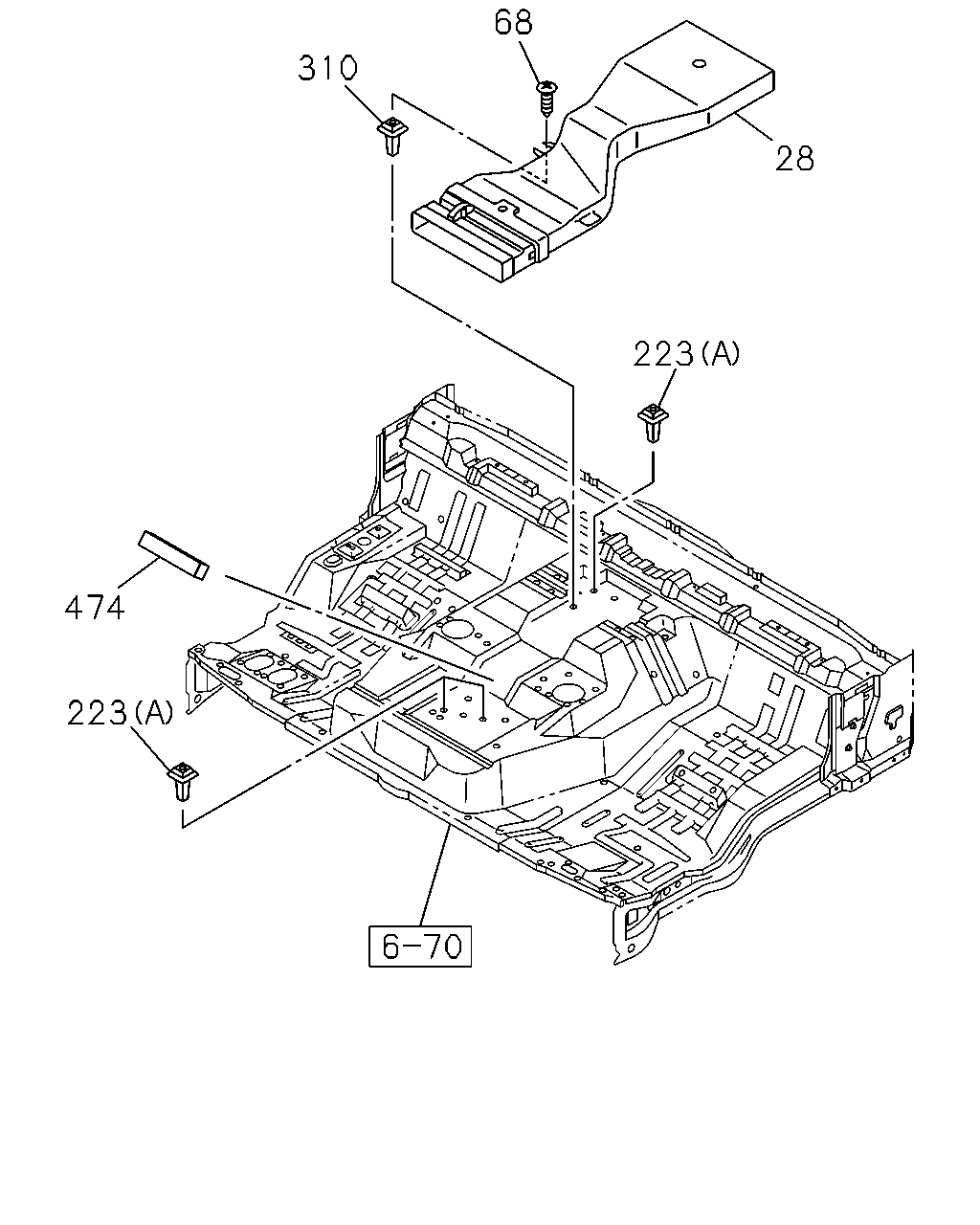

223 28 68 310 474 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	DUCT; AIR,VENTILATOR	1-76377-222-0	01	1	1508-
68	SCREW; HTR DUCT M5X16 TAPPING W/PL WASHER	0-74165-516-0	01	1	1508-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	1508-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1508-
310	GROMMET; HTR DUCT D=7.8X7.8 L=18 NATURAL	8-94279-043-0	01	1	1508-
474	SPACER; DUCT	1-76377-229-1	01	1	1508-

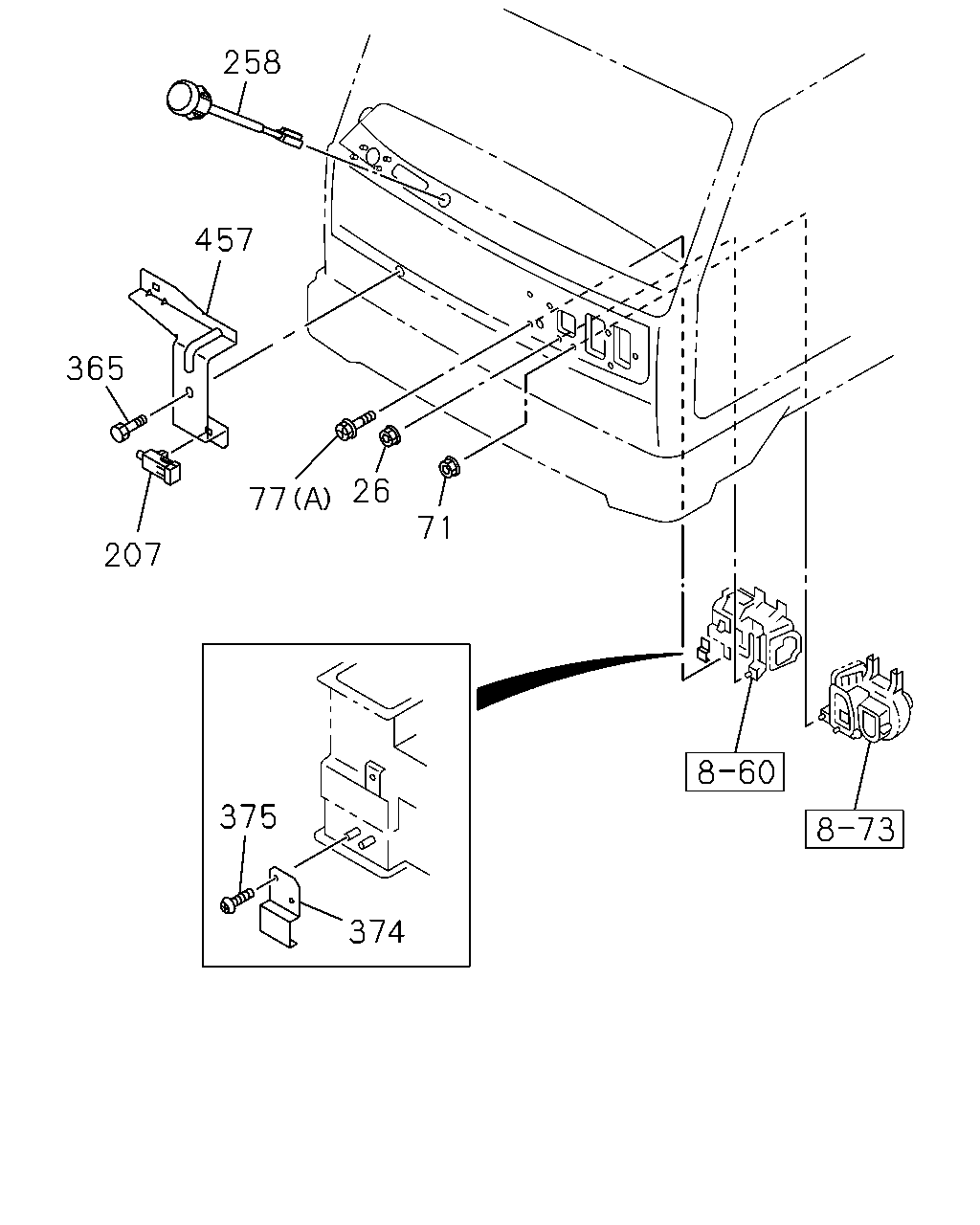

71 26 77 457 258 207 365 374 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1508-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	1508-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	1508-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-
207	SENSOR; AMBIENT	8-98214-375-0	01	1	1508-
258	SENSOR; SUN	8-94472-043-2	01	1	1508-
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1508-
374	HOLDER; DUCT	1-76398-012-1	01	1	1508-
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	1508-
457	BRACKET; SENSOR	1-71907-603-1	01	1	1508-

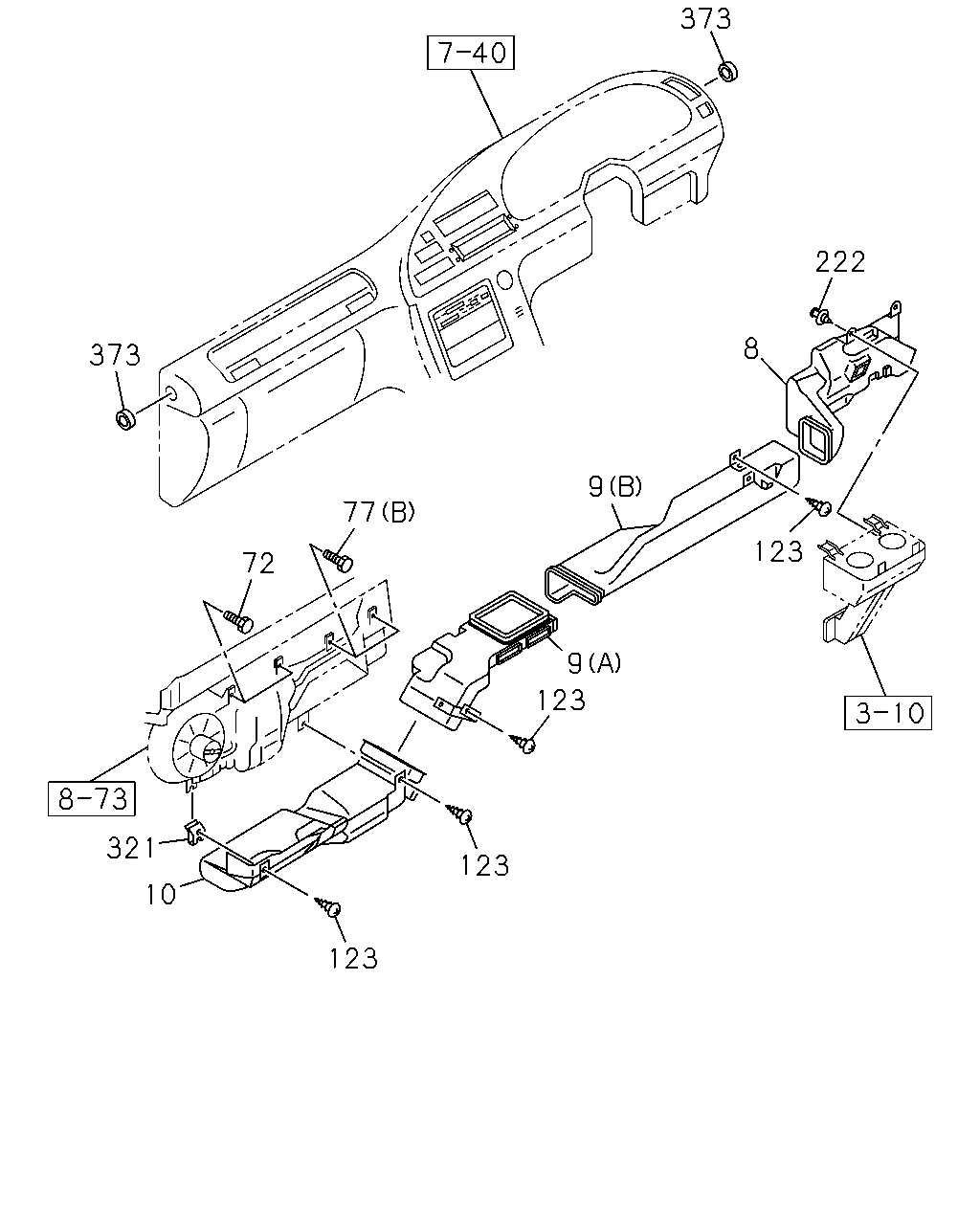

222 373 9 8 123 9 123 123 123 10 321 72 77 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	1508-
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	1508-
9	DUCT; HTR AIR,FOOT CENTER (A)	1-76377-226-2	01	1	1508-
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	1508-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	1508-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	1508-
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	1508-
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	1508-
373	RUBBER; JOINT	1-76378-291-0	02	1	1508-

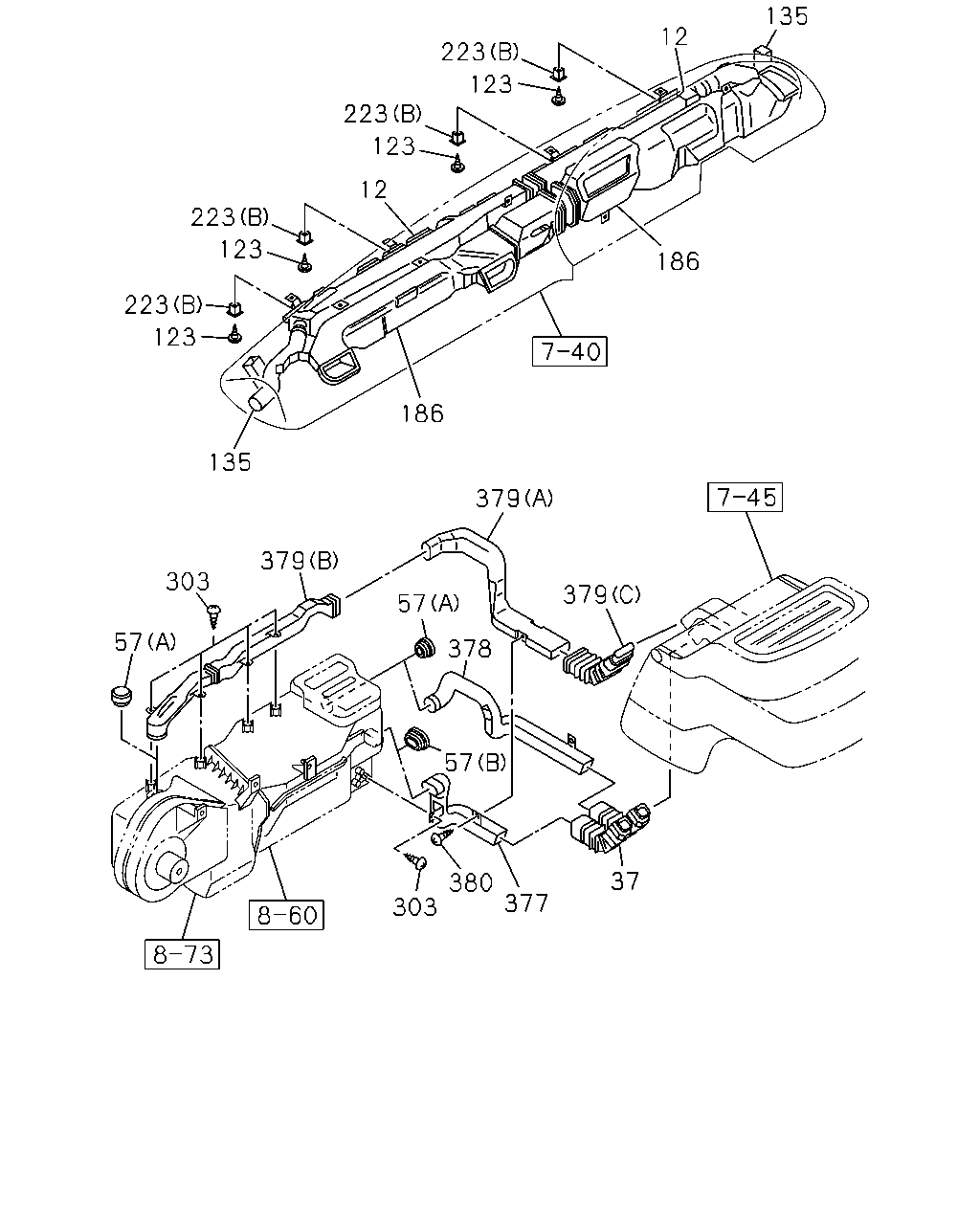

186 135 12 123 223 223 123 12 223 123 223 123 135 379 303 57 57 379 186 37 377 380 303 57 378 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	1508-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	1508-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	1508-
57	COVER; INL DUCT SEAT ASM - WITH CENTER SEAT(7BC) (A)	1-83579-617-0	02	1	1508-
57	COVER; INL DUCT EXC. HEADER CONSOLE BOX ASSIST<EBA>,SEAT ASM - WITHCENTER SEAT(7BC) (A)	1-83579-617-0	02	1	1508-
57	COVER; INL DUCT SEAT ASM - WITH CENTER SEAT(7BC) (B)	1-83579-618-0	01	1	1508-
57	COVER; INL DUCT EXC. HEADER CONSOLE BOX ASSIST<EBA>,SEAT ASM - WITHCENTER SEAT(7BC) (B)	1-83579-618-0	01	1	1508-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	1508-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	1508-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	1508-
186	DUCT; VENTILATOR	1-76377-243-1	01	1	1508-
186	DUCT; VENTILATOR	1-76377-246-0	01	1	1508-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	1508-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	1508-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	1508-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	1508-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	1508-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	1508-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	1508-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	1508-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	1508-

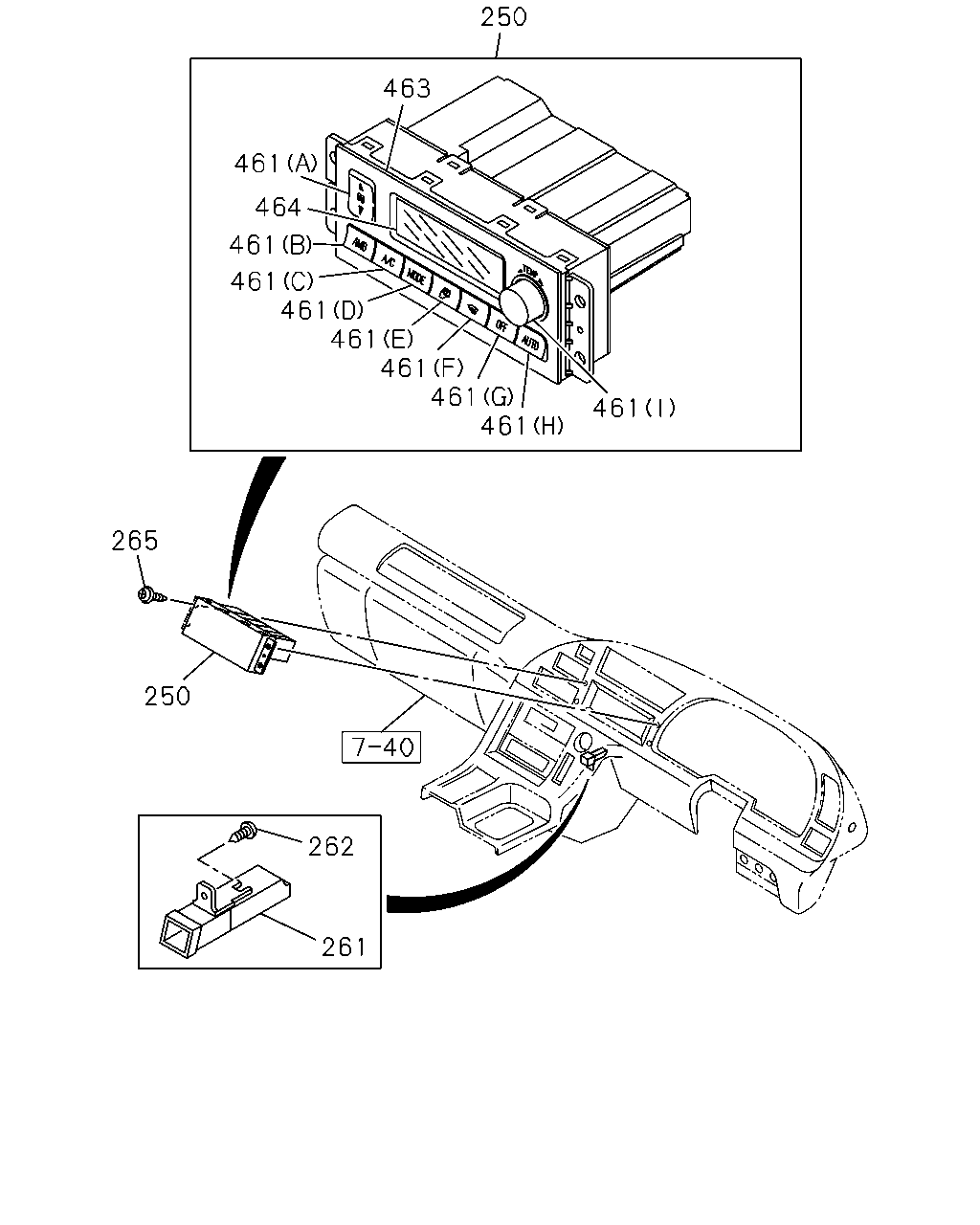

250 463 461 464 461 461 461 461 461 461 461 461 262 261 250 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C	1-83543-038-1	01	1	1508-
261	SENSOR; IN CAR	1-83544-023-1	01	1	1508-
262	SCREW; IN CAR SENSOR M5X14	8-94279-325-0	01	1	1508-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (A) FAN	1-83549-018-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (B) AMB	1-83549-019-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (C) A/C	1-83549-020-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (D) MODE	1-83549-021-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (E) REC	1-83549-022-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (F) DEF	1-83549-023-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (G) OFF	1-83549-024-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (H) AUTO	1-83549-025-0	01	1	1508-
461	KNOB; CONTROL ASM,A/C (I) TEMP	1-83549-026-0	01	1	1508-
463	BEZEL; CONTROL PANEL	1-83549-027-0	01	1	1508-
464	PLATE; CONTROL PANEL	1-83549-028-0	01	1	1508-
