Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#168083) — 522 parça

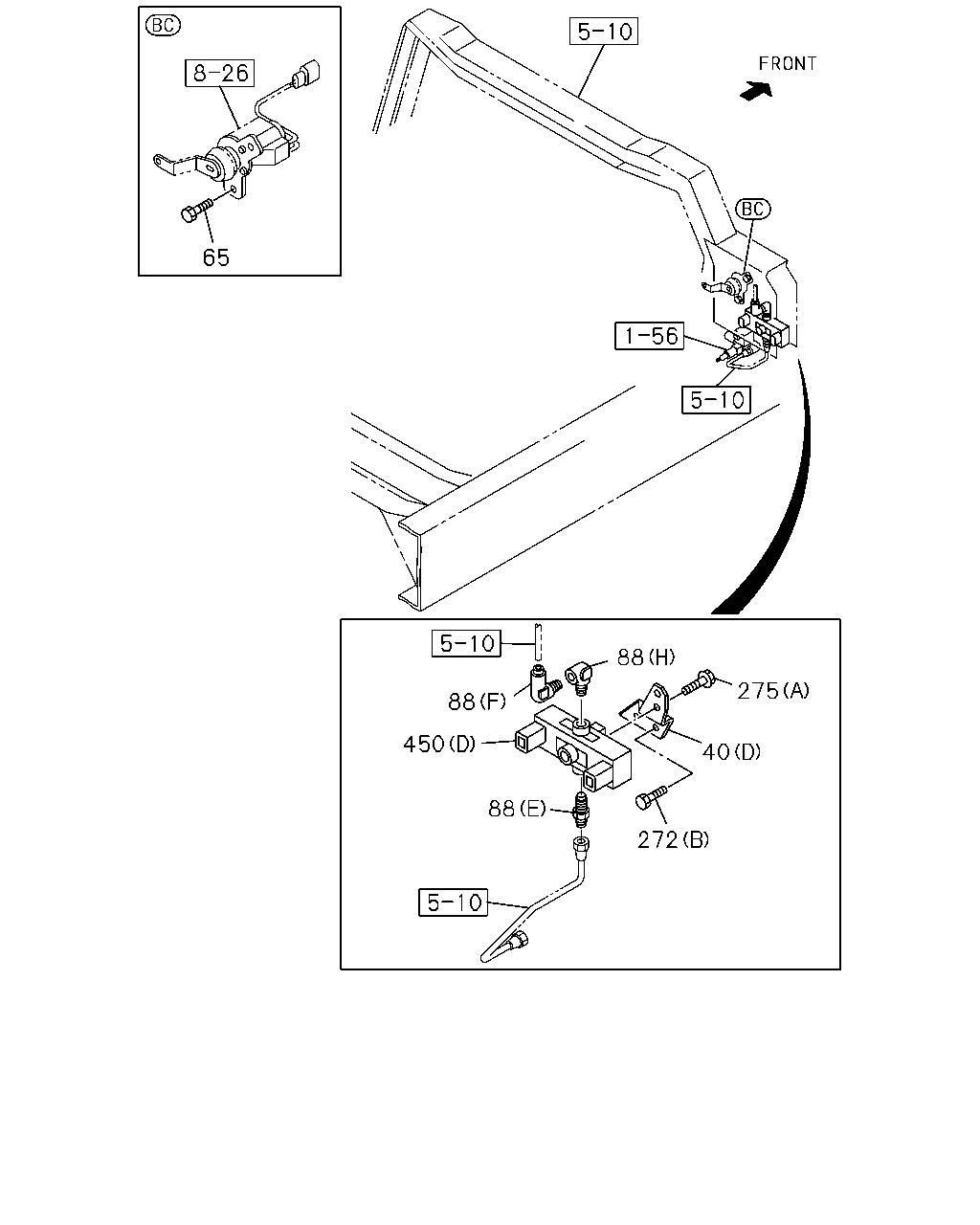

275 40 88 272 88 88 450 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
65	BOLT; SOCKET FIX M6X25 FLANGE	0-28050-625-0	02	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (H) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I)	1-09661-073-0	01	1	1508-
88	CONNECTOR; MAG VLV EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (D) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1508-
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	01	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
450	VALVE; MAG (D)	1-53458-378-2	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (A)	1-82564-095-1	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1508-
450	VALVE; MAG THROTTLE CONTROL SYSTEM<6XH> (C)	1-82564-278-0	01	1	1508-

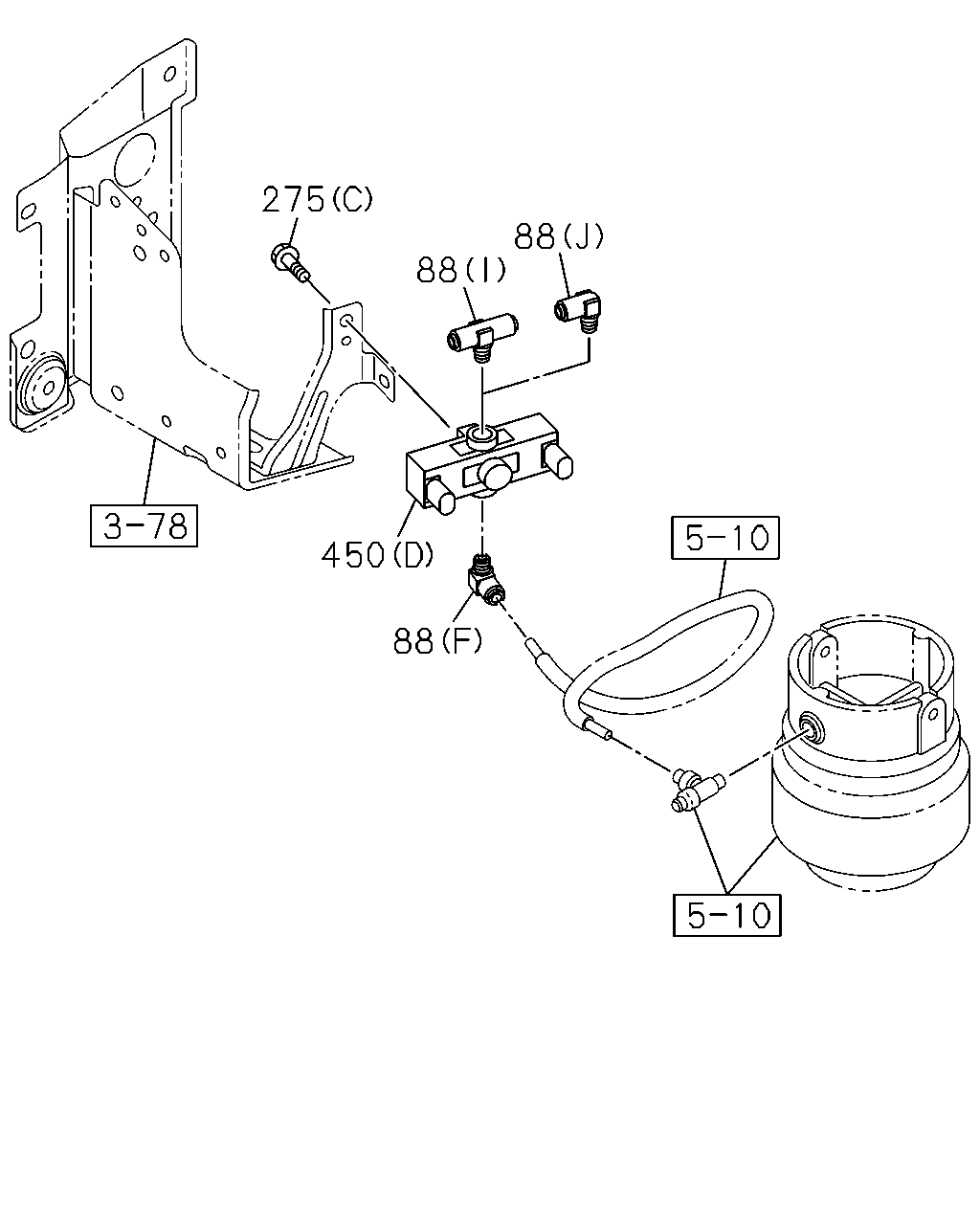

88 88 275 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (H) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I)	1-09661-073-0	01	1	1508-
88	CONNECTOR; MAG VLV EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (D) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
450	VALVE; MAG (D)	1-53458-378-2	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (A)	1-82564-095-1	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1508-
450	VALVE; MAG THROTTLE CONTROL SYSTEM<6XH> (C)	1-82564-278-0	01	1	1508-

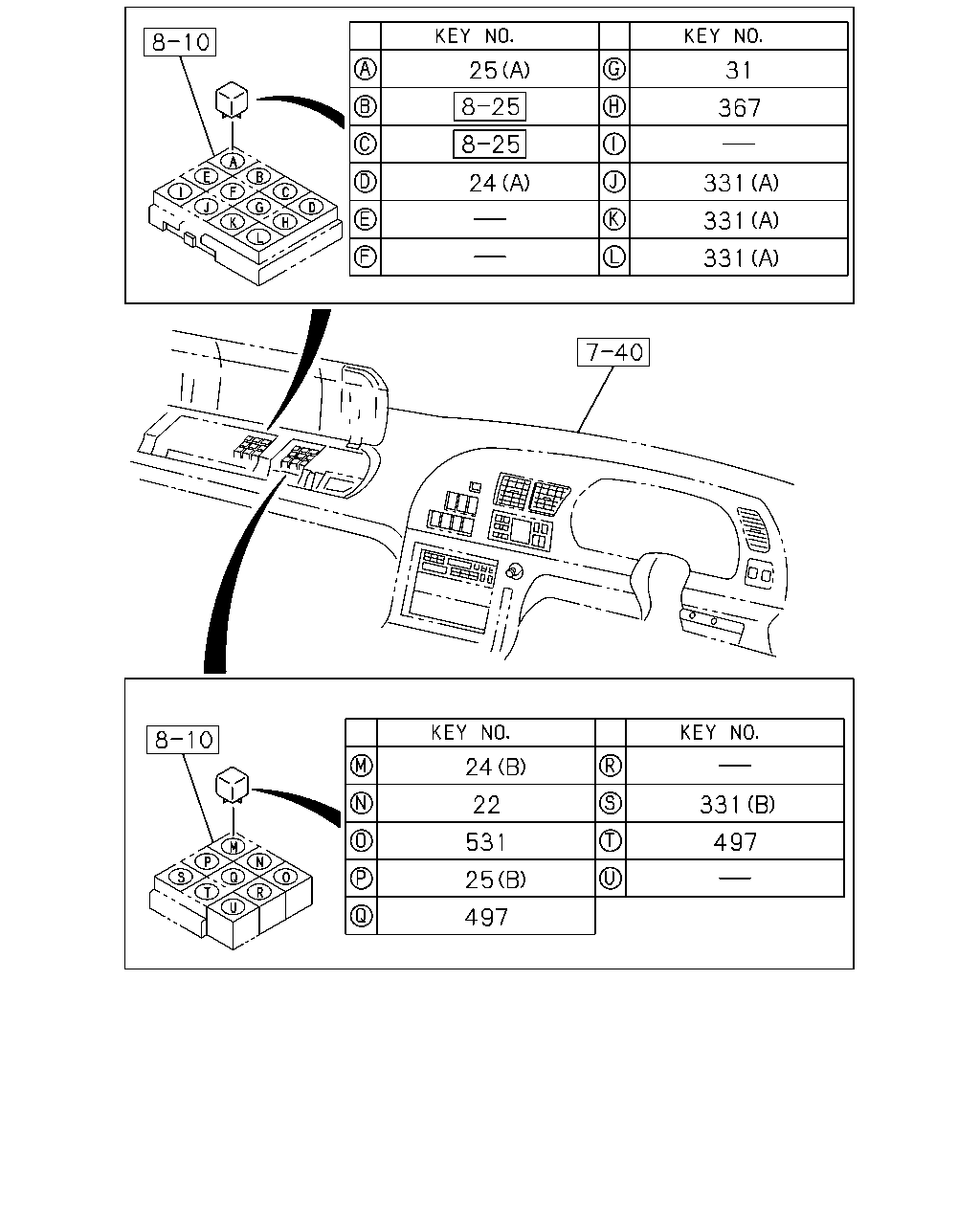

25 31 367 331 331 331 24 24 22 531 25 497 331 497

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
24	RELAY; LIGHTING (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
24	RELAY; LIGHTING (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
25	RELAY; TAIL LAMP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
25	RELAY; TAIL LAMP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
331	RELAY; A/C (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
331	RELAY; A/C (A) 24V 10A PANASONIC	8-97173-035-1	02	1	1508-
331	RELAY; A/C (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
367	RELAY; NEUTRAL MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
497	RELAY; MIRROR WIPER O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> 24V 12.5A PANASONIC	8-97262-933-0	02	1	1508-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1508-

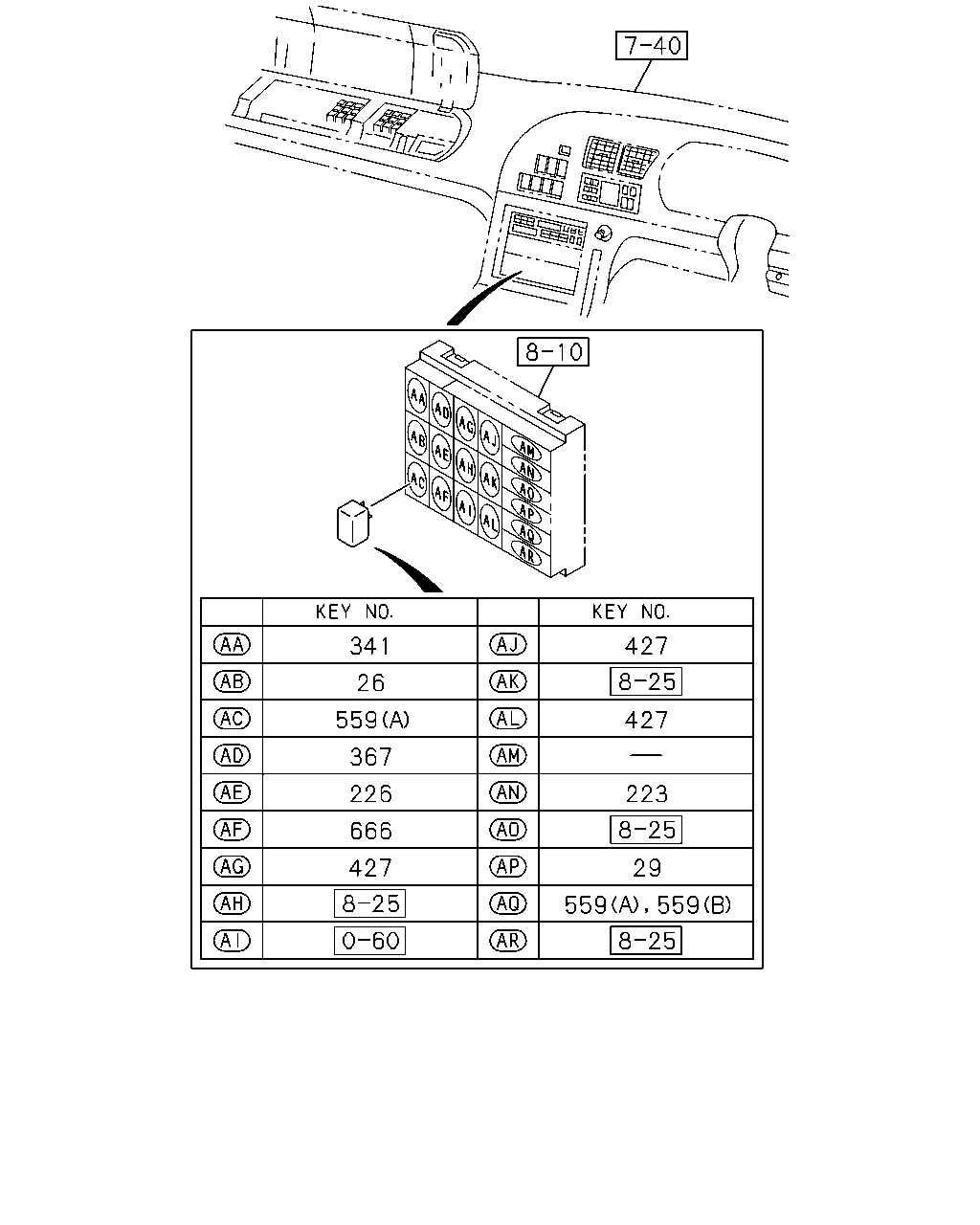

341 26 559 367 226 666 427 427 427 223 29 559 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	RELAY; CONSENT 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
223	RELAY; IDLING STOP IDLE STOP SYSTEM(E7N) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
367	RELAY; NEUTRAL MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	03	1	1508-
559	RELAY; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
559	RELAY; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2014(VZE) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
559	RELAY; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. VIN MODEL YEAR 2014(VZE) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-

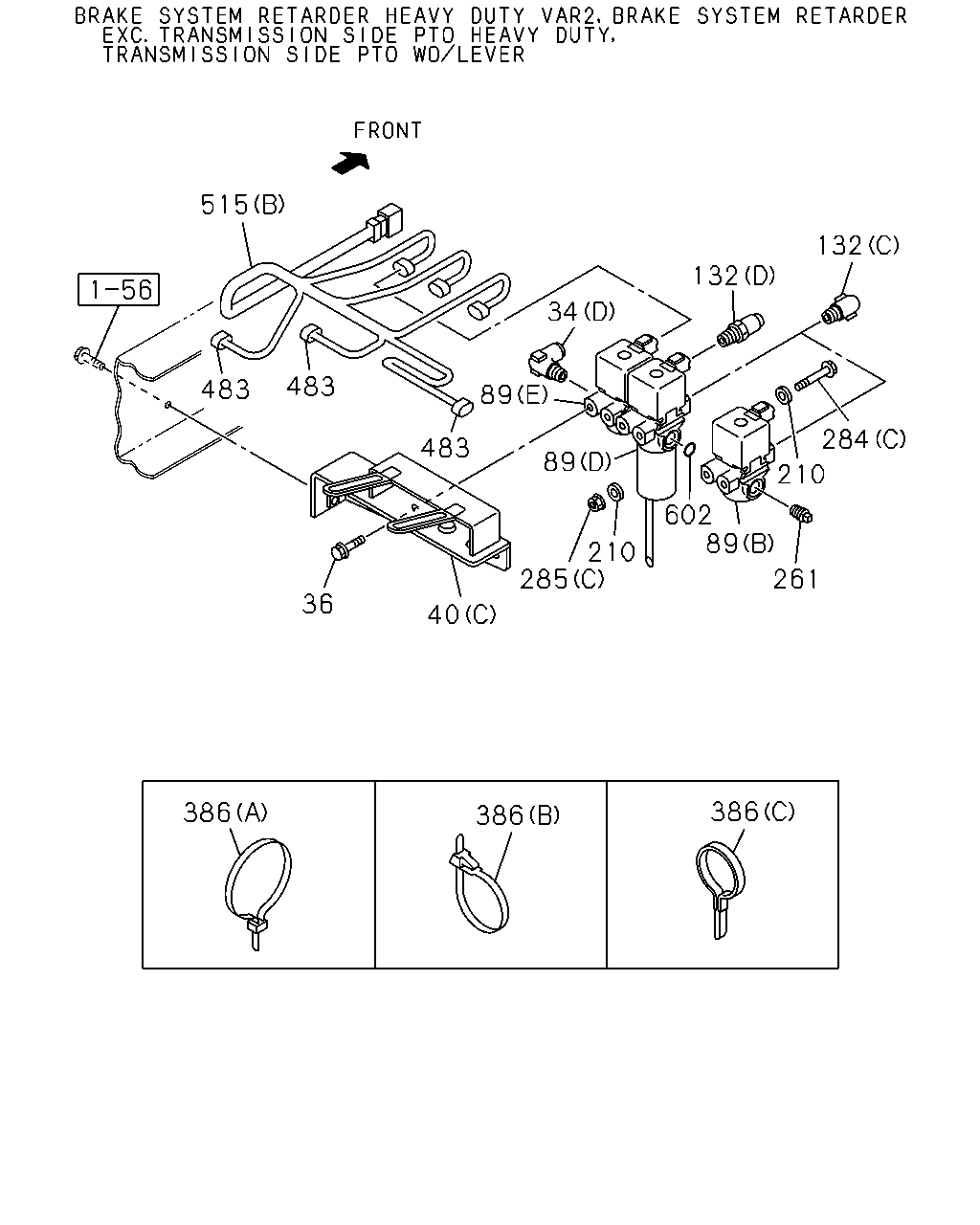

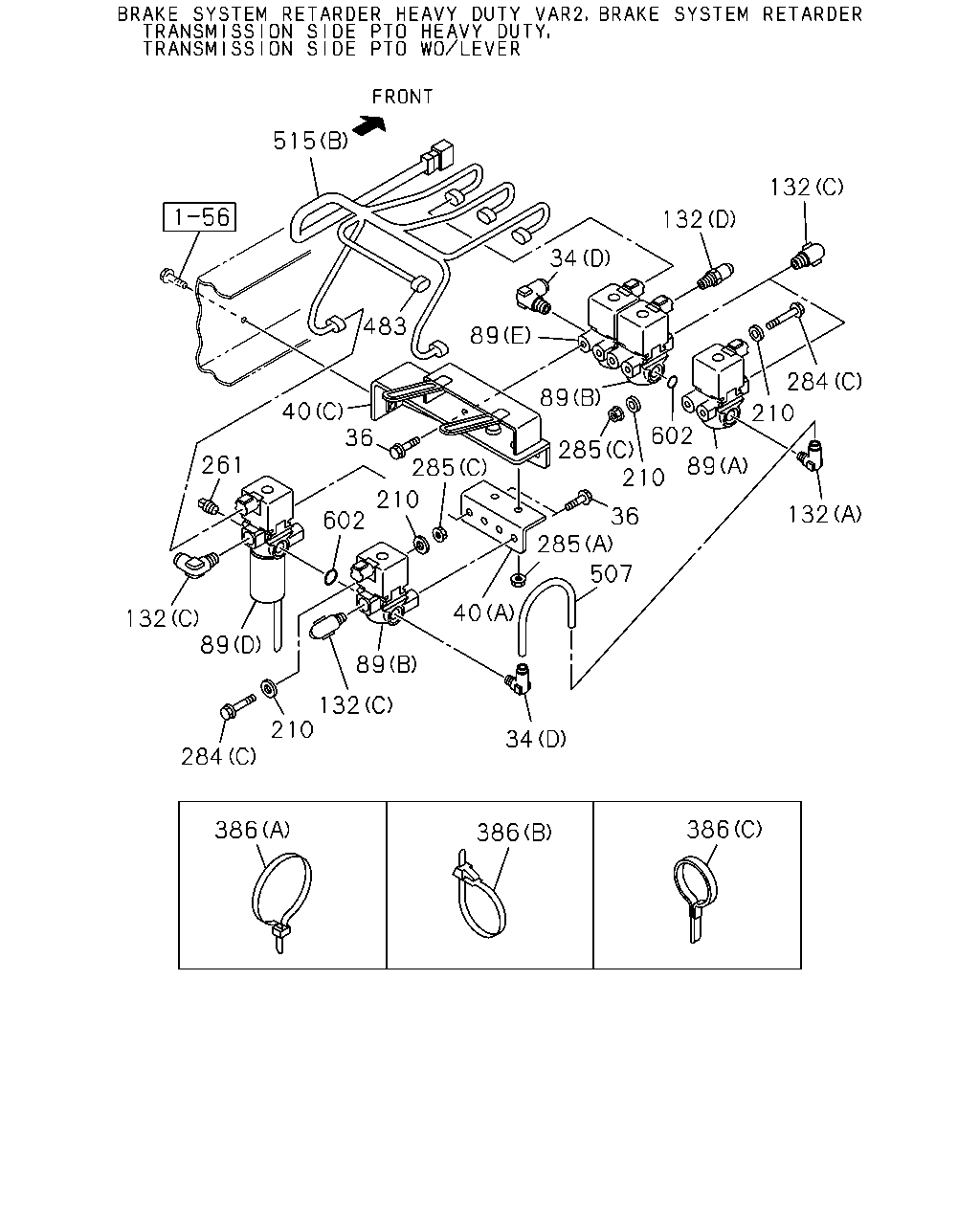

132 132 34 515 483 483 89 89 40 602 210 285 36 40 285 34 507 89 132 261 36 89 210 284 132 386 386 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	05	1	1508-
36	BOLT; MAG VLV,PTO CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1508-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	03	1	1508-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (D)	8-97633-075-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (E)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	02	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-279-1	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	04	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1508-
132	CONNECTOR; OUTLET,MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	06	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1508-
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
386	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1508-
386	CLIP; HARNESS (A) L=350	1-09707-183-0	01	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	05	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	04	1	1508-
386	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	02	1	1508-
386	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) L=140	5-09707-031-1	03	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	01	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	02	1	1508-
483	CAP; TERMINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	04	1	1508-
483	CAP; TERMINAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82691-239-0	03	1	1508-
507	TUBE; NYLON BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1508-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1508-
515	HARNESS; VLV (B)	8-98157-004-3	01	1	1508-
515	HARNESS; VLV THROTTLE CONTROL SYSTEM<6XH> (A)	1-82677-669-0	01	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	03	1	1508-
602	GASKET; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1508-

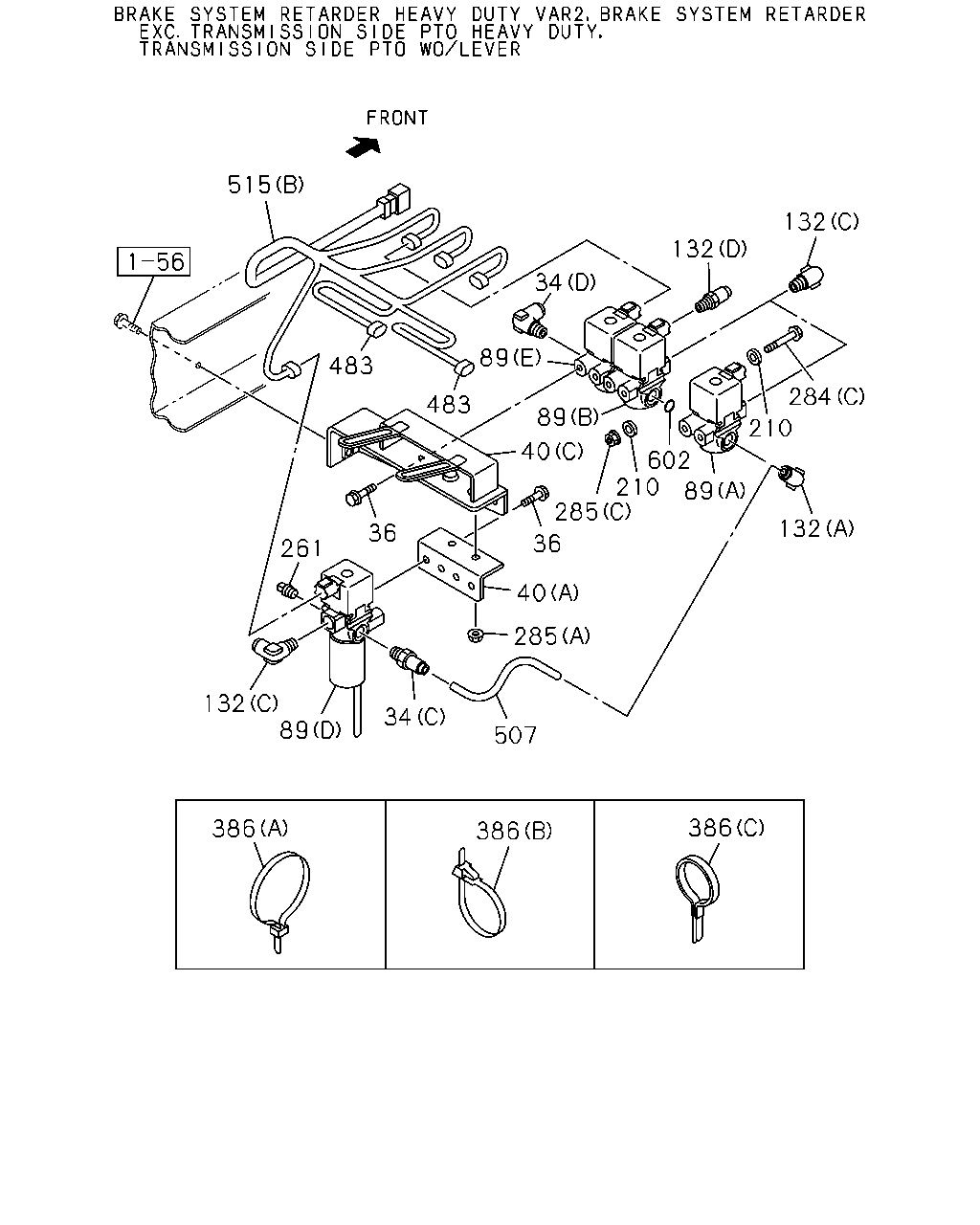

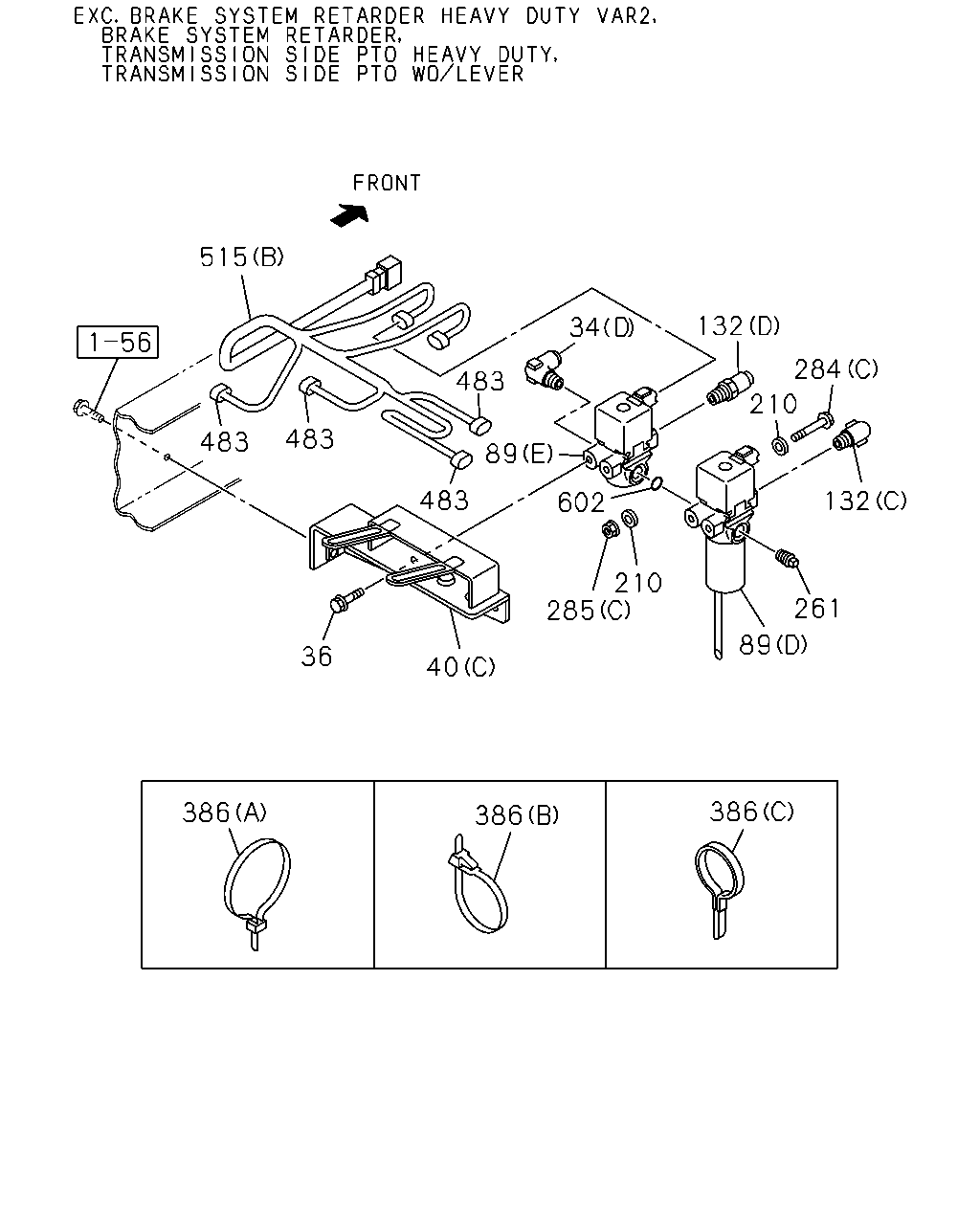

515 483 483 483 89 34 132 132 284 210 261 89 602 210 285 40 36 89 386 386 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	05	1	1508-
36	BOLT; MAG VLV,PTO CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1508-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	03	1	1508-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (D)	8-97633-075-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (E)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	02	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-279-1	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	04	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1508-
132	CONNECTOR; OUTLET,MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	06	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1508-
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
386	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1508-
386	CLIP; HARNESS (A) L=350	1-09707-183-0	01	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	05	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	04	1	1508-
386	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	02	1	1508-
386	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) L=140	5-09707-031-1	03	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	01	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	02	1	1508-
483	CAP; TERMINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	04	1	1508-
483	CAP; TERMINAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82691-239-0	03	1	1508-
515	HARNESS; VLV (B)	8-98157-004-3	01	1	1508-
515	HARNESS; VLV THROTTLE CONTROL SYSTEM<6XH> (A)	1-82677-669-0	01	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	03	1	1508-
602	GASKET; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1508-

284 132 34 483 89 483 483 483 515 40 36 386 386 386 89 261 210 285 602 132 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	05	1	1508-
36	BOLT; MAG VLV,PTO CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1508-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	03	1	1508-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (D)	8-97633-075-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (E)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	02	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-279-1	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	04	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1508-
132	CONNECTOR; OUTLET,MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	06	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1508-
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
386	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1508-
386	CLIP; HARNESS (A) L=350	1-09707-183-0	01	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	05	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	04	1	1508-
386	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	02	1	1508-
386	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) L=140	5-09707-031-1	03	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	01	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	02	1	1508-
483	CAP; TERMINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	04	1	1508-
483	CAP; TERMINAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82691-239-0	03	1	1508-
515	HARNESS; VLV (B)	8-98157-004-3	01	1	1508-
515	HARNESS; VLV THROTTLE CONTROL SYSTEM<6XH> (A)	1-82677-669-0	01	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	03	1	1508-
602	GASKET; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1508-

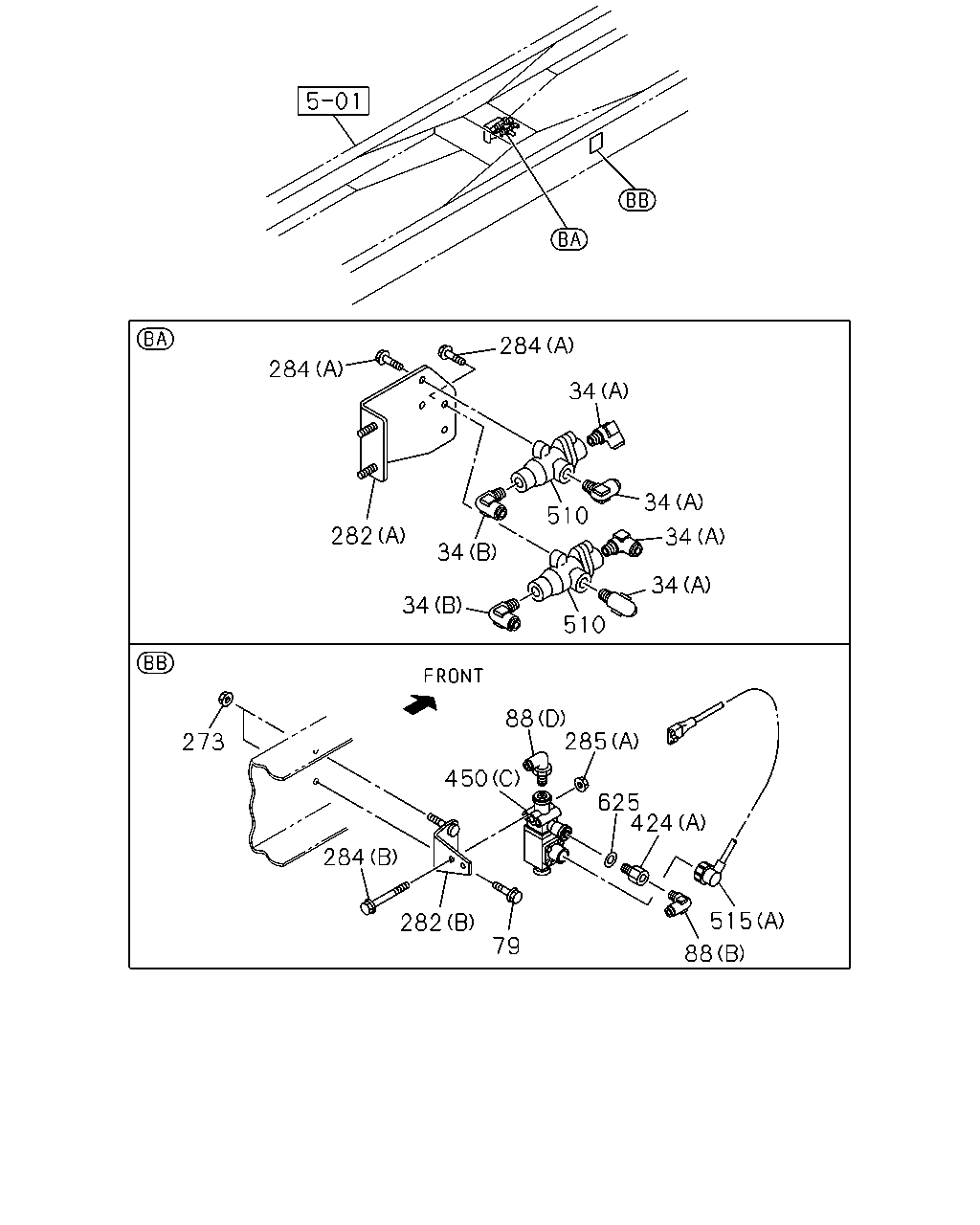

34 284 284 282 34 34 34 510 510 34 34 285 625 424 515 88 79 282 284 450 88 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
79	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> M8X25 FLANGE	0-28650-825-0	01	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (H) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I)	1-09661-073-0	01	1	1508-
88	CONNECTOR; MAG VLV EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (D) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-
273	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> M8 FLANGE	0-91180-108-0	02	1	1508-
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B)	8-97633-691-0	01	1	1508-
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A)	8-97637-696-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	1-09664-210-0	01	1	1508-
424	ADAPTER THROTTLE CONTROL SYSTEM<6XH> (A) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	1508-
450	VALVE; MAG (D)	1-53458-378-2	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (A)	1-82564-095-1	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1508-
450	VALVE; MAG THROTTLE CONTROL SYSTEM<6XH> (C)	1-82564-278-0	01	1	1508-
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	1508-
510	VALVE; CHECK THROTTLE CONTROL SYSTEM<6XH>	1-48410-531-1	02	1	1508-
515	HARNESS; VLV (B)	8-98157-004-3	01	1	1508-
515	HARNESS; VLV THROTTLE CONTROL SYSTEM<6XH> (A)	1-82677-669-0	01	1	1508-
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM<6XH> ID=16.2 OD=24	9-09571-416-0	01	1	1508-

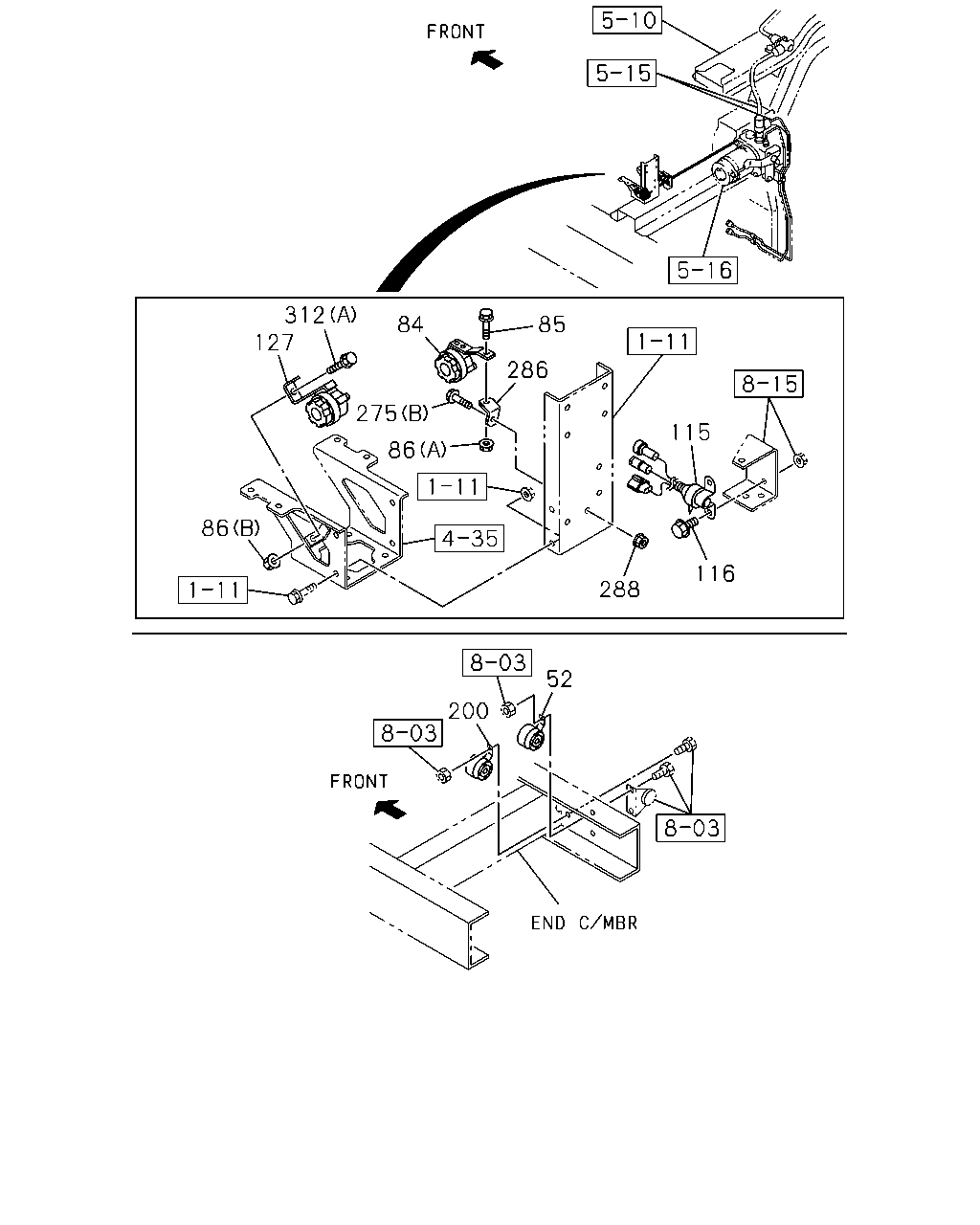

85 84 312 127 275 286 86 115 116 288 52 200 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK	8-97617-027-0	01	1	1508-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1508-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1508-
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	1508-
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	1508-
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	1508-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1508-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1508-
127	BUZZER; SIDE TURN ALARM	1-83460-102-0	01	1	1508-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
286	BRACKET	1-82699-199-0	01	1	1508-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1508-
312	BOLT; BUZZER (A) M10X20 FLANGE	0-28651-020-0	01	1	1508-
312	BOLT; BUZZER (A) M10X30 FLANGE	0-28651-030-0	01	1	1508-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-97360-226-0	01	1	1508-

88 88 667 721 503 424 40 272 285 132 510 34 34 88 507 89 88 284 298 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (H) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (I)	1-09661-073-0	01	1	1508-
88	CONNECTOR; MAG VLV EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (D) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (D)	8-97633-075-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (E)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	02	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-279-1	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	04	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1508-
132	CONNECTOR; OUTLET,MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1508-
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
298	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1508-
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	1-09664-210-0	01	1	1508-
424	ADAPTER THROTTLE CONTROL SYSTEM<6XH> (A) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	1508-
503	UNION MJX12P M/T SMOOTHER-G(Y4S) PT3/8 3WAY	1-09661-300-0	01	1	1508-
507	TUBE; NYLON BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1508-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1508-
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	1508-
510	VALVE; CHECK THROTTLE CONTROL SYSTEM<6XH>	1-48410-531-1	02	1	1508-
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	8-98063-001-0	01	1	1508-
721	ELEMENT; LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-028-0	01	1	1508-

132 132 34 89 483 515 40 261 36 210 285 602 40 89 132 210 284 89 132 89 602 210 285 89 507 285 386 386 34 132 284 210 386 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT THROTTLE CONTROL SYSTEM<6XH> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	05	1	1508-
36	BOLT; MAG VLV,PTO CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1508-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE	0-28050-820-0	03	1	1508-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV (C)	8-97636-033-1	01	1	1508-
40	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	8-97636-034-0	01	1	1508-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	8-97634-287-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (D)	8-97633-075-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (E)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	02	1	1508-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-279-1	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	04	1	1508-
132	CONNECTOR; OUTLET,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	1508-
132	CONNECTOR; OUTLET,MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	06	1	1508-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1508-
210	WASHER; PL,BRKT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1508-
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	03	1	1508-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M8X16 FLANGE	0-28050-816-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (B) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8X14 FLANGE	0-28080-814-0	04	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	03	1	1508-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (C) M6 FLANGE	0-91180-106-0	02	1	1508-
285	NUT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM<6XH> (A) M8 FLANGE	0-91180-108-0	04	1	1508-
386	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1508-
386	CLIP; HARNESS (A) L=350	1-09707-183-0	01	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	05	1	1508-
386	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	04	1	1508-
386	CLIP; HARNESS EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=140	5-09707-031-1	02	1	1508-
386	CLIP; HARNESS TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) L=140	5-09707-031-1	03	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	01	1	1508-
483	CAP; TERMINAL BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	02	1	1508-
483	CAP; TERMINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82691-239-0	04	1	1508-
483	CAP; TERMINAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2>	1-82691-239-0	03	1	1508-
507	TUBE; NYLON BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1508-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1508-
515	HARNESS; VLV (B)	8-98157-004-3	01	1	1508-
515	HARNESS; VLV THROTTLE CONTROL SYSTEM<6XH> (A)	1-82677-669-0	01	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	03	1	1508-
602	GASKET; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1508-

566 732 377 94 449 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1508-
129	WARNING DEVICE; HANDY	8-97374-608-0	01	1	1508-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1508-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1508-
449	SWITCH; OIL PRESS,CLUTCH TRANSMISSION CONTROL CABLE TYPE(C1A)	1-82410-143-1	01	1	1508-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	1508-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1508-

741 507 674 450 450 289 289 290 290 740 450 261 741 636 741 290 636 602 741 717 741 741 741 507 674 289 739 741 741 724 722 717 739 747 289 741

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1508-
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (A) M6X50 FLANGE	0-28050-650-0	04	1	1508-
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (C) M8X20 FLANGE	0-28650-820-0	03	1	1508-
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	1508-
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	1508-
450	VALVE; MAG (D)	1-53458-378-2	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (A)	1-82564-095-1	02	1	1508-
450	VALVE; MAG MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1508-
450	VALVE; MAG THROTTLE CONTROL SYSTEM<6XH> (C)	1-82564-278-0	01	1	1508-
507	TUBE; NYLON BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1508-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	03	1	1508-
602	GASKET; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	02	1	1508-
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1508-
636	WASHER; PL,VLV MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	1508-
674	TUBE; CORRUGATE MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1508-
717	FILTER; MAG VLV MJX12P M/T SMOOTHER-G(Y4S)	8-98092-703-0	01	1	1508-
722	ELEMENT; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-040-0	01	1	1508-
724	GASKET; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	5-09623-075-0	01	1	1508-
739	VALVE; PRESSURE MJX12P M/T SMOOTHER-G(Y4S)	1-48410-738-0	01	1	1508-
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S)	8-98101-134-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	03	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & M16 ELBOW	1-09661-531-0	02	1	1508-
747	BOOT; PRESSURE VALVE MJX12P M/T SMOOTHER-G(Y4S)	1-48419-073-0	01	1	1508-

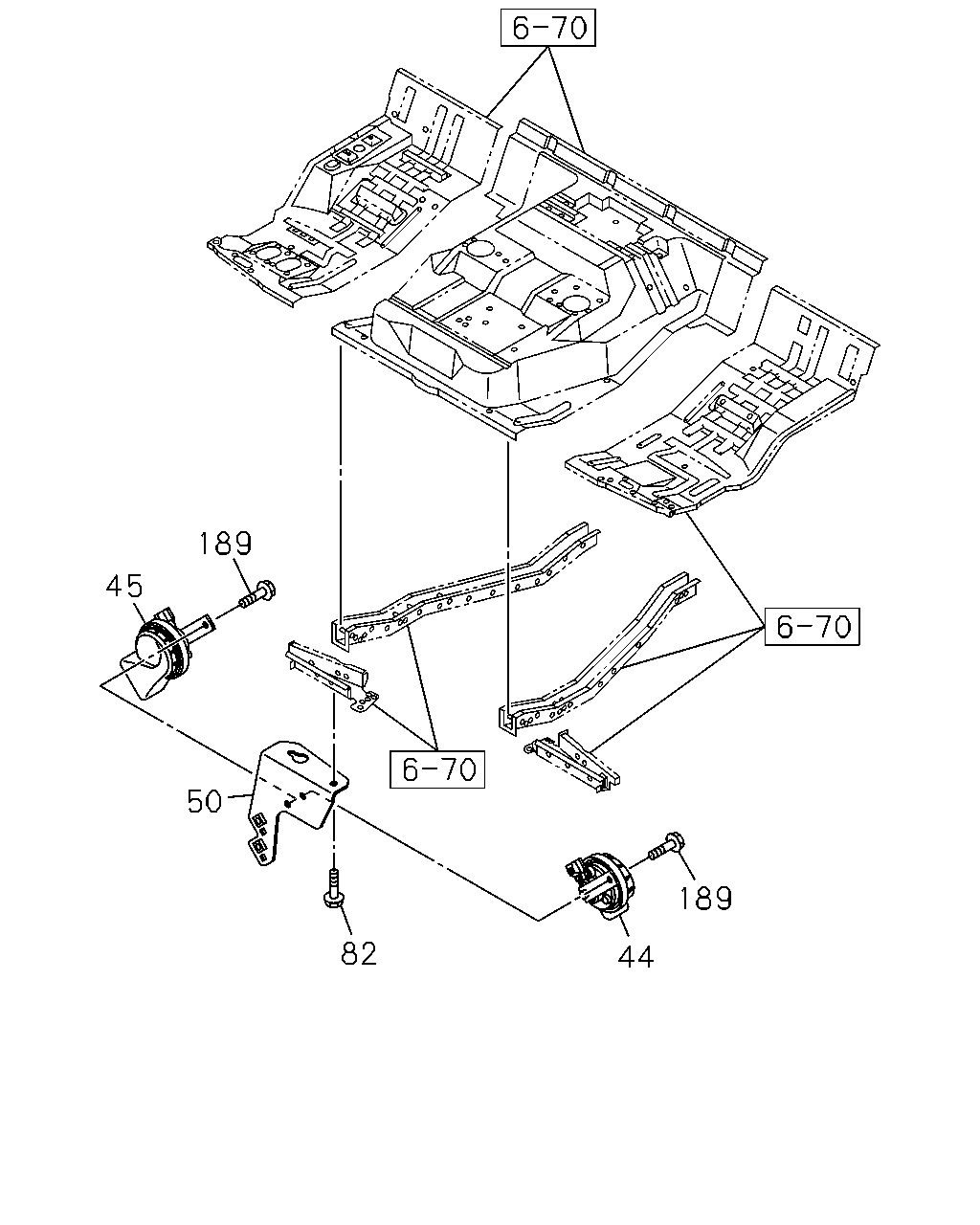

50 82 44 189 189 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1508-
45	HORN; LOW NOTE	8-97611-676-2	01	1	1508-
50	BRACKET; HORN	8-98158-462-2	01	1	1508-
82	BOLT; BRKT,HORN M8X20 FLANGE	0-28650-820-0	02	1	1508-
189	BOLT; HORN M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1508-

377 8 180 1 731 312 734

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-968-1	01	1	1508-
8	RELAY; WIPER	1-83316-002-4	01	1	1508-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1508-
312	BOLT; BUZZER (A) M10X20 FLANGE	0-28651-020-0	01	1	1508-
312	BOLT; BUZZER (A) M10X30 FLANGE	0-28651-030-0	01	1	1508-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-97360-226-0	01	1	1508-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1508-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1508-
731	ALARM; INFORMATION	1-83460-051-1	01	1	1508-
734	ALARM; MULTI	1-83460-106-0	01	1	1508-

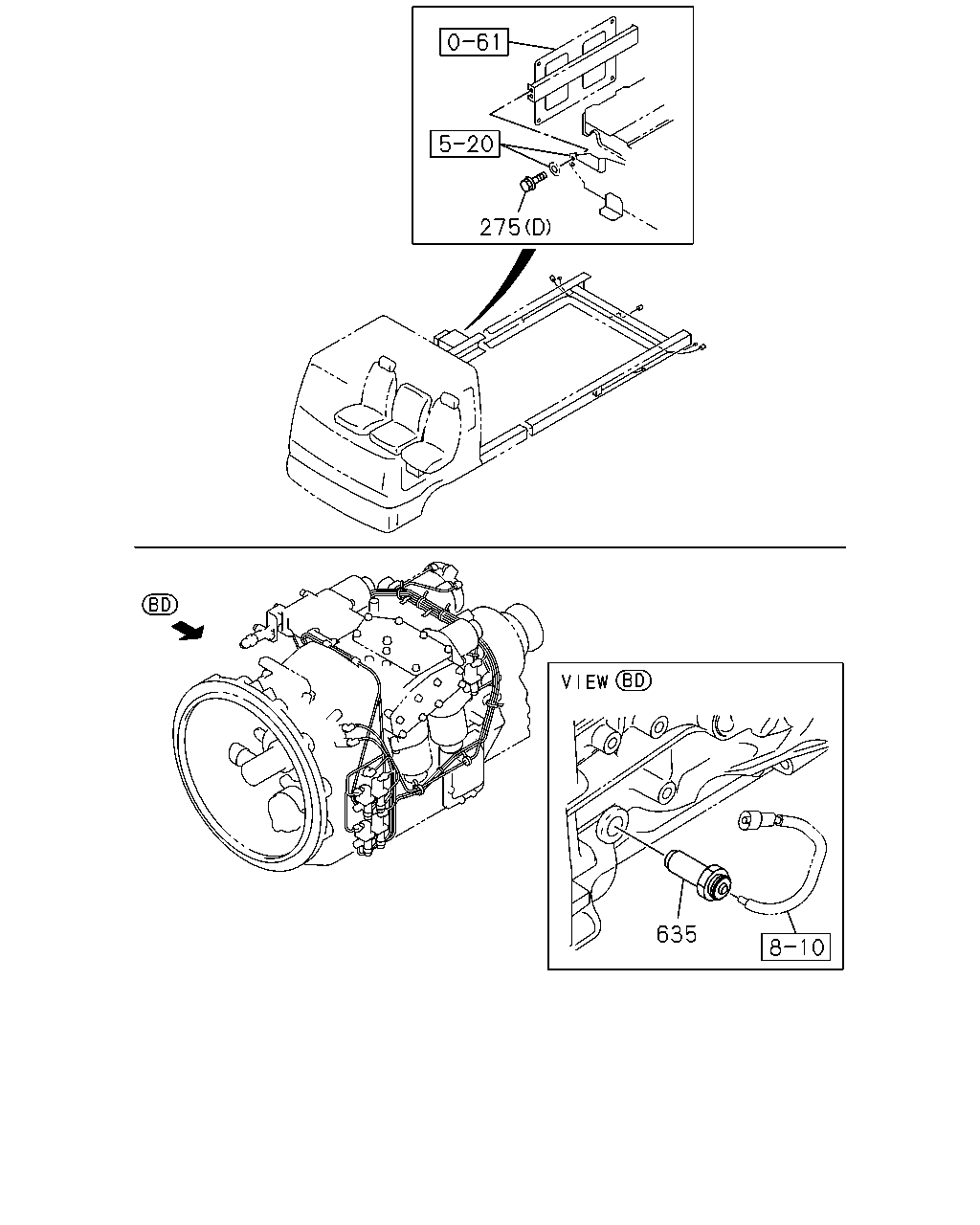

275 635

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	04	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
635	SENSOR; PICK UP,INPUT SHAFT SMOOTHER-G(C1W)	1-81510-736-1	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
