◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#168081) — 123 parça

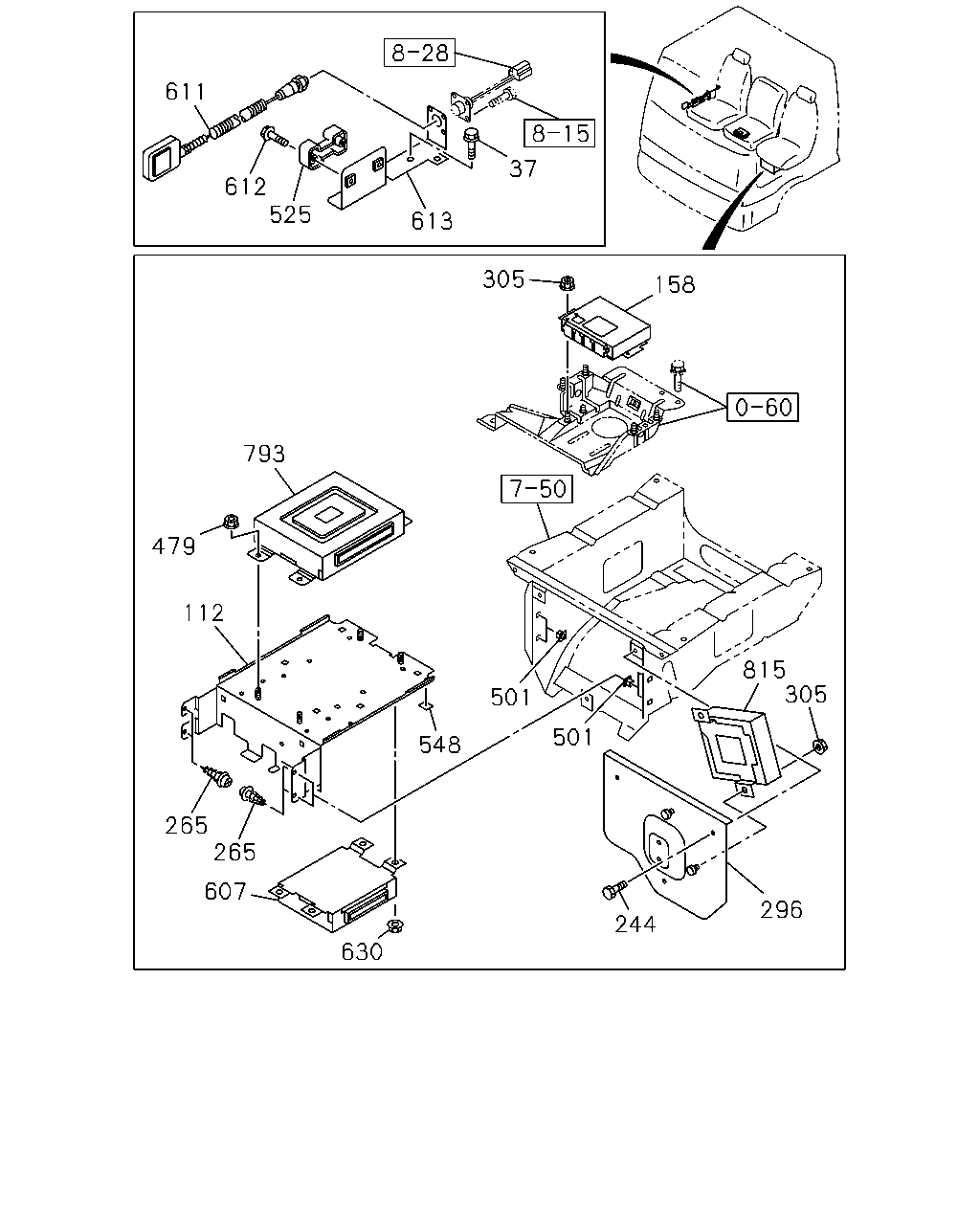

çizim 498208
611 612 525 613 305 37 158 501 501 815 305 296 244 630 607 265 265 112 479 793 548
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1508-
112 BRACKET; CONT UNIT 8-97589-714-2 01 1 1508-
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM<6XH> 		8-98146-997-0 01 1 1508-
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM<6XH> 		8-98146-998-0 01 1 1508-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1508-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 1508-
296 COVER; CONT UNIT
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) VIN MODEL YEAR 2014(VZE) 		8-98272-965-0 01 1 1508-
296 COVER; CONT UNIT
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) EXC. VIN MODEL YEAR 2014(VZE) 		8-97388-687-0 01 1 1508-
296 COVER; CONT UNIT
1 CREWS SEAT ASM PASSENGER DELETE(AP5) VIN MODEL YEAR 2014(VZE) 		8-98272-966-0 01 1 1508-
296 COVER; CONT UNIT
1 CREWS SEAT ASM PASSENGER DELETE(AP5) EXC. VIN MODEL YEAR 2014(VZE) 		8-97388-688-1 01 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
VIN MODEL YEAR 2014(VZE) M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
479 NUT; CONTROLLER
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 1508-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1508-
525 HOLDER; SW 1-82389-018-0 01 1 1508-
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1508-
607 CONTROL UNIT; AIR SUSPENSION 8-98141-682-0 01 1 1508-
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 1508-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 1508-
613 BRACKET; HOLDER,SW 1-79907-124-1 01 1 1508-
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91180-106-0 02 1 1508-
793 CONTROL UNIT; EDS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98303-678-0 01 1 1508-1508
793 CONTROL UNIT; EDS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98324-352-0 01 1 1508-
793 CONTROL UNIT; EDS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98303-667-0 01 1 1508-1508
793 CONTROL UNIT; EDS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. VIN MODEL YEAR 2013(VZD),VIN MODEL YEAR 2014(VZE) 		8-98324-362-0 01 1 1508-
815 CONTROL UNIT; CORNERING LAMP
VIN MODEL YEAR 2014(VZE) 		8-98252-897-4 01 1 1508-

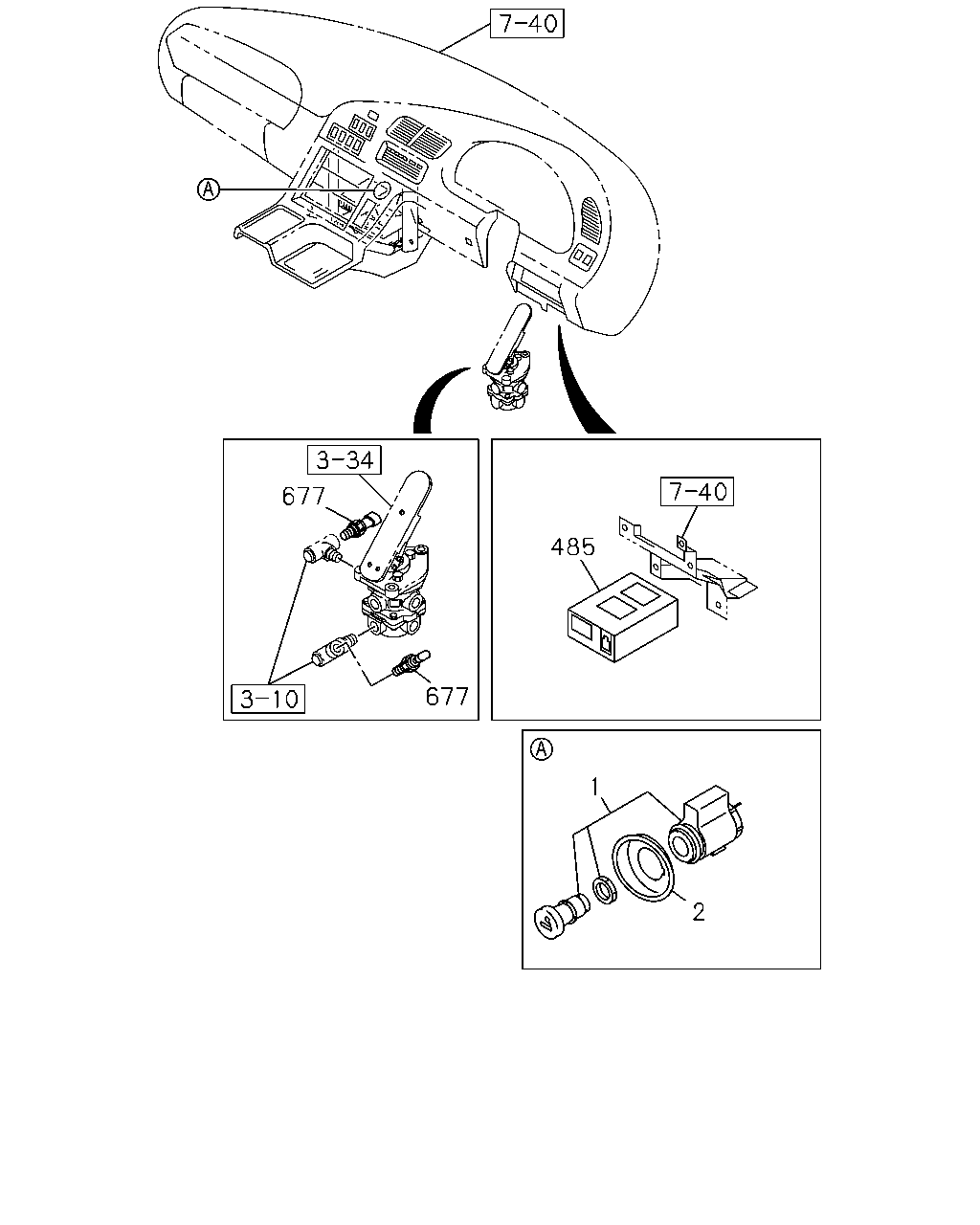

çizim 498265
677 677 485 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1508-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1508-
485 CONTROL UNIT; SPEED SENSOR 8-98232-694-0 01 1 1508-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 1508-

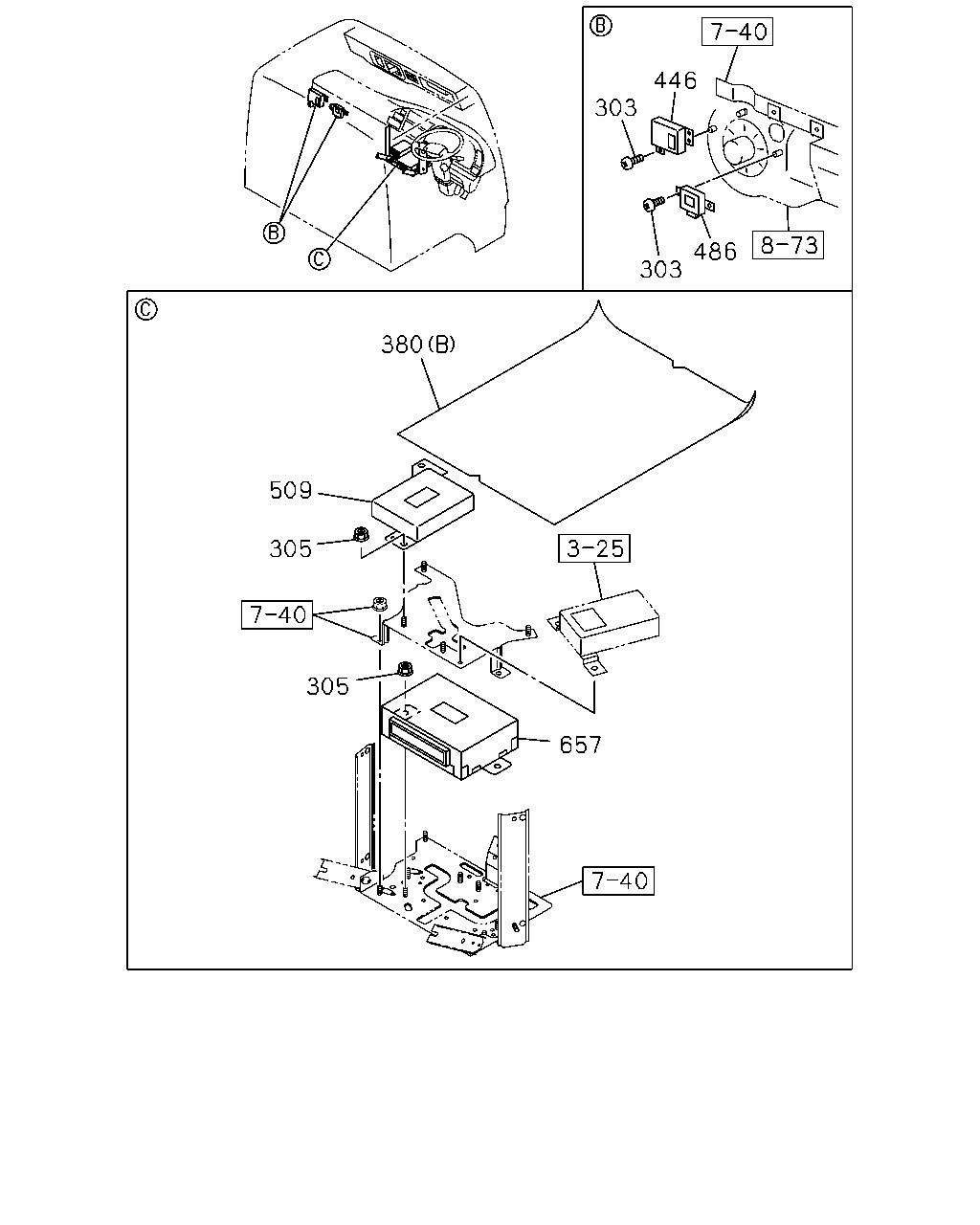

çizim 498268
486 303 446 303 380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
303 SCREW; CONT UNIT
M5X14 		8-94279-325-0 01 1 1508-
303 SCREW; CONT UNIT
TRANSMISSION CONTROL CABLE TYPE(C1A) M5X14 		8-94279-325-0 03 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
VIN MODEL YEAR 2014(VZE) M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1508-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1508-
446 CONTROL UNIT; HSA
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-80111-116-2 01 1 1508-
486 CONTROL UNIT; MIRROR 1-82540-046-0 01 1 1508-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 1508-
657 CONTROL UNIT; MIMAMORI
IDLE STOP SYSTEM(E7N) 		8-98297-186-0 01 1 1508-
657 CONTROL UNIT; MIMAMORI
EXC. IDLE STOP SYSTEM(E7N) 		8-98297-185-0 01 1 1508-

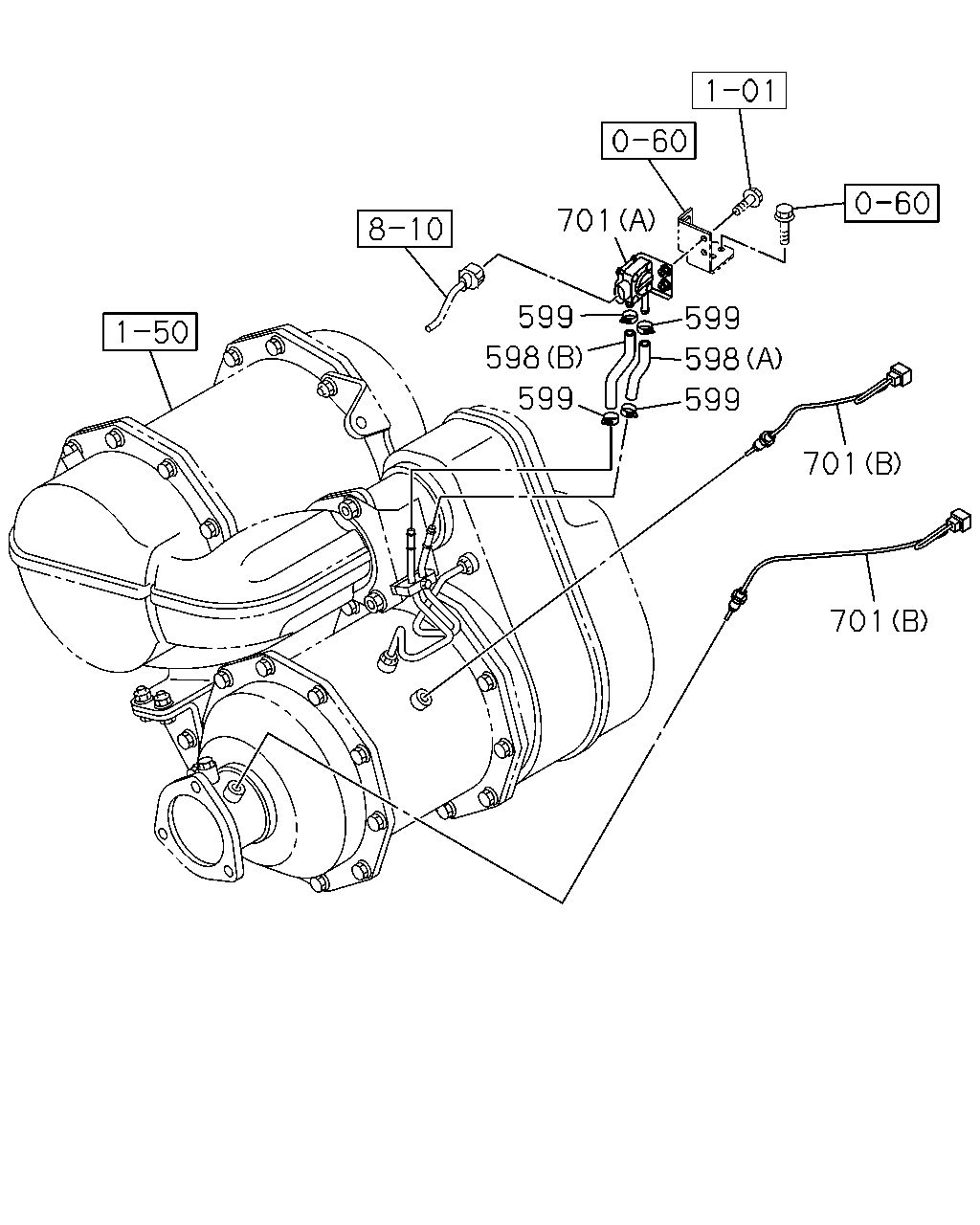

çizim 498285
701 599 598 599 599 598 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
598 HOSE; RUBBER,SENSOR
(A) L=100 SERVICED BY L=3000 		0-01558-300-0 01 1 1508-
598 HOSE; RUBBER,SENSOR
(B) L=110 		8-97631-978-0 01 1 1508-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1508-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1508-
701 SENSOR; DPD
(B) 		8-98004-330-0 02 1 1508-
çizim 498286
275 747
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1508-
747 CONTROL UNIT; TURBOCHARGER 8-98125-947-1 01 1 1508-

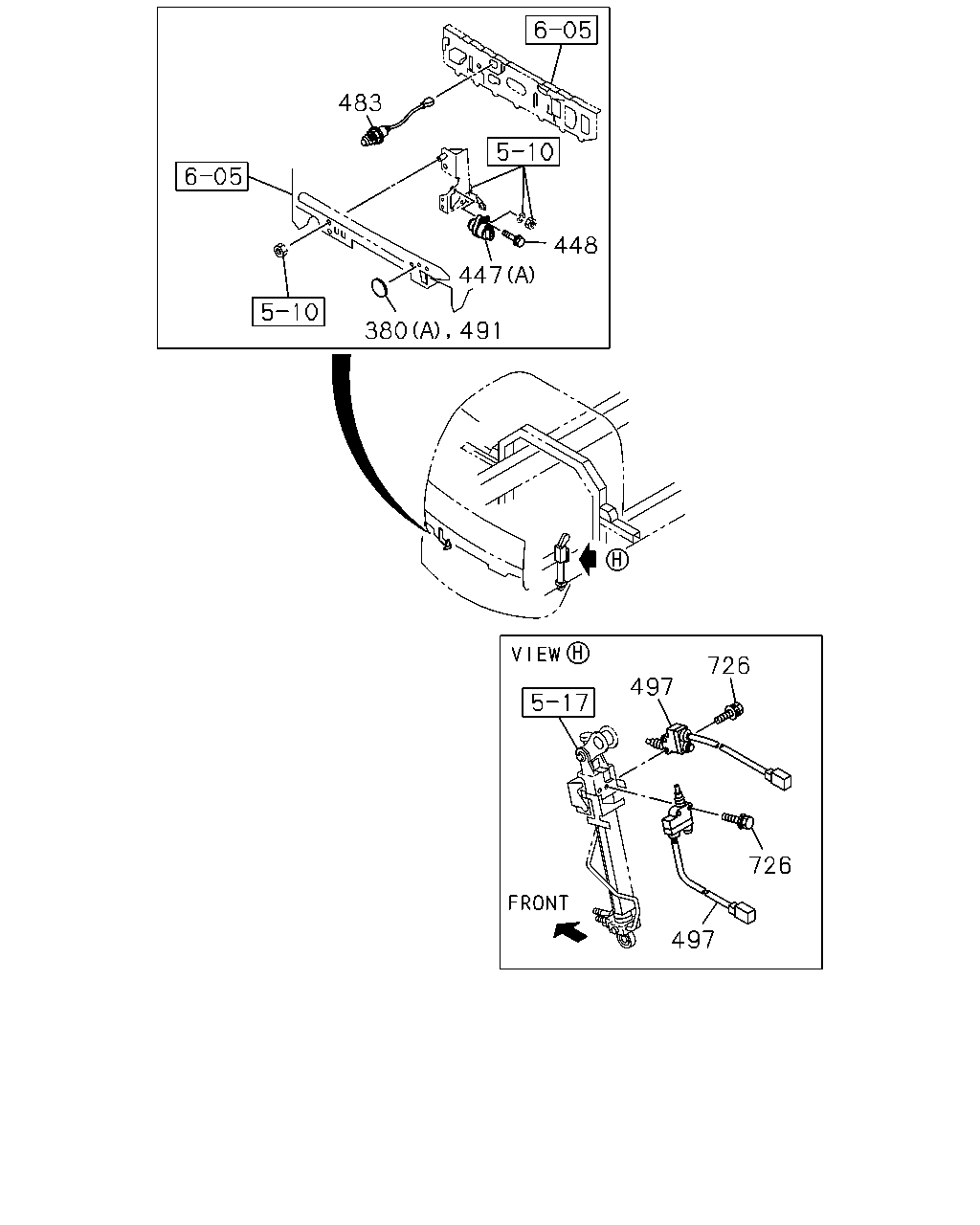

çizim 498287
483 380 491 447 448 497 726 726 497
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 1508-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 1508-
447 SENSOR; HEIGHT
(A) 		8-98125-255-0 01 1 1508-
447 SENSOR; HEIGHT
(B) 		8-98125-257-0 01 1 1508-
448 BOLT; SENSOR
M6X25 		8-94279-204-0 02 1 1508-
483 SWITCH 8-97632-269-0 01 1 1508-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 1508-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1508-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1508-

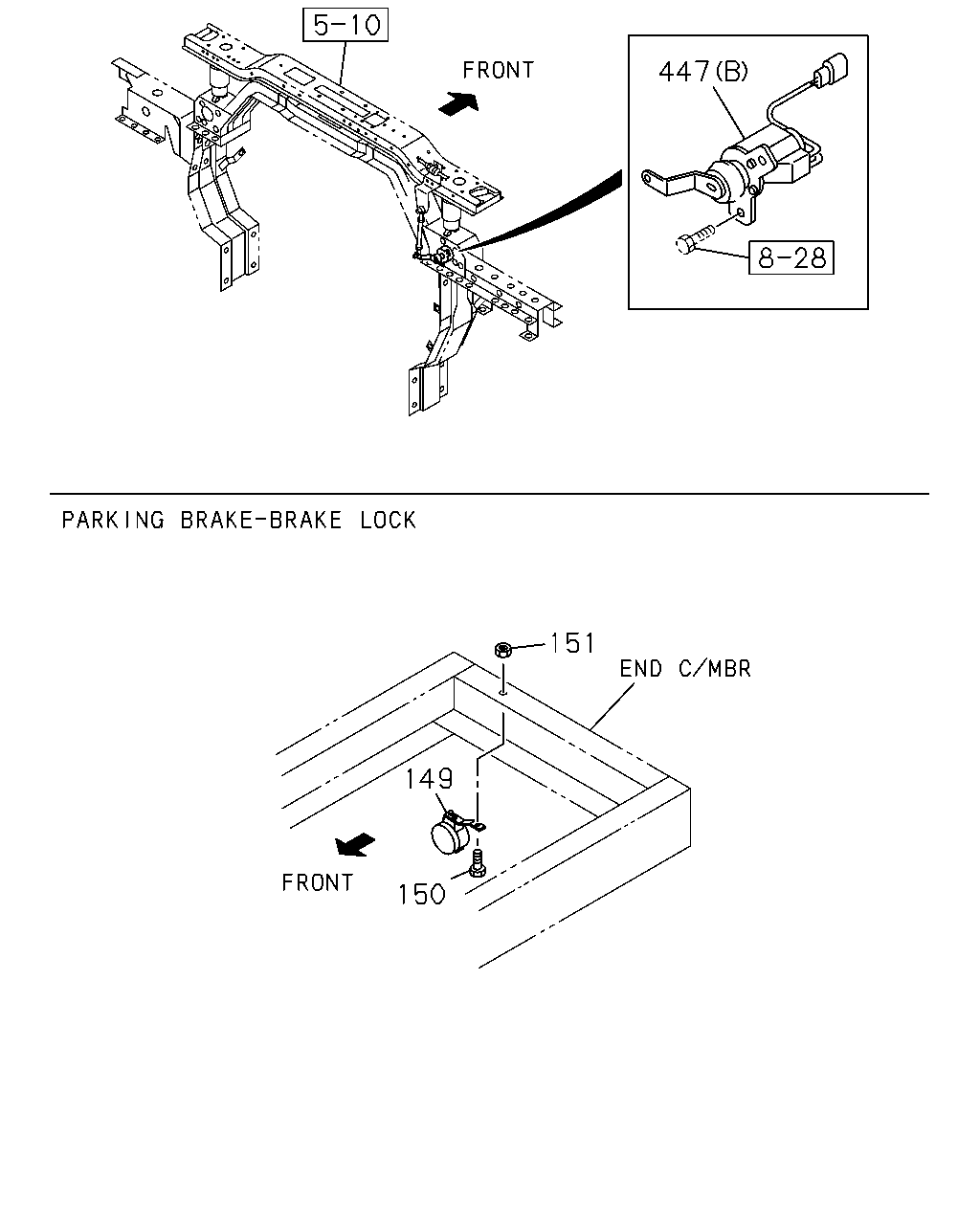

çizim 498289
447 151 149 150
BalonParca AdiParca NoAdetTipApplied Date
149 BUZZER; BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) 		1-83460-104-0 01 1 1508-
150 BOLT; BUZZER BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) M10X20 FLANGE 		0-28651-020-0 01 1 1508-
151 NUT; BUZZER BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) M10 FLANGE 		0-91180-210-0 01 1 1508-
447 SENSOR; HEIGHT
(A) 		8-98125-255-0 01 1 1508-
447 SENSOR; HEIGHT
(B) 		8-98125-257-0 01 1 1508-

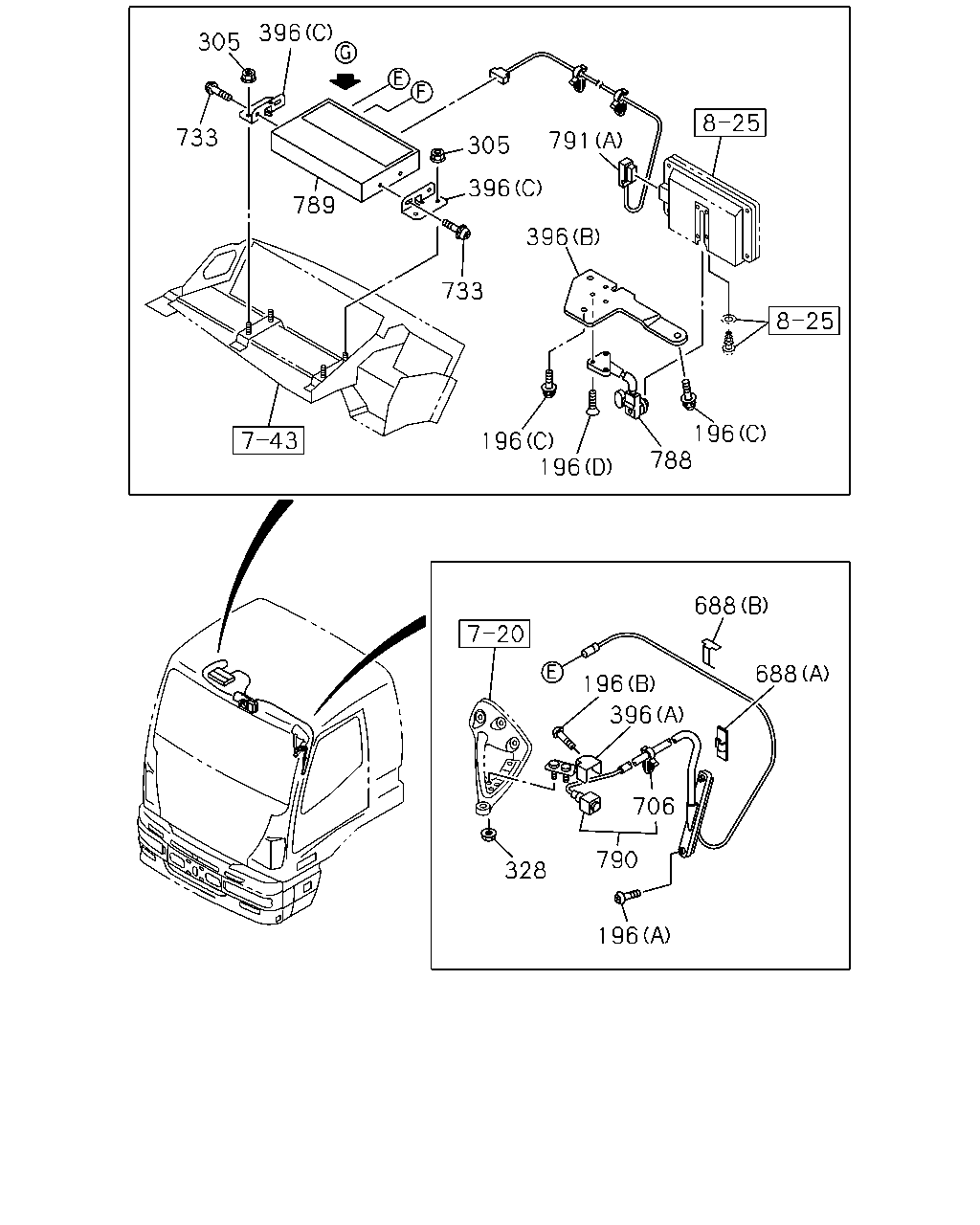

çizim 498302
396 305 733 789 305 733 396 396 791 196 788 196 196 196 396 688 688 706 790 328 196
BalonParca AdiParca NoAdetTipApplied Date
196 BOLT
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (A) M5X11 		1-09981-536-1 02 1 1508-
196 BOLT
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (B) M3X6 		9-93490-306-0 02 1 1508-
196 BOLT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (D) M4X12 CK-HEAD 		0-36410-412-0 03 1 1508-
196 BOLT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (C) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
VIN MODEL YEAR 2014(VZE) M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
328 NUT
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> M6 FLANGE 		8-94197-199-0 02 1 1508-
396 BRACKET
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (A) 		8-97627-192-2 01 1 1508-
396 BRACKET
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (C) 		8-97627-037-1 02 1 1508-
396 BRACKET
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (B) 		8-97627-289-1 01 1 1508-
688 CLIP; CABLE
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1508-
688 CLIP; CABLE
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (A) ID=10 L=30 		8-97629-705-0 02 1 1508-
706 CLIP; HARNESS
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> 		8-97069-960-0 01 1 1508-
733 BOLT; ELEC CONT UNIT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> M4X6 		0-36220-406-0 04 1 1508-
788 STAY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-97627-288-1 01 1 1508-
789 CONTROL UNIT; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-97627-290-1 01 1 1508-
790 CAMERA; SAFETY
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> 		8-97627-286-2 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (D) L=200 		8-97632-266-1 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH> (E) L=200 		8-97632-267-1 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (B) L=10000 		8-97627-294-0 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (F) L=200 		8-97632-268-0 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (C) L=5000 		8-97632-837-0 02 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (A) L=850 		8-97627-292-1 01 1 1508-

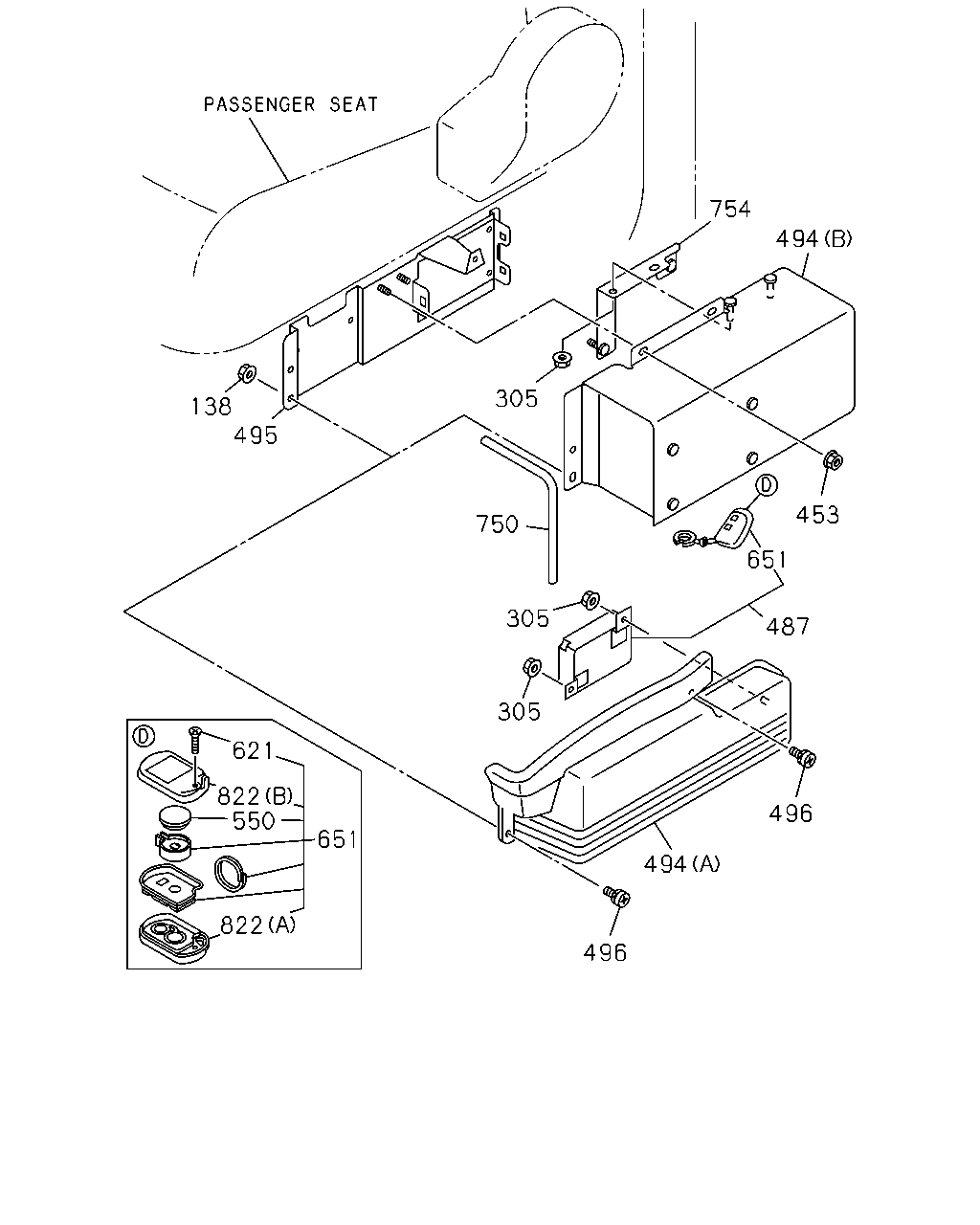

çizim 498303
138 495 305 750 305 305 494 496 487 651 453 494 754 496 621 822 550 651 822
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> M6 FLANGE 		0-91180-106-0 04 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
VIN MODEL YEAR 2014(VZE) M6 FLANGE 		0-91180-106-0 02 1 1508-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1508-
453 NUT; BRKT
1 CREWS SEAT ASM PASSENGER DELETE(AP5) M6 FLANGE 		0-91180-106-0 02 1 1508-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-229-1 01 1 1508-
494 COVER; ELEC BOX
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) (A) 		8-97589-725-0 01 1 1508-
494 COVER; ELEC BOX
1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) 		8-97589-723-1 01 1 1508-
495 BRACKET; ELEC BOX
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) 		8-97589-728-0 01 1 1508-
496 SCREW; COVER
CENTER SEAT DELETE(SP9),SEAT ASM - WITH CENTER SEAT(7BC) M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 1508-
496 SCREW; COVER
1 CREWS SEAT ASM PASSENGER DELETE(AP5) M6X12 W/LK&PL WASHER 		0-36230-612-0 04 1 1508-
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 1508-
621 SCREW
M2X5 		8-98218-239-0 01 1 1508-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-235-0 01 1 1508-
750 FINISHER
1 CREWS SEAT ASM PASSENGER DELETE(AP5) L=250 SERVICED BY L=314 		8-94262-845-0 01 1 1508-
754 BRACKET; ECU,KEYLESS ENTRY
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-97589-745-0 01 1 1508-
822 COVER; TRANSMITTER
(A) 		8-98218-240-0 01 1 1508-
822 COVER; TRANSMITTER
(B) 		8-98218-241-0 01 1 1508-

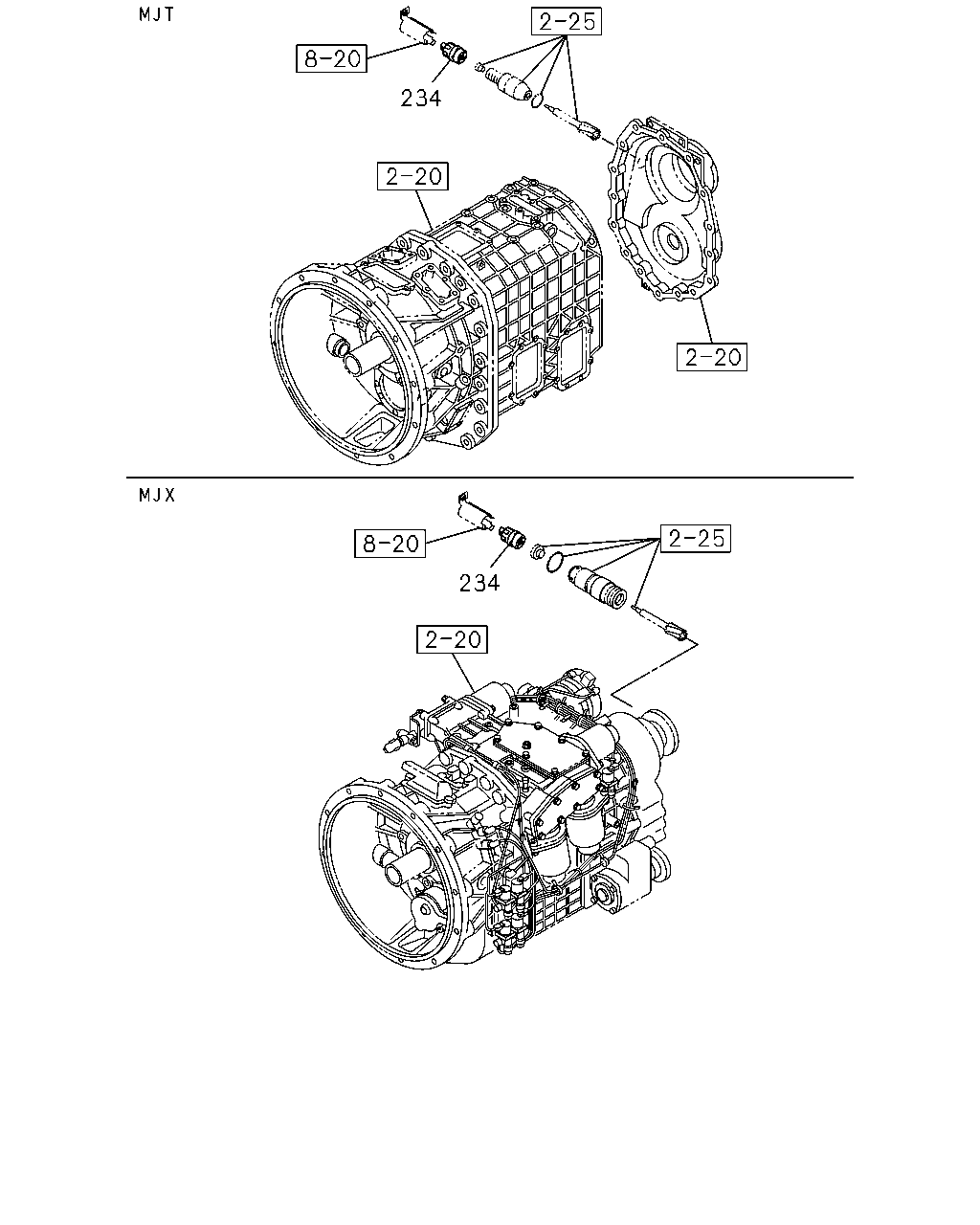

çizim 498474
234 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1508-
çizim 498569
791 791 580 791 789 791 789 791
BalonParca AdiParca NoAdetTipApplied Date
580 CAMERA; REAR
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> 		8-97627-287-0 01 1 1508-
789 CONTROL UNIT; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-97627-290-1 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>, LH SIDE REAR VIEW MONITOR<DKQ> (D) L=200 		8-97632-266-1 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH> (E) L=200 		8-97632-267-1 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (B) L=10000 		8-97627-294-0 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (F) L=200 		8-97632-268-0 01 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ> (C) L=5000 		8-97632-837-0 02 1 1508-
791 CABLE; SAFETY
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> (A) L=850 		8-97627-292-1 01 1 1508-
