◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#168080) — 88 parça
çizim 498226
698 703 423 311 528 21 39
BalonParca AdiParca NoAdetTipApplied Date
21 SWITCH; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-82380-114-3 01 1 1508-
39 RELAY; DOOR LK
24V 10A PANASONIC 		8-97173-035-1 02 1 1508-
311 RELAY; CORNERING LAMP
VIN MODEL YEAR 2014(VZE) 24V 10A PANASONIC 		8-97173-035-1 01 1 1508-
423 SWITCH; ENG WARMING 8-98144-535-2 01 1 1508-
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 1508-
698 SWITCH; EDS
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) 		8-98197-609-1 01 1 1508-
703 SWITCH; DPD & HSA 8-98011-346-2 01 1 1508-

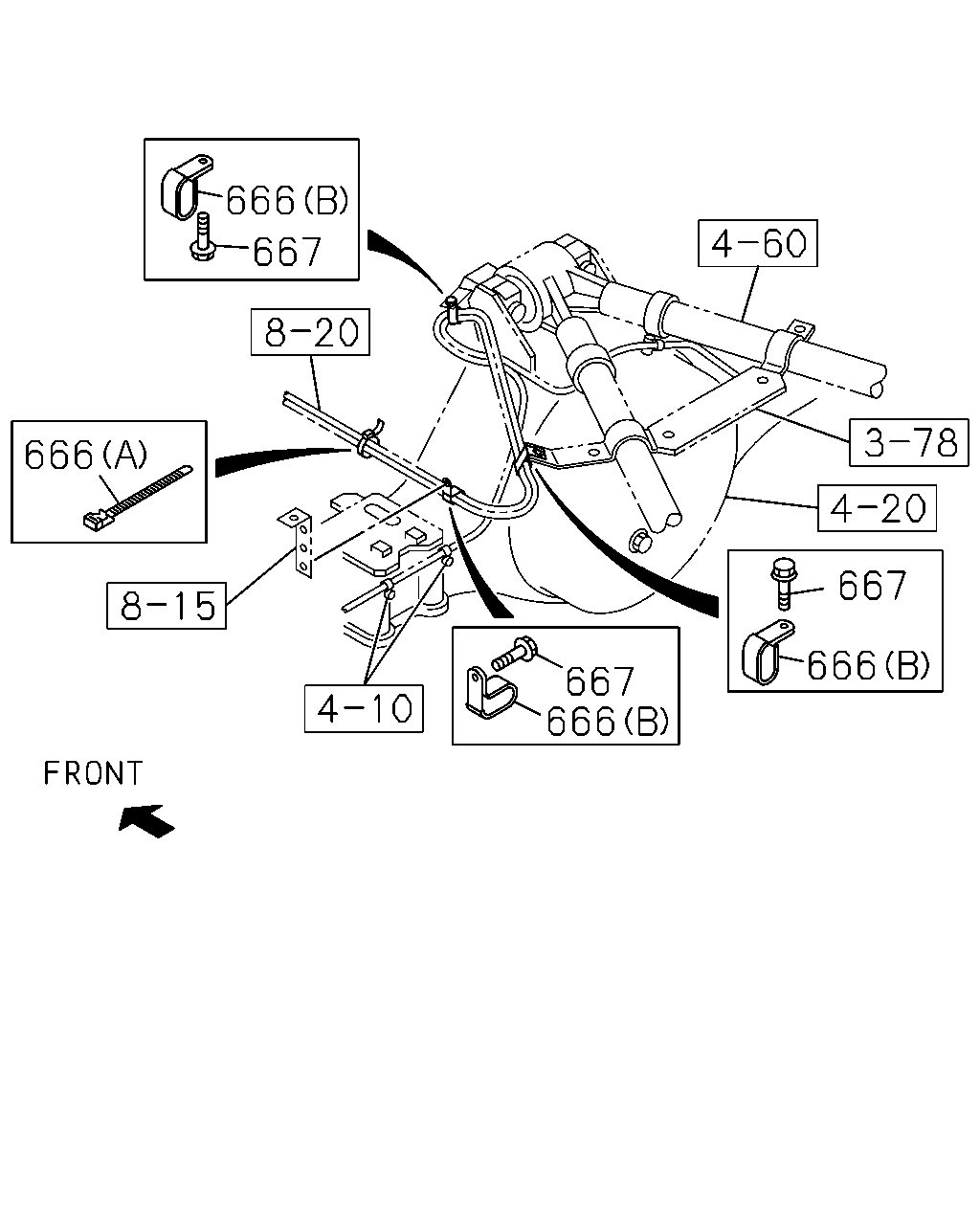

çizim 498233
666 667 666 667 666 666 667
BalonParca AdiParca NoAdetTipApplied Date
666 CLIP; AXLE HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 04 1 1508-
666 CLIP; AXLE HARNESS
(A) L=350 		1-09707-183-0 02 1 1508-
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1508-

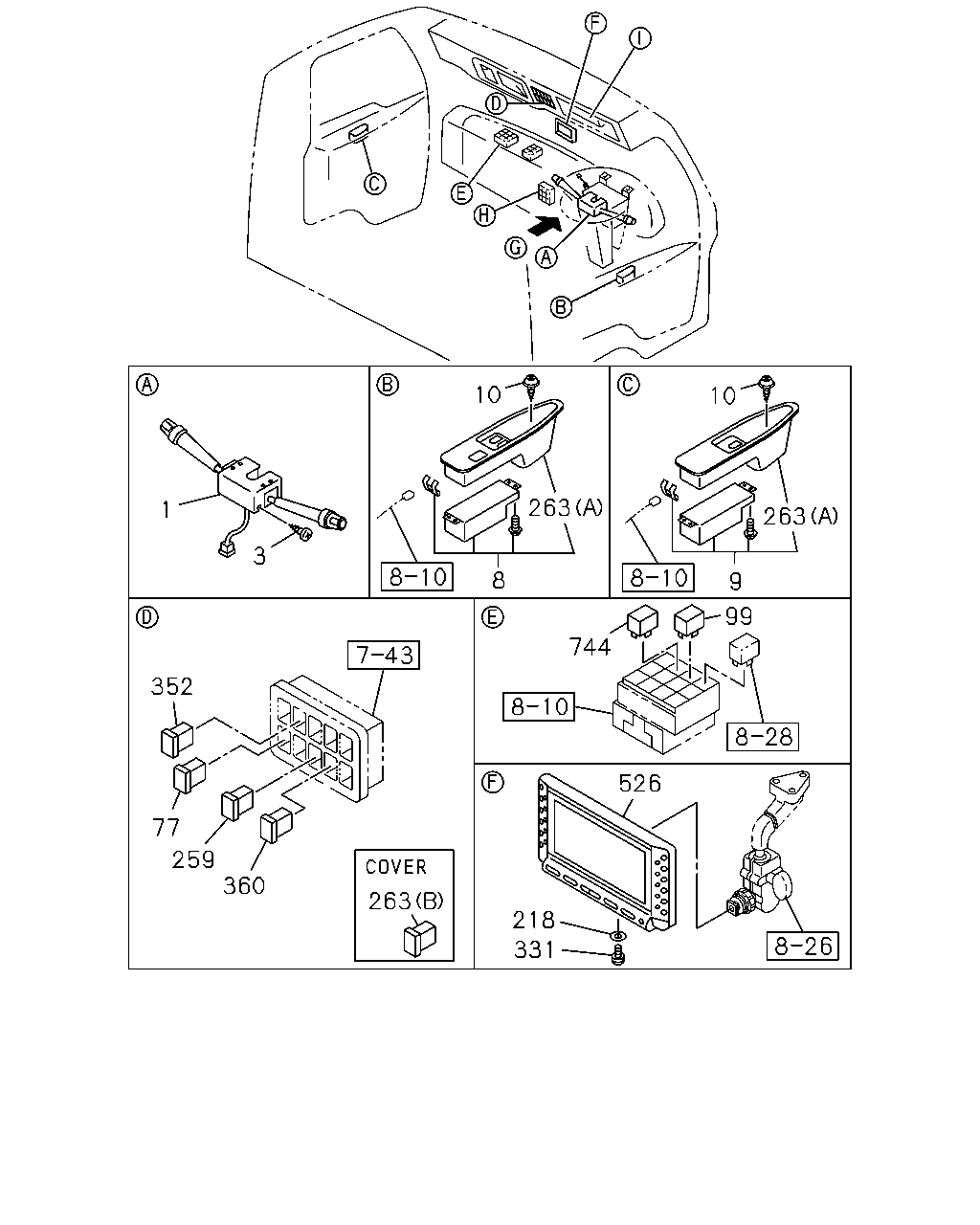

çizim 498341
331 526 218 263 360 259 77 352 8 9 99 744 10 263 263 10 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) AUTO CRUISE LESS(UAA) 		1-82360-550-1 01 1 1508-
1 SWITCH; COMB
MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) AUTO CRUISE LESS(UAA) 		1-82360-550-1 01 1 1508-
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) 		8-98107-059-0 01 1 1508-
1 SWITCH; COMB
MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) 		8-98107-059-0 01 1 1508-
1 SWITCH; COMB
MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) AUTO CRUISE LESS(UAA) 		1-82360-700-1 01 1 1508-
1 SWITCH; COMB
MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> SMOOTHER-G(C1W) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) 		8-98107-058-0 01 1 1508-
1 SWITCH; COMB
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98107-057-0 01 1 1508-
1 SWITCH; COMB
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) AUTO CRUISE LESS(UAA) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		1-82360-701-1 01 1 1508-
1 SWITCH; COMB
TRANSMISSION CONTROL CABLE TYPE(C1A) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98107-319-0 01 1 1508-
1 SWITCH; COMB
MJT7U M/T(Y4X) SMOOTHER-G(C1W) AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98107-319-0 01 1 1508-
1 SWITCH; COMB
TRANSMISSION CONTROL CABLE TYPE(C1A) AUTO CRUISE LESS(UAA) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		1-82360-548-1 01 1 1508-
1 SWITCH; COMB
MJT7U M/T(Y4X) SMOOTHER-G(C1W) AUTO CRUISE LESS(UAA) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		1-82360-548-1 01 1 1508-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 1508-
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-166-2 01 1 1508-
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-167-1 01 1 1508-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1508-
77 SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97386-993-4 01 1 1508-
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1508-
218 WASHER; LK
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> ID=7 OD=25 T=2.3 		1-09985-202-0 01 1 1508-
259 SWITCH; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> 		8-98011-342-1 01 1 1508-
263 COVER; SW
(A) 		1-82385-005-2 01 1 1508-
263 COVER; SW
(A) 		1-82385-006-3 01 1 1508-
263 COVER; SW
(C) 		8-97043-732-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 07 1 1508-
263 COVER; SW
EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1508-
331 SCREW
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-98134-061-0 01 1 1508-
352 SWITCH ASM; BRK LK
PARKING BRAKE - BRAKE LOCK(6LL) 		8-98011-341-1 01 1 1508-
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1508-
526 MONITOR KIT; BACK EYE
REVERSING WARNING MONITOR<DKH>,REVERSING WARNING & LH SIDE REAR VIEW MONITOR<DKJ>,LH SIDE REAR VIEW MONITOR<DKQ> 		8-97627-276-0 01 1 1508-
744 RELAY; TILT,LID OPEN
24V 10A PANASONIC 		8-97173-035-1 01 1 1508-

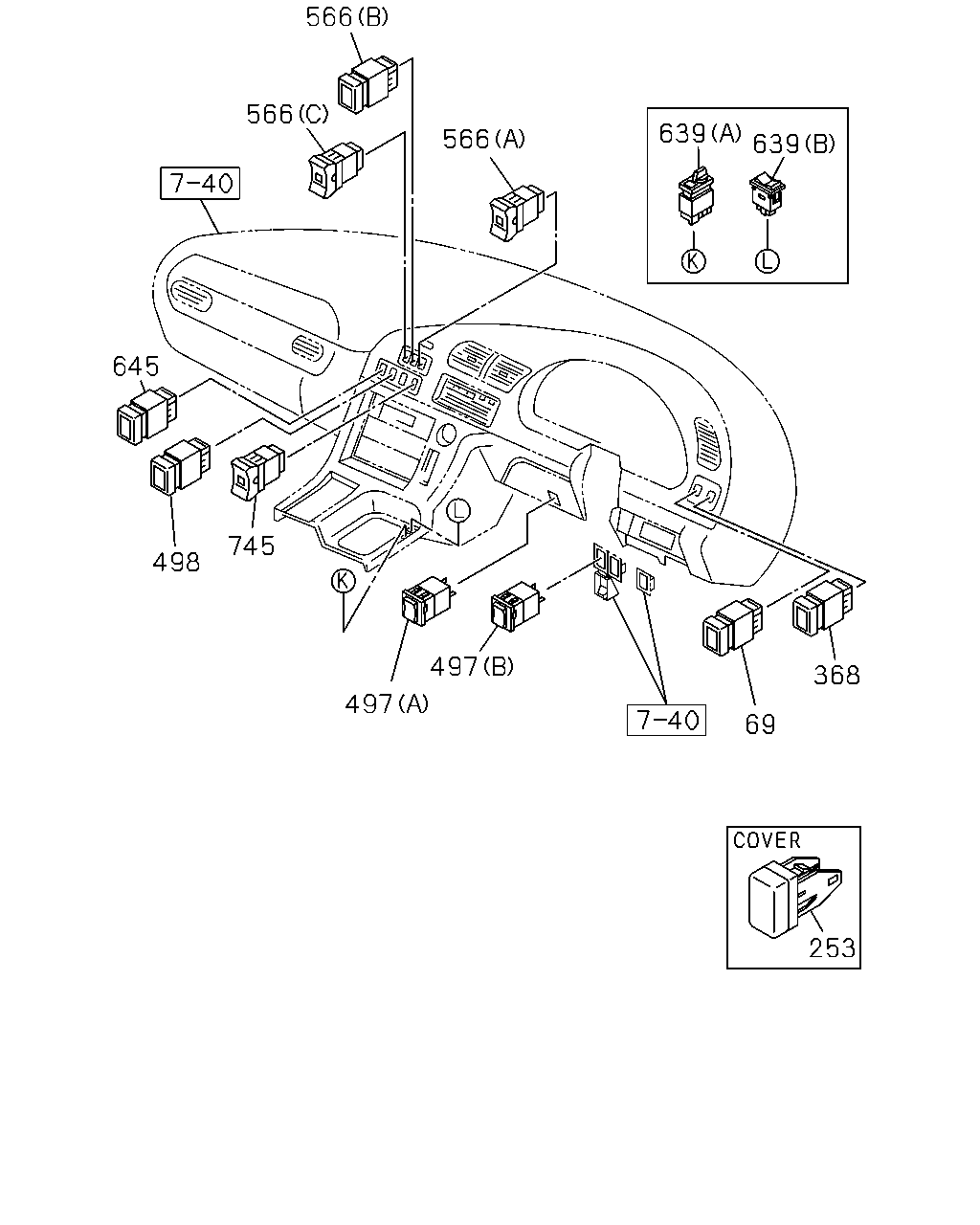

çizim 498344
566 566 566 639 639 497 497 69 368 253 498 745 645
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE
AUTO CRUISE ELEC WITH AUXILIARY BRAKE CONTROL(NFC) 		8-98011-344-1 01 1 1508-
253 COVER; SW HOLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
O/SIDE MIRROR RR VIEW,HEATED<7SV> 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM<6XH> 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
EXC. IDLE STOP SYSTEM(E7N) 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE 8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
AUTO CRUISE LESS(UAA) 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98025-954-1 01 1 1508-
253 COVER; SW HOLE
MJT7U M/T(Y4X) SMOOTHER-G(C1W) 		8-98025-954-1 01 1 1508-
368 SWITCH; LAMP
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) 		8-98144-539-2 01 1 1508-
368 SWITCH; LAMP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97386-917-2 01 1 1508-
368 SWITCH; LAMP
MJT7U M/T(Y4X) SMOOTHER-G(C1W) 		8-97386-917-2 01 1 1508-
497 SWITCH; HSA
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) HSA ADJUST 		1-82350-237-2 01 1 1508-
497 SWITCH; HSA
MJT7U M/T(Y4X) SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 1508-
497 SWITCH; HSA
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) HSA RESET 		8-98134-958-1 01 1 1508-
497 SWITCH; HSA
MJT7U M/T(Y4X) SMOOTHER-G(C1W) (A) HSA RESET 		8-98134-958-1 01 1 1508-
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1508-
566 SWITCH; MIRROR
(C) 		8-97386-924-3 01 1 1508-
566 SWITCH; MIRROR
(A) 		8-98011-343-2 01 1 1508-
566 SWITCH; MIRROR
O/SIDE MIRROR REAR VIEW,HEATED W/WIPER<EEN> (B) 		8-98120-895-1 01 1 1508-
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (A) 		1-82330-068-0 01 1 1508-
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (B) 		1-82350-363-0 01 1 1508-
645 SWITCH; IDLE STOP
IDLE STOP SYSTEM(E7N) 		8-97386-916-2 01 1 1508-
745 SWITCH; SHIFT UNIT
SMOOTHER-G(C1W) 		8-98144-805-2 01 1 1508-

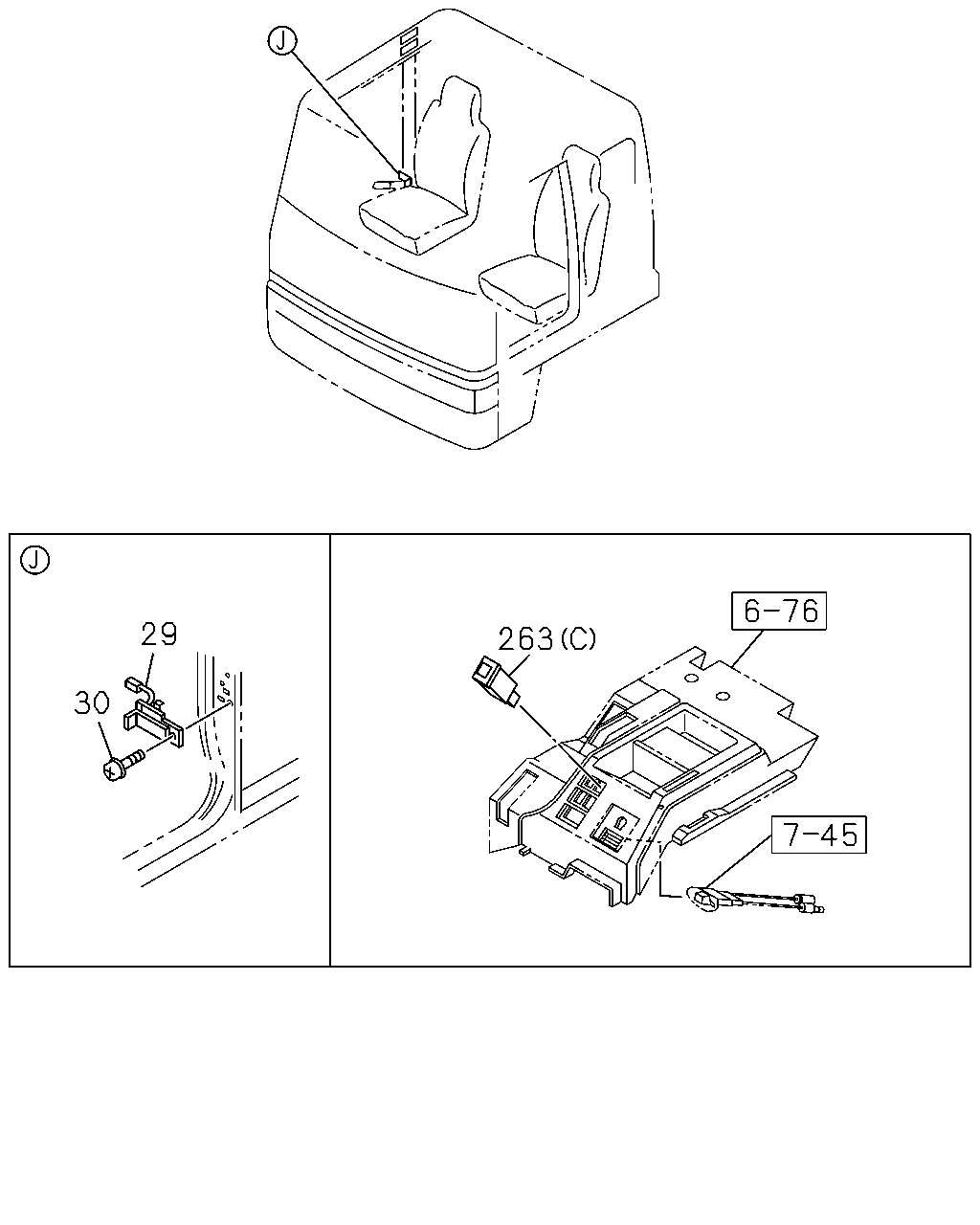

çizim 498408
29 30 263
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 02 1 1508-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 1508-
263 COVER; SW
(A) 		1-82385-005-2 01 1 1508-
263 COVER; SW
(A) 		1-82385-006-3 01 1 1508-
263 COVER; SW
(C) 		8-97043-732-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 07 1 1508-
263 COVER; SW
EXC. PARKING BRAKE - BRAKE LOCK(6LL) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>,BRAKE SYSTEM RETARDER<RE2> TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG>, BRAKE SYSTEM RETARDER<RE2> (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
(B) 		8-98025-954-1 01 1 1508-
263 COVER; SW
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1508-

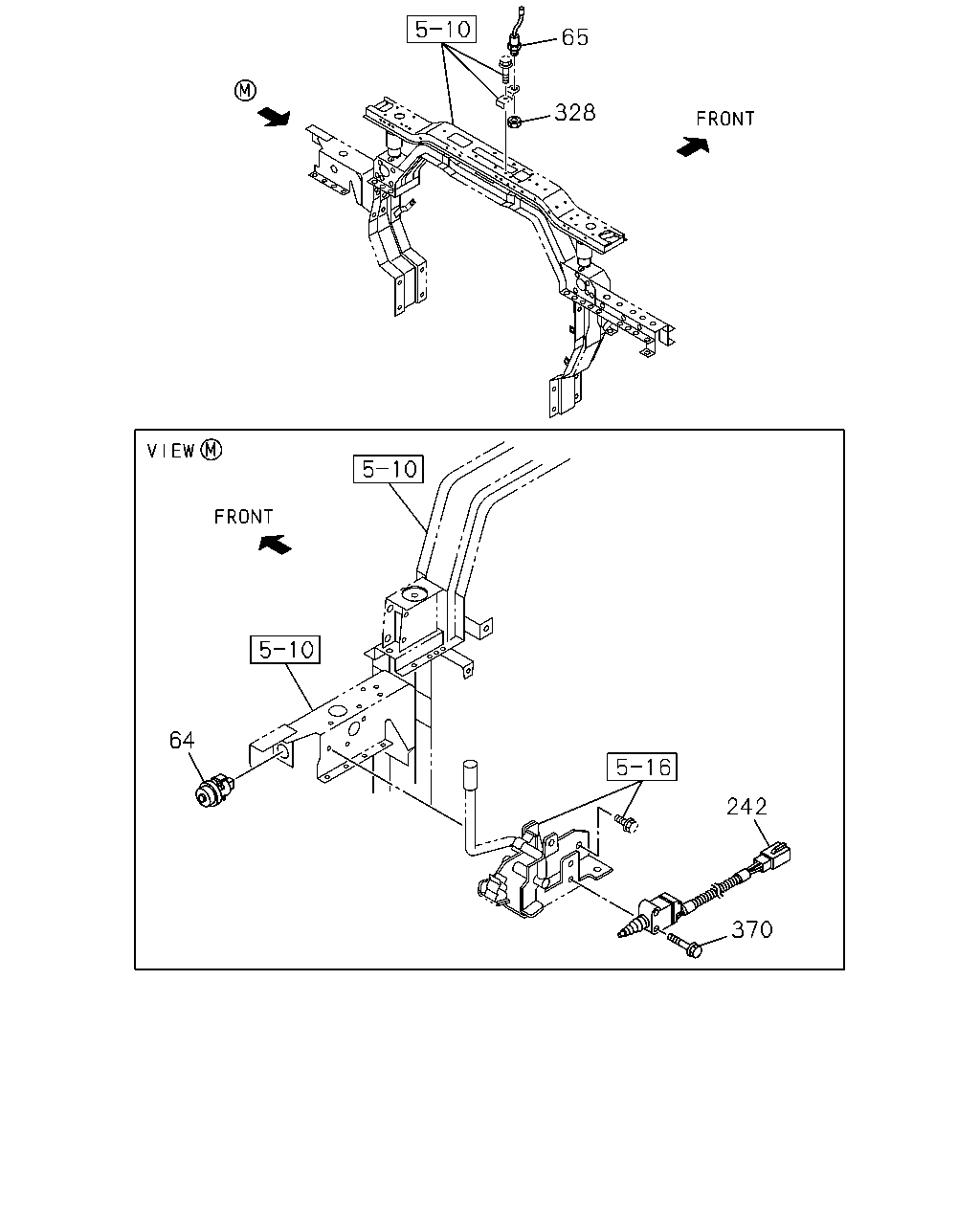

çizim 498529
65 328 64 242 370
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1508-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 1508-
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 1508-
328 NUT; SW
M16 		0-91110-516-0 01 1 1508-
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1508-
