◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11730 - CYJ NEW ZEALAND SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#168079) — 21 parça

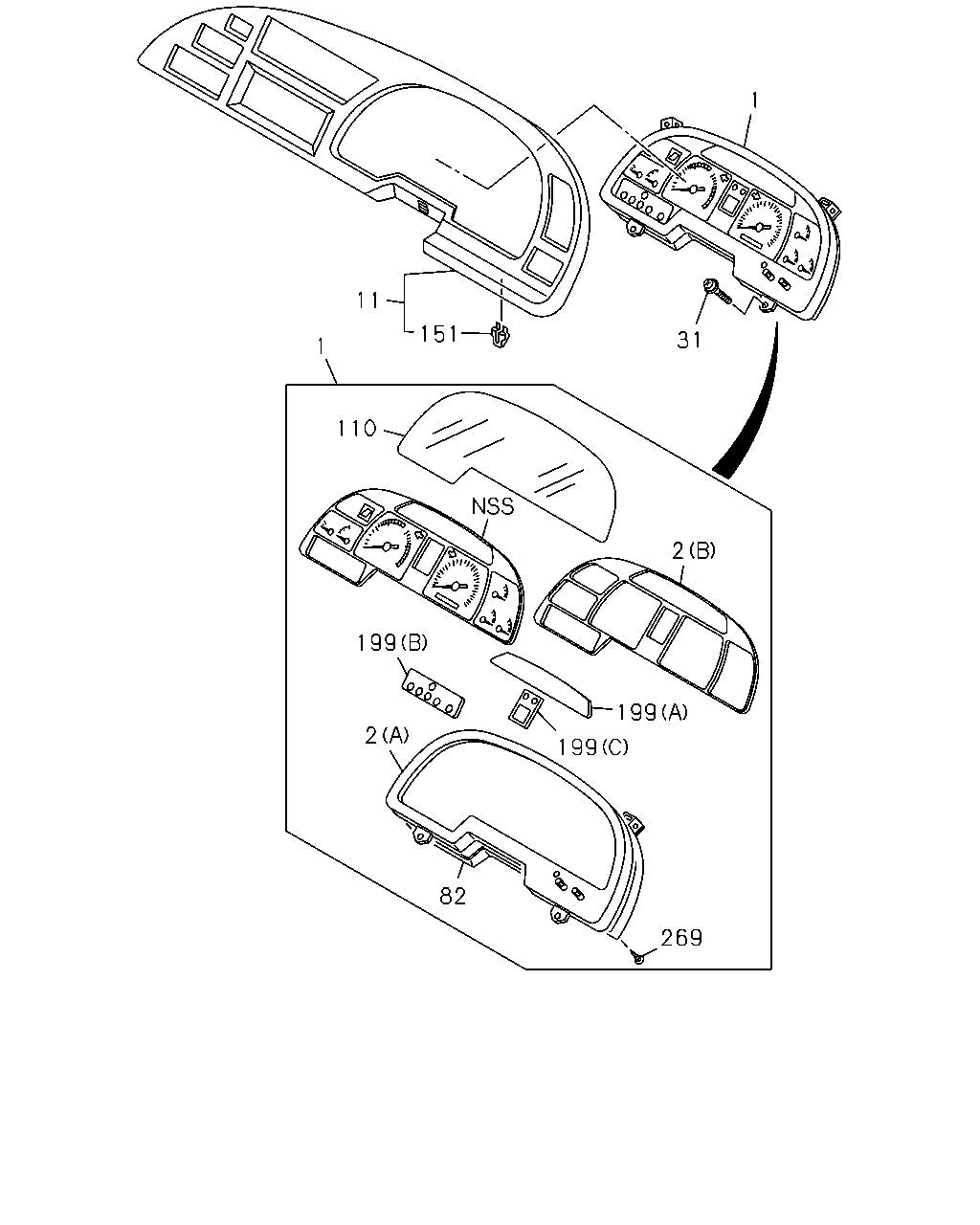

çizim 498386
1 31 151 11 1 110 199 2 199 82 269 2 199
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
SMOOTHER-G(C1W) 		8-98144-808-5 01 1 1508-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98144-807-5 01 1 1508-
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 1508-
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 1508-
11 CLUSTER ASM; METER 1-72418-012-9 01 1 1508-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1508-
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1508-
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1508-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1508-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1508-
199 LENS; WARNING LAMP
(A) 		8-98150-665-0 01 1 1508-
199 LENS; WARNING LAMP
(B) 		8-98150-666-1 01 1 1508-
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1508-

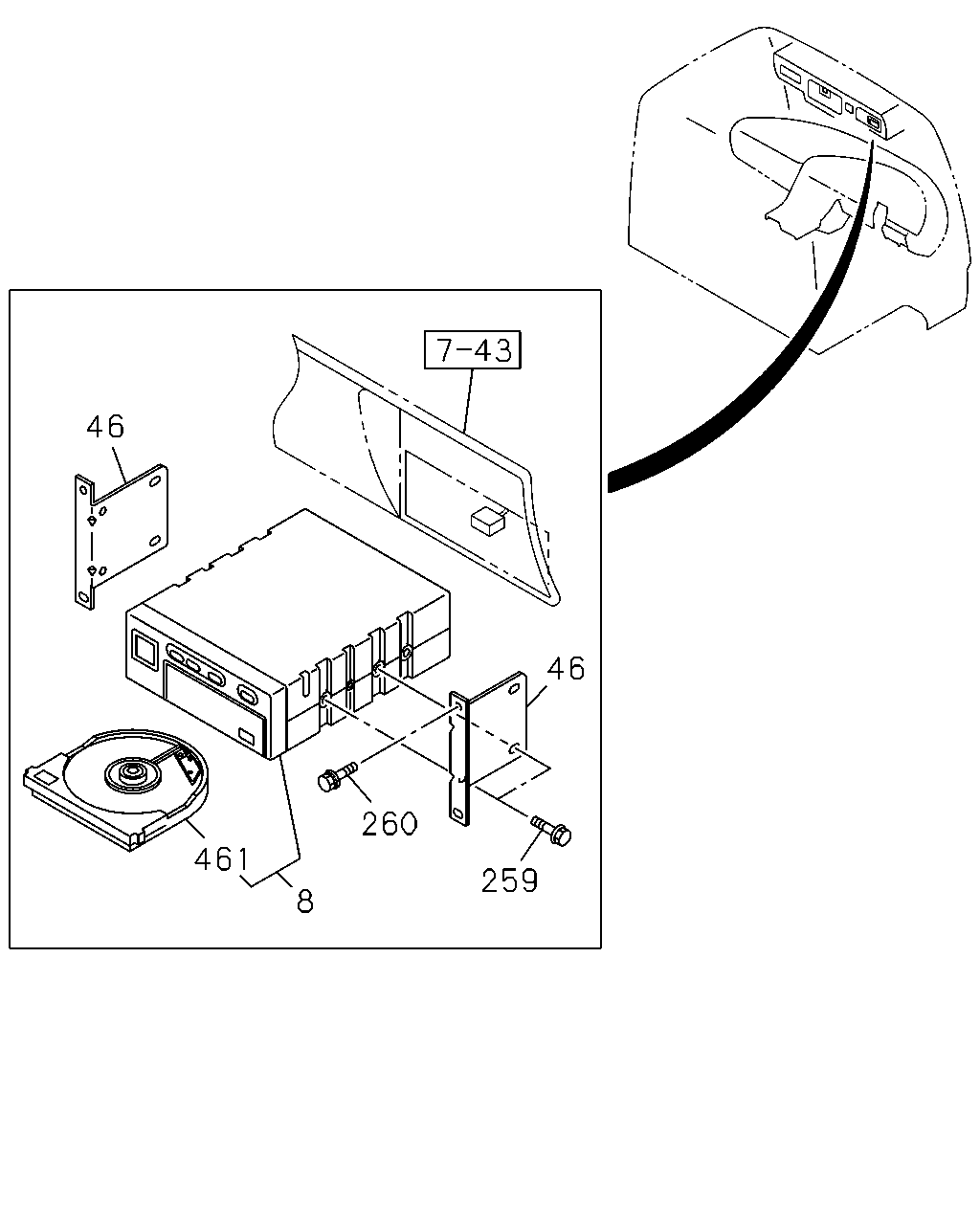

çizim 498482
46 259 260 461 8 46
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-83120-839-3 01 1 1508-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H 1DAY<7HM> 		1-83120-885-3 01 1 1508-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H 7DAY<7HN> 		1-83120-838-3 01 1 1508-
46 BRACKET; TACHOGRAPH 1-73907-724-0 02 1 1508-
259 SCREW; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H 1DAY<7HM>,TACHOGRAPH 120KM/H 7DAY<7HN> M5X8 W/LK WASHER 		0-36220-508-0 04 1 1508-
260 BOLT; TACHOGRAPH
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1508-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H 7DAY<7HN> 		1-83129-433-0 01 1 1508-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 120KM/H 1DAY<7HM> 		1-83129-432-0 01 1 1508-
