Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#168077) — 376 parça

127 119 340 524 24 219 294 515 294 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	1508-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1508-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	10	1	1508-
219	NUT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	15	1	1508-
294	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M10 FLANGE	0-91180-210-0	01	1	1508-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1508-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	1508-
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	04	1	1508-
423	WASHER; HARNESS,EARTH EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	03	1	1508-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1508-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1508-

334 334 342 375 504 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
334	BRACKET (B)	1-53457-153-2	01	1	1508-
334	BRACKET (A)	1-82698-663-0	01	1	1508-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1508-
375	BRACKET; AC GEN HARNESS CLIP	8-98121-714-0	01	1	1508-
504	PROTECTOR; HARNESS	1-82698-391-0	02	1	1508-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1508-

1 224 1 178 178 178 178 530 530 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=38.1 L=50	5-09360-835-0	01	1	1508-
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=40	1-09337-015-0	02	1	1508-
178	GROMMET; HARNESS (A) ID=39 OD=45 T=13	1-09332-076-0	01	1	1508-
178	GROMMET; HARNESS EXC. SMOOTHER-G(C1W) (A) ID=39 OD=45 T=13	1-09332-076-0	01	1	1508-
178	GROMMET; HARNESS (B) W0/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	1508-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	1508-
178	GROMMET; HARNESS (C) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	1508-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	03	1	1508-
178	GROMMET; HARNESS SMOOTHER-G(C1W) (A) ID=39 OD=45 T=13	1-09332-076-0	02	1	1508-
178	GROMMET; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-82698-551-0	01	1	1508-
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40	1-09337-015-0	01	1	1508-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	1508-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	01	1	1508-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	1508-

128 16 373 48 48 16 16 16 373 48 16 16 470 16 16 16 235 16 16 16 16 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

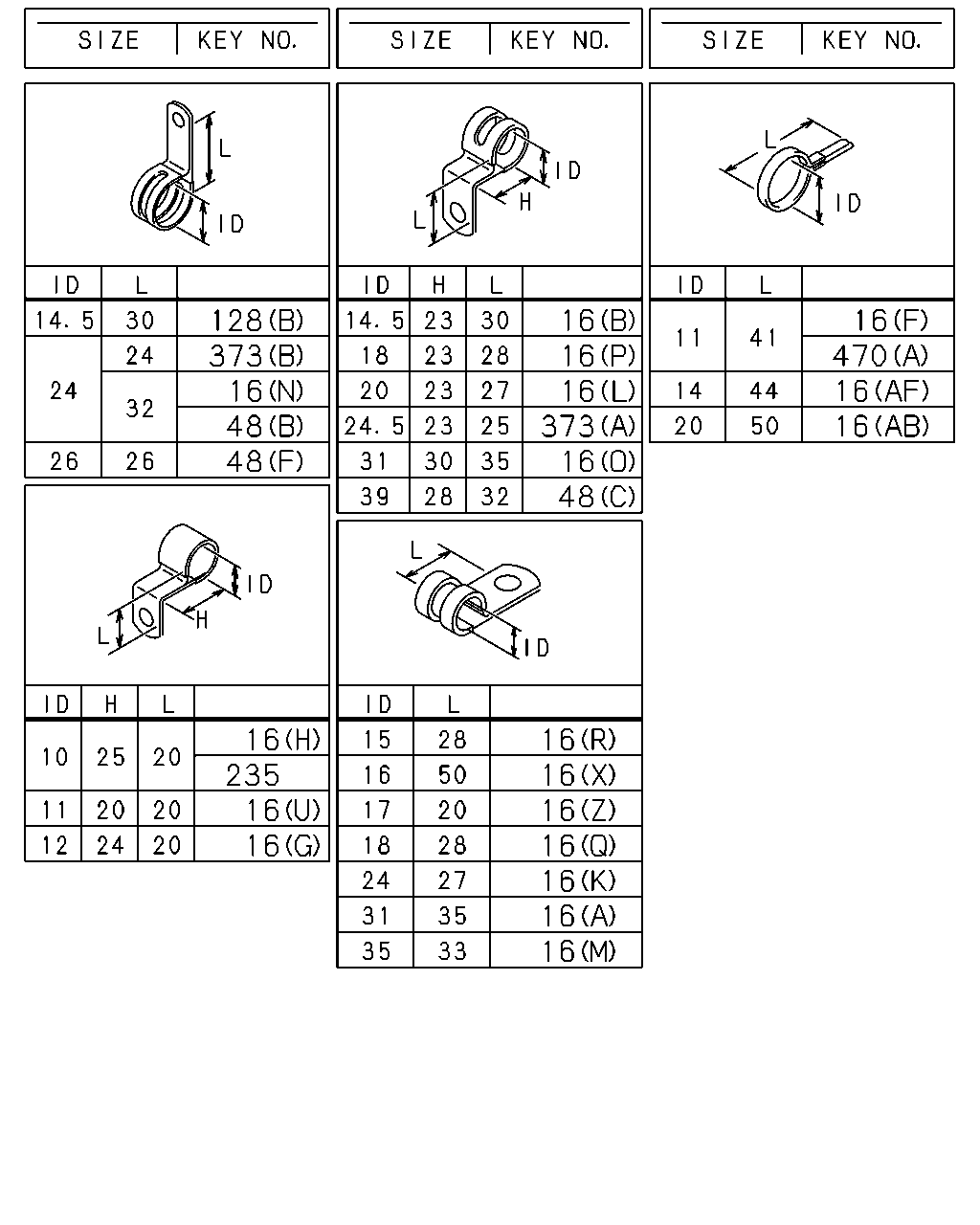

16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (J) ID=11 L=20	0-95235-035-0	01	1	1508-
16	CLIP; HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1508-
16	CLIP; HARNESS (K) ID=24 L=27	1-09700-809-0	01	1	1508-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	02	1	1508-
16	CLIP; HARNESS (O) ID=31 H=30 L=35	1-09700-994-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=18 L=28	1-09701-067-0	01	1	1508-
16	CLIP; HARNESS (P) ID=18 H=23 L=28	1-09701-070-0	01	1	1508-
16	CLIP; HARNESS (X) ID=16 L=50	1-09701-158-0	01	1	1508-
16	CLIP; HARNESS (R) ID=15 L=28	1-09701-216-0	02	1	1508-

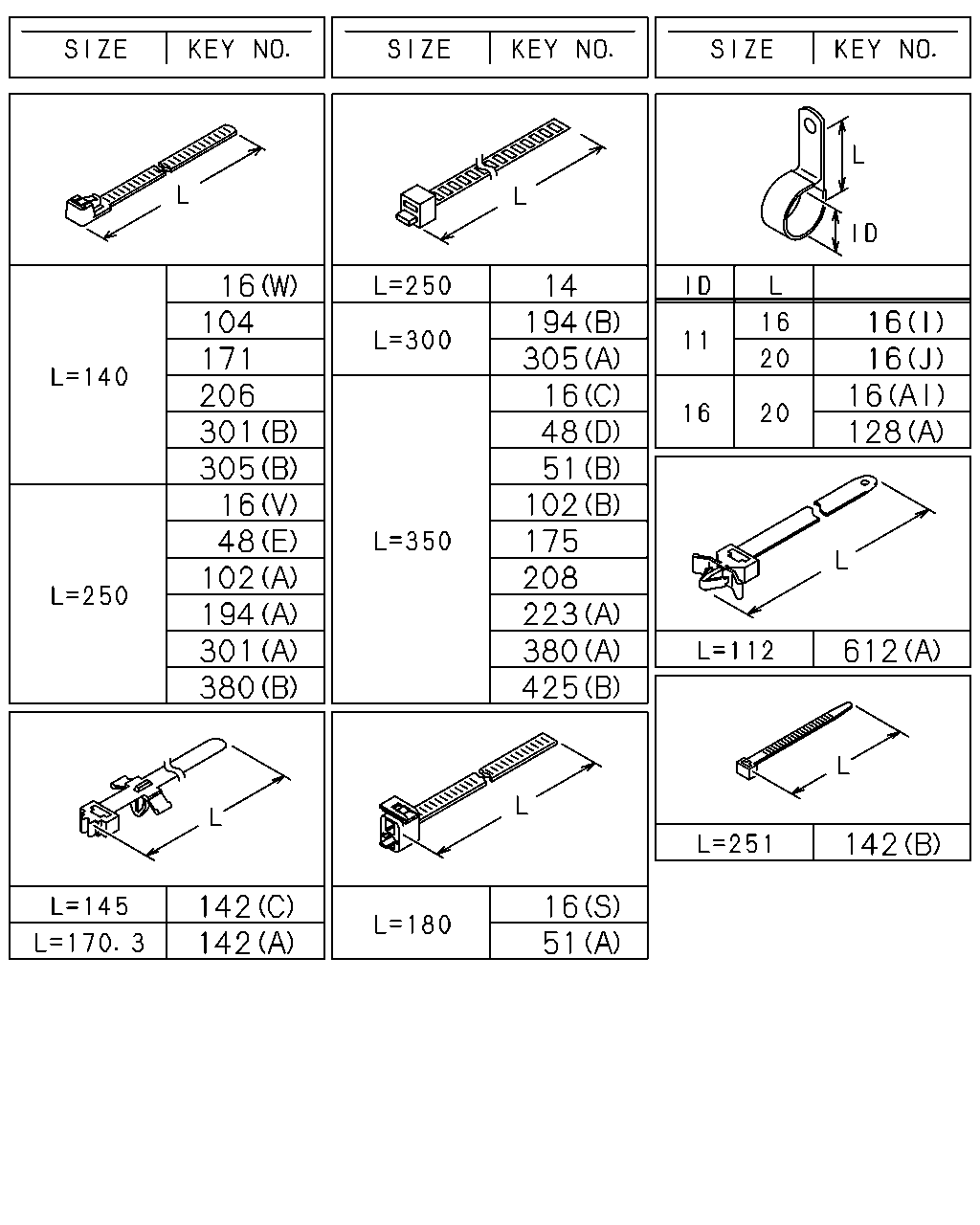

16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (C) L=350	1-09707-183-0	08	1	1508-

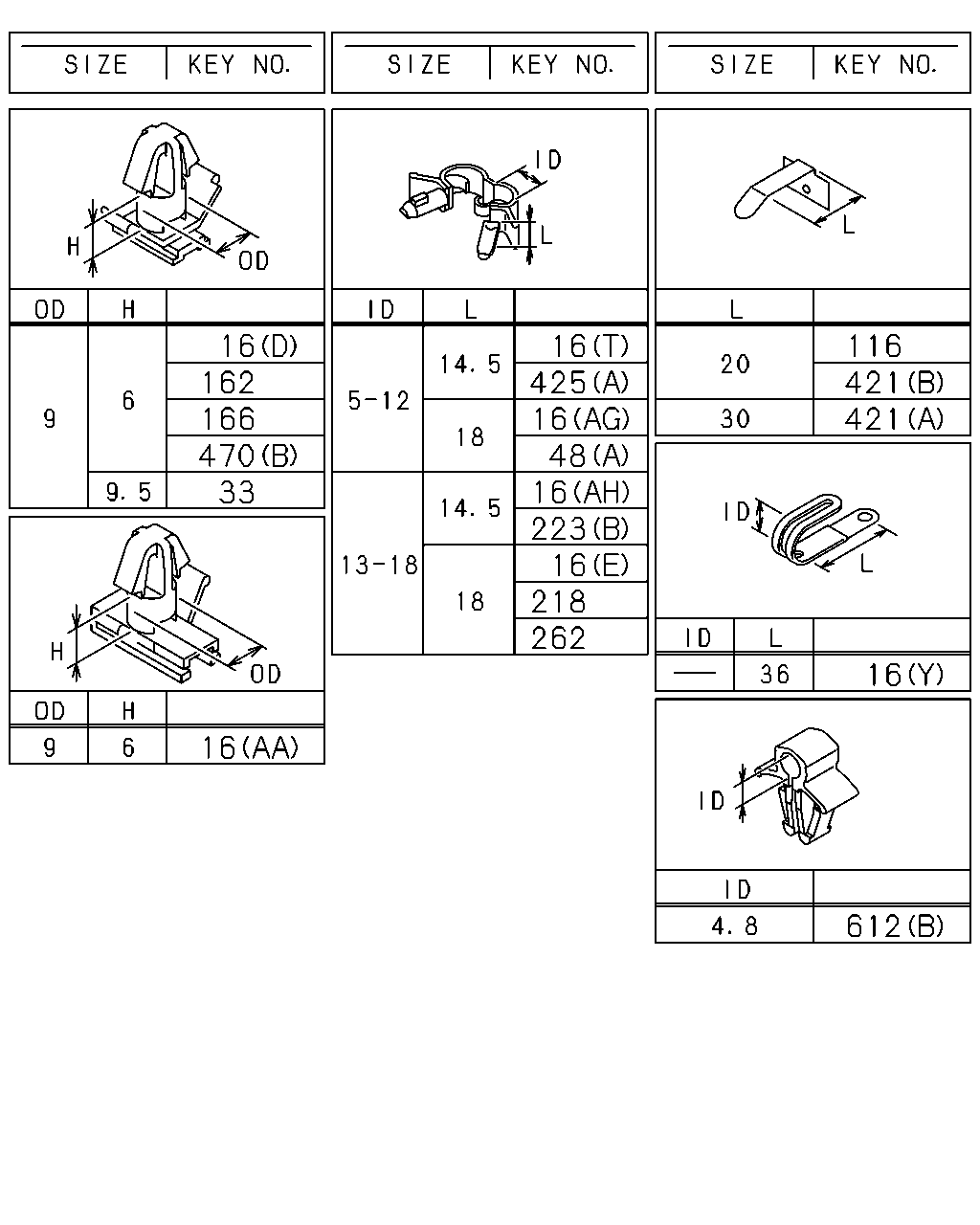

16	CLIP; HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
16	CLIP; HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
16	CLIP; HARNESS (V) L=250	5-09707-030-1	04	1	1508-
16	CLIP; HARNESS (W) L=140	5-09707-031-1	02	1	1508-
16	CLIP; HARNESS (Y) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	01	1	1508-
16	CLIP; HARNESS (AA) OD=9 H=6	8-97368-793-0	03	1	1508-
16	CLIP; HARNESS (Z) ID=17 L=20	8-97619-251-0	07	1	1508-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	1508-
16	CLIP; HARNESS (AB) ID=20 L=50	9-09917-430-0	10	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	03	1	1508-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	1508-
16	CLIP; HARNESS (AD) L=155	8-97173-307-0	02	1	1508-
16	CLIP; HARNESS (U) ID=11 H=20 L=20	8-98033-780-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (AI) ID=16 L=20	0-95235-536-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (W) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	05	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	07	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (T) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	03	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (V) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	1508-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	14	1	1508-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	03	1	1508-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	07	1	1508-
48	CLIP; FRAME HARNESS MJX12P M/T SMOOTHER-G(Y4S) (F) ID=26 L=26	1-09701-236-0	01	1	1508-
48	CLIP; FRAME HARNESS SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1508-
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7U M/T(Y4X) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
373	CLIP; BAND,GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1508-
373	CLIP; BAND,GEN HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-

16 162 470 166 33 16 16 16 425 48 16 16 223 218 16 262 116 421 421 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (J) ID=11 L=20	0-95235-035-0	01	1	1508-
16	CLIP; HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1508-
16	CLIP; HARNESS (K) ID=24 L=27	1-09700-809-0	01	1	1508-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	02	1	1508-
16	CLIP; HARNESS (O) ID=31 H=30 L=35	1-09700-994-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=18 L=28	1-09701-067-0	01	1	1508-
16	CLIP; HARNESS (P) ID=18 H=23 L=28	1-09701-070-0	01	1	1508-
16	CLIP; HARNESS (X) ID=16 L=50	1-09701-158-0	01	1	1508-
16	CLIP; HARNESS (R) ID=15 L=28	1-09701-216-0	02	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (C) L=350	1-09707-183-0	08	1	1508-
16	CLIP; HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
16	CLIP; HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
16	CLIP; HARNESS (V) L=250	5-09707-030-1	04	1	1508-
16	CLIP; HARNESS (W) L=140	5-09707-031-1	02	1	1508-
16	CLIP; HARNESS (Y) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	01	1	1508-
16	CLIP; HARNESS (AA) OD=9 H=6	8-97368-793-0	03	1	1508-
16	CLIP; HARNESS (Z) ID=17 L=20	8-97619-251-0	07	1	1508-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	1508-
16	CLIP; HARNESS (AB) ID=20 L=50	9-09917-430-0	10	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	03	1	1508-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	1508-
16	CLIP; HARNESS (AD) L=155	8-97173-307-0	02	1	1508-
16	CLIP; HARNESS (U) ID=11 H=20 L=20	8-98033-780-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (AI) ID=16 L=20	0-95235-536-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (W) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	05	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	07	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (T) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	03	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (V) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
33	CLIP; HARNESS,VLV MJX12P M/T SMOOTHER-G(Y4S) OD=9 H=9.5	1-09709-179-0	01	1	1508-
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	1508-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	14	1	1508-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	03	1	1508-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	07	1	1508-
48	CLIP; FRAME HARNESS MJX12P M/T SMOOTHER-G(Y4S) (F) ID=26 L=26	1-09701-236-0	01	1	1508-
48	CLIP; FRAME HARNESS SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	1508-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1508-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1508-
166	CLIP; HARNESS CLU SW TRANSMISSION CONTROL CABLE TYPE(C1A) OD=9 H=6	1-09709-178-0	01	1	1508-
218	CLIP; BAND,RR COMB ID=13-18 L=18	1-09709-291-0	02	1	1508-
223	CLIP; AIR TANK HARNESS (A) L=350	1-09707-183-0	04	1	1508-
223	CLIP; AIR TANK HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	02	1	1508-
262	CLIP; HARNESS TO RR COMB LAMP ID=13-18 L=18	1-09709-291-0	05	1	1508-
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	1508-
421	CLIP; FLOOR HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	1508-
425	CLIP; MODULATOR (A) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	02	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
612	CLIP; HARNESS DPD (B) ID=4.8	1-09701-218-0	02	1	1508-
612	CLIP; HARNESS DPD (A) L=112	8-94232-618-0	05	1	1508-

38 528 150 466 242 150 38 313 358 242 88 38 242 313 38 139 242 38 139 313 38 64 86 139 239 38 358 516 139 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

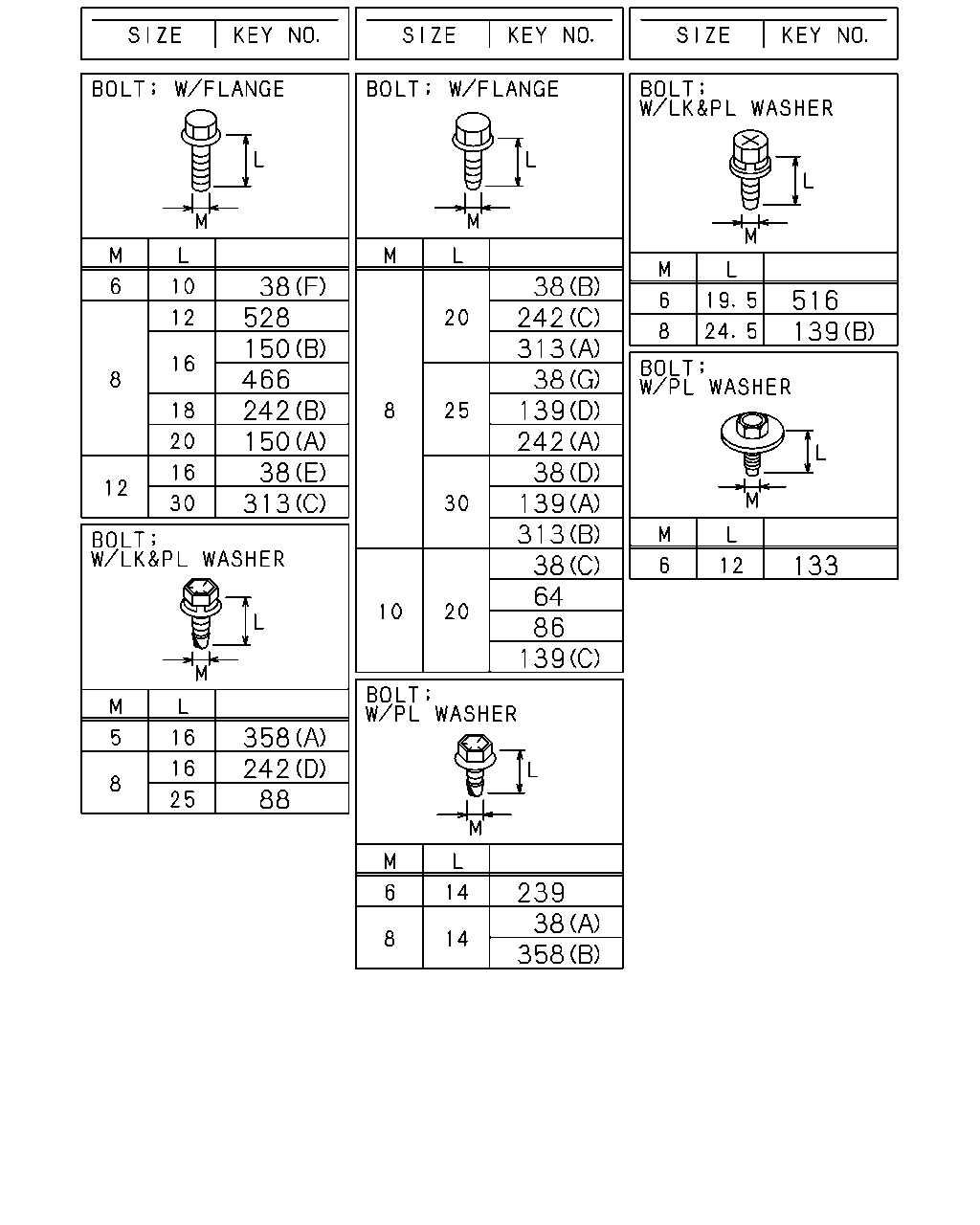

38	BOLT; CLIP,HARNESS (F) M6X10 FLANGE	0-28050-610-0	01	1	1508-
38	BOLT; CLIP,HARNESS (E) M12X16 FLANGE	0-28051-216-0	01	1	1508-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	07	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	04	1	1508-
38	BOLT; CLIP,HARNESS (G) M8X25 FLANGE	0-28650-825-0	01	1	1508-
38	BOLT; CLIP,HARNESS MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS MJT7U M/T(Y4X) (C) M10X20 FLANGE	0-28751-020-0	01	1	1508-
38	BOLT; CLIP,HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (C) M10X20 FLANGE	0-28751-020-0	01	1	1508-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	04	1	1508-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1508-
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	03	1	1508-
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (A) M8X14 W/PL WASHER	8-98164-837-0	03	1	1508-
64	SCREW; CLIP SMOOTHER-G(C1W) M10X20 FLANGE	0-28751-020-0	01	1	1508-
86	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M10X20 FLANGE	0-28751-020-0	01	1	1508-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1508-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1508-
139	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	02	1	1508-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1508-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	11	1	1508-
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	15	1	1508-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1508-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	02	1	1508-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	04	1	1508-
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	02	1	1508-
242	BOLT; BRKT,HARNESS (D) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1508-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	09	1	1508-
313	BOLT; BRKT SMOOTHER-G(C1W) (C) M12X30 FLANGE	0-28051-230-0	01	1	1508-
313	BOLT; BRKT SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	1508-
313	BOLT; BRKT EXC. SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1508-
358	BOLT; EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1508-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1508-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-
528	BOLT; CONNECTOR SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	01	1	1508-

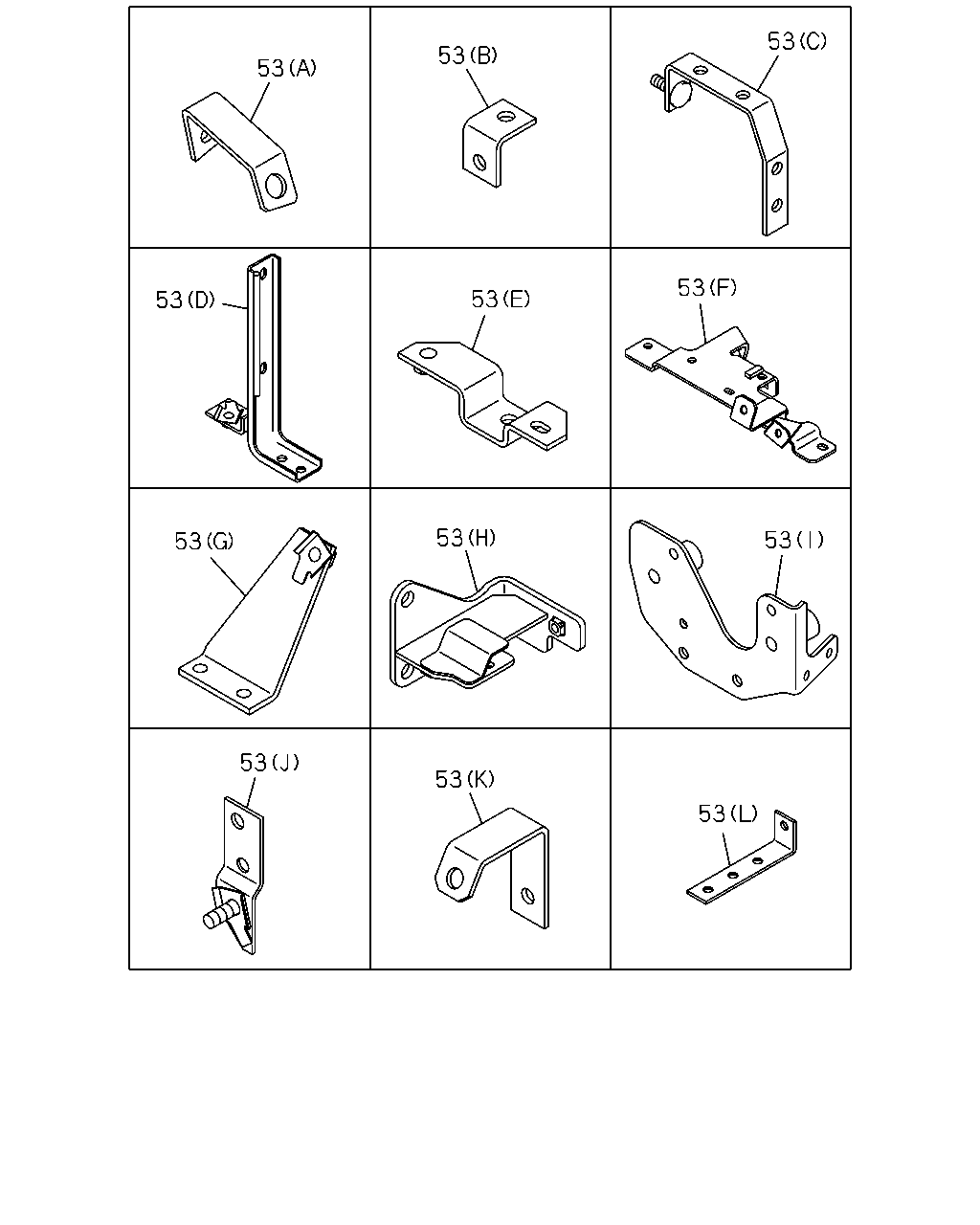

53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	1508-
53	BRACKET; HARNESS (L)	1-47479-630-1	01	1	1508-
53	BRACKET; HARNESS (K)	1-82698-640-0	01	1	1508-
53	BRACKET; HARNESS (A)	1-82698-649-0	01	1	1508-
53	BRACKET; HARNESS (B)	8-97628-971-0	02	1	1508-
53	BRACKET; HARNESS EXC. SMOOTHER-G(C1W) (B)	8-97628-971-0	02	1	1508-
53	BRACKET; HARNESS (D)	8-97632-198-1	01	1	1508-
53	BRACKET; HARNESS (E)	8-97632-888-0	01	1	1508-
53	BRACKET; HARNESS (G)	8-97636-337-0	01	1	1508-
53	BRACKET; HARNESS (H)	8-98127-603-1	01	1	1508-
53	BRACKET; HARNESS (I)	8-98178-990-0	01	1	1508-
53	BRACKET; HARNESS (C)	8-97629-540-0	01	1	1508-
53	BRACKET; HARNESS (F)	8-97637-229-0	01	1	1508-
53	BRACKET; HARNESS SMOOTHER-G(C1W) (B)	8-97628-971-0	01	1	1508-
53	BRACKET; HARNESS SMOOTHER-G(C1W) (J)	8-97635-005-0	01	1	1508-

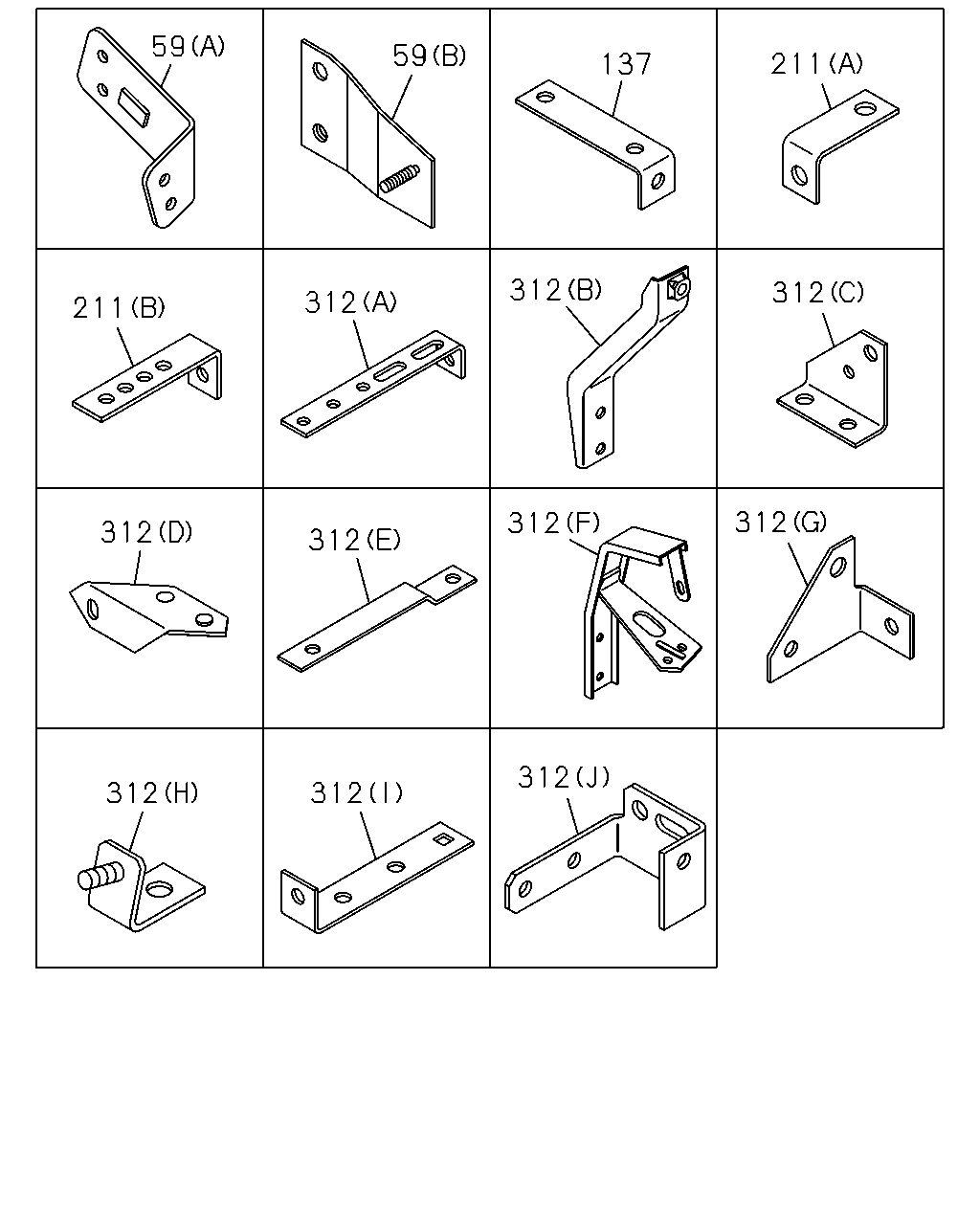

59 59 137 211 211 312 312 312 312 312 312 312 312 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	BRACKET; FRAME HARNESS (A)	8-97633-543-1	01	1	1508-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1508-
137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	1508-
211	BRACKET; AXLE HARNESS (A) L=50	1-47475-663-1	02	1	1508-
211	BRACKET; AXLE HARNESS (B)	1-82698-358-0	02	1	1508-
312	BRACKET; CLIP HARNESS (C)	8-97632-712-0	01	1	1508-
312	BRACKET; CLIP HARNESS (D)	8-97635-180-0	01	1	1508-
312	BRACKET; CLIP HARNESS (B)	8-97636-868-1	01	1	1508-
312	BRACKET; CLIP HARNESS (E)	8-98035-927-1	01	1	1508-
312	BRACKET; CLIP HARNESS (F)	8-97635-477-2	01	1	1508-
312	BRACKET; CLIP HARNESS (J)	8-98224-896-0	01	1	1508-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) (G)	1-82698-570-0	01	1	1508-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) (H)	1-82698-586-0	01	1	1508-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I) L=120	1-82699-963-0	01	1	1508-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (A) L=160 H=40	8-97629-006-0	01	1	1508-

16 171 104 206 305 301 16 102 48 194 380 14 301 194 16 305 48 102 51 175 223 208 380 142 142 425 16 51 142 612 16 16 16 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=250	1-09707-126-0	02	1	1508-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (J) ID=11 L=20	0-95235-035-0	01	1	1508-
16	CLIP; HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1508-
16	CLIP; HARNESS (K) ID=24 L=27	1-09700-809-0	01	1	1508-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	02	1	1508-
16	CLIP; HARNESS (O) ID=31 H=30 L=35	1-09700-994-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=18 L=28	1-09701-067-0	01	1	1508-
16	CLIP; HARNESS (P) ID=18 H=23 L=28	1-09701-070-0	01	1	1508-
16	CLIP; HARNESS (X) ID=16 L=50	1-09701-158-0	01	1	1508-
16	CLIP; HARNESS (R) ID=15 L=28	1-09701-216-0	02	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (C) L=350	1-09707-183-0	08	1	1508-
16	CLIP; HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
16	CLIP; HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
16	CLIP; HARNESS (V) L=250	5-09707-030-1	04	1	1508-
16	CLIP; HARNESS (W) L=140	5-09707-031-1	02	1	1508-
16	CLIP; HARNESS (Y) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	01	1	1508-
16	CLIP; HARNESS (AA) OD=9 H=6	8-97368-793-0	03	1	1508-
16	CLIP; HARNESS (Z) ID=17 L=20	8-97619-251-0	07	1	1508-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	1508-
16	CLIP; HARNESS (AB) ID=20 L=50	9-09917-430-0	10	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	03	1	1508-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	1508-
16	CLIP; HARNESS (AD) L=155	8-97173-307-0	02	1	1508-
16	CLIP; HARNESS (U) ID=11 H=20 L=20	8-98033-780-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (AI) ID=16 L=20	0-95235-536-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (W) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	05	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	07	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (T) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	03	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (V) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	1508-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	14	1	1508-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	03	1	1508-
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	07	1	1508-
48	CLIP; FRAME HARNESS MJX12P M/T SMOOTHER-G(Y4S) (F) ID=26 L=26	1-09701-236-0	01	1	1508-
48	CLIP; FRAME HARNESS SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	1508-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1508-
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	02	1	1508-
102	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	01	1	1508-
102	CLIP; BAND THROTTLE CONTROL SYSTEM<6XH> (B) L=350	1-09707-183-0	01	1	1508-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	02	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1508-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1508-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1508-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1508-
171	CLIP; STARTER HARNESS L=140	5-09707-031-1	02	1	1508-
175	CLIP; AIR TANK L=350	1-09707-183-0	01	1	1508-
194	CLIP; BAND (B) L=300	1-09707-001-1	03	1	1508-
194	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	09	1	1508-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1508-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1508-
223	CLIP; AIR TANK HARNESS (A) L=350	1-09707-183-0	04	1	1508-
223	CLIP; AIR TANK HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	02	1	1508-
301	CLIP; BAND BRK LK SW (A) L=250	5-09707-030-1	01	1	1508-
301	CLIP; BAND BRK LK SW PARKING BRAKE - BRAKE LOCK(6LL) (B) L=140	5-09707-031-1	02	1	1508-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1508-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1508-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1508-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	02	1	1508-
425	CLIP; MODULATOR (A) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	02	1	1508-
612	CLIP; HARNESS DPD (B) ID=4.8	1-09701-218-0	02	1	1508-
612	CLIP; HARNESS DPD (A) L=112	8-94232-618-0	05	1	1508-

148 168 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (J) ID=11 L=20	0-95235-035-0	01	1	1508-
16	CLIP; HARNESS (F) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1508-
16	CLIP; HARNESS (K) ID=24 L=27	1-09700-809-0	01	1	1508-
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	1508-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	02	1	1508-
16	CLIP; HARNESS (O) ID=31 H=30 L=35	1-09700-994-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=18 L=28	1-09701-067-0	01	1	1508-
16	CLIP; HARNESS (P) ID=18 H=23 L=28	1-09701-070-0	01	1	1508-
16	CLIP; HARNESS (X) ID=16 L=50	1-09701-158-0	01	1	1508-
16	CLIP; HARNESS (R) ID=15 L=28	1-09701-216-0	02	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (C) L=350	1-09707-183-0	08	1	1508-
16	CLIP; HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (D) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AG) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
16	CLIP; HARNESS (E) ID=13-18 L=18	1-09709-291-0	03	1	1508-
16	CLIP; HARNESS (T) ID=5-12 L=14.5	1-09987-221-0	03	1	1508-
16	CLIP; HARNESS (V) L=250	5-09707-030-1	04	1	1508-
16	CLIP; HARNESS (W) L=140	5-09707-031-1	02	1	1508-
16	CLIP; HARNESS (Y) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	01	1	1508-
16	CLIP; HARNESS (AA) OD=9 H=6	8-97368-793-0	03	1	1508-
16	CLIP; HARNESS (Z) ID=17 L=20	8-97619-251-0	07	1	1508-
16	CLIP; HARNESS (AF) ID=14 L=44	9-09917-427-0	05	1	1508-
16	CLIP; HARNESS (AB) ID=20 L=50	9-09917-430-0	10	1	1508-
16	CLIP; HARNESS (AC) OD=7 H=1.2	8-94364-750-0	03	1	1508-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	1508-
16	CLIP; HARNESS (AD) L=155	8-97173-307-0	02	1	1508-
16	CLIP; HARNESS (U) ID=11 H=20 L=20	8-98033-780-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) (AI) ID=16 L=20	0-95235-536-0	02	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (W) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS (N) ID=24 L=32	1-09700-766-1	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (C) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS MJT7U M/T(Y4X) BRAKE SYSTEM RETARDER HEAVY DUTY VAR2<BHG> (H) ID=10 H=25 L=20	1-09700-519-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	05	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (D) OD=9 H=6	1-09709-178-0	07	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) EXC. PARKING BRAKE - BRAKE LOCK(6LL) (T) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (A) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) L=350	1-09707-183-0	03	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (V) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1508-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
